XZB70R-ZGMSY (2018)
Toyota Coaster

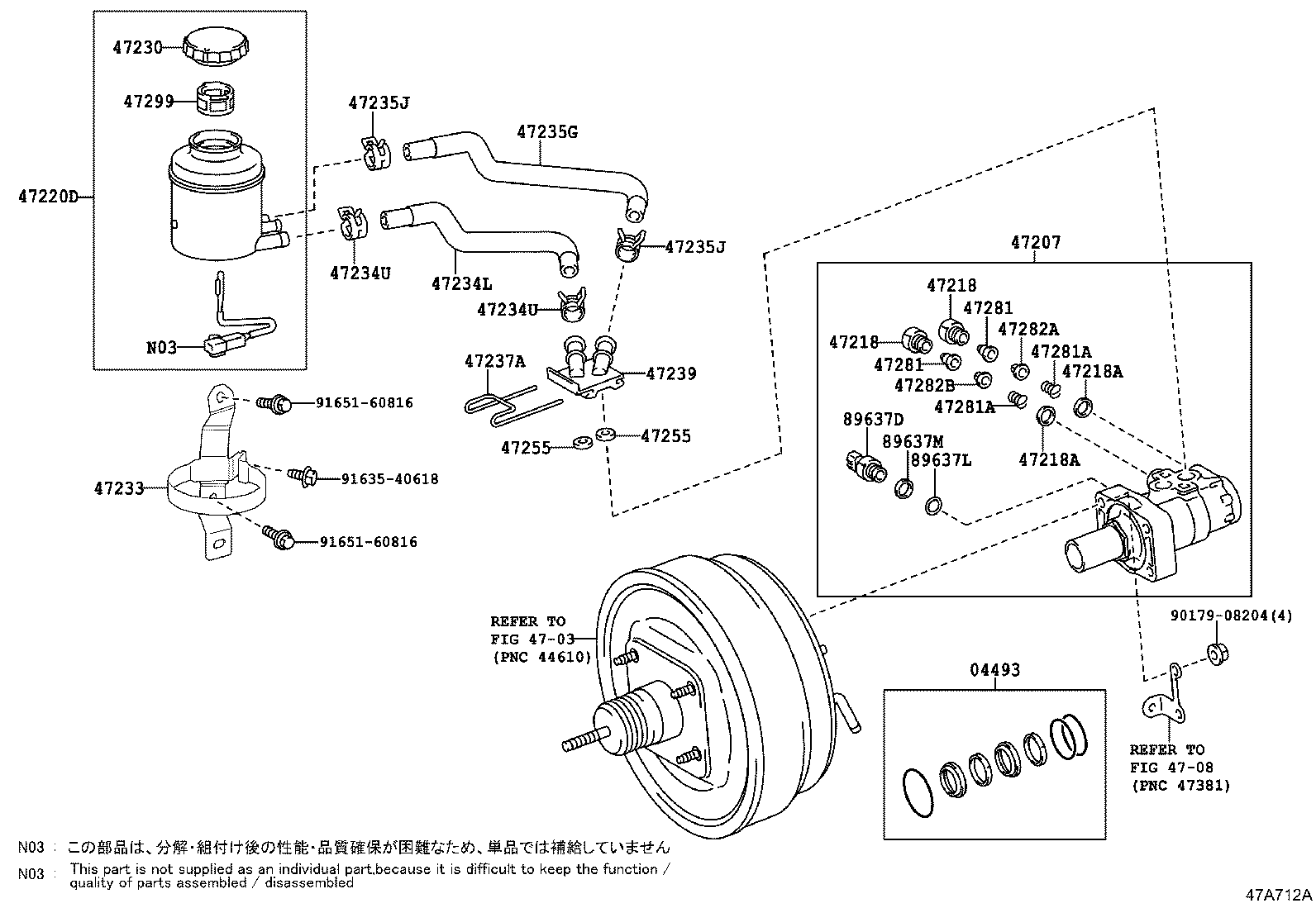

(1701-2101)XZB70..4FC ; (1701-2101)XZB70..20S,22S..5F..EX,STD ; (1701-2101)BZB60,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37022 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36120 |
BZB60,HZB60,70,XZB60,70,80..RHD..5F..(GEN,SA) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36160 |
HZB60,70..RHD |
1 | ||
| 47234-36210 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36160 |
HZB60,70..RHD |
1 | ||
| 47235-36220 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||

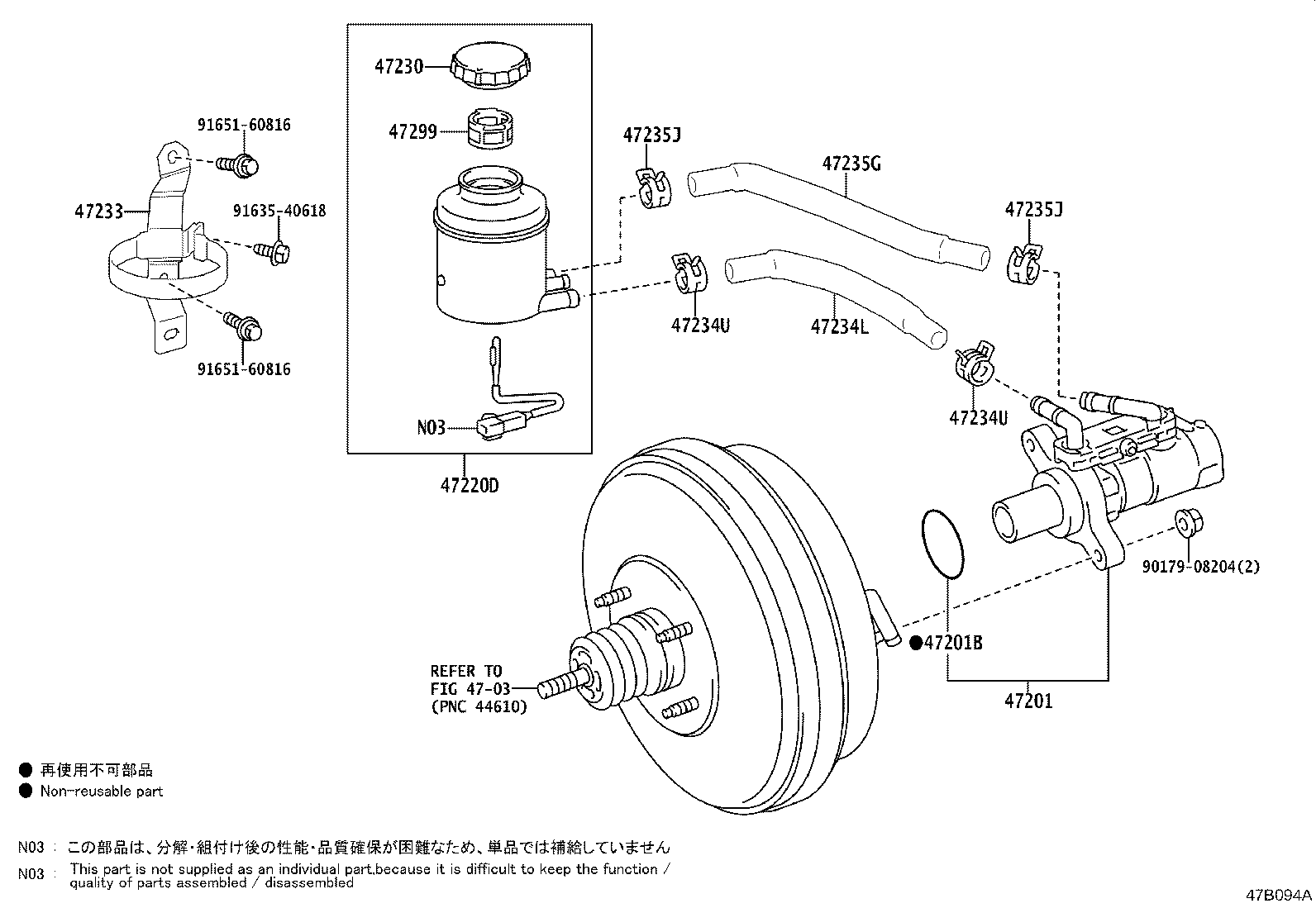

(1801- )XZB70..6FC ; (1801- )RHD..22S,23S,29S..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-36382 |
HZB60,70..RHD |
1 | ||
| 47201-37280 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36120 |
BZB60,HZB60,70,XZB60,70,80..RHD..5F..(GEN,SA) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36160 |
HZB60,70..RHD |
1 | ||
| 47234-36210 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36160 |
HZB60,70..RHD |
1 | ||
| 47235-36220 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
