XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1801- )XZB70,80..RHD..01S,22S,23S,29S..5F..GEN,SA

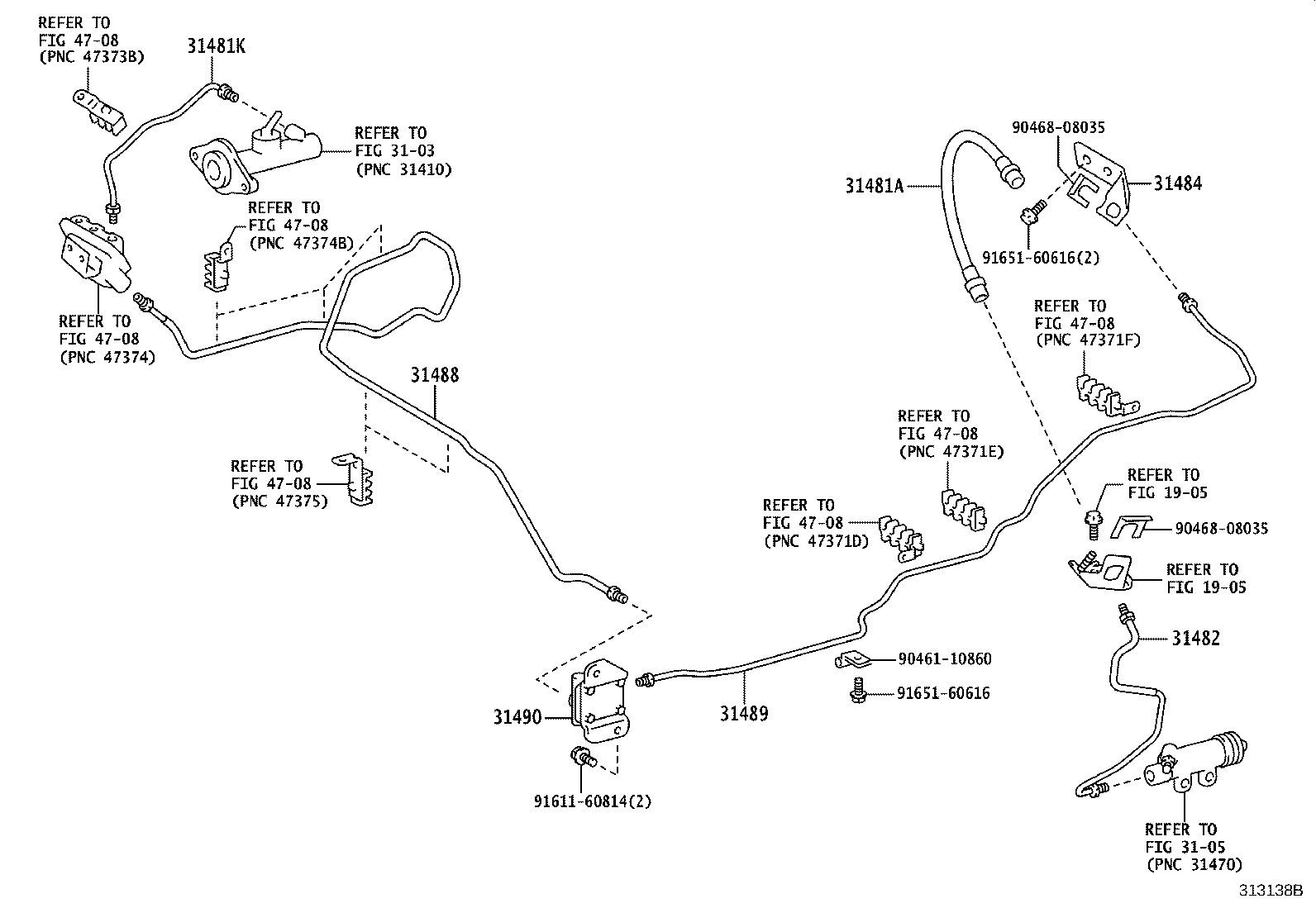

Click highlighted areas on diagram

SINGAPORE SPEC(XZB80 ONLY)

diagram 1905 1905 3103 3105 31481A 31481K 31482 31484 31488 31489 31490 4708 4708 4708 4708 4708 4708 4708 9046110860 9046808035 9046808035 9161160814 9165160616 9165160616
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90947-02E18

XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW)

 1
90947-02K77

BZB60,HZB60,70

 1
90947-02K79

TRB60,70

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-36451

BZB60,XZB60,70,80..RHD..5F..(GEN,SA)

 1
31481-36461

HZB60,70..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36310

BZB60,70

 1
31482-36240

TRB60,70

 1
31482-36230

HZB60,70

 1
31482-36330

XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW)

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36240

XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW)

 1
31484-36230

BZB60,HZB60,70,TRB60,70

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36692

BZB60,70

 1
31488-36800

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
31488-36790

XZB70..RHD..(22S,29S)..GEN

 1
31488-36642

HZB60,70..RHD

 1
31488-V4020

XZB70,80..RHD..5F..(GEN,SA)

 1
31488-V4040

HZB60,70..RHD

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36350

XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
31489-36360

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
31489-36281

BZB60,70

 1
31489-36260

HZB60,70..RHD

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-36030

BZB60,XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW)

 1
Common parts
90461-10860
90468-08035
91611-60814
91651-60616
