XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1908)N04C

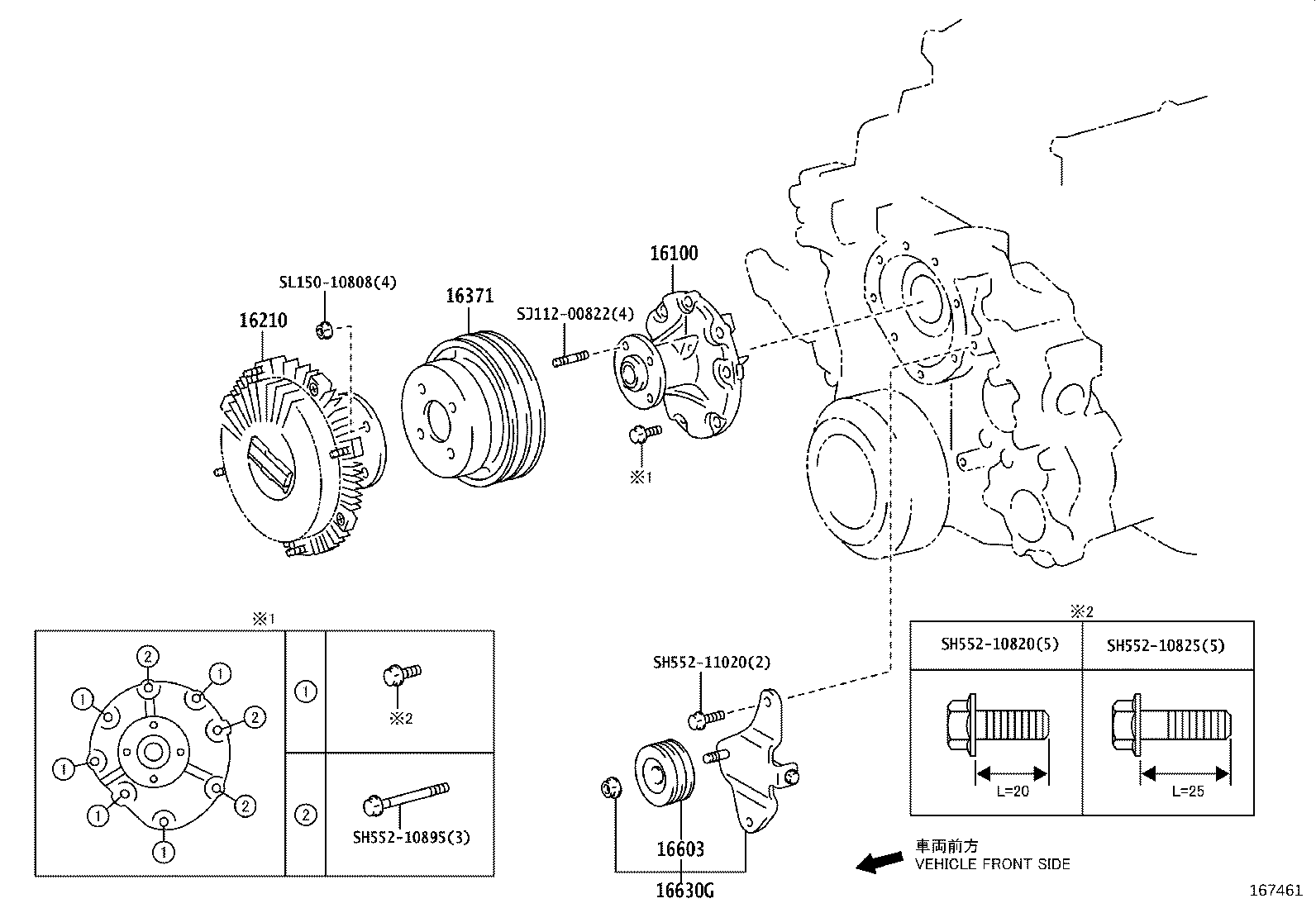

Click highlighted areas on diagram

diagram 16100 16210 16371 16603 16630G SH55210820 SH55210825 SH55210895 SH55211020 SJ11200822 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-E0B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

TYPE B:REFER ILLUST.

 1
16100-E0B61

N04C..XZB60,70

TYPE A:REFER ILLUST.

 1
16100-E0B60

N04C..XZB60,70

 1
16100-E0B71

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16210 - COUPLING ASSY, FLUID
S1625-01850

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16371 - PULLEY, FAN
16107-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-E0031

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16630G - PULLEY ASSY, IDLER
16630-E0321

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16630-78150

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
SH552-10820
SH552-10825
SH552-10895
SH552-11020
SJ112-00822
SL150-10808

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

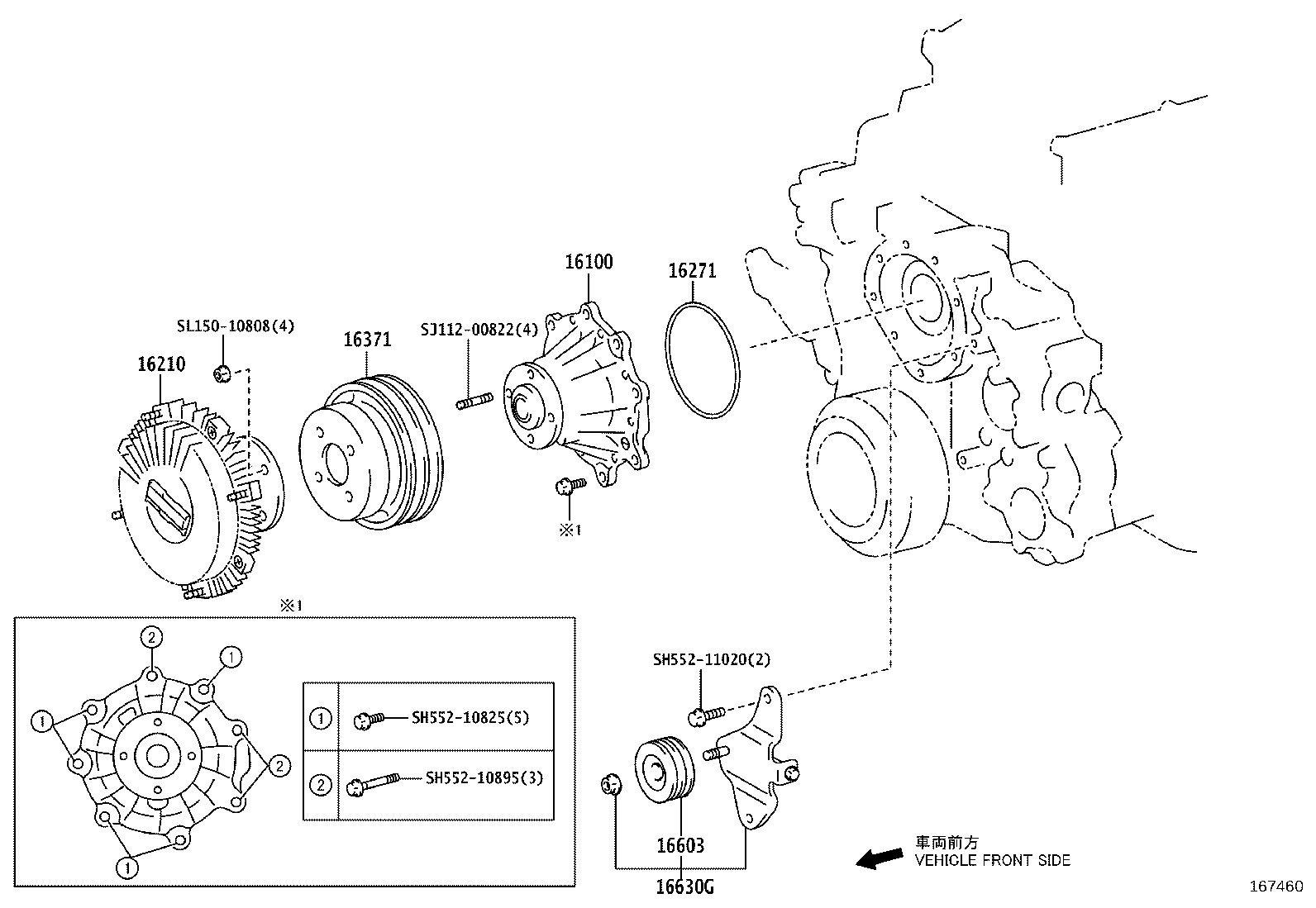

Click highlighted areas on diagram

EURO 3 OR EURO 4 OR EURO 6

diagram 16100 16210 16271 16371 16603 16630G SH55210825 SH55210895 SH55211020 SJ11200822 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-E0B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

TYPE B:REFER ILLUST.

 1
16100-E0B61

N04C..XZB60,70

TYPE A:REFER ILLUST.

 1
16100-E0B60

N04C..XZB60,70

 1
16100-E0B71

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16210 - COUPLING ASSY, FLUID
S1625-01850

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16271 - GASKET, WATER PUMP
16271-78010

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16371 - PULLEY, FAN
16107-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-E0031

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16630G - PULLEY ASSY, IDLER
16630-E0321

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16630-78150

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
SH552-10825
SH552-10895
SH552-11020
SJ112-00822
SL150-10808

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

EURO 5

diagram 16100 16210 16371 16603 16630G SH55210820 SH55210825 SH55210895 SH55211020 SJ11200822 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-E0B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

TYPE B:REFER ILLUST.

 1
16100-E0B61

N04C..XZB60,70

TYPE A:REFER ILLUST.

 1
16100-E0B60

N04C..XZB60,70

 1
16100-E0B71

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16210 - COUPLING ASSY, FLUID
S1625-01850

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16371 - PULLEY, FAN
16107-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-E0031

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16630G - PULLEY ASSY, IDLER
16630-E0321

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16630-78150

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
SH552-10820
SH552-10825
SH552-10895
SH552-11020
SJ112-00822
SL150-10808
