XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

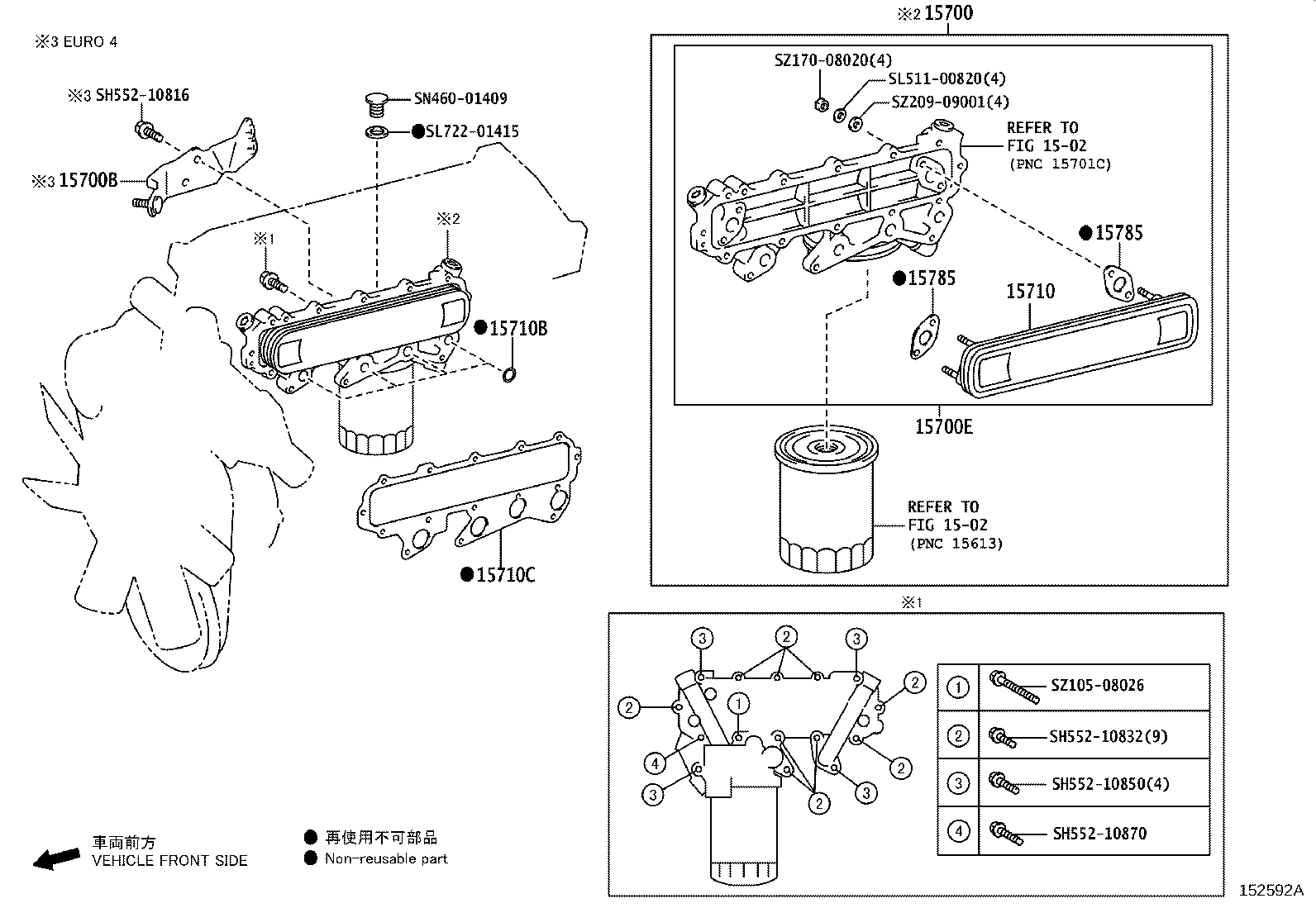

(1701-1908)N04C..XZB60..GCC ; (1701-1908)N04C..XZB70..19S,22S,23S,25S,29S,30S..GCC,

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15700E 15710 15710B 15710C 15785 15785 SH55210816 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-E0013

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
15700-78140

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER
S1570-EV020

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
15710 - COOLER ASSY, OIL
16491-78140

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
S1571-22250

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
Common parts
SH552-10816
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502

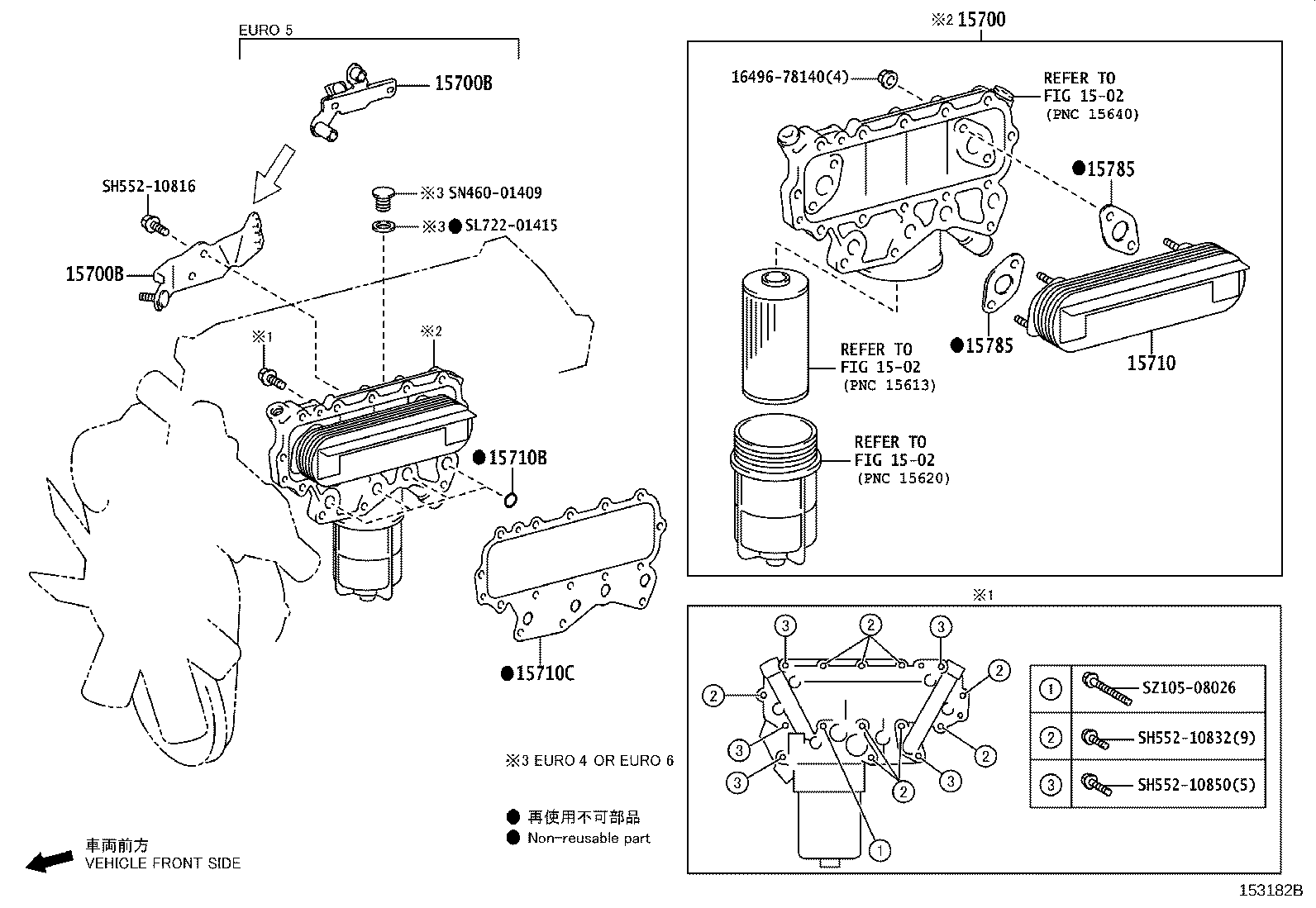

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

diagram 1502 1502 1502 15700 15700B 15700B 15710 15710B 15710C 15785 15785 1649678140 SH55210816 SH55210832 SH55210850 SL72201415 SN46001409 SZ10508026
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-E0013

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
15700-78140

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
15710 - COOLER ASSY, OIL
16491-78140

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
S1571-22250

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
Common parts
16496-78140
SH552-10816
SH552-10832
SH552-10850
SL722-01415
SN460-01409
SZ105-08026
Linked diagrams
1502
