XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1908)N04C..XZB60..GCC ; (1701-1908)N04C..XZB70..19S,22S,23S,25S,29S,30S..GCC,

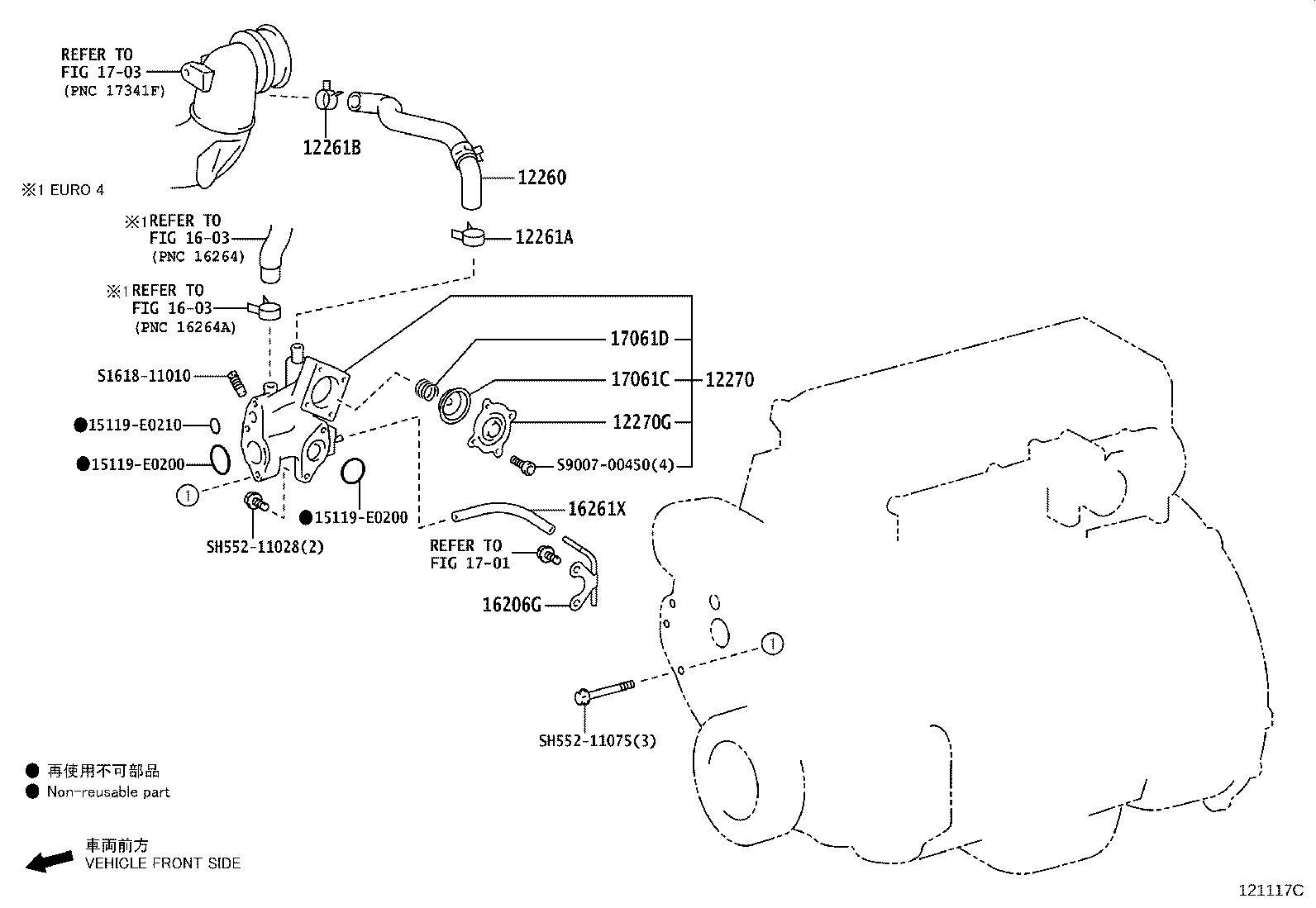

Click highlighted areas on diagram

diagram 12260 12261A 12261B 12270 12270G 15119E0200 15119E0200 15119E0210 1603 1603 16206G 16261X 1701 1703 17061C 17061D S161811010 S900700450 SH55211028 SH55211075
Part # Description Qty Price
12260 - HOSE ASSY, VENTILATION
12260-E0020

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZB60,70..(17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0200

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12270-78091

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12270G - COVER
S9007-57139

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206G - PIPE SUB-ASSY, COOLANT BY-PASS
S1608-75320

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16261X - HOSE, WATER
SZ920-34294

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
17061C - DIAPHRAGM SUB-ASSY
17061-EV010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
17061D - SPRING L
SZ010-70053

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
Common parts
15119-E0200
15119-E0210
S1618-11010
S9007-00450
SH552-11028
SH552-11075
Linked diagrams
1603
1701
1703

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

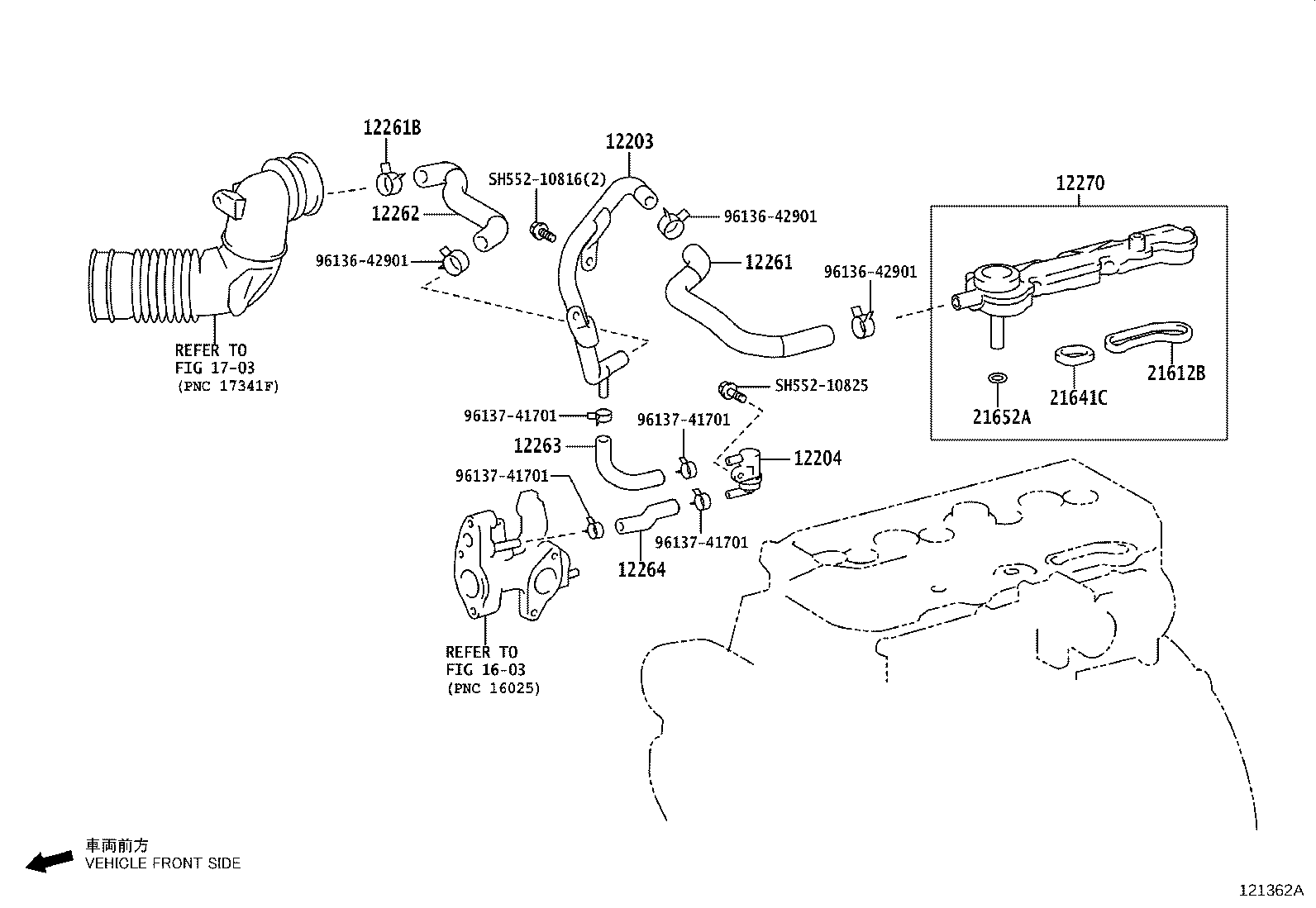

Click highlighted areas on diagram

EURO 3 OR EURO 4 OR EURO 6

diagram 12203 12204 12261 12261B 12262 12263 12264 12270 1603 1703 21612B 21641C 21652A 9613642901 9613642901 9613642901 9613741701 9613741701 9613741701 9613741701 SH55210816 SH55210825
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78240

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-78010

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12261 - HOSE, VENTILATION
12261-78630

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
12262 - HOSE, VENTILATION, NO.2
12261-78640

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12263 - HOSE, VENTILATION, NO.3
12261-78650

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12264 - HOSE, VENTILATION, NO.4
12261-78660

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0200

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12270-78091

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
21612B - GASKET
21612-78050

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
21641C - GASKET
21641-78050

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
21652A - RING, O
21652-78050

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
96136-42901
96137-41701
SH552-10816
SH552-10825
Linked diagrams
1603
1703

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

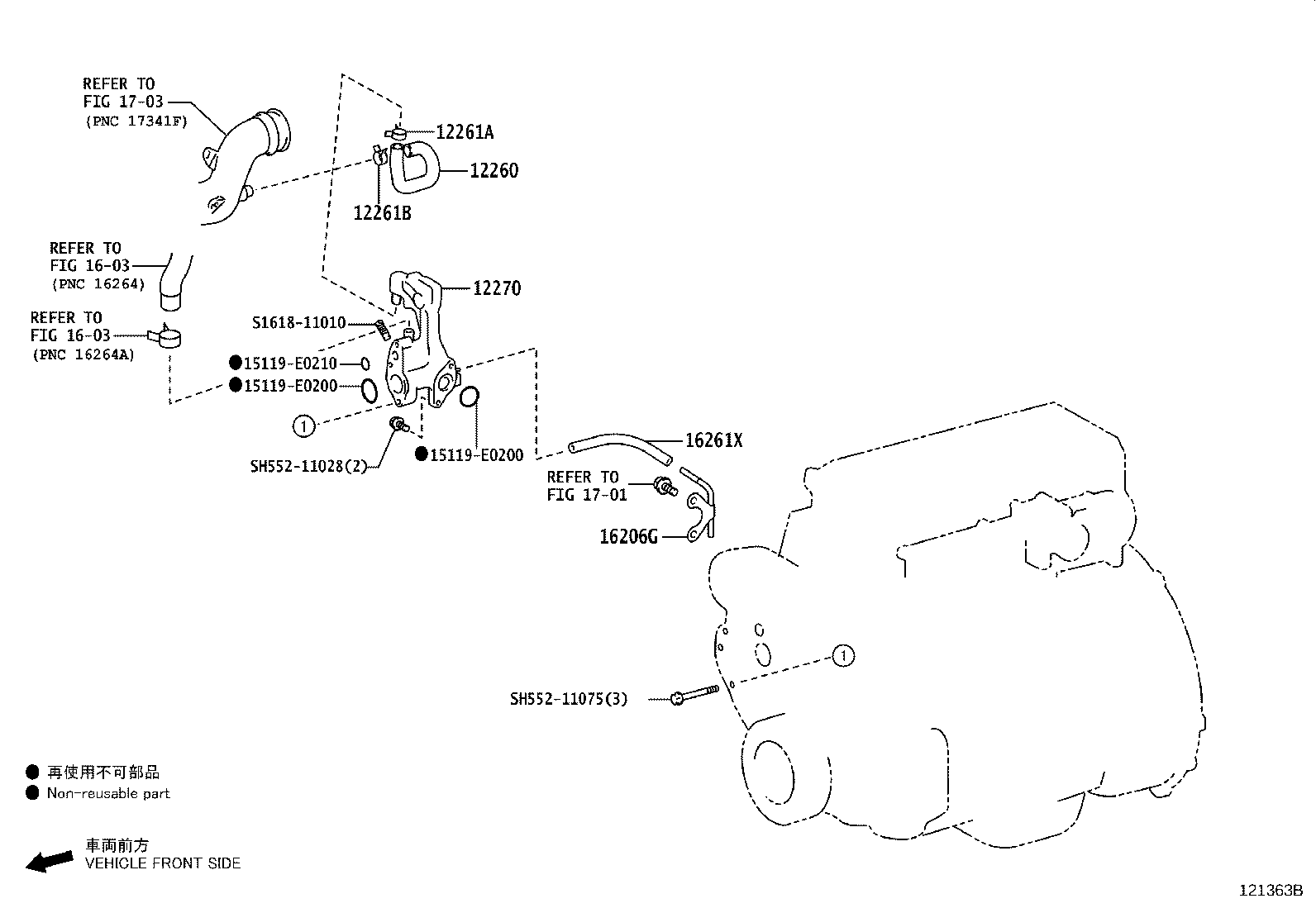

Click highlighted areas on diagram

EURO 5

diagram 12260 12261A 12261B 12270 15119E0200 15119E0200 15119E0210 1603 1603 16206G 16261X 1701 1703 S161811010 SH55211028 SH55211075
Part # Description Qty Price
12260 - HOSE ASSY, VENTILATION
12260-E0020

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZB60,70..(17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0200

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
12270-78091

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206G - PIPE SUB-ASSY, COOLANT BY-PASS
S1608-75320

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16261X - HOSE, WATER
SZ920-34294

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
Common parts
15119-E0200
15119-E0210
S1618-11010
SH552-11028
SH552-11075
Linked diagrams
1603
1701
1703
