XZB70R-ZGMSY (2018)
Toyota Coaster

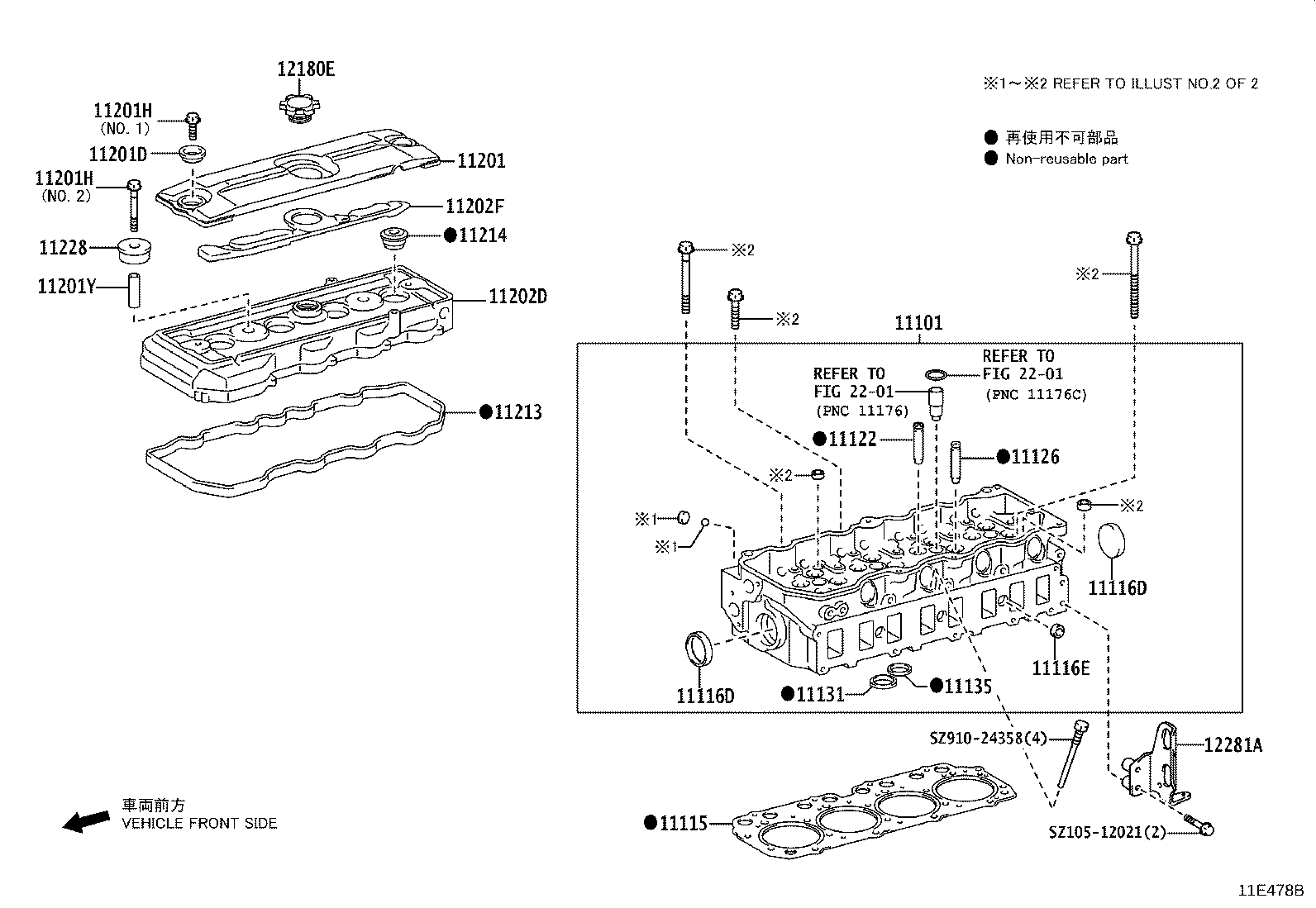

ILLUST NO. 1 OF 2(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW
EURO 5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78210 |
N04C..XZB60,70 |
1 | ||
| 11101-78221 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78100 |
N04C..XZB70 |
1 | ||
| 11115-78101 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SN411-02216 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
11 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| S1113-11540 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-E0050 |
N04C..XZB70 |
1 | ||
| 11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER) | ||||
| S1129-61030 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201Y - SPACER(FOR CYLINDER HEAD COVER) | ||||
| SZ910-16303 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2 | ||||
| 11211-E0011 |
N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN) |
1 | ||
| 11201-78061 |
N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA) |
1 | ||
| 11202F - RUBBER, CUSHION(FOR CYLINDER HEAD COVER) | ||||
| S1123-11090 |
N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78070 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78050 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12081-E0021 |
N04C..XZB70;N04C..XZB60..GEN |
1 | ||
| 12081-78050 |
N04C..XZB70..(02S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| SZ105-12021 | ||||
| SZ910-24358 | ||||
| Linked diagrams | ||||
| 2201 | ||||
ILLUST NO. 1 OF 2(1701-1908)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78210 |
N04C..XZB60,70 |
1 | ||
| 11101-78221 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78100 |
N04C..XZB70 |
1 | ||
| 11115-78101 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SN411-02216 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
11 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| S1113-11540 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-E0050 |
N04C..XZB70 |
1 | ||
| 11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER) | ||||
| S1129-61030 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201Y - SPACER(FOR CYLINDER HEAD COVER) | ||||
| SZ910-16303 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2 | ||||
| 11211-E0011 |
N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN) |
1 | ||
| 11201-78061 |
N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA) |
1 | ||
| 11202F - RUBBER, CUSHION(FOR CYLINDER HEAD COVER) | ||||
| S1123-11090 |
N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78070 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78050 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12081-E0021 |
N04C..XZB70;N04C..XZB60..GEN |
1 | ||
| 12081-78050 |
N04C..XZB70..(02S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| SZ105-12021 | ||||
| SZ910-24358 | ||||
| Linked diagrams | ||||
| 2201 | ||||

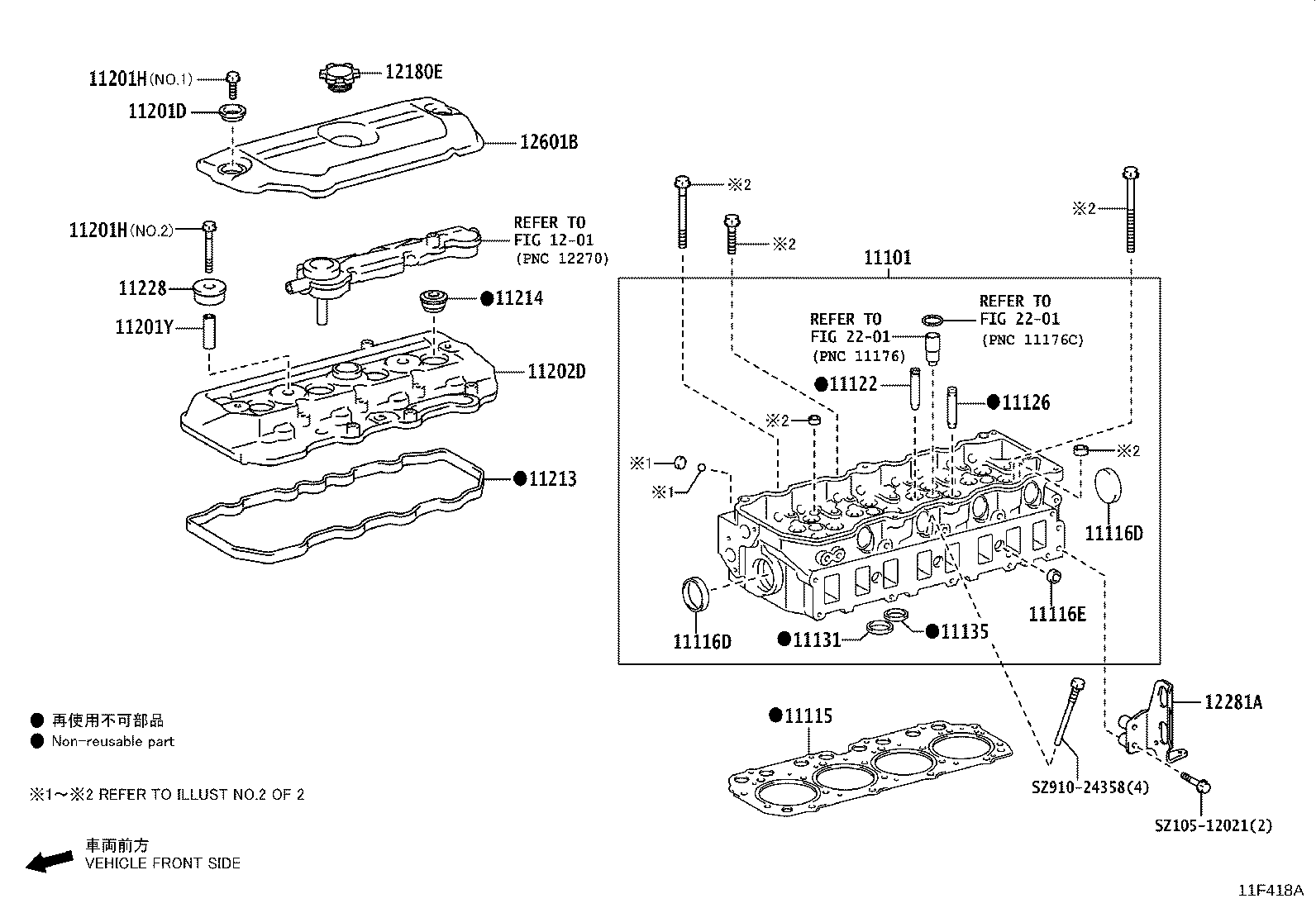

ILLUST NO. 1 OF 2(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW
EXCEPT EURO 5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78210 |
N04C..XZB60,70 |
1 | ||
| 11101-78221 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78100 |
N04C..XZB70 |
1 | ||
| 11115-78101 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SN411-05016 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SN411-02216 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
11 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| S1112-21220 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| S1113-11540 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) STD |
8 | ||
| 11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER) | ||||
| S1129-61030 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| SH552-10816 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| SH552-10865 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
2 | ||
| 11201Y - SPACER(FOR CYLINDER HEAD COVER) | ||||
| SZ910-16303 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2 | ||||
| 11211-E0011 |
N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN) |
1 | ||
| 11201-78061 |
N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78070 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78050 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-E0010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12081-E0021 |
N04C..XZB70;N04C..XZB60..GEN |
1 | ||
| 12081-78050 |
N04C..XZB70..(02S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-78030 |
N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| SZ105-12021 | ||||
| SZ910-24358 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2201 | ||||
