XZB70R-ZEPQY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )4FC

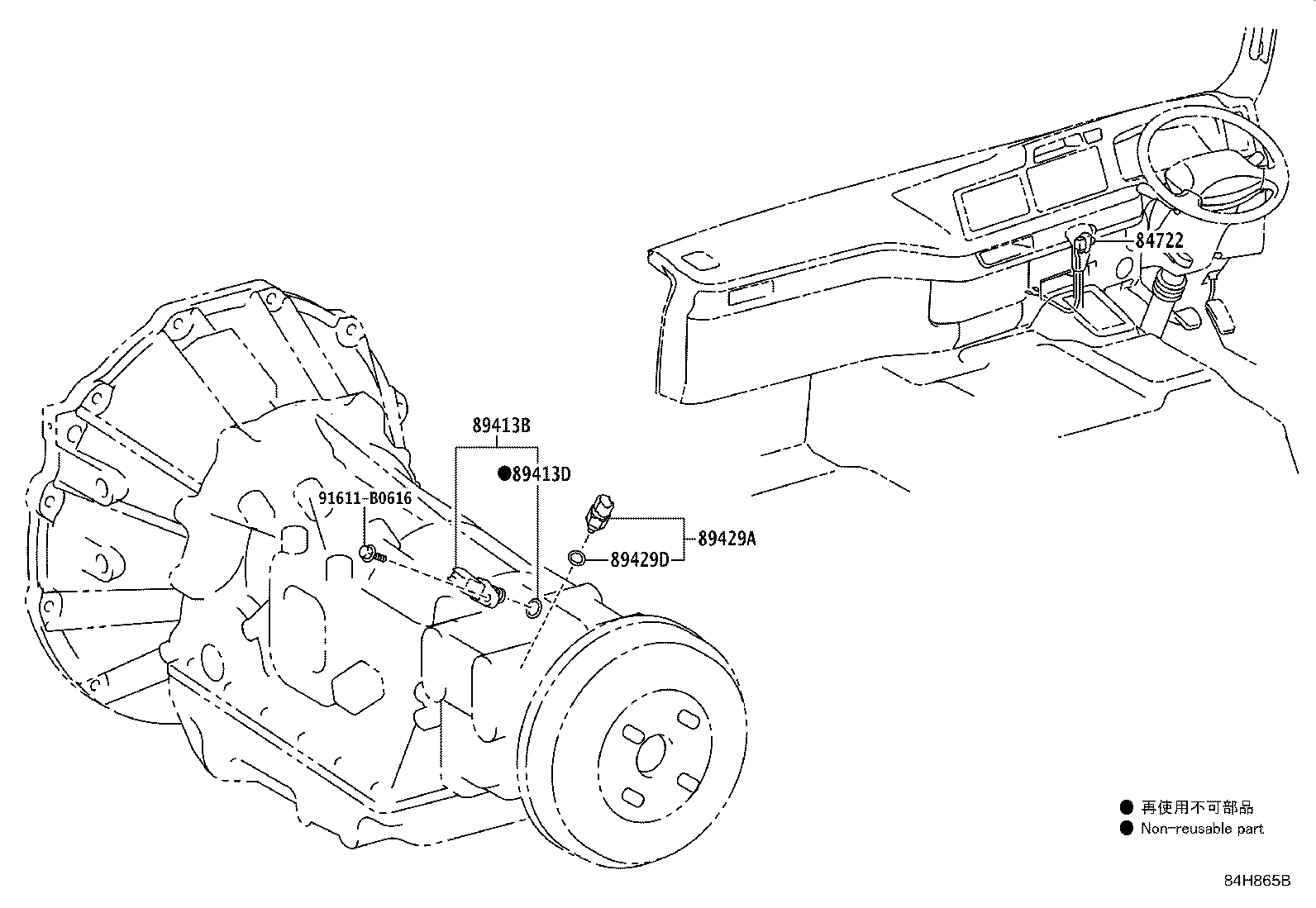

Click highlighted areas on diagram

A444E

diagram 84722 89413B 89413D 89429A 89429D 91611B0616
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-36040C0

XZB70,80..4FC

BLACK,TRIM1#

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32011

XZB70,80..4FC

 1
89413-32010

XZB70..4FC

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

XZB70,80..4FC

 1
89429A - SENSOR, TEMPERATURE
89429-34010

XZB70,80..4FC

 1
89429D - RING, O(FOR TEMPERATURE SENSOR)
90301-11006

XZB70,80..4FC

 1
Common parts
91611-B0616
