XZB70R-ZEPQY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )XZB70..ATM..DX,EX ; (1701- )HZB70,XZB80..RHD..DX,EX ; (1701- )RHD.

Click highlighted areas on diagram

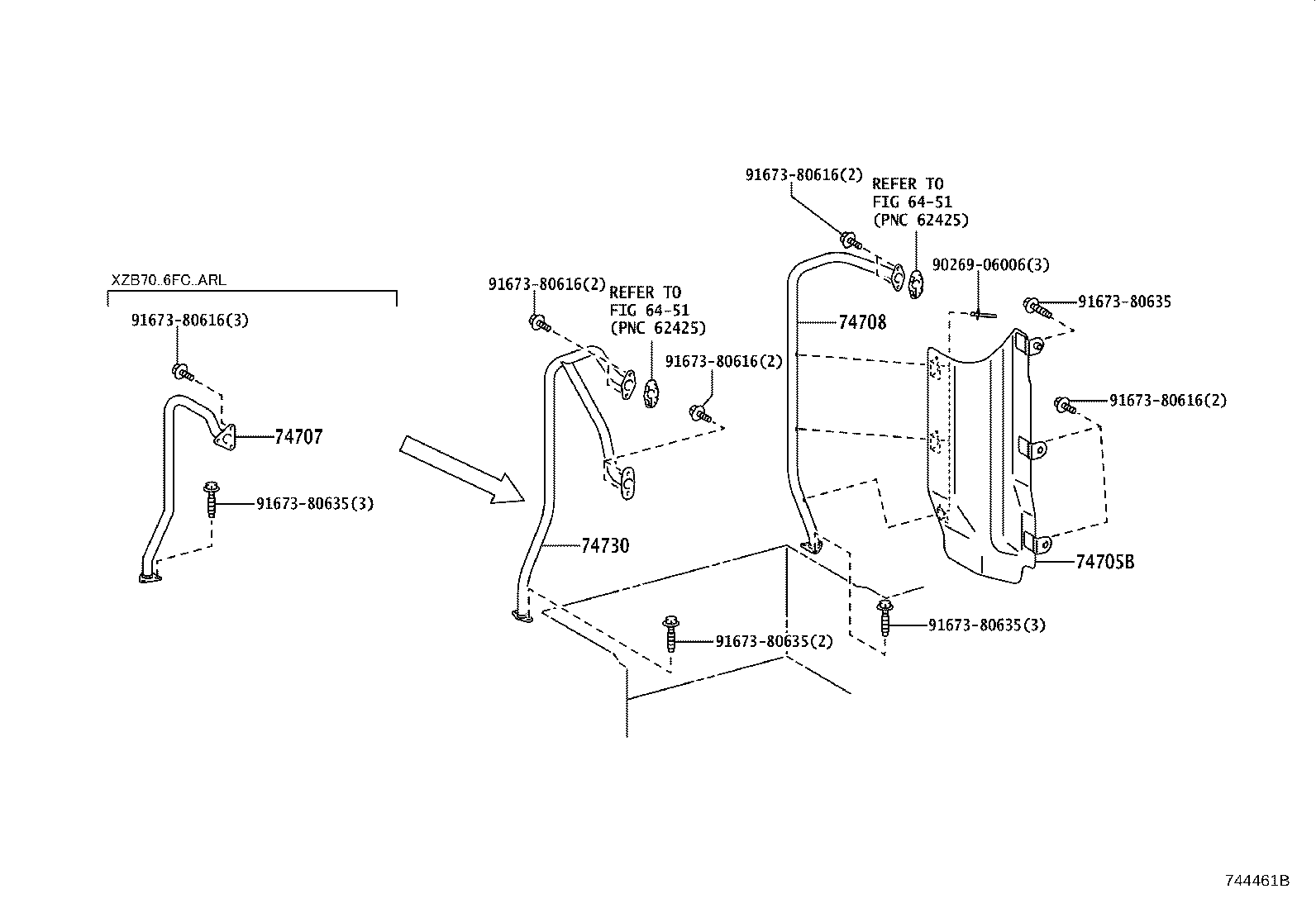

GLIDING DOOR

diagram 6451 6451 74705B 74707 74708 74730 9026906006 9167380616 9167380616 9167380616 9167380616 9167380616 9167380635 9167380635 9167380635 9167380635
Part # Description Qty Price
74705B - NET SUB-ASSY, HAND GRIP PROTECTOR
74705-36060B0

XZB70,80..4FC..(DX,EX)

LT.GRAY,TRIM1#

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74708-36210

BZB60,70,XZB60

CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP),TYPE B:REFER ILLUST.

 1
74708-36130

XZB70,80..4FC..(DX,EX)

 1
74730 - FRAME ASSY, HAND GRIP
74730-36240

XZB70,80..4FC..EX

 1
74730-36250

XZB70..EX

CENTER DOOR-FOLDING(AUTO)

 1
Common parts
90269-06006
91673-80616
91673-80635
Linked diagrams
6451

(1701- )6FC..STD ; (1701- )XZB70..RHD..4FC,5F..EX,STD ; (1701- )BB60,BZB60

Click highlighted areas on diagram

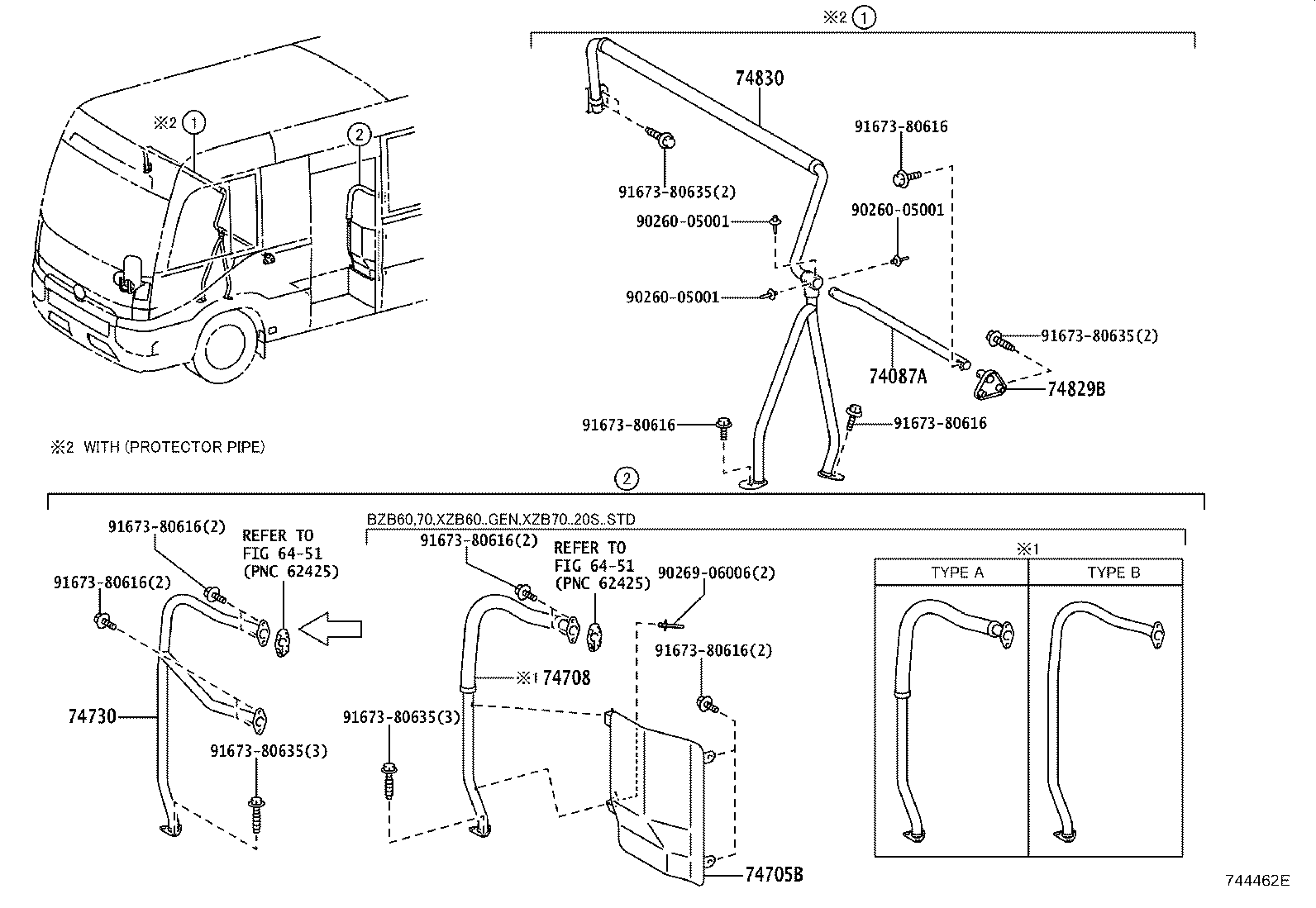

FOLDING DOOR

diagram 6451 6451 74087A 74705B 74708 74730 74829B 74830 9026005001 9026005001 9026005001 9026906006 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380635 9167380635 9167380635 9167380635
Part # Description Qty Price
74705B - NET SUB-ASSY, HAND GRIP PROTECTOR
74705-36060B0

XZB70,80..4FC..(DX,EX)

LT.GRAY,TRIM1#

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74708-36210

BZB60,70,XZB60

CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP),TYPE B:REFER ILLUST.

 1
74708-36130

XZB70,80..4FC..(DX,EX)

 1
74730 - FRAME ASSY, HAND GRIP
74730-36240

XZB70,80..4FC..EX

 1
74730-36250

XZB70..EX

CENTER DOOR-FOLDING(AUTO)

 1
Common parts
90260-05001
90269-06006
91673-80616
91673-80635
Linked diagrams
6451
