XZB70R-ZEPQY (2017)
Toyota Coaster
(1701- )XZB70..LHD..GEN ; (1701- )BB60,HZB60,70,TRB60..GEN

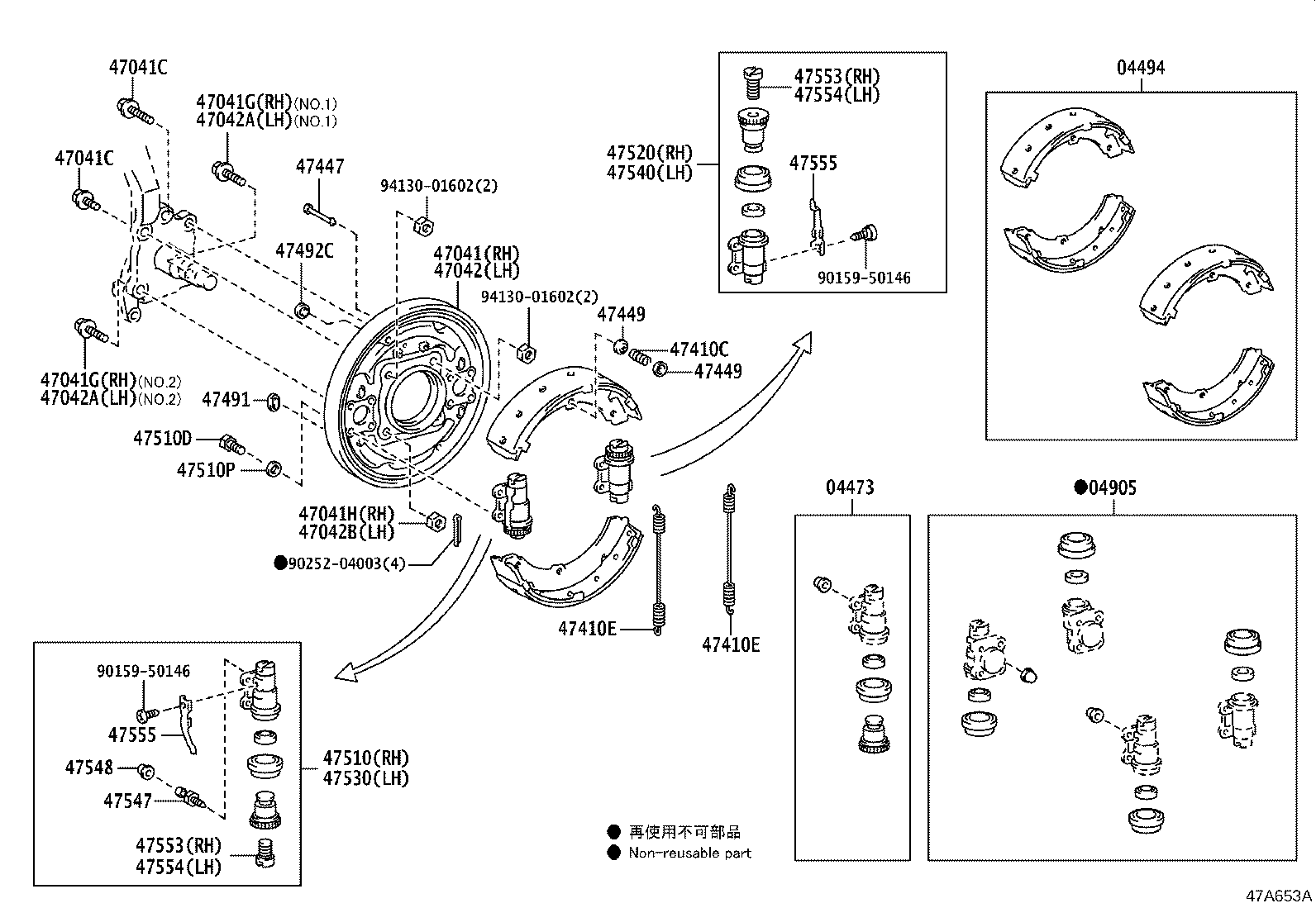

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36040 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN LH |
2 | ||
| 04473-36030 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN RH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36320 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN MARK NBK LN519 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36181 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16045 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN *16-1.5PX60-26.5 |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16045 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN *16-1.5PX60-26.5 |
2 | ||
| 47041G - BOLT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 90102-16002 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.2:REFER ILLUST. |
1 | ||
| 90102-16001 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.1:REFER ILLUST. |
1 | ||
| 47041G - BOLT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 90102-16002 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.2:REFER ILLUST. |
1 | ||
| 90102-16001 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.1:REFER ILLUST. |
1 | ||
| 47041H - NUT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 94142-61600 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36181 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47042A - BOLT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 90102-16002 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.2:REFER ILLUST. |
1 | ||
| 90102-16001 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.1:REFER ILLUST. |
1 | ||
| 47042A - BOLT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 90102-16002 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.2:REFER ILLUST. |
1 | ||
| 90102-16001 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN NO.1:REFER ILLUST. |
1 | ||
| 47042B - NUT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 94142-61600 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
8 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-27020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90252-04003 | ||||
| 94130-01602 | ||||
