XZB70R-ZEPQY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )4FC

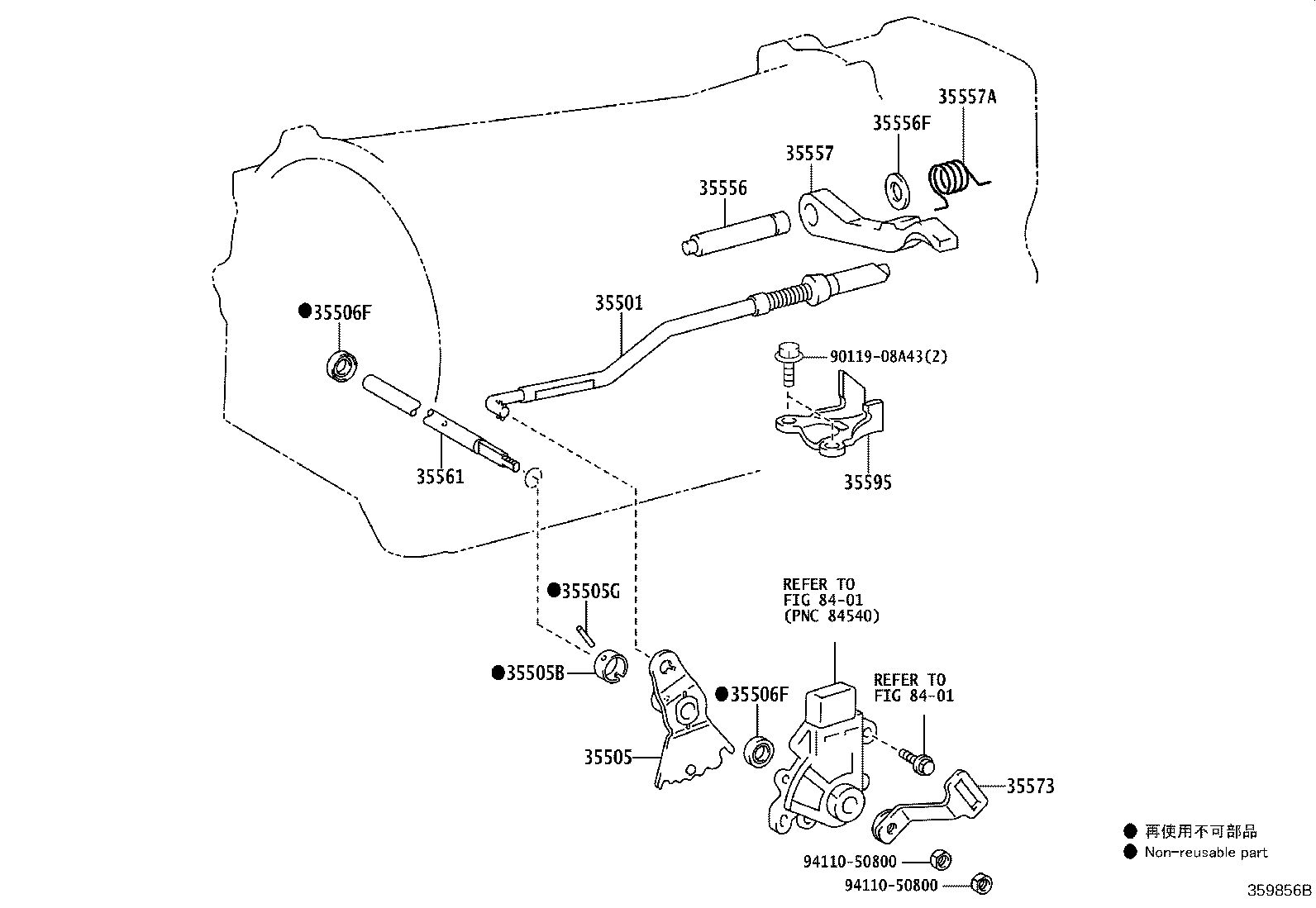

Click highlighted areas on diagram

A444E

diagram 35501 35505 35505B 35505G 35506F 35506F 35556 35556F 35557 35557A 35561 35573 35595 8401 8401 9011908A43 9411050800 9411050800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-36040

XZB70,80..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-36040

XZB70,80..4FC

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20008

XZB70,80..4FC

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04012

XZB70,80..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

XZB70,80..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

XZB70,80..4FC

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-36010

XZB70,80..4FC

 1
35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)
90201-16012

XZB70,80..4FC

 1
35557 - PAWL, PARKING LOCK
35557-36020

XZB70,80..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-30010

XZB70,80..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-36010

XZB70,80..4FC

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-36040

XZB70,80..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-36020

XZB70,80..4FC

 1
Common parts
90119-08A43
94110-50800
Linked diagrams
8401
