XZB70R-ZEPQY (2017)
Toyota Coaster

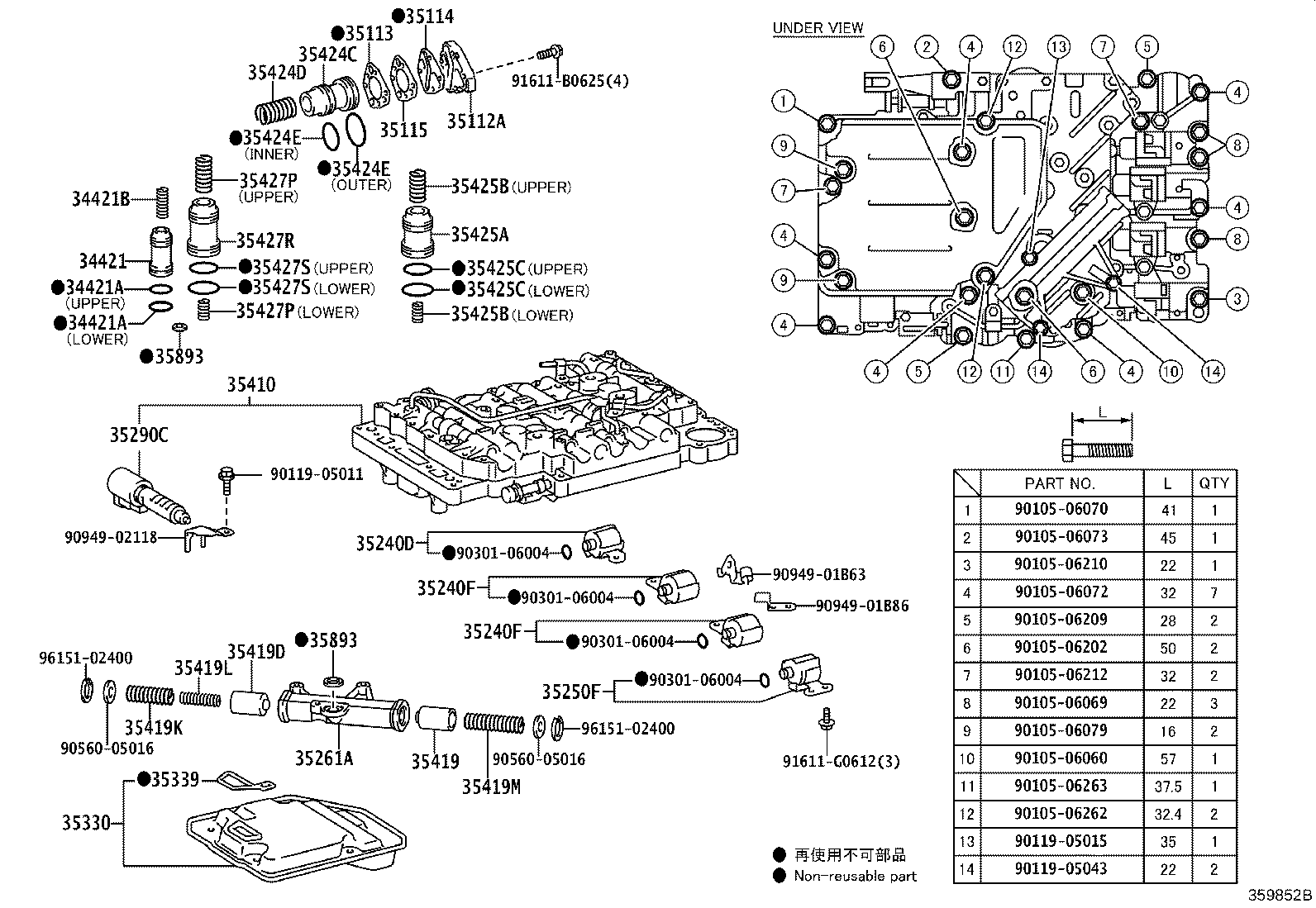

ILLUST NO. 1 OF 2(1701- )4FC
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
XZB70,80..4FC |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
XZB70,80..4FC UPPER |
1 | ||
| 90301-29003 |
XZB70,80..4FC LOWER |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
XZB70,80..4FC UPPER |
1 | ||
| 90301-29003 |
XZB70,80..4FC LOWER |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-32041 |
XZB70,80..4FC |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-60010 |
XZB70,80..4FC |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60020 |
XZB70,80..4FC |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60020 |
XZB70,80..4FC |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-60010 |
XZB70,80..4FC |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 85420-60060 |
XZB70,80..4FC |
1 | ||
| 35240F - VALVE, SOLENOID(S2) | ||||
| 85420-60050 |
XZB70,80..4FC |
2 | ||
| 35240F - VALVE, SOLENOID(S2) | ||||
| 85420-60050 |
XZB70,80..4FC |
2 | ||
| 35250F - VALVE, SOLENOID(ST) | ||||
| 85420-60070 |
XZB70,80..4FC |
1 | ||
| 35261A - CYLINDER, THROTTLE PRESSURE ACCUMULATOR | ||||
| 35261-60010 |
XZB70,80..4FC |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-60010 |
XZB70,80..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-36020 |
XZB70,80..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-60030 |
XZB70,80..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-36220 |
XZB70,80..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-60010 |
XZB70,80..4FC |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-60020 |
XZB70,80..4FC |
1 | ||
| 35419K - SPRING, COMPRESSION (FOR CHECK VALVE NO.2) | ||||
| 90501-18114 |
XZB70,80..4FC |
1 | ||
| 35419L - SPRING, COMPRESSION (FOR CHECK VALVE NO.3) | ||||
| 90501-18115 |
XZB70,80..4FC |
1 | ||
| 35419M - SPRING, COMPRESSION (FOR CHECK VALVE NO.4) | ||||
| 90501-20157 |
XZB70,80..4FC |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-60020 |
XZB70,80..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-26083 |
XZB70,80..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
XZB70,80..4FC INNER |
1 | ||
| 90301-28003 |
XZB70,80..4FC OUTER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
XZB70,80..4FC INNER |
1 | ||
| 90301-28003 |
XZB70,80..4FC OUTER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60060 |
XZB70,80..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-32040 |
XZB70,80..4FC UPPER |
1 | ||
| 90501-18113 |
XZB70,80..4FC LOWER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-32040 |
XZB70,80..4FC UPPER |
1 | ||
| 90501-18113 |
XZB70,80..4FC LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
XZB70,80..4FC UPPER |
1 | ||
| 90301-33006 |
XZB70,80..4FC LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28003 |
XZB70,80..4FC UPPER |
1 | ||
| 90301-33006 |
XZB70,80..4FC LOWER |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-22044 |
XZB70,80..4FC LOWER |
1 | ||
| 90501-38007 |
XZB70,80..4FC UPPER |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-22044 |
XZB70,80..4FC LOWER |
1 | ||
| 90501-38007 |
XZB70,80..4FC UPPER |
1 | ||
| 35427R - PISTON B-1 ACCUMULATOR | ||||
| 35402-60020 |
XZB70,80..4FC |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-37004 |
XZB70,80..4FC LOWER |
1 | ||
| 90301-29003 |
XZB70,80..4FC UPPER |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-37004 |
XZB70,80..4FC LOWER |
1 | ||
| 90301-29003 |
XZB70,80..4FC UPPER |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
XZB70,80..4FC |
5 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
XZB70,80..4FC |
5 | ||
| Common parts | ||||
| 90105-06060 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06202 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90105-06262 | ||||
| 90105-06263 | ||||
| 90119-05011 | ||||
| 90119-05015 | ||||
| 90119-05043 | ||||
| 90301-06004 | ||||
| 90560-05016 | ||||
| 90949-01B63 | ||||
| 90949-01B86 | ||||
| 90949-02118 | ||||
| 91611-B0625 | ||||
| 91611-G0612 | ||||
| 96151-02400 | ||||

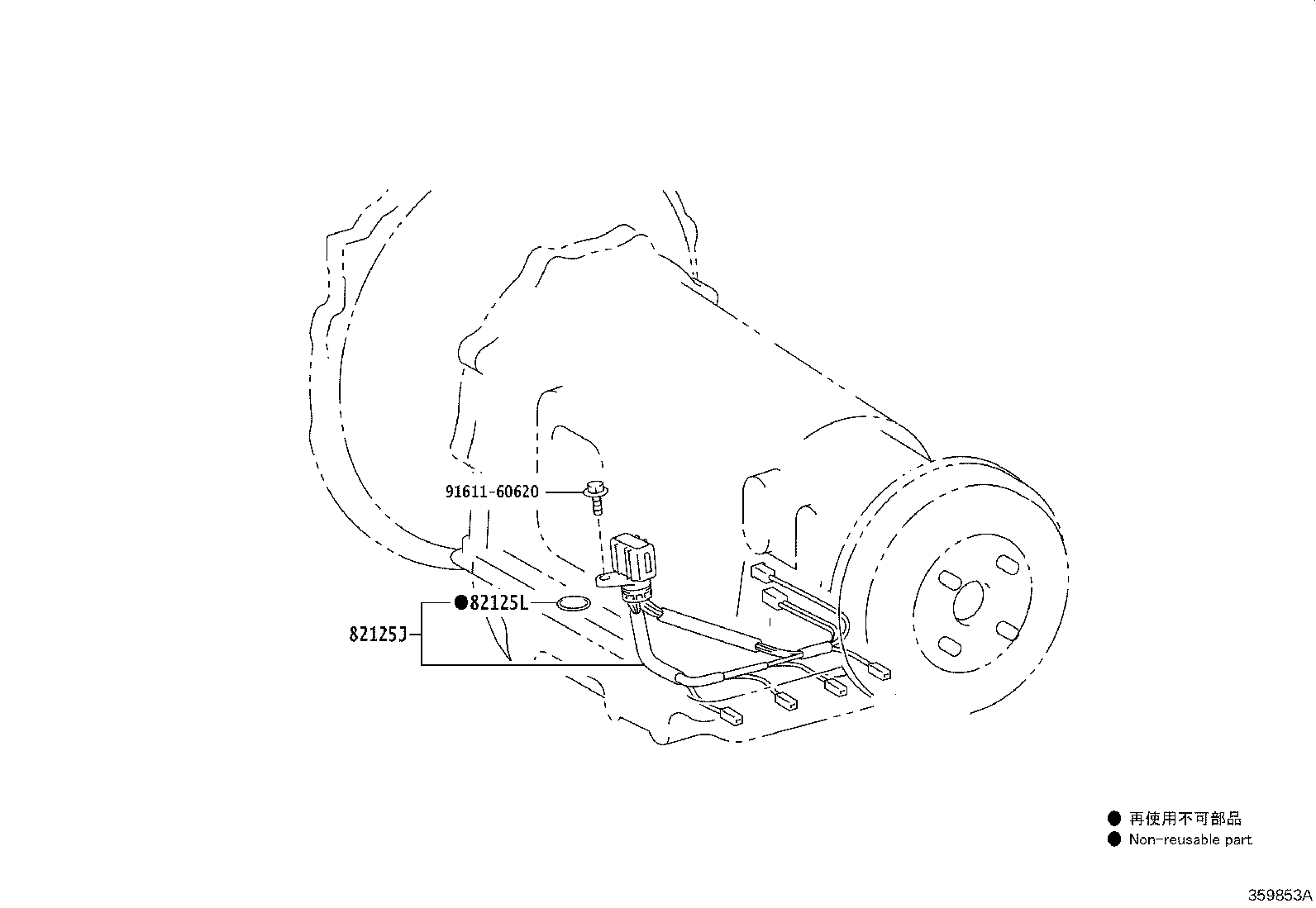

ILLUST NO. 2 OF 2(1701- )4FC
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-25230 |
XZB70,80..4FC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24020 |
XZB70,80..4FC |
1 | ||
| Common parts | ||||
| 91611-60620 | ||||
