XZB70R-ZEPQY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )4FC

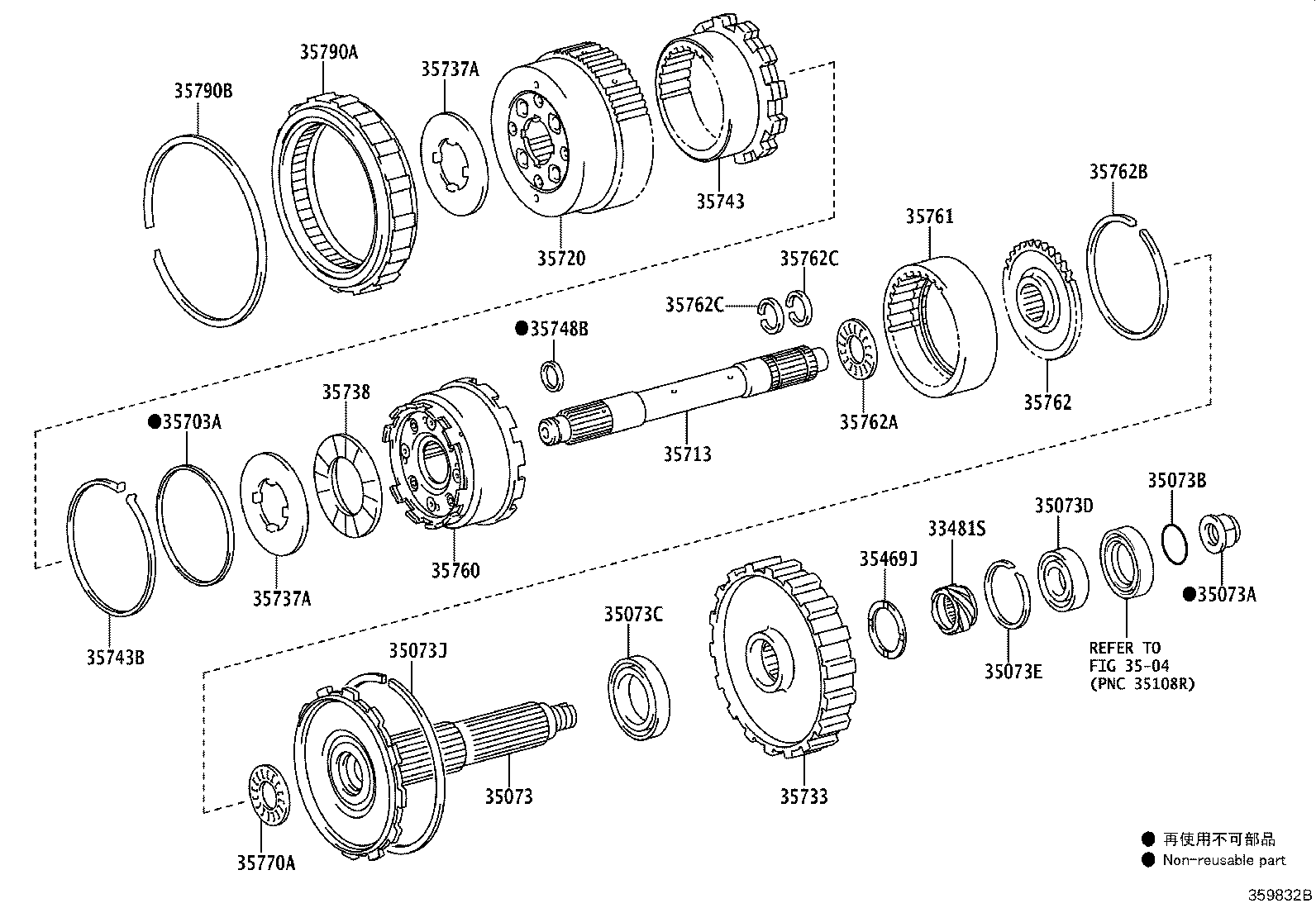

Click highlighted areas on diagram
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-36290 |
XZB70,80..4FC N=6 |
1 | ||
| 35073 - SHAFT SUB-ASSY, OUTPUT | ||||
| 35073-36050 |
XZB70,80..4FC |
1 | ||
| 35073A - NUT (FOR OUTPUT SHAFT) | ||||
| 90179-22008 |
XZB70,80..4FC |
1 | ||
| 35073B - RING, O (FOR OUTPUT SHAFT) | ||||
| 90301-29002 |
XZB70,80..4FC |
1 | ||
| 35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT) | ||||
| 90363-45008 |
XZB70,80..4FC |
1 | ||
| 35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR) | ||||
| 90363-36007 |
XZB70,80..4FC |
1 | ||
| 35073E - RING, HOLE SNAP (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90521-78001 |
XZB70,80..4FC |
1 | ||
| 35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT) | ||||
| 90521-99042 |
XZB70,80..4FC |
1 | ||
| 35469J - SPACER, PARKING LOCK GEAR | ||||
| 35469-36030 |
XZB70,80..4FC |
1 | ||
| 35703A - RING, O (FOR REAR PLANETARY CARRIER) | ||||
| 90301-99076 |
XZB70,80..4FC |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-60030 |
XZB70,80..4FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-60030 |
XZB70,80..4FC |
1 | ||
| 35733 - GEAR, PARKING LOCK | ||||
| 35733-36020 |
XZB70,80..4FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-60011 |
XZB70,80..4FC |
2 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-60011 |
XZB70,80..4FC |
2 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-36020 |
XZB70,80..4FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-60030 |
XZB70,80..4FC |
1 | ||
| 35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90521-99018 |
XZB70,80..4FC |
1 | ||
| 35748B - RING, INTERMEDIATE SHAFT OIL SEAL | ||||
| 35748-36010 |
XZB70,80..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-60050 |
XZB70,80..4FC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-60030 |
XZB70,80..4FC |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-60030 |
XZB70,80..4FC |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-32006 |
XZB70,80..4FC |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-99041 |
XZB70,80..4FC |
1 | ||
| 35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-23063 |
XZB70,80..4FC |
2 | ||
| 35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-23063 |
XZB70,80..4FC |
2 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-32006 |
XZB70,80..4FC |
1 | ||
| 35790A - CLUTCH ASSY, 1 WAY | ||||
| 35790-36020 |
XZB70,80..4FC |
1 | ||
| 35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH) | ||||
| 90521-99109 |
XZB70,80..4FC |
1 | ||
| Linked diagrams | ||||
| 3504 | ||||
