XZB70R-ZEPQY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )4FC

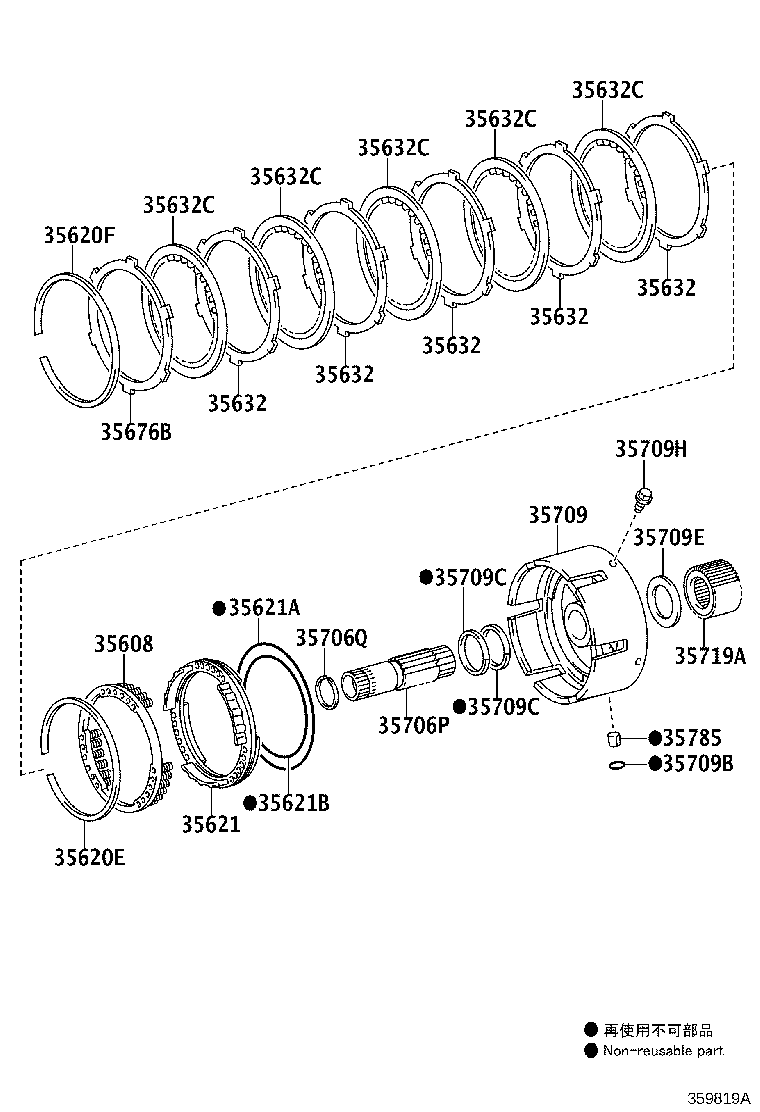

Click highlighted areas on diagram
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-60010 |
XZB70,80..4FC |
1 | ||
| 35620E - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90521-99109 |
XZB70,80..4FC |
1 | ||
| 35620F - RING, HOLE SNAP (FOR BRAKE NO.1 FLANGE) | ||||
| 90521-99109 |
XZB70,80..4FC |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35621-60010 |
XZB70,80..4FC |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99030 |
XZB70,80..4FC |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-99031 |
XZB70,80..4FC |
1 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-60060 |
XZB70,80..4FC |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-60060 |
XZB70,80..4FC |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-60060 |
XZB70,80..4FC |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-60060 |
XZB70,80..4FC |
5 | ||
| 35632 - PLATE, BRAKE | ||||
| 35632-60060 |
XZB70,80..4FC |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
XZB70,80..4FC |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
XZB70,80..4FC |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
XZB70,80..4FC |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
XZB70,80..4FC |
5 | ||
| 35632C - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-36060 |
XZB70,80..4FC |
5 | ||
| 35676B - FLANGE, BRAKE, NO.1 | ||||
| 35676-60010 |
XZB70,80..4FC T=5.0 |
1 | ||
| 35676-60020 |
XZB70,80..4FC T=5.2 |
1 | ||
| 35676-60030 |
XZB70,80..4FC T=5.4 |
1 | ||
| 35676-60040 |
XZB70,80..4FC T=5.6 |
1 | ||
| 35706P - GEAR SUB-ASSY, FRONT PLANETARY SUN | ||||
| 35706-60060 |
XZB70,80..4FC |
1 | ||
| 35706Q - RING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR) | ||||
| 90520-33009 |
XZB70,80..4FC |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-60050 |
XZB70,80..4FC |
1 | ||
| 35709B - RING, O (FOR CENTER SUPPORT) | ||||
| 90301-09008 |
XZB70,80..4FC |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
XZB70,80..4FC |
2 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-36020 |
XZB70,80..4FC |
2 | ||
| 35709E - WASHER (FOR CENTER SUPPORT) | ||||
| 90209-52009 |
XZB70,80..4FC T=2.7 |
1 | ||
| 90209-52005 |
XZB70,80..4FC T=1.5 |
1 | ||
| 90209-52008 |
XZB70,80..4FC T=2.4 |
1 | ||
| 90209-52006 |
XZB70,80..4FC T=1.8 |
1 | ||
| 90209-52007 |
XZB70,80..4FC T=2.1 |
1 | ||
| 35709H - BOLT (FOR CENTER SUPPORT) | ||||
| 90105-12307 |
XZB70,80..4FC |
3 | ||
| 35719A - GEAR, REAR PLANETARY SUN | ||||
| 35719-60040 |
XZB70,80..4FC |
1 | ||
| 35785 - RETAINER, CENTER SUPPORT RING | ||||
| 35785-36010 |
XZB70,80..4FC |
3 | ||
