XZB70R-ZEPQY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )4FC

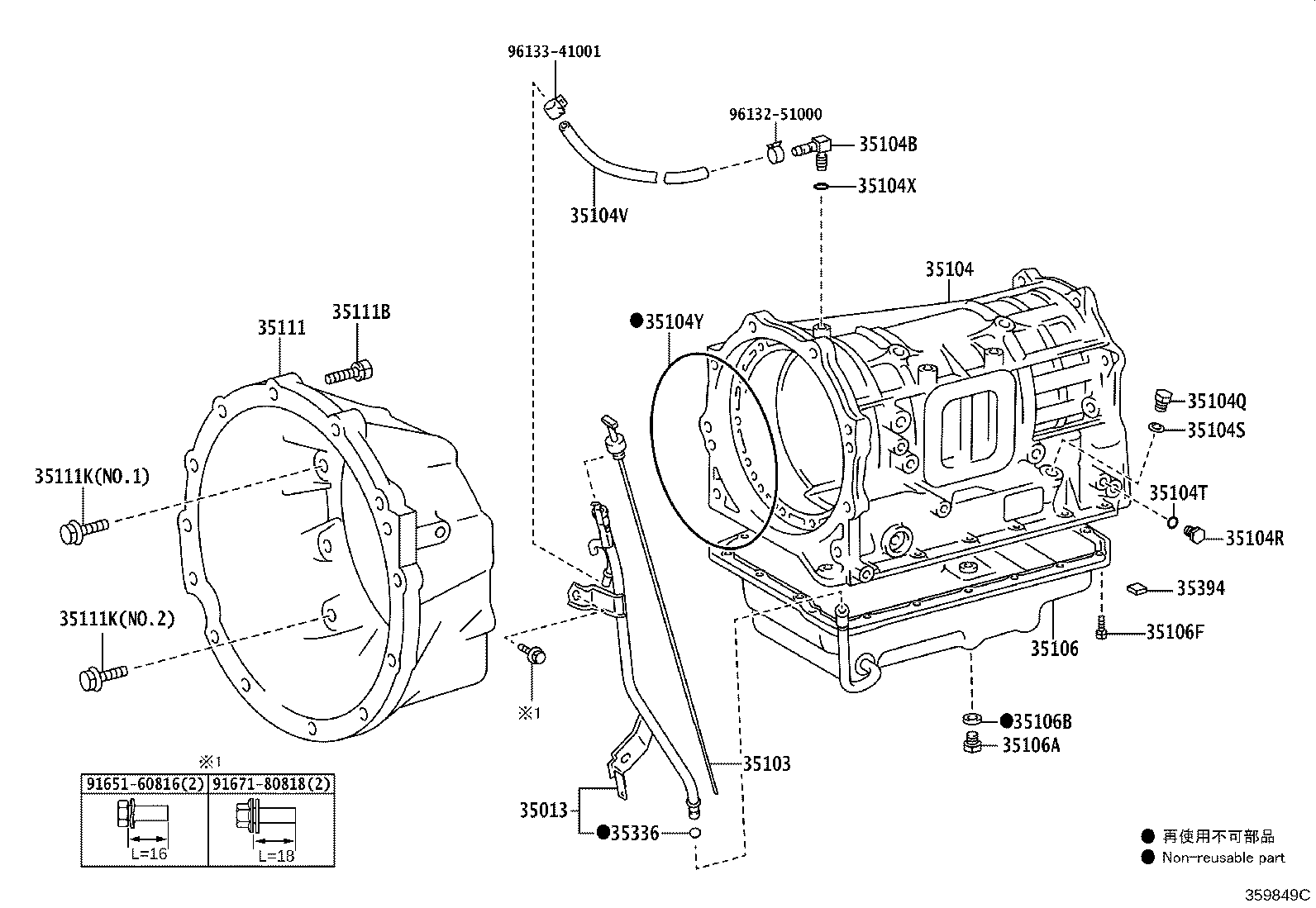

Click highlighted areas on diagram
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-36140 |
XZB70,80..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-36100 |
XZB70,80..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-60131 |
XZB70,80..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
XZB70,80..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-13001 |
XZB70,80..4FC |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
XZB70,80..4FC |
7 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-10189 |
XZB70,80..4FC |
1 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-06196 |
XZB70,80..4FC |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-36010 |
XZB70,80..4FC |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
XZB70,80..4FC |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
XZB70,80..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-37020 |
XZB70,80..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
XZB70,80..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
XZB70,80..4FC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 91611-B0616 |
XZB70,80..4FC |
20 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-65020 |
XZB70,80..4FC |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZB70,80..4FC *14-1.50PX50-26 |
12 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12295 |
XZB70,80..4FC *12-1.25PX45-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-12294 |
XZB70,80..4FC *12-1.25PX35-30,NO.1:REFER ILLUST. |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12295 |
XZB70,80..4FC *12-1.25PX45-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-12294 |
XZB70,80..4FC *12-1.25PX35-30,NO.1:REFER ILLUST. |
6 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
XZB70,80..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
XZB70,80..4FC |
4 | ||
| Common parts | ||||
| 91651-60816 | ||||
| 91671-80818 | ||||
| 96132-51000 | ||||
| 96133-41001 | ||||
