XZB70R-ZEPQY (2017)
Toyota Coaster
(1701- )4FC
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-37020 |
XZB70,80..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-10954 |
XZB70,80..4FC *10-1.25PX14-9,SILVER WHITE |
5 | ||
| 90119-10789 |
XZB70,80..4FC *10-1.25PX14-9,BLACK |
1 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-65031 |
XZB70,80..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-37050 |
XZB70,80..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-60020 |
XZB70,80..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-42010 |
XZB70,80..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99029 |
XZB70,80..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08213 |
XZB70,80..4FC *8-1.25PX60-20 |
1 | ||
| 90105-08212 |
XZB70,80..4FC *8-1.25PX60-30 |
10 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-60080 |
XZB70,80..4FC |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-36060 |
XZB70,80..4FC T=1.4 |
1 | ||
| 35789-36040 |
XZB70,80..4FC T=0.8 |
1 | ||
| 35789-36050 |
XZB70,80..4FC T=1.0 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-60010 |
XZB70,80..4FC |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-60050 |
XZB70,80..4FC T=13.963-13.977 |
1 | ||
| 35321-60040 |
XZB70,80..4FC T=13.948-13.962 |
1 | ||
| 35321-60080 |
XZB70,80..4FC T=14.008-14.022 |
1 | ||
| 35321-60070 |
XZB70,80..4FC T=13.993-14.007 |
1 | ||
| 35321-60060 |
XZB70,80..4FC T=13.978-13.992 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-60040 |
XZB70,80..4FC T=13.948-13.962 |
1 | ||
| 35322-60060 |
XZB70,80..4FC T=13.978-13.992 |
1 | ||
| 35322-60050 |
XZB70,80..4FC T=13.963-13.977 |
1 | ||
| 35322-60080 |
XZB70,80..4FC T=14.008-14.022 |
1 | ||
| 35322-60070 |
XZB70,80..4FC T=13.993-14.007 |
1 | ||
| 35427D - SEAT, CHECK VALVE SPRING | ||||
| 35427-60010 |
XZB70,80..4FC |
1 | ||
| 35495 - BALL, CHECK | ||||
| 35495-60010 |
XZB70,80..4FC |
1 | ||
| 35495A - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90501-18106 |
XZB70,80..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60010 |
XZB70,80..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60010 |
XZB70,80..4FC |
2 | ||
| Common parts | ||||
| 91511-J0820 | ||||

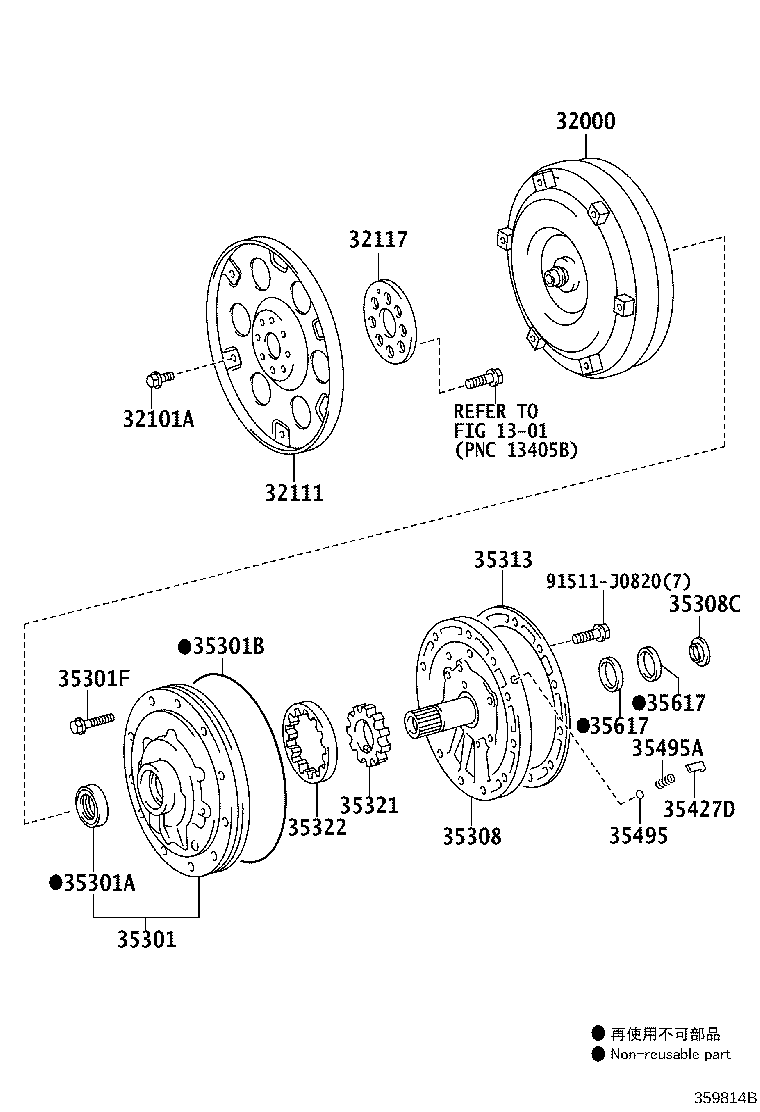

| Linked diagrams | ||||
| 1301 | ||||
