XZB70R-ZEPQY (2017)
Toyota Coaster
ILLUST NO. 1 OF 2(1701- )BB60,HZB60,70..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-36100 |
HZB60,70..RHD |
1 | ||
| 33502-36130 |
XZB70,80..4FC |
1 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
HZB60,70..RHD |
2 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
HZB60,70..RHD |
2 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08107 |
HZB60,70..RHD |
1 | ||
| 33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE) | ||||
| 90508-32033 |
HZB60,70..RHD |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
HZB60,70..RHD |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
HZB60,70..RHD NO.1:REFER ILLUST. |
1 | ||
| 90387-08065 |
HZB60,70..RHD NO.2:REFER ILLUST. |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
HZB60,70..RHD NO.1:REFER ILLUST. |
1 | ||
| 90387-08065 |
HZB60,70..RHD NO.2:REFER ILLUST. |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36130 |
XZB70,80..4FC |
1 | ||
| 33055-36080 |
HZB60,70..RHD |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13192 |
HZB60,70..RHD NO.1:REFER ILLUST. |
2 | ||
| 90389-11002 |
HZB60,70..RHD NO.2:REFER ILLUST. |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13192 |
HZB60,70..RHD NO.1:REFER ILLUST. |
2 | ||
| 90389-11002 |
HZB60,70..RHD NO.2:REFER ILLUST. |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13192 |
HZB60,70..RHD NO.1:REFER ILLUST. |
2 | ||
| 90389-11002 |
HZB60,70..RHD NO.2:REFER ILLUST. |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13192 |
HZB60,70..RHD NO.1:REFER ILLUST. |
2 | ||
| 90389-11002 |
HZB60,70..RHD NO.2:REFER ILLUST. |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
HZB60,70..RHD |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
HZB60,70..RHD |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20100C0 |
XZB70,80..4FC BLACK,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33571-36210 |
HZB60,70..RHD |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-36260 |
HZB60,70..RHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91112-60850 | ||||
| 91112-60855 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||

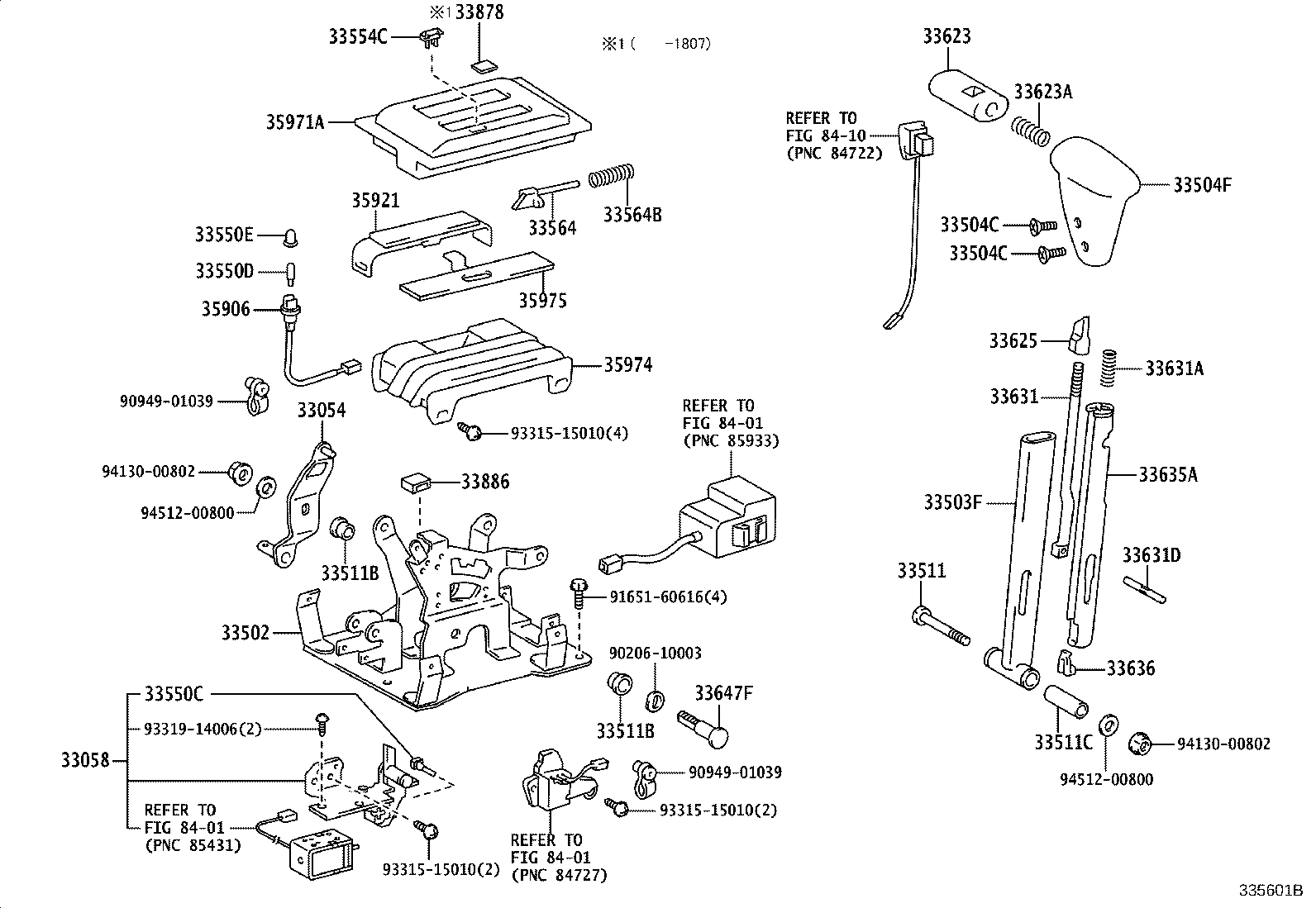

ILLUST NO. 1 OF 2(1701- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-36030 |
XZB70,80..4FC |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-36050 |
XZB70,80..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-36100 |
HZB60,70..RHD |
1 | ||
| 33502-36130 |
XZB70,80..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36130 |
XZB70,80..4FC |
1 | ||
| 33055-36080 |
HZB60,70..RHD |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
XZB70,80..4FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
XZB70,80..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20100C0 |
XZB70,80..4FC BLACK,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
XZB70,80..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-10012 |
XZB70,80..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-10012 |
XZB70,80..4FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08091 |
XZB70,80..4FC |
1 | ||
| 33550C - CUSHION(FOR FLOOR SHIFT) | ||||
| 90541-03018 |
XZB70,80..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
XZB70,80..4FC 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
XZB70,80..4FC |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-36010 |
XZB70,80..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-36040 |
XZB70,80..4FC |
1 | ||
| 33564B - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE LINK) | ||||
| 90501-04024 |
XZB70,80..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20060C0 |
XZB70,80..4FC BLACK,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
XZB70,80..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
XZB70,80..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-36030 |
XZB70,80..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
XZB70,80..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
XZB70,80..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-36010 |
XZB70,80..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
XZB70,80..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
XZB70,80..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-36020 |
XZB70..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-20020 |
XZB70,80..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-36080 |
XZB70,80..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-36060 |
XZB70,80..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-36020 |
XZB70..4FC |
1 | ||
| 35971-36021 |
XZB70,80..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-28030 |
XZB70,80..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-28020 |
XZB70,80..4FC |
1 | ||
| Common parts | ||||
| 90206-10003 | ||||
| 90949-01039 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93319-14006 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(1701- )BB60,HZB60,70..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36080 |
HZB60,70..RHD |
1 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-36110 |
HZB60,70..RHD |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
HZB60,70..RHD |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
HZB60,70..RHD |
2 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-36350 |
HZB60,70..RHD |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36150 |
HZB60,70..RHD |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-36361 |
HZB60,70..RHD |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
HZB60,70..RHD |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
HZB60,70..RHD |
2 | ||
| 33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33730-36300 |
HZB60,70..RHD |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36580 |
HZB60,70..RHD |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
HZB60,70..RHD |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
HZB60,70..RHD |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
HZB60,70..RHD |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
HZB60,70..RHD |
2 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
HZB60,70..RHD |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-36160 |
HZB60,70..RHD |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 90520-12256 |
HZB60,70..RHD |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-34010 |
HZB60,70..RHD |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-28030 |
HZB60,70..RHD |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-25010 |
TRB60,70 |
1 | ||
| 33786-36030 |
HZB60,70..RHD |
1 | ||
| 33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3 | ||||
| 33786-36030 |
HZB60,70..RHD |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36020 |
HZB60,70..RHD |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36410 |
HZB60,70..RHD |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36290 |
HZB60,70..RHD |
1 | ||
| Common parts | ||||
| 90105-10103 | ||||
| 90179-08038 | ||||
| 90179-08204 | ||||
| 90201-13018 | ||||
| 90387-10075 | ||||
| 91611-B0825 | ||||
| 91651-40820 | ||||
| 91651-61020 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
ILLUST NO. 2 OF 2(1701- )TRB60,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-25010 |
TRB60,70 |
1 | ||
| 33786-36030 |
HZB60,70..RHD |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-36141 |
BZB60,70 |
1 | ||
| 33821-36220 |
TRB60,70 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-36230 |
XZB70,80..4FC |
1 | ||
| 33829-36111 |
BZB60,TRB60,70 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-36121 |
BZB60,70 |
1 | ||
| 33822-36200 |
TRB60,70 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-36140 |
XZB70,80..4FC |
1 | ||
| 33804-36090 |
BZB60,70 |
1 | ||
| 33804-36050 |
TRB60,70 |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36070 |
BZB70;XZB70,80..4FC |
1 | ||
| 33828-36070 |
BZB60,TRB60,70 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90201-12452 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91612-61035 | ||||
| 91651-40820 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3307 | ||||

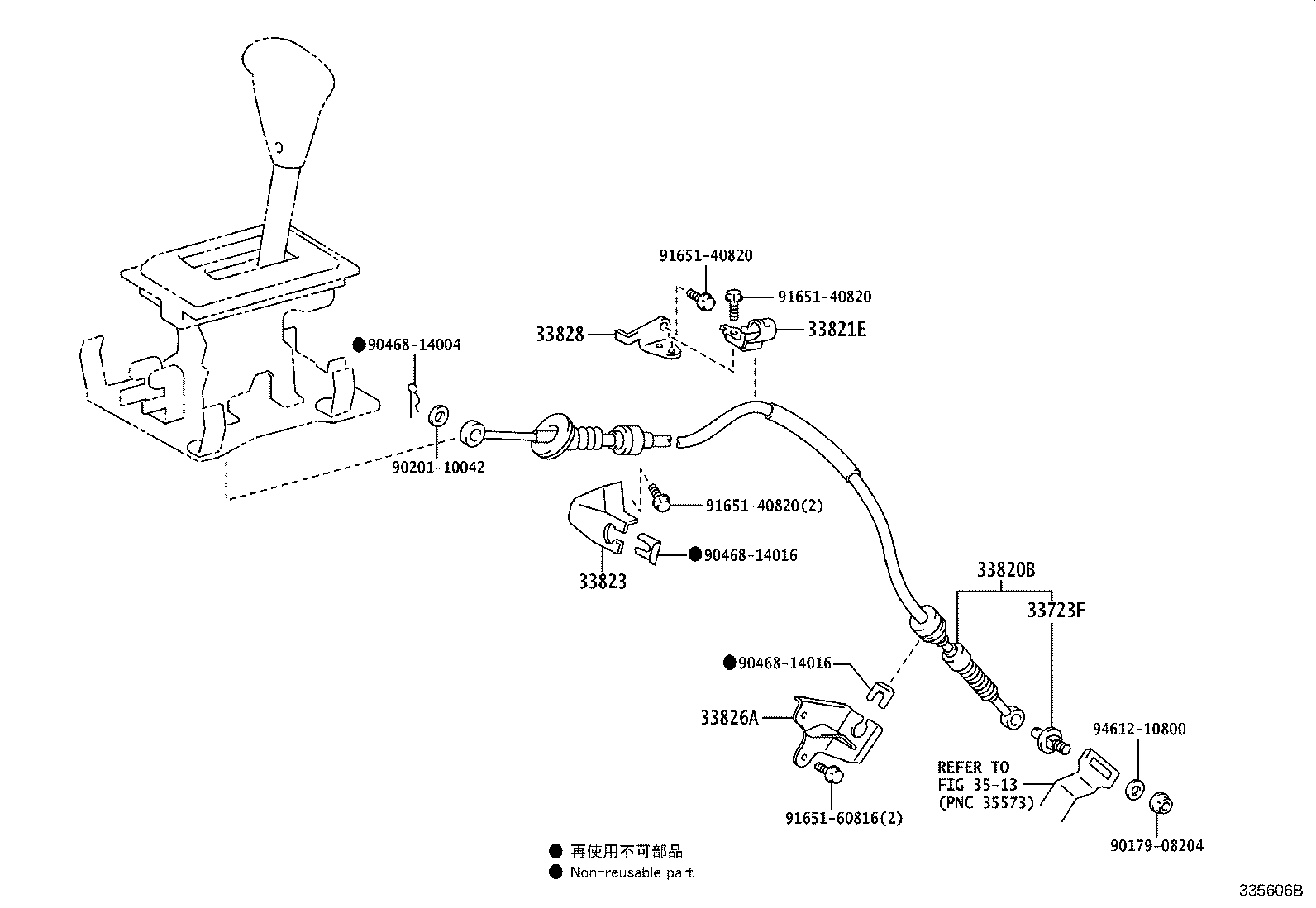

ILLUST NO. 2 OF 2(1701- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-28010 |
XZB70,80..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-36212 |
XZB70,80..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-36230 |
XZB70,80..4FC |
1 | ||
| 33829-36111 |
BZB60,TRB60,70 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-36140 |
XZB70,80..4FC |
1 | ||
| 33804-36090 |
BZB60,70 |
1 | ||
| 33804-36050 |
TRB60,70 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-36200 |
XZB70,80..4FC |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36070 |
BZB70;XZB70,80..4FC |
1 | ||
| 33828-36070 |
BZB60,TRB60,70 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91651-40820 | ||||
| 91651-60816 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 3513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
