XZB70R-ZEPQY (2017)
Toyota Coaster
(1701- )N04C..XZB60,80 ; (1701- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW
EURO 5

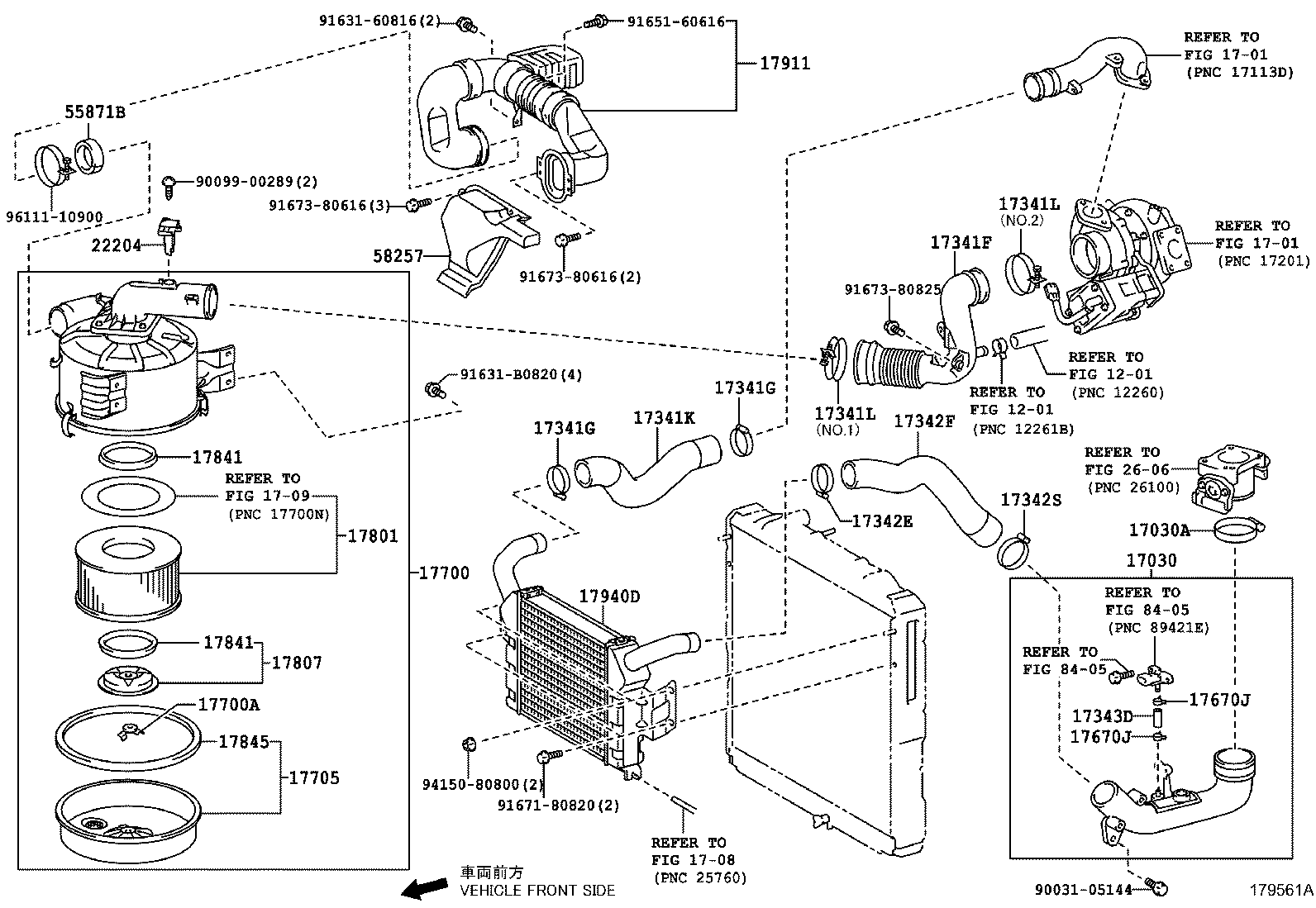

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 90460-80006 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78490 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78260 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| SZ920-33220 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
2 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78310 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-36030 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB70,80..4FC;XZB70..5F..ARL |
1 | ||
| 55871-36020 |
BZB60,70 |
1 | ||
| 55871-36020 |
TRB60,70 |
1 | ||
| 55871-36020 |
HZB60,70 |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36050 |
XZB70,80..4FC;XZB70..5F..ARL |
1 | ||
| 58257-36070 |
BZB60,70 |
1 | ||
| 58257-36050 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 58257-36050 |
HZB60,70 |
1 | ||
| 58257-36050 |
TRB60,70 |
1 | ||
| 58257-36050 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 58257-36050 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 58257-36050 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 91631-60816 | ||||
| 91631-B0820 | ||||
| 91651-60616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| 96111-10900 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(1701- )N04C
EURO 3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 90460-80006 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78490 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78260 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| SZ920-33220 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
2 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78310 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 91631-B0820 | ||||
| 91671-80820 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(1701- )N04C..XZB60,70
EURO 4 OR EURO 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 90460-80006 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78490 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78260 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD) NO.1:REFER ILLUST. |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78310 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 91631-B0820 | ||||
| 91671-80820 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||

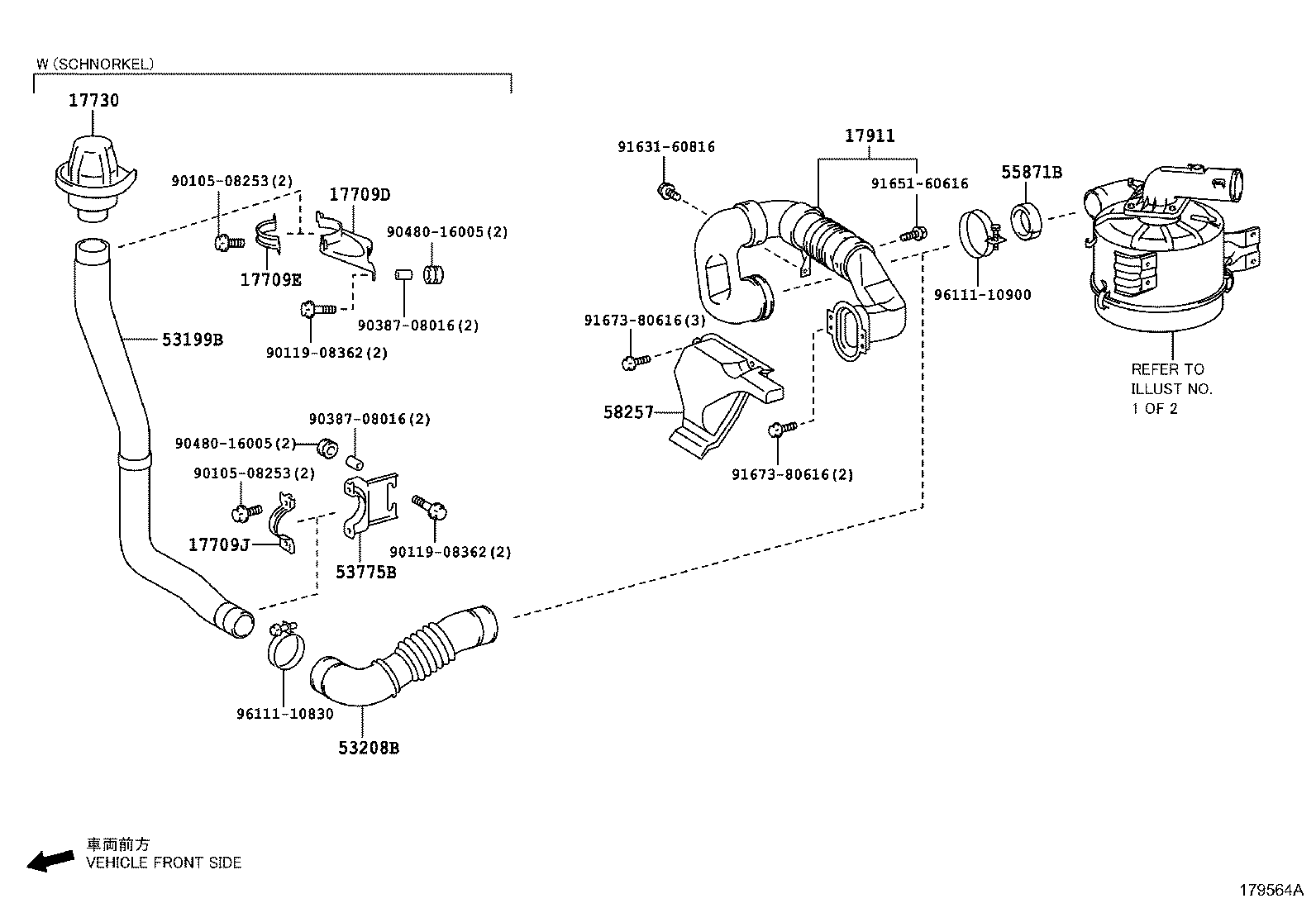

ILLUST NO. 2 OF 2(1701- )N04C..XZB60,80 ; (1701- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW
EURO 3 OR EURO 4 OR EURO 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-36030 |
N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 52810-36010 |
TRB60,70 |
1 | ||
| 53207-36241 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 53207-36290 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 52810-36010 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 53207-36241 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 53207-36290 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 52810-36010 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 53208B - DUCT SUB-ASSY, COOL AIR INTAKE, NO.2 | ||||
| 53208-36041 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 53208-36041 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-36031 |
HZB60,70..RHD COOL AIR INTAKE-SNORKEL |
1 | ||
| 53775-36060 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 53775-36031 |
HZB60,70..RHD COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 53775-36060 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB70,80..4FC;XZB70..5F..ARL |
1 | ||
| 55871-36020 |
BZB60,70 |
1 | ||
| 55871-36020 |
TRB60,70 |
1 | ||
| 55871-36020 |
HZB60,70 |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36050 |
XZB70,80..4FC;XZB70..5F..ARL |
1 | ||
| 58257-36070 |
BZB60,70 |
1 | ||
| 58257-36050 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 58257-36050 |
HZB60,70 |
1 | ||
| 58257-36050 |
TRB60,70 |
1 | ||
| 58257-36050 |
TRB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| 58257-36050 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL(LOADING ON BOARD) |
1 | ||
| 58257-36050 |
HZB60,70..GEN COOL AIR INTAKE-SNORKEL |
1 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90119-08362 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 91631-60816 | ||||
| 91651-60616 | ||||
| 91673-80616 | ||||
| 96111-10830 | ||||
| 96111-10900 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
