XZB70R-ZEPQY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1908)N04C..XZB70..4FC ; (1701-1908)N04C..02S,17S,20S,22S..5F..EX,STD..ARL,GEN

Click highlighted areas on diagram

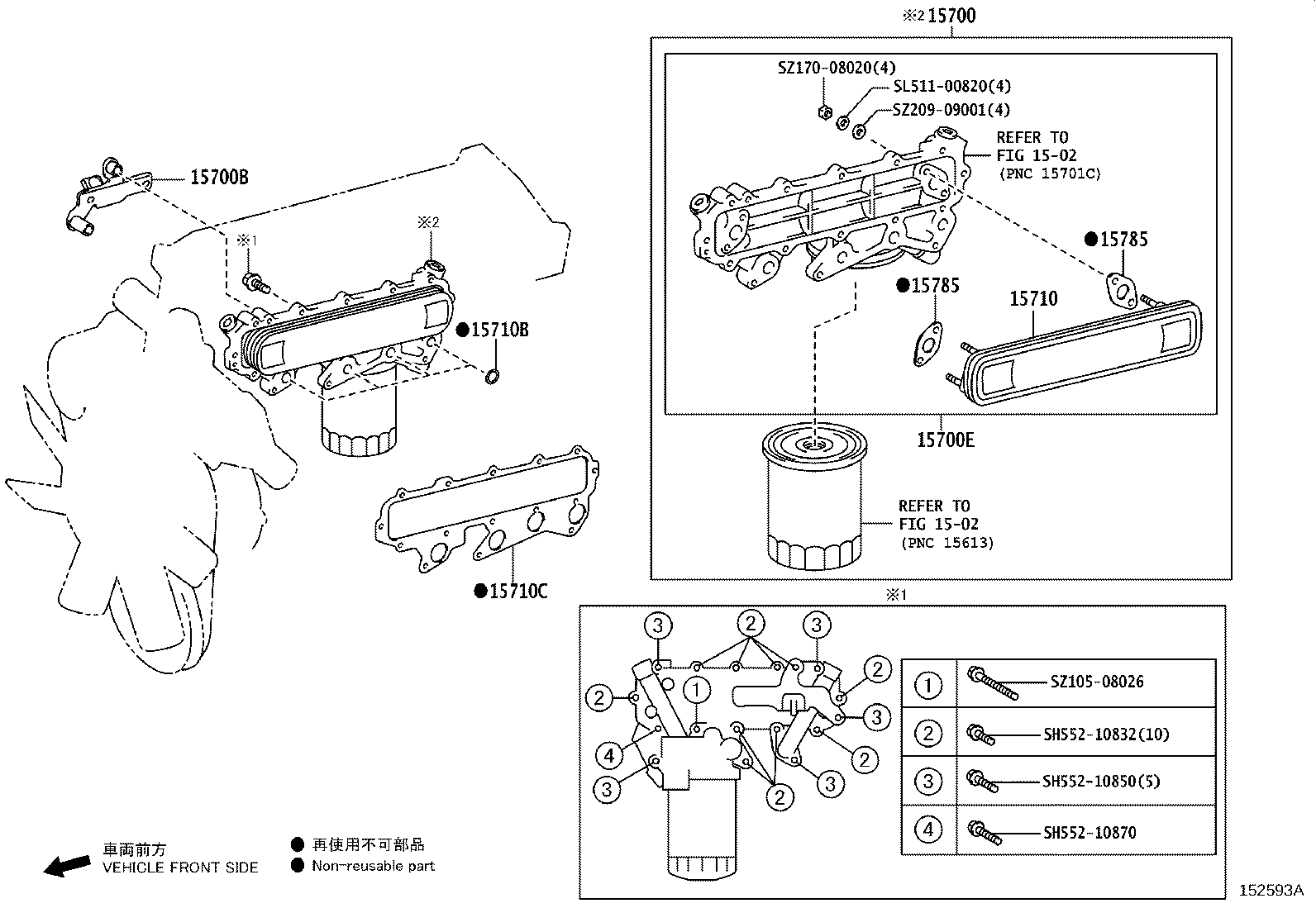

diagram 1502 1502 15700 15700B 15700E 15710 15710B 15710C 15785 15785 SH55210832 SH55210850 SH55210870 SL51100820 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-E0023

N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW)

 1
15700-E0024

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
15700-78140

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER
S1570-EV031

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
S1570-EV030

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
15710 - COOLER ASSY, OIL
S1571-22260

N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW)

 1
16491-78140

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16491-EV050

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 2
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 2
Common parts
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

diagram 1502 1502 1502 15700 15700B 15700B 15710 15710B 15710C 15785 15785 1649678140 SH55210816 SH55210832 SH55210850 SL72201415 SN46001409 SZ10508026
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-E0023

N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW)

 1
15700-E0024

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
15700-78140

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15710 - COOLER ASSY, OIL
S1571-22260

N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW)

 1
16491-78140

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16491-EV050

N04C..XZB70..4FC;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 2
15785 - GASKET, OIL COOLER
15785-EV010

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 2
Common parts
16496-78140
SH552-10816
SH552-10832
SH552-10850
SL722-01415
SN460-01409
SZ105-08026
Linked diagrams
1502
