XZB70R-ZEMSYQ (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1908)N04C..XZB70..4FC ; (1701-1908)N04C..02S,17S,20S,22S..5F..EX,STD..ARL,GEN

Click highlighted areas on diagram

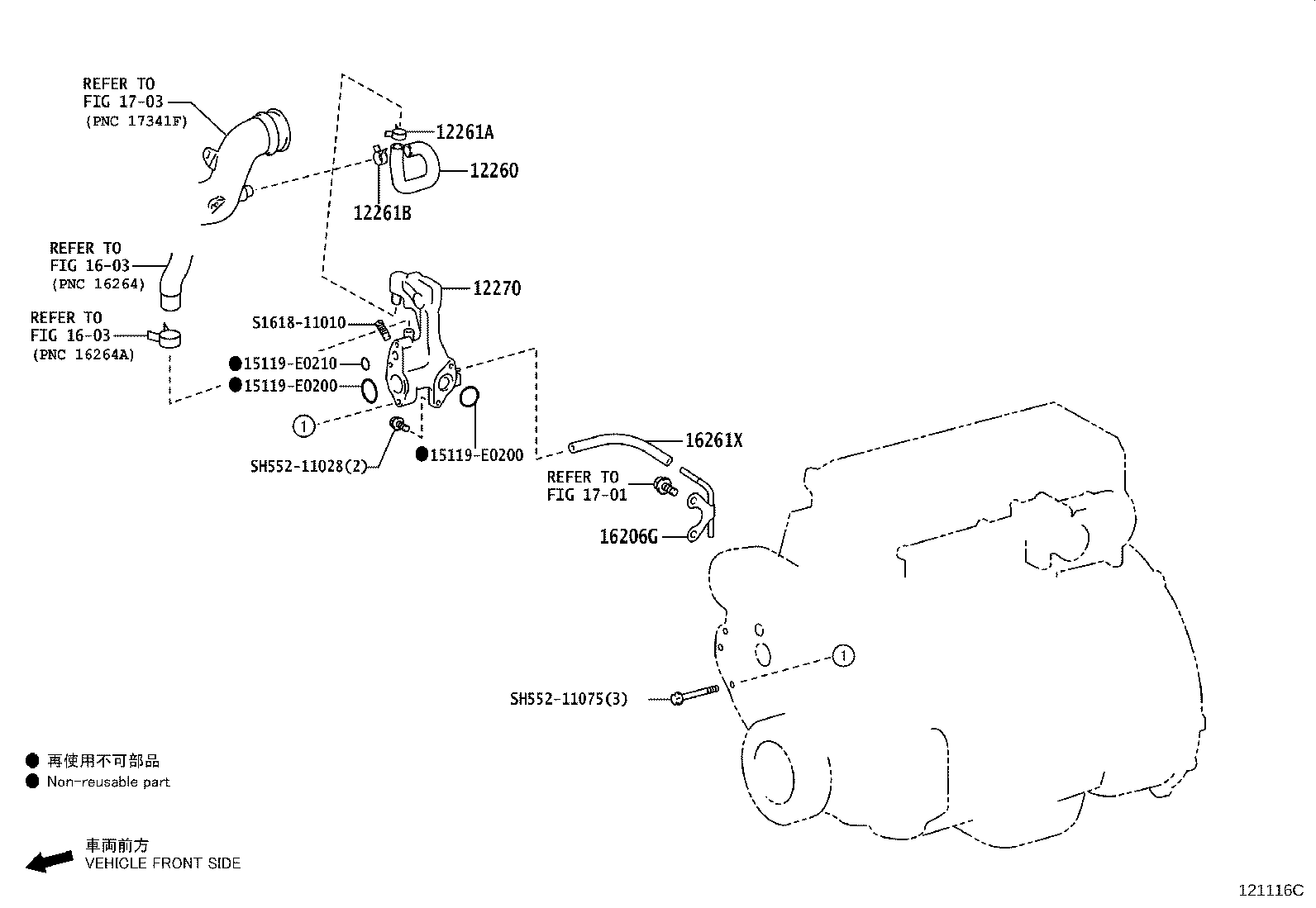

diagram 12260 12261A 12261B 12270 15119E0200 15119E0200 15119E0210 1603 1603 16206G 16261X 1701 1703 S161811010 SH55211028 SH55211075
Part # Description Qty Price
12260 - HOSE ASSY, VENTILATION
12261-E0251

N04C..XZB70..ARL;N04C..XZB70,80..4FC..GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZB70..4FC;N04C..XZB60,70..(02S,20S,22S)..5F..(EX,STD)

 1
96136-42901

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0013

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16206G - PIPE SUB-ASSY, COOLANT BY-PASS
S1608-75320

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16261X - HOSE, WATER
SZ920-34294

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
Common parts
15119-E0200
15119-E0210
S1618-11010
SH552-11028
SH552-11075
Linked diagrams
1603
1701
1703

(1701-1908)N04C..XZB60..GCC ; (1701-1908)N04C..XZB70..19S,22S,23S,25S,29S,30S..GCC,

Click highlighted areas on diagram

diagram 12260 12261A 12261B 12270 12270G 15119E0200 15119E0200 15119E0210 1603 1603 16206G 16261X 1701 1703 17061C 17061D S161811010 S900700450 SH55211028 SH55211075
Part # Description Qty Price
12260 - HOSE ASSY, VENTILATION
12261-E0251

N04C..XZB70..ARL;N04C..XZB70,80..4FC..GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZB70..4FC;N04C..XZB60,70..(02S,20S,22S)..5F..(EX,STD)

 1
96136-42901

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0013

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16206G - PIPE SUB-ASSY, COOLANT BY-PASS
S1608-75320

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16261X - HOSE, WATER
SZ920-34294

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
Common parts
15119-E0200
15119-E0210
S1618-11010
S9007-00450
SH552-11028
SH552-11075
Linked diagrams
1603
1701
1703

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

EURO 3 OR EURO 4 OR EURO 6

diagram 12203 12204 12261 12261B 12262 12263 12264 12270 1603 1703 21612B 21641C 21652A 9613642901 9613642901 9613642901 9613741701 9613741701 9613741701 9613741701 SH55210816 SH55210825
Part # Description Qty Price
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0013

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
Common parts
96136-42901
96137-41701
SH552-10816
SH552-10825
Linked diagrams
1603
1703

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

EURO 5

diagram 12260 12261A 12261B 12270 15119E0200 15119E0200 15119E0210 1603 1603 16206G 16261X 1701 1703 S161811010 SH55211028 SH55211075
Part # Description Qty Price
12260 - HOSE ASSY, VENTILATION
12261-E0251

N04C..XZB70..ARL;N04C..XZB70,80..4FC..GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZB70..4FC;N04C..XZB60,70..(02S,20S,22S)..5F..(EX,STD)

 1
96136-42901

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-28007

N04C..XZB70..4FC;N04C..XZB80..4FC,5F;N04C..XZB70..(20S,22S)..5F..(EX,STD)

 1
12270 - SEPARATOR ASSY, OIL
12270-E0013

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16206G - PIPE SUB-ASSY, COOLANT BY-PASS
S1608-75320

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
16261X - HOSE, WATER
SZ920-34294

N04C..XZB70,80..4FC;N04C..XZB70..5F..ARL

 1
Common parts
15119-E0200
15119-E0210
S1618-11010
SH552-11028
SH552-11075
Linked diagrams
1603
1701
1703
