XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )RHD

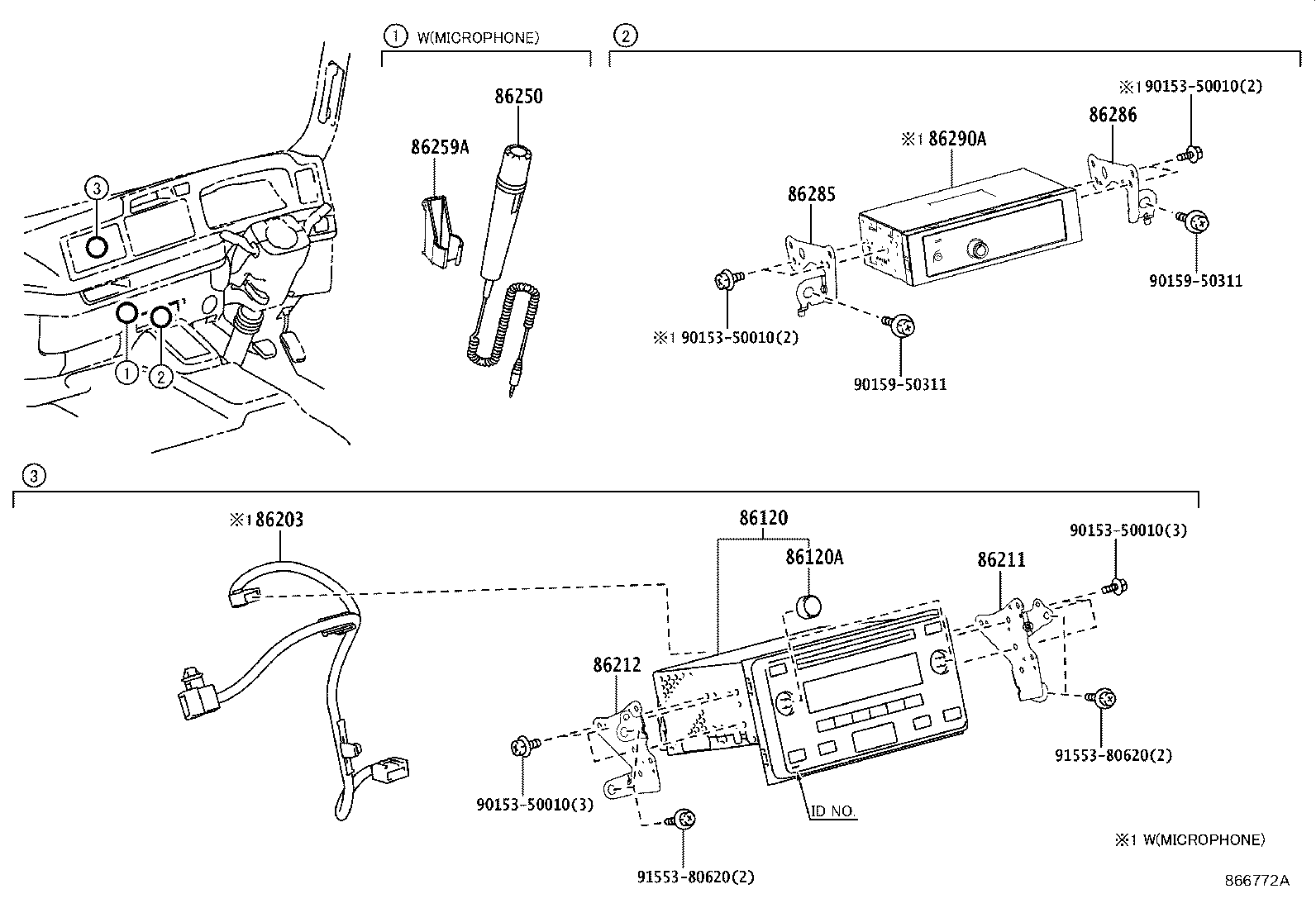

Click highlighted areas on diagram

diagram 86120 86120A 86203 86211 86212 86250 86259A 86285 86286 86290A 9015350010 9015350010 9015350010 9015350010 9015950311 9015950311 9155380620 9155380620
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-26252

XZB70..SA

DENSO TEN,ID100650

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-23051

XZB70..SA

 2
86203 - WIRE, RADIO
86203-36440

HZB60,70..RHD

AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH

 1
86203-36440

HZB60,70..RHD

AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)&MICROPHONE-WITH

 1
86211 - BRACKET, RADIO, NO.1
86211-36050

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
86212 - BRACKET, RADIO, NO.2
86212-36050

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-36070

HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH

 1
86259A - HANGER, MICROPHONE
86259-36040

HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-36070

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-36050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
90153-50010
90159-50311
91553-80620
