XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )RHD

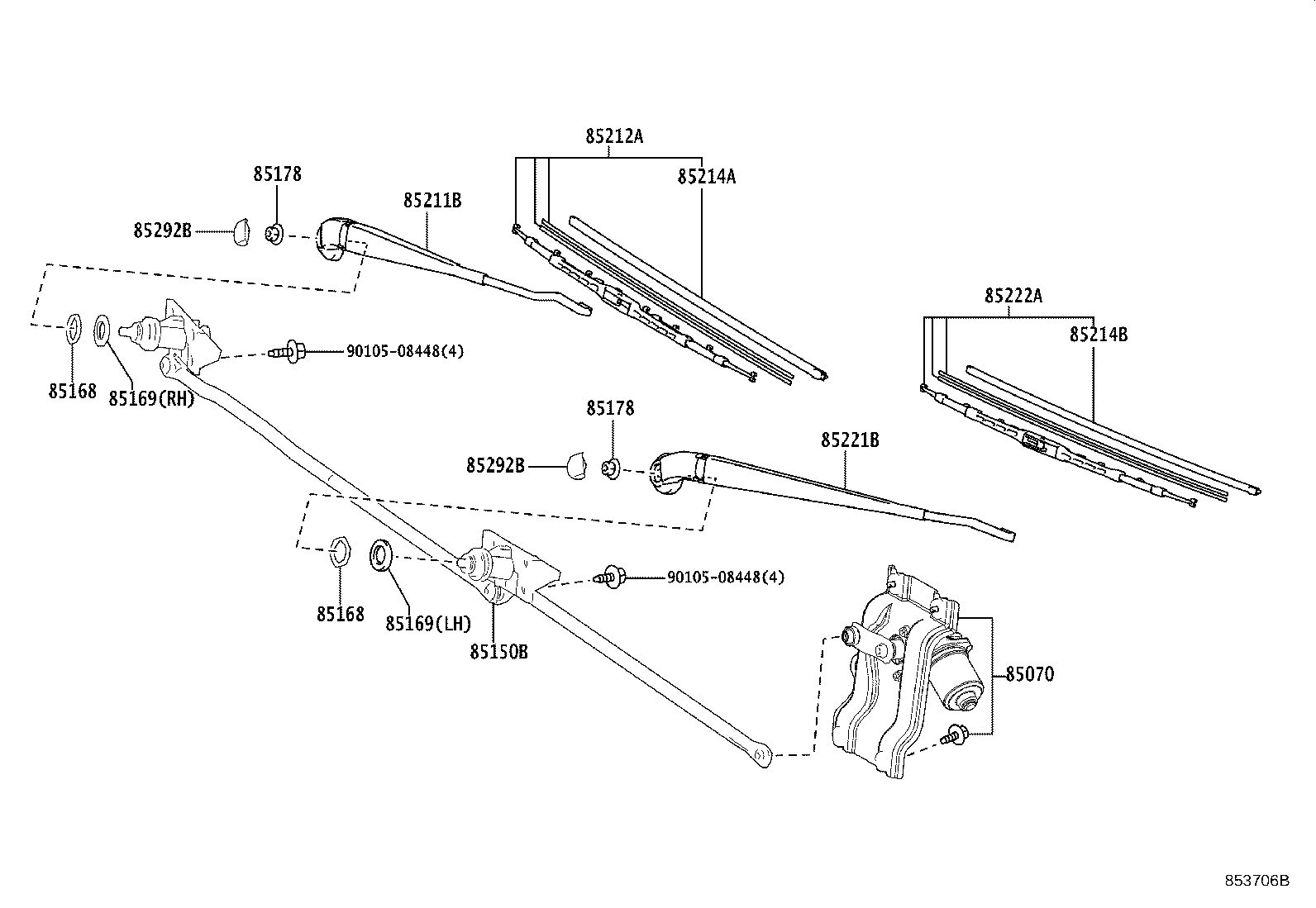

Click highlighted areas on diagram

diagram 85070 85150B 85168 85168 85169 85169 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9010508448 9010508448
Part # Description Qty Price
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-36100

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85113-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85113-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
85212A - BLADE, FR WIPER, RH
85212-26130

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85214A - RUBBER, WIPER, RH
85214-48010

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85214B - RUBBER, WIPER, LH
85214-24051

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85221B - ARM, FRONT WIPER, LH
85221-36040

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85222A - BLADE, FR WIPER, LH
85212-26051

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
Common parts
90105-08448
