XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

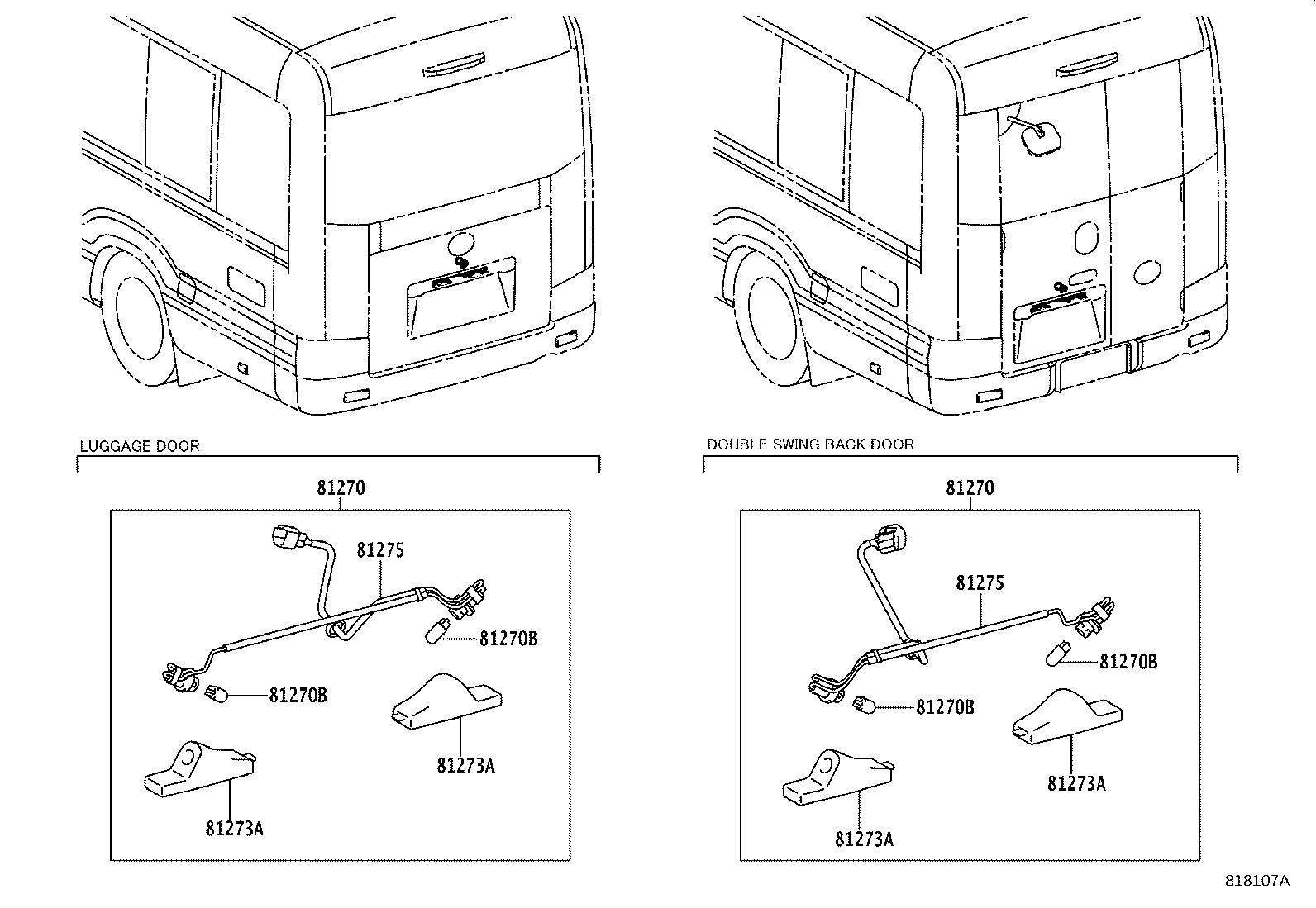

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81273A 81273A 81273A 81273A 81275 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-36260

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-36260

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 5W

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-36260

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-36260

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
