XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )BB60,BZB60,HZB60,70,XZB60,70..RHD ; (1908- )BZB70

Click highlighted areas on diagram

REAR SEAT(NO.2-NO.7)

diagram 7151 7151 7151 7151 7151 7151 7151 73135A 73135A 73136A 73136A 73178A 73178A 73179A 73179A 73302 73306 73330G 73330H 73330H 73343 73343 73344 73344 73350C 73360B 73370B 73373A 73373A 73375 73375 73380A 73380D 73390A 73470 73470 73470 73470 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-36010

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

 7
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-36010

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

 7
73136A - COVER, SHOULDER BELT ANCHOR, LH
73138-36010

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

 10
73136A - COVER, SHOULDER BELT ANCHOR, LH
73138-36010

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

 10
73178A - CAP, SEAT BELT ANCHOR COVER
73178-36060C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 7
73178A - CAP, SEAT BELT ANCHOR COVER
73178-36060C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 7
73179A - CAP, SEAT BELT ANCHOR COVER, LH
73179-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 10
73179A - CAP, SEAT BELT ANCHOR COVER, LH
73179-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 10
73302 - BELT SUB-ASSY, REAR SEAT OUTER
73380-36190C0

HZB70..30S..DX;XZB70..23S..DX;XZB70..6FC..ARL;HZB70..23S..GEN;XZB70..23S..WOC;HZB70,TRB70..DX..GCC

BLACK,TRIM1#

 1
73306 - BELT SUB-ASSY SEAT, INNER
73360-36140C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 12
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 12
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73343-36010C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 5
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73343-36010C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 5
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-36060C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 6
73360B - BELT ASSY, REAR SEAT, OUTER
73360-36140C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 6
73370B - BELT ASSY, REAR SEAT, OUTER
73370-36100C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 4
73373A - COVER, REAR SEAT SHOULDER BELT, RH
73373-36050C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 7
73373A - COVER, REAR SEAT SHOULDER BELT, RH
73373-36050C0

XZB70..6FC..ARL;HZB70,XZB70..RHD..(23S,30S)..DX

BLACK,TRIM1#

 7
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-36050C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 10
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-36050C0

HZB70..30S..DX;XZB70..6FC..ARL;XZB70..RHD..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 10
73380A - BELT ASSY, REAR SEAT, INNER
73380-36160C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;HZB70,XZB70..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 6
73380D - BELT ASSY, REAR SEAT, INNER
73380-36190C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;HZB70,XZB70..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 4
73390A - BELT ASSY, REAR SEAT, INNER
73380-36170C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;HZB70,XZB70..(20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 6
Common parts
90105-11058
Linked diagrams
7151

(1701- )RHD

Click highlighted areas on diagram

*DRS & *RES(NO.1) & SUB SEAT(NO.1)

diagram 73210 73220 73224 73230 73233 73240 73303 73308 9010511058 9010511058 9010511058 9046707221 9090119040 9155380614 9155380614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-36130C0

BZB60,HZB60,70,XZB60..RHD

BLACK,TRIM1#

 1
73210-36140C0

XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

BLACK,TRIM1#

 1
73210-36140C0

HZB60,70..RHD

FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1#

 1
73210-36140C0

HZB60,70..RHD

FRONT SEAT BELT-W(*DRS-PRETENSIONER), W(*PAS & SUB SEAT),BLACK,TRIM1#

 1
73210-36140C0

HZB60,70..RHD..WC

FRONT SEAT BELT-WITH(*DRP-PRETENSIONER SEAT BELT),BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73370-36120C0

HZB60,70..RHD

BLACK,TRIM1#

 1
73370-36130C0

XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

BLACK,TRIM1#

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73173-36030B0

XZB70..6FC..ARL;HZB60,70,XZB70..RHD..(22S,23S,26S,29S,30S)..(GEN,SA)

LT.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-36110C0

BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73380-36210C1

XZB70..6FC..ARL;HZB60,70,XZB70..RHD..(22S,23S,26S,29S,30S)..(GEN,SA)

BLACK,TRIM1#

 1
Common parts
90105-11058
90467-07221
90901-19040
91553-80614

(1701- )

Click highlighted areas on diagram

TONGUE STOPPER

diagram 73219
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK

 1
73219-33030

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BEIGE

 1
73219-33020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

GRAY

 1

(1701- )23S ; (1701- )BB60,HZB60,70..RHD ;(2101- )RHD..29S

Click highlighted areas on diagram

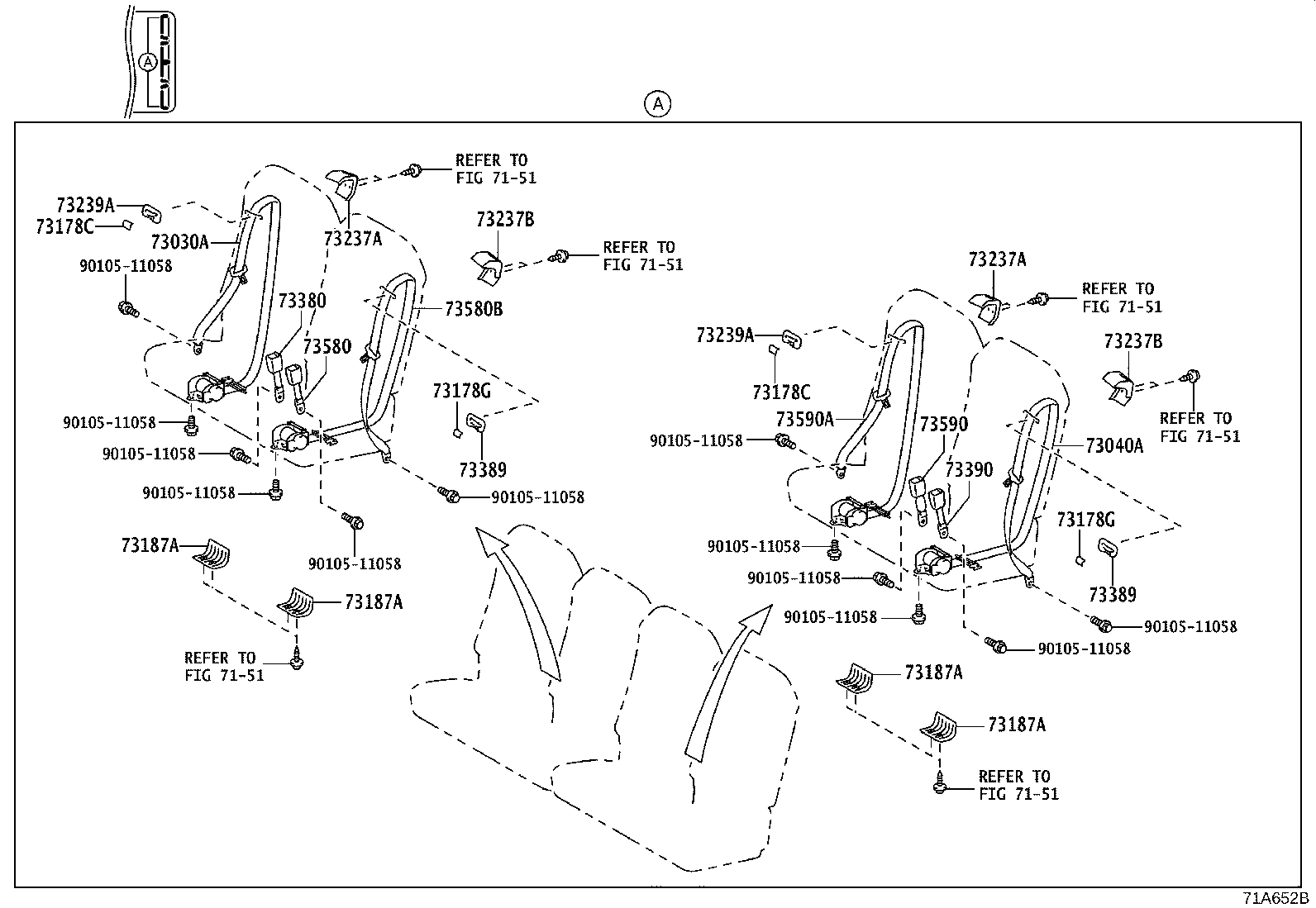

LAST ROW SEAT(NO.8),3-POINT TYPE

diagram 7151 7151 7151 7151 7151 7151 73030A 73040A 73178C 73178C 73178G 73178G 73187A 73187A 73187A 73187A 73237A 73237A 73237B 73237B 73239A 73239A 73380 73389 73389 73390 73580 73580B 73590 73590A 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
73030A - BELT ASSY, REAR SEAT LAP TYPE, RH
73360-36140C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
73040A - BELT ASSY, REAR SEAT LAP TYPE, LH
73370-36100C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
73178G - CAP, SEAT BELT ANCHOR COVER
73179-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 2
73178G - CAP, SEAT BELT ANCHOR COVER
73179-36010C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 2
73237B - COVER, SHOULDER BELT ANCHOR
73138-36010

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

 2
73237B - COVER, SHOULDER BELT ANCHOR
73138-36010

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-36160C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
73389 - COVER, REAR SEAT SHOULDER BELT, LH
73375-36050C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 2
73389 - COVER, REAR SEAT SHOULDER BELT, LH
73375-36050C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 2
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73380-36170C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
73580B - BELT ASSY, REAR SEAT, INNER RH
73350-36060C0

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(17S,20S,22S,23S)..(5F,6FC)..(GEN,SA)

BLACK,TRIM1#

 1
Common parts
90105-11058
Linked diagrams
7151
