XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )RHD

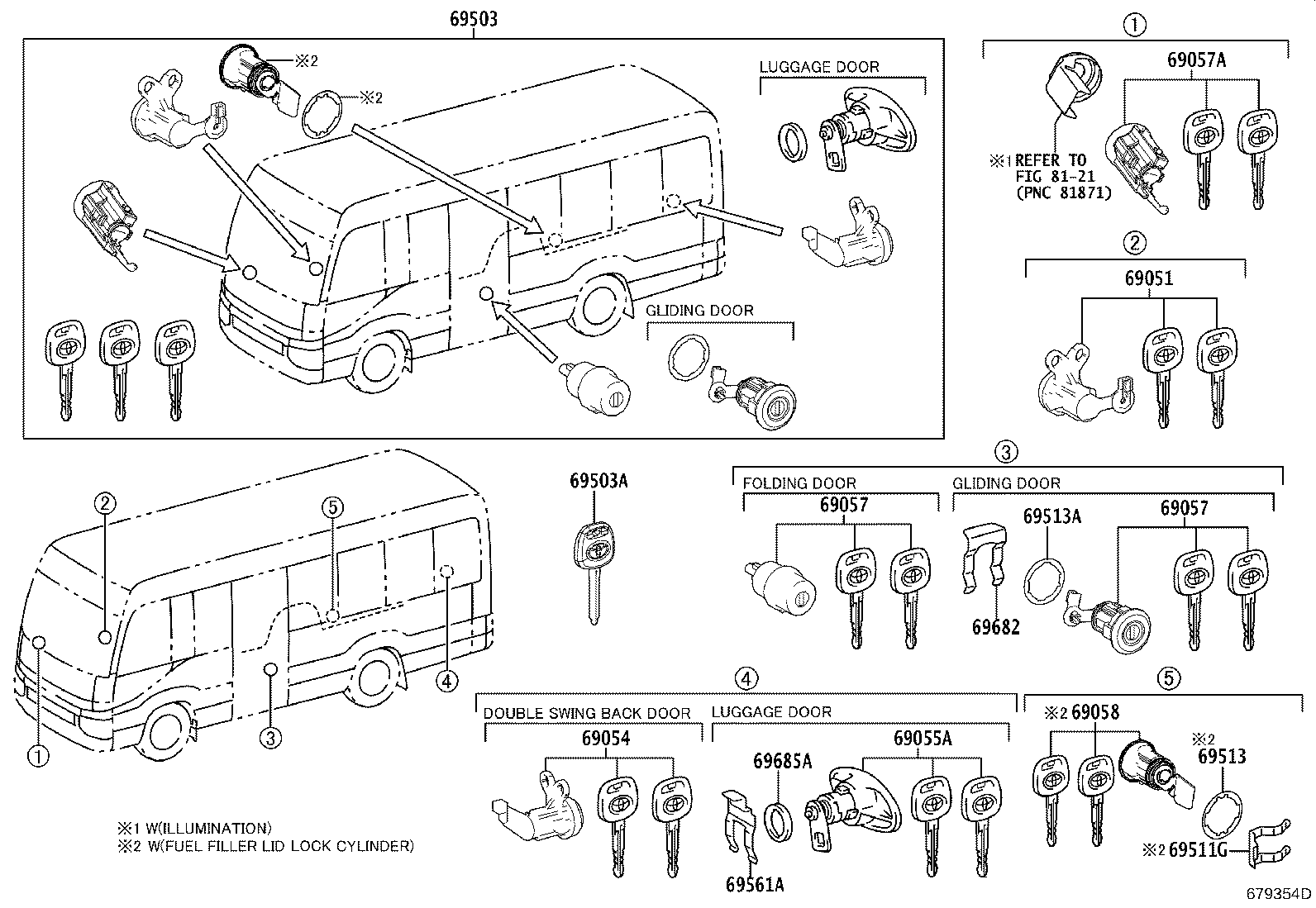

Click highlighted areas on diagram

diagram 69051 69054 69055A 69057 69057 69057A 69058 69503 69503A 69511G 69513 69513A 69561A 69682 69685A 8121
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-36071

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-36011

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36021

XZB70..SA

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36021

XZB70..SA

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-36090

HZB60,70

 1
69057-36100

XZB70..SA;XZB70,80..6FC

 1
69057-36100

XZB70..TAIW;XZB70..RHD..29S;TRB60,70,XZB80..(01S,20S,23S)..5F

STEERING COLUMN-WITH(TILT & TELESCOPIC)

 1
69503 - CYLINDER SET, LOCK
69005-36B30

HZB60,70..RHD

 1
69005-V4010

XZB70..SA

 1
69005-V4110

TRB60,70..20S,23S

STEERING COLUMN-WITH(TILT & TELESCOPIC)

 1
69503A - KEY, BLANK
69515-36070

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

MASTER KEY,W(*68)

 1
69513A - PAD, DOOR CYLINDER
69513-32010

XZB80..5F,6FC;XZB70..6FC..(DX,EX);XZB70..RHD..(20S,23S)..5F..(DX,EX)

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-33010

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
69682 - RETAINER, LOCK CYLINDER
69511-89101

XZB80..5F,6FC;XZB70..6FC..(DX,EX);XZB70..RHD..(20S,23S)..5F..(DX,EX)

 1
69685A - PAD, LOCK CYLINDER
69685-36010

XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S

 1
Linked diagrams
8121
