XZB70R-ZEMNYN (2021)
Toyota Coaster

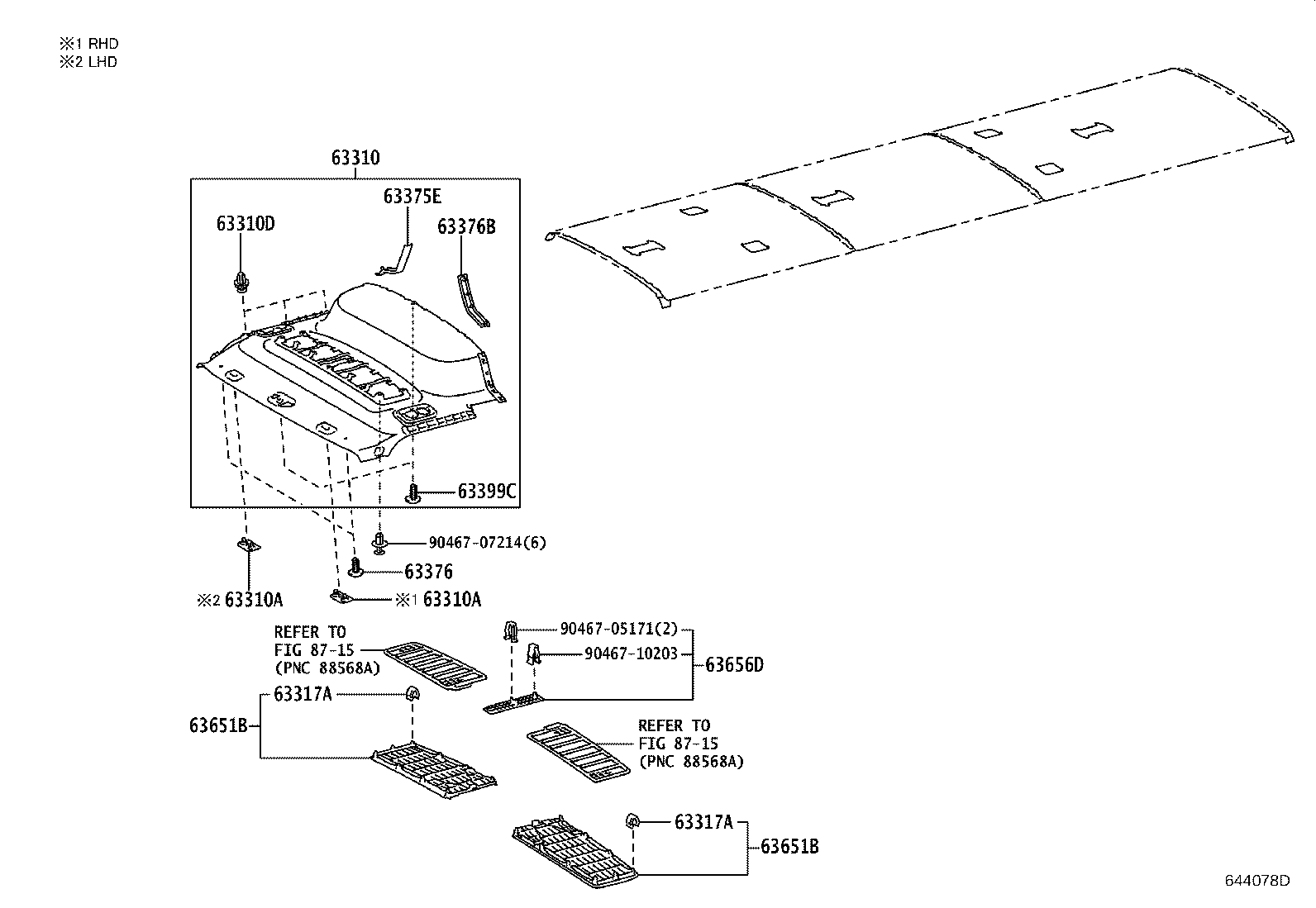

ILLUST NO. 1 OF 4(1701- )WC
FRONT ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-36050B1 |
XZB70..6FC..DX;HZB60,70..RHD..WC SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1# |
1 | ||
| 63310-36210B0 |
XZB70..6FC..DX;HZB60,70..RHD..WC SIDE WINDOW CURTAIN-WITH(FRONT & REAR)&CLOCK-WITH,LT.GRAY,TRIM1# |
1 | ||
| 63310-36070B1 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70..RHD..(17S,20S,22S,23S,26S,30S)..(5F,6FC)..(DX,STD)..WC..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74317-36050B0 |
HZB60,70,TRB60,70;XZB70..(02S,19S,23S,25S,29S,30S)..(GCC,GEN,TAIW) SUN VISOR-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74317-36050B0 |
HZB60,70,TRB60,70;XZB70..(02S,19S,23S,25S,29S,30S)..(GCC,GEN,TAIW) SUN VISOR-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 63375E - MOULDING, ROOF HEADLINING, FRONT RH | ||||
| 63375-36040B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63376 - CLIP, HEADLINING | ||||
| 63399-26050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 63376B - MOULDING, ROOF HEADLINIG, NO.1 LH | ||||
| 63376-36030B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36020B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36020B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 63656D - COVER, AIR INTAKE, CENTER | ||||
| 63656-36020B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-07214 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8715 | ||||

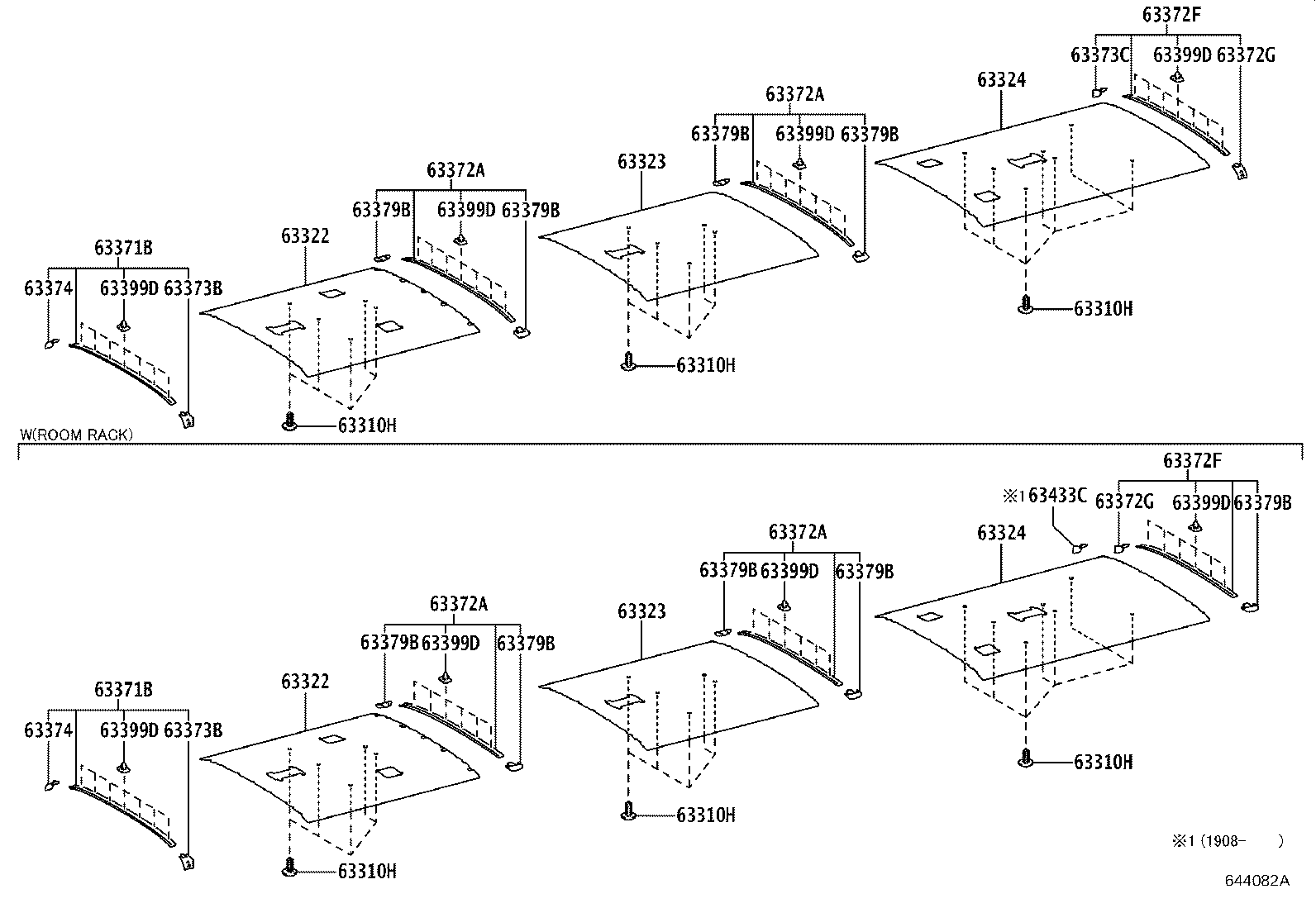

ILLUST NO. 2 OF 4(1701- )BZB70,HZB70,TRB70,XZB70..WC
CENTER ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
17 | ||
| 63322 - BOARD, ROOF, NO.2 | ||||
| 63313-36650B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63322 - BOARD, ROOF, NO.2 | ||||
| 63313-36650B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63323 - BOARD, ROOF, NO.3 | ||||
| 63313-36731B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63323 - BOARD, ROOF, NO.3 | ||||
| 63313-36731B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63324 - BOARD, ROOF, NO.4 | ||||
| 63314-36C21B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63324 - BOARD, ROOF, NO.4 | ||||
| 63314-36C21B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36160B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36160B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB70..SA LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB70..SA LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB70..SA LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB70..SA LT.GRAY,TRIM1# |
2 | ||
| 63372F - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36200B0 |
HZB60,70..RHD..WC PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
HZB60,70..RHD..WC PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA),LT.GRAY,TRIM1# |
1 | ||
| 63372F - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36200B0 |
HZB60,70..RHD..WC PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
HZB60,70..RHD..WC PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA),LT.GRAY,TRIM1# |
1 | ||
| 63372G - MOULDING, ROOF BOARD SET, NO.4 | ||||
| 63374-36060B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63372G - MOULDING, ROOF BOARD SET, NO.4 | ||||
| 63374-36060B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-36100B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-36100B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-36050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-36050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,TAIW);HZB70,XZB60..(17S,19S,23S,25S,30S)..WC;BZB60,HZB60,TRB60,70..17S,19S,20S,23S,26S,30S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB70..SA LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER,LT.GRAY,TRIM1# |
5 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
HZB60,70,TRB60,70..WC;XZB70..LHD..WC..(GCC,GEN) PARCEL RACK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
25 | ||
| 63399-26030 |
XZB70..SA |
25 | ||
| 63433C - COVER, ROOM RACK SIDE, NO.1 | ||||
| 63433-36190B0 |
XZB70..SA LT.GRAY,TRIM1# |
1 | ||

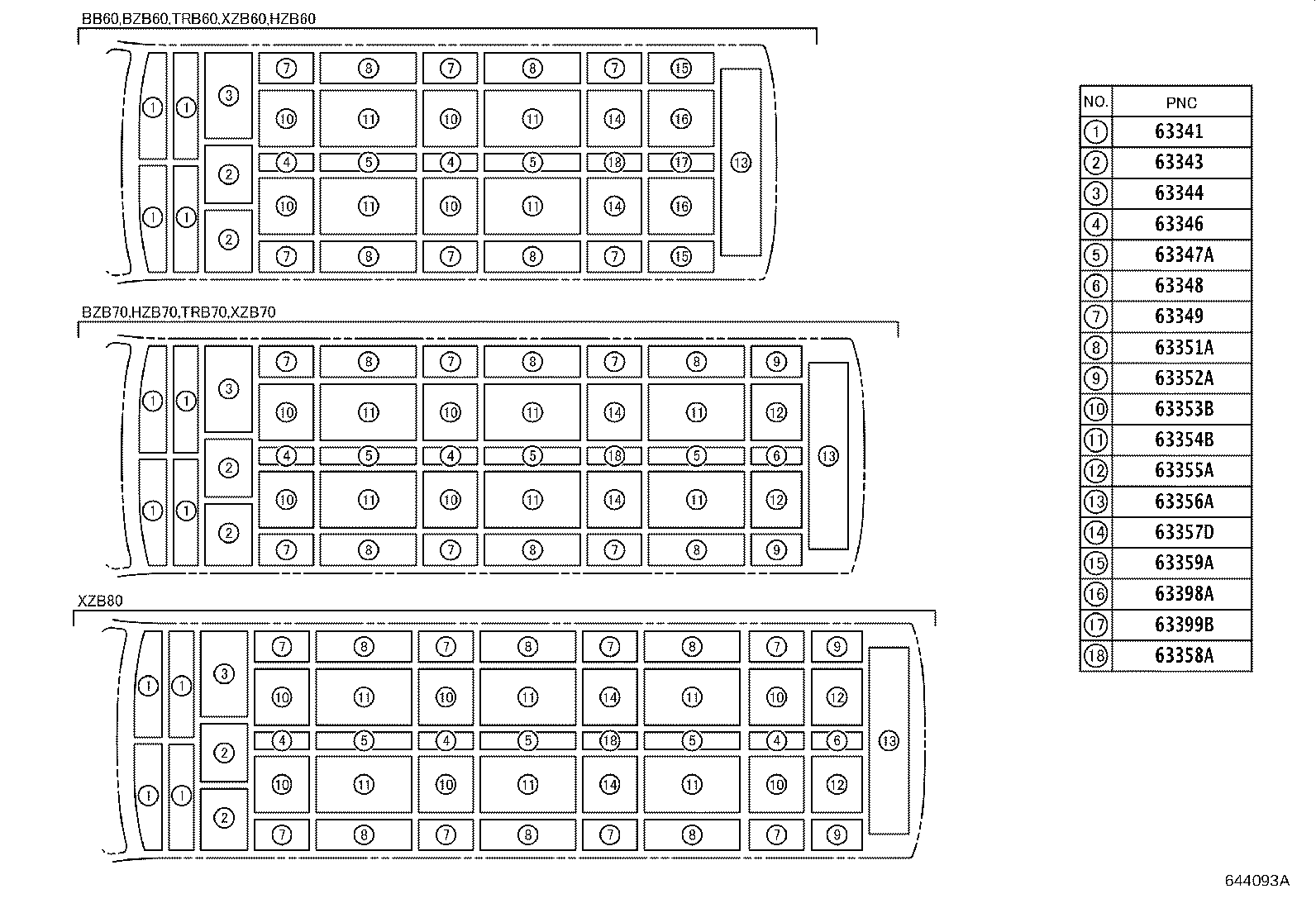

ILLUST NO. 4 OF 4(1701- )
ROOF SILENCER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-36090 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63348-36080 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63351-36040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 63352A - PAD, ROOF SILENCER, NO.11 | ||||
| 63352-36040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63353B - PAD, ROOF SILENCER, NO.12 | ||||
| 63353-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 63354B - PAD, ROOF SILENCER, NO.13 | ||||
| 63354-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63355-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63356A - PAD, ROOF SILENCER, NO.15 | ||||
| 63356-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63357D - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36180 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63358A - PAD, ROOF SILENCER, NO.17 | ||||
| 63692-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||

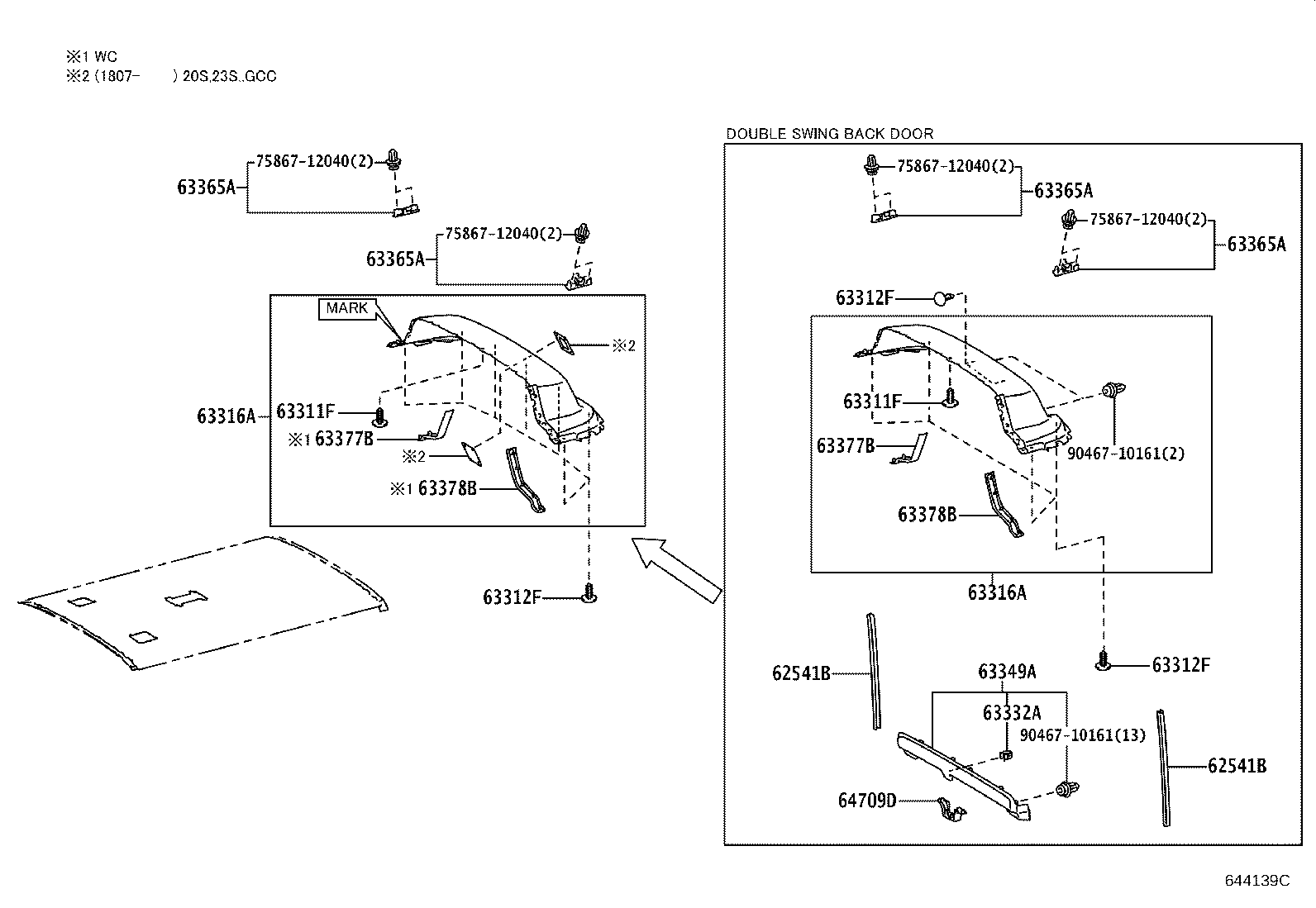

ILLUST NO. 3 OF 4(1701- )
REAR ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB70..LHD..(23S,29S)..WC;HZB70,TRB60,70..(20S,23S,30S)..WC SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S LT.GRAY,TRIM1# |
7 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB70..LHD..(23S,29S)..WC;HZB70,TRB60,70..(20S,23S,30S)..WC SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S LT.GRAY,TRIM1# |
7 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB70..LHD..(23S,29S)..WC;HZB70,TRB60,70..(20S,23S,30S)..WC SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB70..23S,29S,30S;HZB60,70,TRB60,70..20S,23S,24S,26S,30S LT.GRAY,TRIM1# |
7 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36350B1 |
XZB70..(23S,29S)..WC;HZB60,70,TRB60,70..(20S,23S,26S,30S)..WC GRAY,TRIM1# |
1 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36350B1 |
XZB70..(23S,29S)..WC;HZB60,70,TRB60,70..(20S,23S,26S,30S)..WC GRAY,TRIM1# |
1 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63377B - MOULDING, ROOF HEADLINING, REAR RH | ||||
| 63377-36080B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63377B - MOULDING, ROOF HEADLINING, REAR RH | ||||
| 63377-36080B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63378B - MOULDING, ROOF HEADLINING, REAR LH | ||||
| 63378-36070B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 63378B - MOULDING, ROOF HEADLINING, REAR LH | ||||
| 63378-36070B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 75867-12040 | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
