XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )BB60,HZB60,70

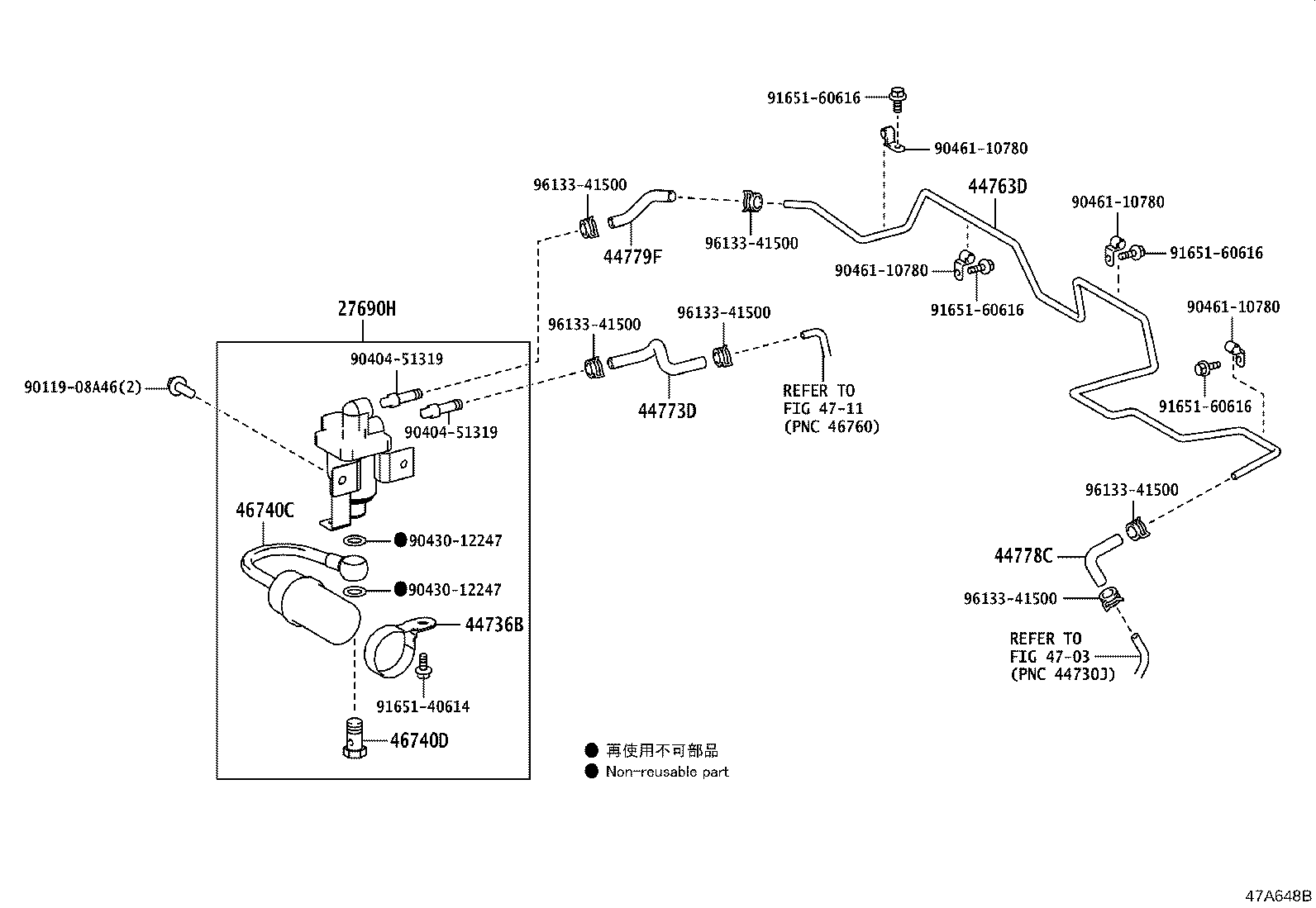

Click highlighted areas on diagram

diagram 27690H 44736B 44763D 44773D 44778C 44779F 46740C 46740D 4703 4711 9011908A46 9040451319 9040451319 9043012247 9043012247 9046110780 9046110780 9046110780 9046110780 9165140614 9165160616 9165160616 9165160616 9165160616 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27690H - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56160

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
44736B - BRACKET, AIR CLEANER
44736-36050

XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36043

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
44763-36043

HZB60,70..RHD

EXHAUST RETARDER-WITH

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36170

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
44778C - HOSE, CONNECTOR TO VACUUM RESERVOIR
44775-36100

XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36121

XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
46740C - CLEANER ASSY, EXHAUST RETARDER AIR
46740-36090

XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
46740D - BOLT, UNION(FOR EXHAUST RETARDER AIR CLEANER ASSY)
90401-12097

XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
90119-08A46
90404-51319
90430-12247
90461-10780
91651-40614
91651-60616
96133-41500
Linked diagrams
4703
4711
