XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )N04C

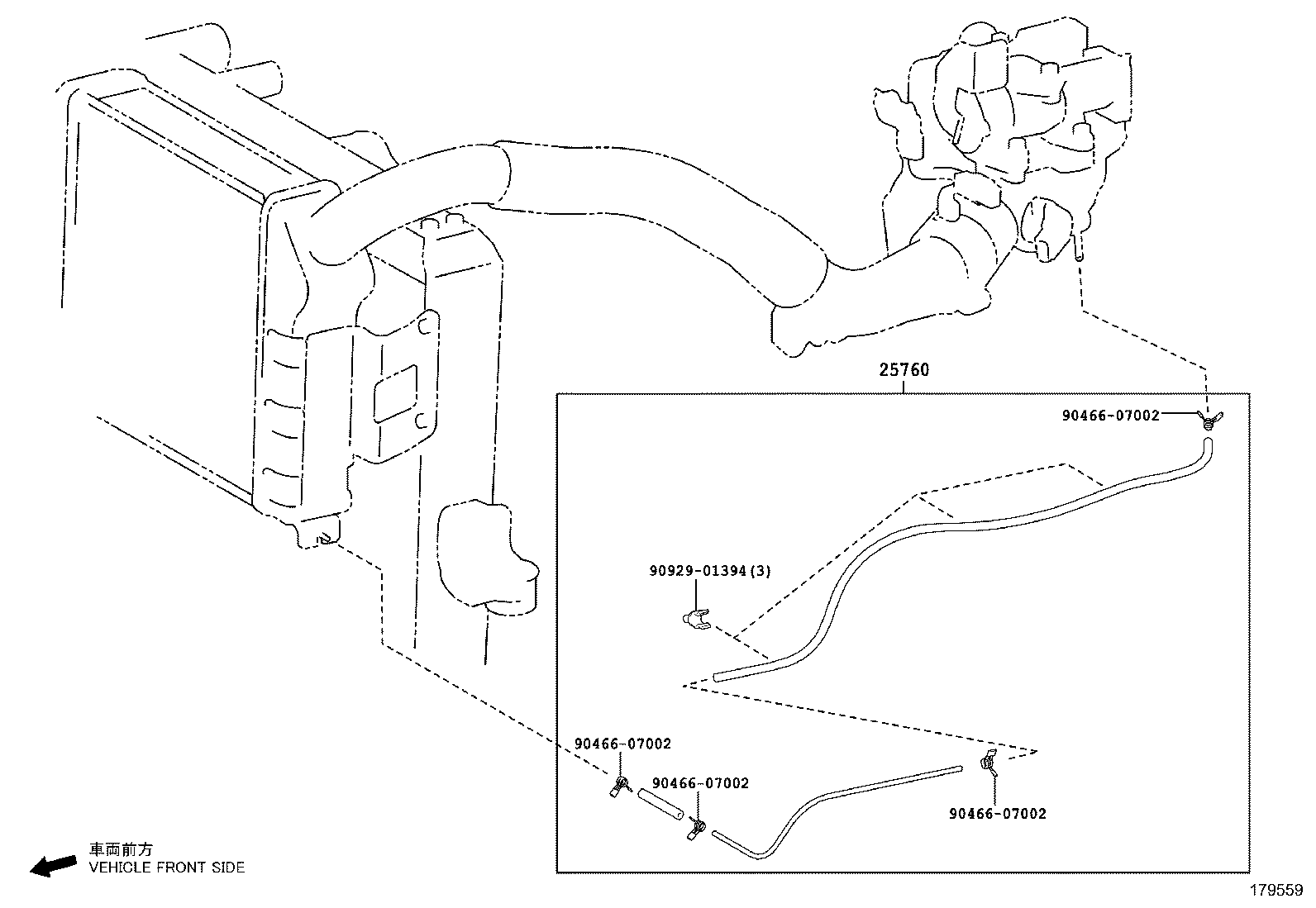

Click highlighted areas on diagram

diagram 25760 9046607002 9046607002 9046607002 9046607002 9092901394
Part # Description Qty Price
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-78030

N04C..XZB60,70..RHD..(17S,22S,23S,29S)..(GEN,SA)

 1
Common parts
90466-07002
90929-01394
