XZB70R-ZEMNYN (2021)

Toyota Coaster

Production Jan 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

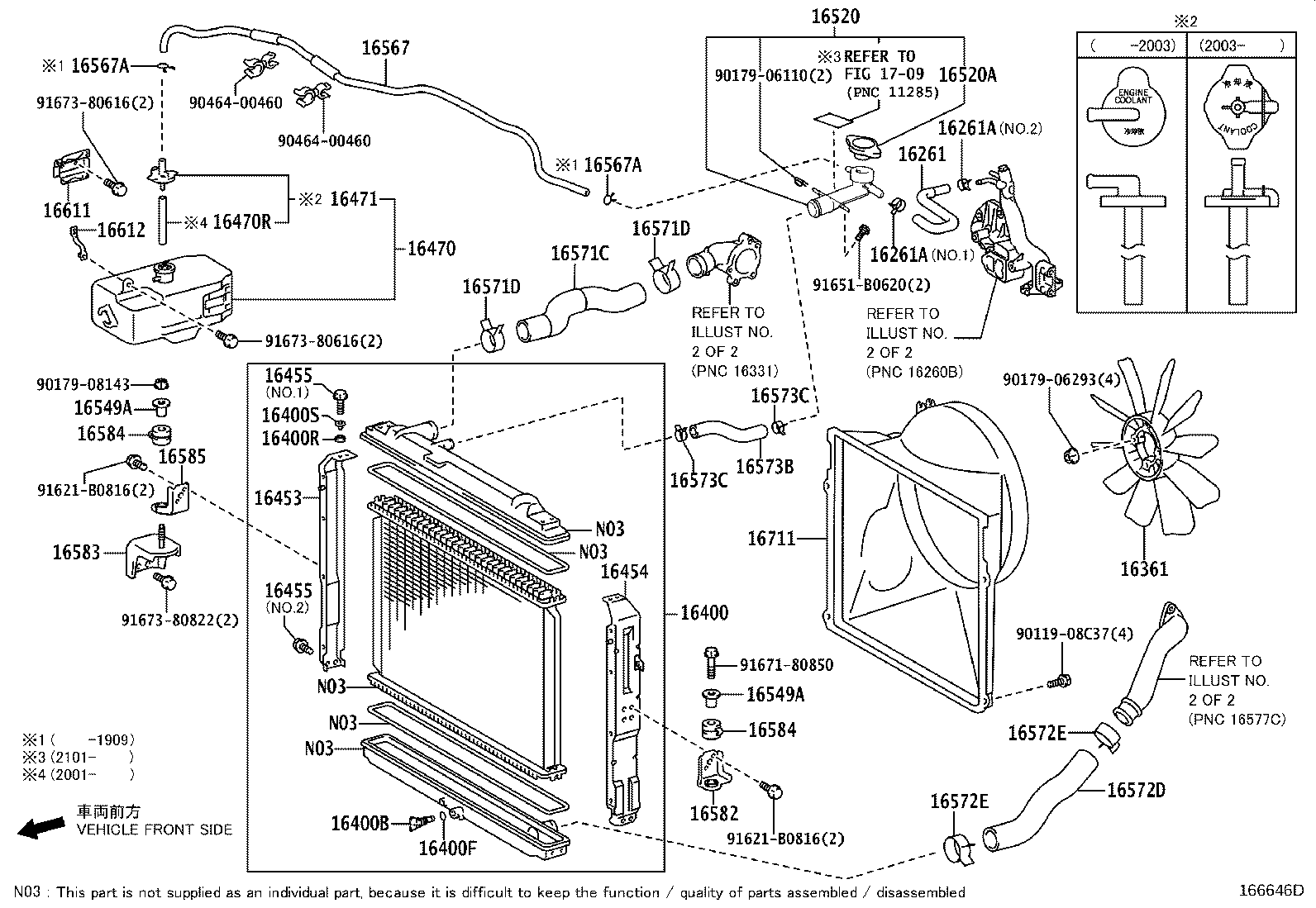

ILLUST NO. 1 OF 2(1701- )N04C..RHD

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16261 16261A 16261A 16361 16400 16400B 16400F 16400R 16400S 16453 16454 16455 16455 16470 16470R 16471 16520 16520A 16549A 16549A 16567 16567A 16567A 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16582 16583 16584 16584 16585 16611 16612 16711 1709 9011908C37 9017906110 9017906293 9017908143 9046400460 9046400460 91621B0816 91621B0816 91651B0620 9167180850 9167380616 9167380616 9167380822
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-78230

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-17021

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
90466-13001

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-17021

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
90466-13001

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
16361 - FAN
16361-67040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16400 - RADIATOR ASSY
16400-78462

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16400R - BUSHING(FOR RADIATOR)
16444-67130

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
16400S - COLLAR(FOR RADIATOR)
16445-67130

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
16453 - PLATE, RADIATOR SIDE
16453-78291

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16454 - PLATE, RADIATOR SIDE
16454-78291

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67130

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 4
16455-67020

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 4
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67130

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 4
16455-67020

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 4
16520 - FILLER ASSY, WATER
16520-V4010

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16520A - CAP SUB-ASSY, WATER FILLER
16401-36020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16549A - COLLAR, RADIATOR SUPPORT, NO.1
16549-61010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16549A - COLLAR, RADIATOR SUPPORT, NO.1
16549-61010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16571C - HOSE, RADIATOR, NO.1
16571-78290

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90467-43002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90467-43002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16572D - HOSE, RADIATOR, NO.2
16572-78300

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-43002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90467-43002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16573B - HOSE, RADIATOR, NO.3
16573-78111

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-53601

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-53601

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16582 - BRACKET, RADIATOR, NO.1
16582-78110

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16583 - BRACKET, RADIATOR, NO.2
16583-17010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16584 - INSULATOR, RADIATOR MOUNTING
16584-61020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16584 - INSULATOR, RADIATOR MOUNTING
16584-61020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
16585 - BRACKET, RADIATOR, NO.3
16585-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-16010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16612 - BRACKET, RADIATOR RESERVE TANK, NO.2
16612-17011

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16711 - SHROUD, FAN
16711-78240

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
Common parts
90119-08C37
90179-06110
90179-06293
90179-08143
90464-00460
91621-B0816
91651-B0620
91671-80850
91673-80616
91673-80822
Linked diagrams
1709
