XZB70L-ZXMSYV (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

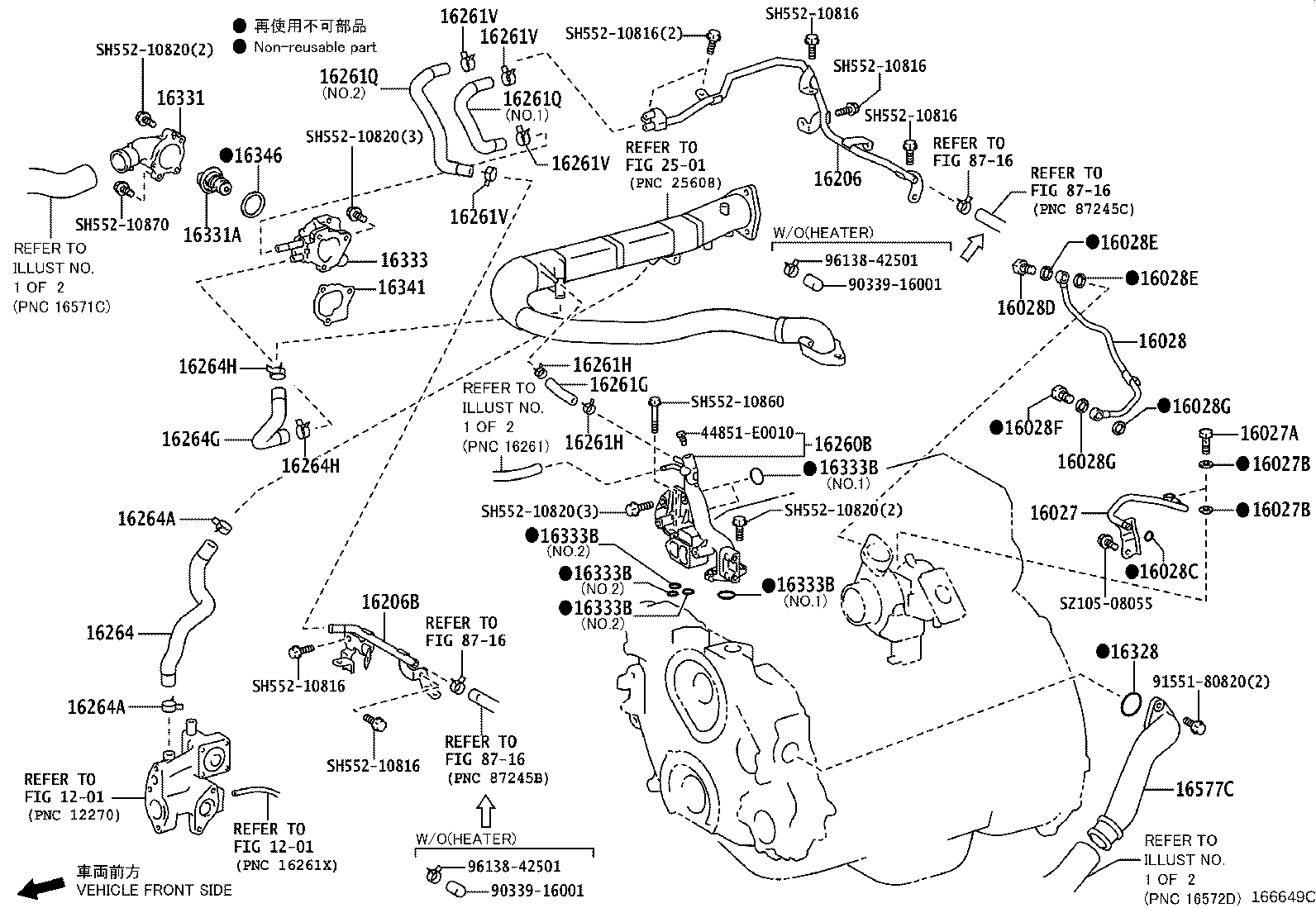

ILLUST NO. 2 OF 2(1701-1908)N04C..XZB60..GCC ; (1701-1908)N04C..XZB70..19S,22S,23S,25S,29S,30S..GCC,

Click highlighted areas on diagram

ENGINE SIDE,EXCEPT EURO 4

diagram 16027 16027A 16027B 16027B 16028 16028C 16028D 16028D 16028E 16028E 16028E 16028E 16206 16206B 16260B 16261Q 16261Q 16261V 16261V 16261V 16261V 16328 16331 16331A 16333 16333B 16333B 16333B 16333B 16333B 16341 16346 16577C 44851E0010 8716 8716 8716 8716 9033916001 9033916001 9155180820 9613842501 9613842501 SH55210816 SH55210816 SH55210816 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210832 SH55210850 SH55210860 SH55210870 SZ10508055
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-E0B31

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78710

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-78720

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260B - PIPE ASSY, WATER BY-PASS
16260-E0070

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16260-E0071

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-78080

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260-78070

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16328 - GASKET, WATER INLET PIPE
16328-78020

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16328-78010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16331 - OUTLET, WATER
16331-78050

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16331-E0120

N04C..XZB70;N04C..XZB60..GEN

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-78150

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-E0193

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16303-78152

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78151

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78161

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16577C - PIPE, RADIATOR
16577-78132

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16577-78201

N04C..XZB70..6FC..ARL;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
44851-E0010
90339-16001
91551-80820
96138-42501
SH552-10816
SH552-10820
SH552-10832
SH552-10850
SH552-10860
SH552-10870
SZ105-08055
Linked diagrams
8716

ILLUST NO. 2 OF 2(1701-1908)N04C..XZB70..LHD..GCC,GEN

Click highlighted areas on diagram

ENGINE SIDE,EURO 4

diagram 1201 1201 16027 16027A 16027B 16027B 16028 16028C 16028D 16028E 16028E 16028F 16028G 16028G 16206 16206B 16260B 16261G 16261H 16261H 16261Q 16261Q 16261V 16261V 16261V 16261V 16264 16264A 16264A 16264G 16264H 16264H 16328 16331 16331A 16333 16333B 16333B 16333B 16333B 16333B 16341 16346 16577C 2501 44851E0010 8716 8716 8716 8716 9033916001 9033916001 9155180820 9613842501 9613842501 SH55210816 SH55210816 SH55210816 SH55210816 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210860 SH55210870 SZ10508055
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028G - GASKET, NO.2(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028G - GASKET, NO.2(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-E0B31

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78710

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-78720

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260B - PIPE ASSY, WATER BY-PASS
16260-E0070

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16260-E0071

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-78080

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260-78070

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16261G - HOSE, WATER BY-PASS, NO.1
SZ920-34333

N04C..XZB70..LHD..WC..(GCC,GEN)

L=59,EXHAUST EMISSION CONTROL-EURO 4

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16264 - HOSE, WATER BY-PASS, NO.2
87245-E0C12

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
87245-37J40

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264G - HOSE, WATER BY-PASS, NO.3
87245-E0C20

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16328 - GASKET, WATER INLET PIPE
16328-78020

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16328-78010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16331 - OUTLET, WATER
16331-78050

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16331-E0120

N04C..XZB70;N04C..XZB60..GEN

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-78150

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-E0193

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16303-78152

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78151

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78161

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16577C - PIPE, RADIATOR
16577-78132

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16577-78201

N04C..XZB70..6FC..ARL;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
44851-E0010
90339-16001
91551-80820
96138-42501
SH552-10816
SH552-10820
SH552-10860
SH552-10870
SZ105-08055
Linked diagrams
1201
2501
8716

ILLUST NO. 2 OF 2(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

ENGINE SIDE,EURO 5

diagram 1201 1201 16027 16027A 16027B 16027B 16028 16028C 16028D 16028D 16028E 16028E 16028E 16028E 16206B 16260B 16261G 16261H 16261H 16261Q 16261V 16261V 16264 16264A 16264A 16264G 16264H 16264H 16328 16331 16331A 16333 16333B 16333B 16333B 16341 16346 16577C 2501 44851E0010 8716 8716 9033916001 9155180820 9613842501 S799041220 S799041220 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210860 SH55210870 SL15010808 SZ10508055
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-78720

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260B - PIPE ASSY, WATER BY-PASS
16260-E0070

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16260-E0071

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-78080

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260-78070

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16261G - HOSE, WATER BY-PASS, NO.1
SZ920-34333

N04C..XZB70..LHD..WC..(GCC,GEN)

L=59,EXHAUST EMISSION CONTROL-EURO 4

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16264 - HOSE, WATER BY-PASS, NO.2
87245-E0C12

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
87245-37J40

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264G - HOSE, WATER BY-PASS, NO.3
87245-E0C20

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16328 - GASKET, WATER INLET PIPE
16328-78020

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16328-78010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16331 - OUTLET, WATER
16331-78050

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16331-E0120

N04C..XZB70;N04C..XZB60..GEN

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-78150

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-E0193

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16303-78152

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78151

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78161

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16577C - PIPE, RADIATOR
16577-78132

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16577-78201

N04C..XZB70..6FC..ARL;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
44851-E0010
90339-16001
91551-80820
96138-42501
S7990-41220
SH552-10816
SH552-10820
SH552-10860
SH552-10870
SL150-10808
SZ105-08055
Linked diagrams
1201
2501
8716

ILLUST NO. 2 OF 2(1908- )N04C

Click highlighted areas on diagram

ENGINE SIDE,EURO 3

diagram 1201 1201 16025 16027 16027A 16027B 16027B 16028 16028C 16028D 16028D 16028E 16028E 16028E 16028E 16206 16206A 16206B 16258C 16258C 16260B 16261N 16261Q 16261V 16261V 16268F 16268F 16268F 16328 16331 16331A 16333 16333B 16341 16346 16577C 16671 1701 8716 8716 8716 8716 9155180820 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210850 SH55210860 SH55210870 SH55211028 SH55211075 SN74100253 SZ10508055
Part # Description Qty Price
16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5
16206-78671

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78681

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-E0B31

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78710

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2
S1608-75320

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-78720

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16258C - GASKET(FOR WATER BY-PASS PIPE)
11312-78060

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
11312-78030

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 1
16258C - GASKET(FOR WATER BY-PASS PIPE)
11312-78060

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
11312-78030

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 1
16260B - PIPE ASSY, WATER BY-PASS
16260-E0070

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16260-E0071

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-78080

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260-78070

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16261N - HOSE, WATER BY-PASS, NO.2
SZ920-34294

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16328 - GASKET, WATER INLET PIPE
16328-78020

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16328-78010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16331 - OUTLET, WATER
16331-78050

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16331-E0120

N04C..XZB70;N04C..XZB60..GEN

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-78150

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-E0193

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16303-78152

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78151

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78161

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16577C - PIPE, RADIATOR
16577-78132

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16577-78201

N04C..XZB70..6FC..ARL;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16671 - VALVE, WATER
S1618-11010

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
Common parts
91551-80820
SH552-10816
SH552-10820
SH552-10850
SH552-10860
SH552-10870
SH552-11028
SH552-11075
SN741-00253
SZ105-08055
Linked diagrams
1201
1701
8716

ILLUST NO. 2 OF 2(1908- )N04C

Click highlighted areas on diagram

ENGINE SIDE,EURO 4 OR EURO 6

diagram 1201 1201 16025 16027 16027A 16027B 16027B 16028 16028C 16028D 16028E 16028E 16028F 16206 16206A 16206B 16206F 16209 16258C 16258C 16260B 16261G 16261H 16261H 16261N 16261Q 16261V 16261V 16264 16264A 16264A 16264D 16264E 16264E 16264G 16264H 16264H 16268F 16268F 16268F 16268H 16328 16331 16331A 16333 16333B 16341 16346 16577C 16671 16895A 1701 2501 2502 2502 2502 8716 8716 8716 8716 9033916001 9155180820 9613842501 S799041740 S799041740 SH55210816 SH55210816 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210860 SH55210870 SH55211028 SH55211075 SL15010808 SN74100253 SZ10508055 SZ20914017 SZ20914017 SZ20914017
Part # Description Qty Price
16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5
16206-78671

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78681

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16027-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
SZ401-12001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 4
SZ430-12005

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-E0B31

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16206-78710

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2
S1608-75320

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16206-78720

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16258C - GASKET(FOR WATER BY-PASS PIPE)
11312-78060

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
11312-78030

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 1
16258C - GASKET(FOR WATER BY-PASS PIPE)
11312-78060

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
11312-78030

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 1
16260B - PIPE ASSY, WATER BY-PASS
16260-E0070

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-E0060

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16260-E0071

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16260-78080

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16260-78070

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16261G - HOSE, WATER BY-PASS, NO.1
SZ920-34333

N04C..XZB70..LHD..WC..(GCC,GEN)

L=59,EXHAUST EMISSION CONTROL-EURO 4

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-13007

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16261N - HOSE, WATER BY-PASS, NO.2
SZ920-34294

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16261Q - HOSE, WATER BY-PASS
16261-E0220

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 1
16261-E0230

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.2:REFER ILLUST.

 1
16261-78250

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
SZ466-22001

N04C..XZB70;N04C..XZB60..GEN

 4
16264 - HOSE, WATER BY-PASS, NO.2
87245-E0C12

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
87245-37J40

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264G - HOSE, WATER BY-PASS, NO.3
87245-E0C20

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
SZ466-26001

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
15119-E0210

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.2:REFER ILLUST.

 1
15119-E0200

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

NO.1:REFER ILLUST.

 2
16328 - GASKET, WATER INLET PIPE
16328-78020

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16328-78010

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16331 - OUTLET, WATER
16331-78050

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16331-E0120

N04C..XZB70;N04C..XZB60..GEN

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-78150

N04C..XZB70..LHD..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-E0193

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16303-78152

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78151

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
16303-78161

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

NO.1:REFER ILLUST.

 3
SZ301-31011

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
16577C - PIPE, RADIATOR
16577-78132

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
16577-78201

N04C..XZB70..6FC..ARL;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16671 - VALVE, WATER
S1618-11010

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1)
SZ401-14004

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
Common parts
90339-16001
91551-80820
96138-42501
S7990-41740
SH552-10816
SH552-10820
SH552-10860
SH552-10870
SH552-11028
SH552-11075
SL150-10808
SN741-00253
SZ105-08055
SZ209-14017
Linked diagrams
1201
1701
2501
2502
8716
