XZB70L-ZXMSY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )N04C..XZB70..LHD..GCC,GEN

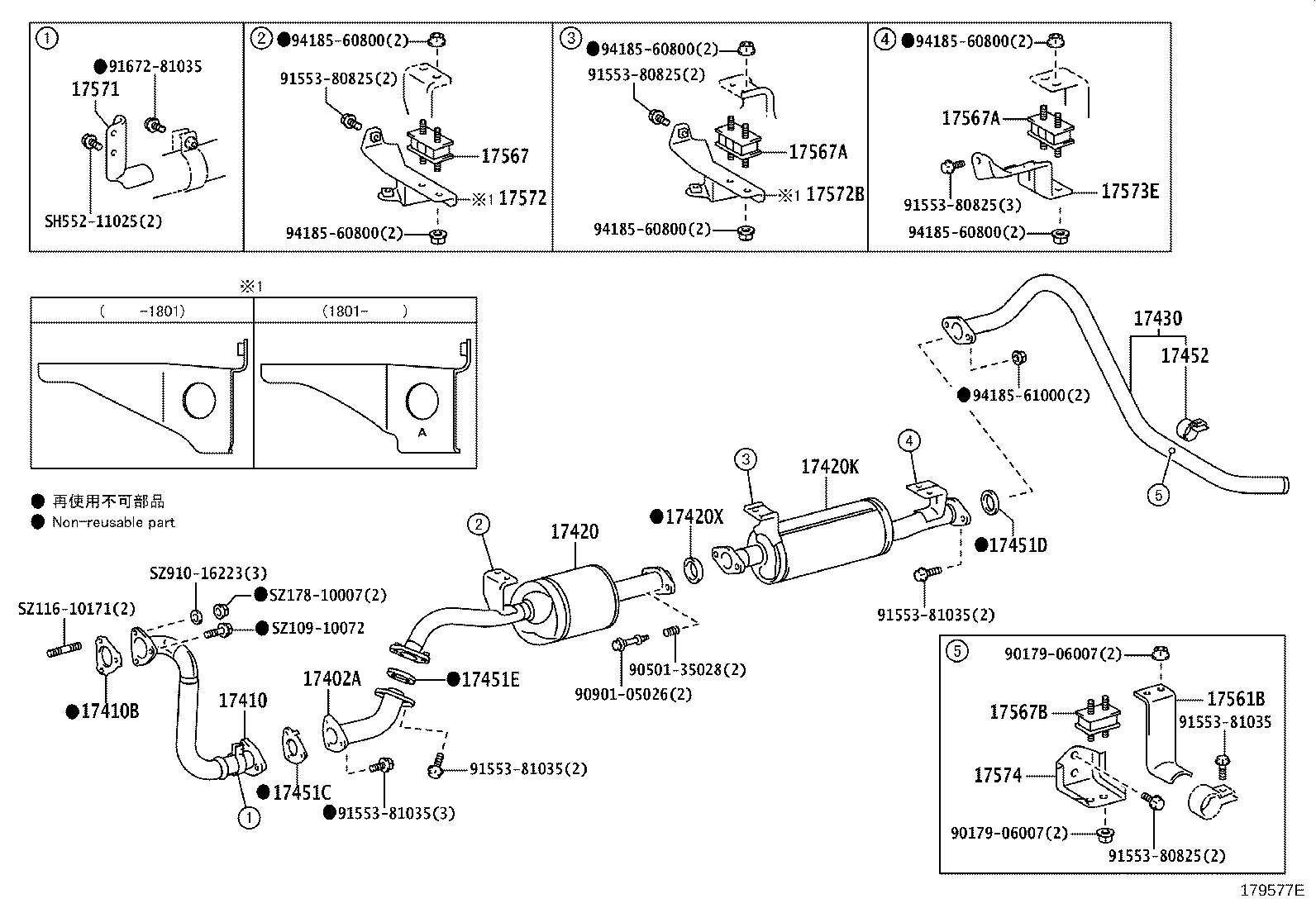

Click highlighted areas on diagram

EURO 4

diagram 17402A 17410 17410B 17420 17420K 17420X 17430 17451C 17451D 17451E 17452 17561B 17567 17567A 17567A 17567B 17571 17572 17572B 17573E 17574 9017906007 9017906007 9050135028 9090105026 9155380825 9155380825 9155380825 9155380825 9155381035 9155381035 9155381035 9155381035 9167281035 9418560800 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 SH55211025 SZ10910072 SZ11610171 SZ17810007 SZ91016223
Part # Description Qty Price
17402A - PIPE SUB-ASSY, EXHAUST, CENTER NO.1
17402-78180

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-E0720

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17410B - GASKET, EXHAUST PIPE
90917-06067

N04C,1BZFPE..BZB60,XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17451-E0110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78C20

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17420-78B60

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17420K - PIPE ASSY, EXHAUST, CENTER NO.2
17420-78B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74040

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,TRB60,70,XZB60,70..(02S,17S,19S,22S,23S,24S,25S,26S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-78120

N04C..XZB70..LHD..(GCC,GEN)

 1
17451C - GASKET, EXHAUST PIPE, NO.3
17451-78110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17451D - GASKET, EXHAUST PIPE, NO.4
90917-06054

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17451E - GASKET, EXHAUST PIPE, NO.5
90917-06054

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17452 - CLAMP, EXHAUST PIPE
90461-32033

2TRFE..TRB70..DX;1HZ,2TRFE..HZB70,TRB60,70..GEN;N04C..XZB70..19S,23S,25S,29S,30S

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-17010

2TRFE..TRB70..DX;1HZ,2TRFE..HZB70,TRB60,70..GEN;N04C..XZB70..19S,23S,25S,29S,30S

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-75060

N04C..XZB70..6FC..ARL;N04C..XZB70..LHD..29S;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(02S,19S,20S,23S,25S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17571-78110

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17571-E0480

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-75220

N04C..XZB70..STD..GEN;1BZFPE,2TRFE..BZB60,70,TRB60,70..01S,17S,19S,20S,23S

 1
17572-78460

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220

N04C..XZB70..STD..GEN

 1
17572-78460

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17574-78120

N04C..XZB70..TAIW;N04C,2TRFE..TRB60,70,XZB60..GEN

 1
17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

N04C,2TRFE..TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170

2TRFE..TRB70..DX;N04C..XZB70..6FC..ARL;N04C..XZB70..02S,19S,23S,25S,29S,30S;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
Common parts
90179-06007
90501-35028
90901-05026
91553-80825
91553-81035
91672-81035
94185-60800
94185-61000
SH552-11025
SZ109-10072
SZ116-10171
SZ178-10007
SZ910-16223

(1701- )N04C..XZB70..LHD..GCC,GEN

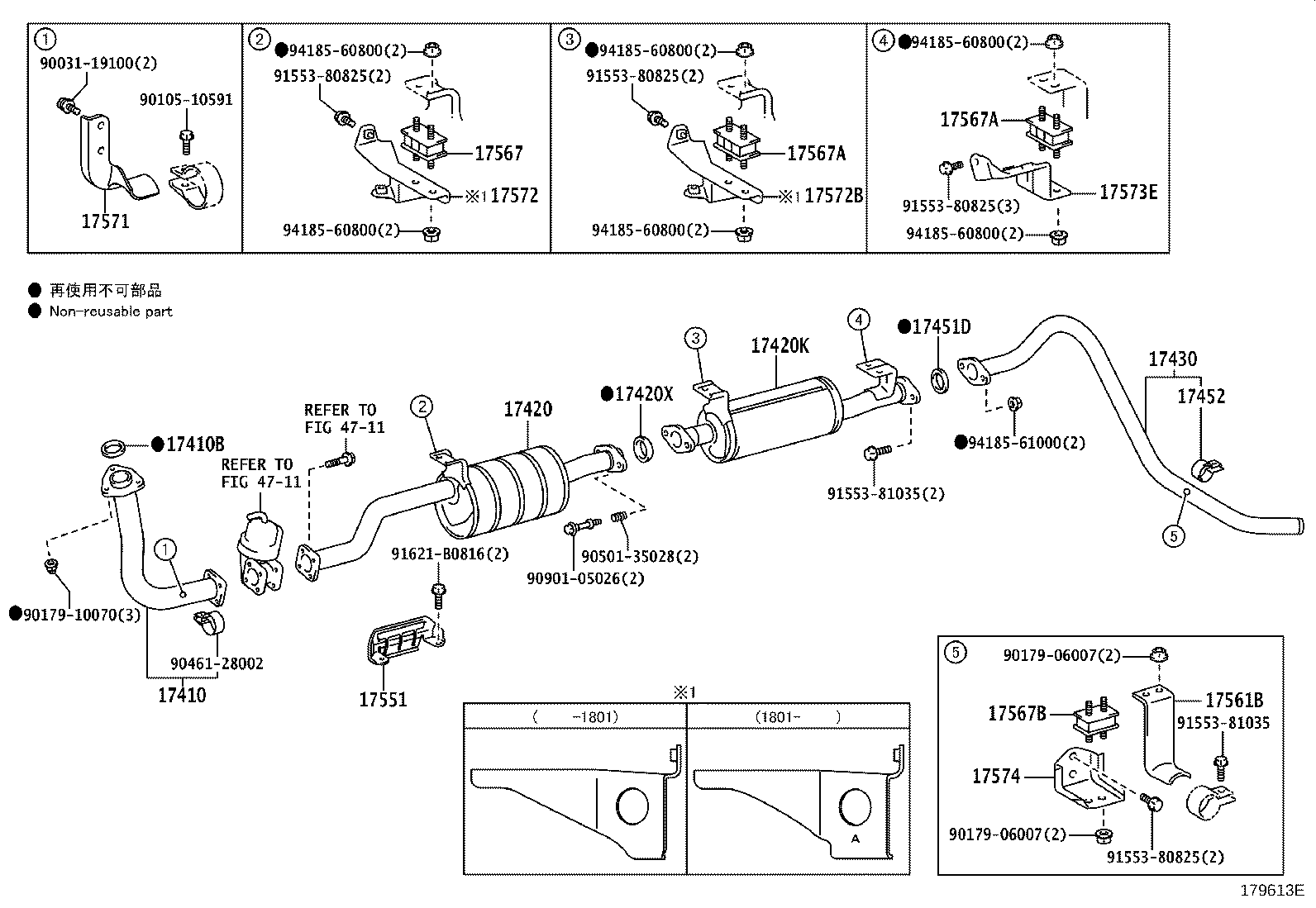

Click highlighted areas on diagram

EURO 3

diagram 17410 17410B 17420 17420K 17420X 17430 17451D 17452 17551 17561B 17567 17567A 17567A 17567B 17571 17572 17572B 17573E 17574 4711 4711 9003119100 9010510591 9017906007 9017906007 9017910070 9046128002 9050135028 9090105026 9155380825 9155380825 9155380825 9155380825 9155381035 9155381035 91621B0816 9418560800 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-E0720

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17410B - GASKET, EXHAUST PIPE
90917-06067

N04C,1BZFPE..BZB60,XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17451-E0110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78C20

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17420-78B60

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17420K - PIPE ASSY, EXHAUST, CENTER NO.2
17420-78B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74040

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,TRB60,70,XZB60,70..(02S,17S,19S,22S,23S,24S,25S,26S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-78120

N04C..XZB70..LHD..(GCC,GEN)

 1
17451D - GASKET, EXHAUST PIPE, NO.4
90917-06054

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17452 - CLAMP, EXHAUST PIPE
90461-32033

2TRFE..TRB70..DX;1HZ,2TRFE..HZB70,TRB60,70..GEN;N04C..XZB70..19S,23S,25S,29S,30S

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-78050

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-17010

2TRFE..TRB70..DX;1HZ,2TRFE..HZB70,TRB60,70..GEN;N04C..XZB70..19S,23S,25S,29S,30S

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-75060

N04C..XZB70..6FC..ARL;N04C..XZB70..LHD..29S;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(02S,19S,20S,23S,25S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17571-78110

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17571-E0480

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-75220

N04C..XZB70..STD..GEN;1BZFPE,2TRFE..BZB60,70,TRB60,70..01S,17S,19S,20S,23S

 1
17572-78460

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220

N04C..XZB70..STD..GEN

 1
17572-78460

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17574-78120

N04C..XZB70..TAIW;N04C,2TRFE..TRB60,70,XZB60..GEN

 1
17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

N04C,2TRFE..TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170

2TRFE..TRB70..DX;N04C..XZB70..6FC..ARL;N04C..XZB70..02S,19S,23S,25S,29S,30S;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
Common parts
90031-19100
90105-10591
90179-06007
90179-10070
90461-28002
90501-35028
90901-05026
91553-80825
91553-81035
91621-B0816
94185-60800
94185-61000
Linked diagrams
4711

(1701-2101)N04C..XZB70..20S..5F ; (1701- )N04C..XZB70..4FC ; (1701- )N04C..XZ

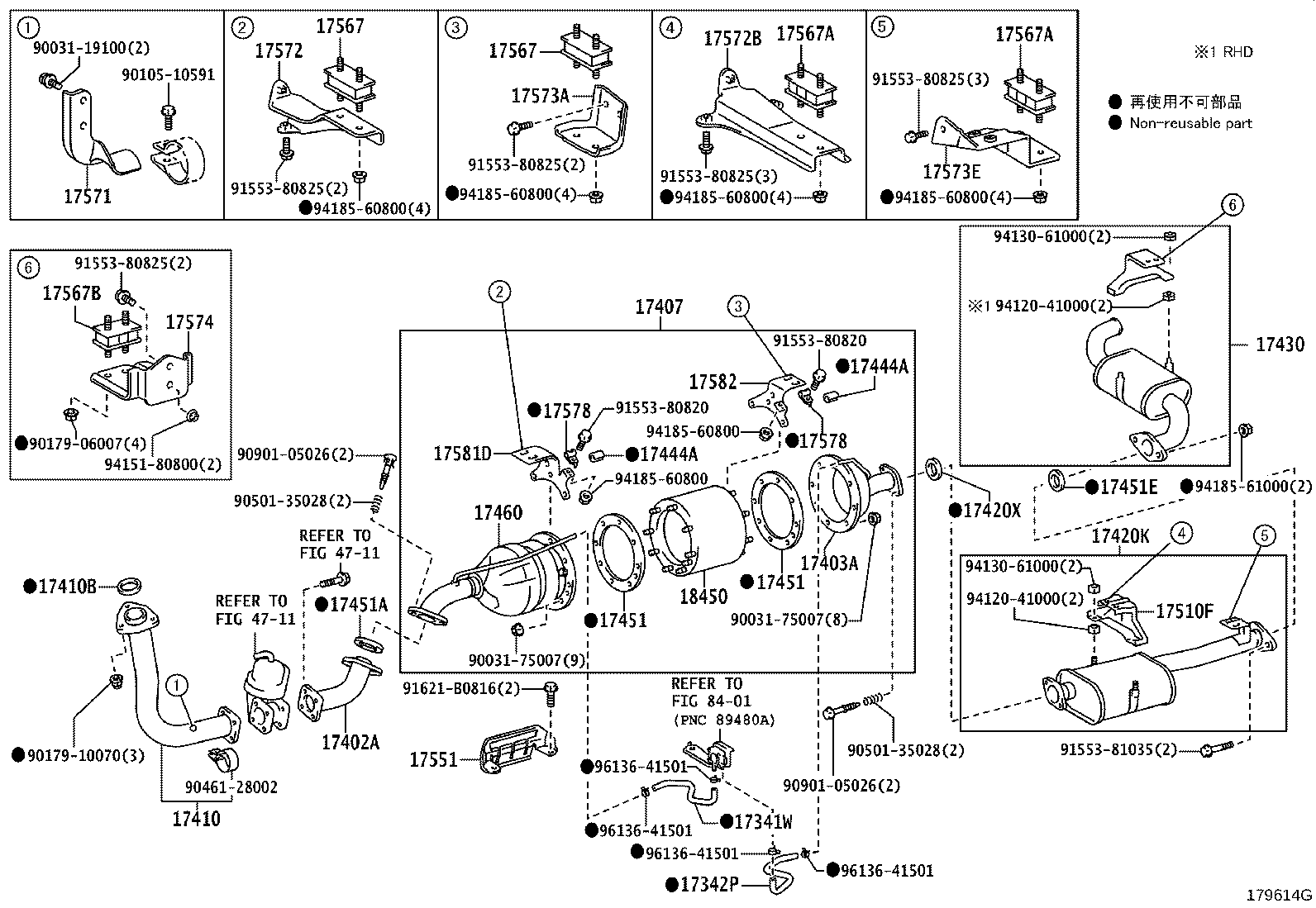

Click highlighted areas on diagram

EURO 5

diagram 17341W 17342P 17402A 17403A 17407 17410 17410B 17420K 17420X 17430 17444A 17444A 17451 17451 17451A 17451E 17460 17510F 17551 17567 17567 17567A 17567A 17567B 17571 17572 17572B 17573A 17573E 17574 17578 17578 17581D 17582 18450 4711 4711 8401 9003119100 9003175007 9003175007 9010510591 9017906007 9017910070 9046128002 9050135028 9050135028 9090105026 9090105026 9155380820 9155380820 9155380825 9155380825 9155380825 9155380825 9155380825 9155381035 91621B0816 9412041000 9412041000 9413061000 9413061000 9415180800 9418560800 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17402A - PIPE SUB-ASSY, EXHAUST, CENTER NO.1
17402-78180

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-E0720

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17410-78010

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17410B - GASKET, EXHAUST PIPE
90917-06067

N04C,1BZFPE..BZB60,XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17451-E0110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17420K - PIPE ASSY, EXHAUST, CENTER NO.2
17420-78B90

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74040

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,TRB60,70,XZB60,70..(02S,17S,19S,22S,23S,24S,25S,26S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-78120

N04C..XZB70..LHD..(GCC,GEN)

 1
17451E - GASKET, EXHAUST PIPE, NO.5
90917-06054

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-78050

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58010

N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,XZB60..17S,19S,23S,25S,26S,30S

 1
17567-75050

2TRFE..TRB70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-75060

N04C..XZB70..6FC..ARL;N04C..XZB70..LHD..29S;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(02S,19S,20S,23S,25S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78110

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17571-78110

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17571-E0480

N04C..XZB70..LHD..WC..(GCC,GEN)

EXHAUST EMISSION CONTROL-EURO 4

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-75220

N04C..XZB70..STD..GEN;1BZFPE,2TRFE..BZB60,70,TRB60,70..01S,17S,19S,20S,23S

 1
17572-78460

2TRFE..TRB60,70..GCC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220

N04C..XZB70..STD..GEN

 1
17572-78460

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
17574-78120

N04C..XZB70..TAIW;N04C,2TRFE..TRB60,70,XZB60..GEN

 1
17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

N04C,2TRFE..TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170

2TRFE..TRB70..DX;N04C..XZB70..6FC..ARL;N04C..XZB70..02S,19S,23S,25S,29S,30S;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
Common parts
90031-19100
90031-75007
90105-10591
90179-06007
90179-10070
90461-28002
90501-35028
90901-05026
91553-80820
91553-80825
91553-81035
91621-B0816
94120-41000
94130-61000
94151-80800
94185-60800
94185-61000
96136-41501
Linked diagrams
4711
8401
