XZB70L-ZXMSY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1908)N04C

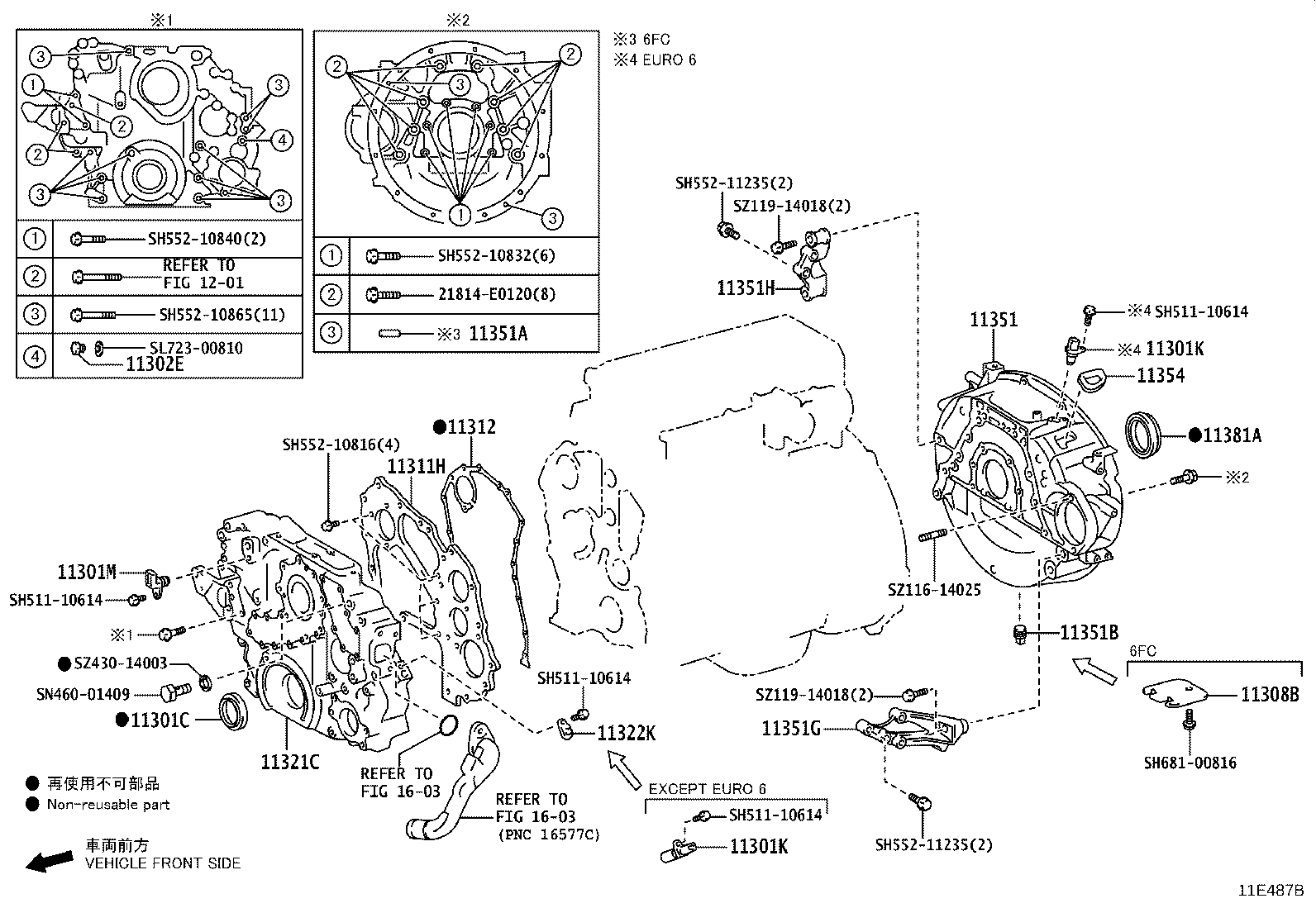

Click highlighted areas on diagram

diagram 11301C 11301K 11301M 11302E 11308B 11311H 11312 11321C 11351 11351A 11351B 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 8716 8716 87208L 87208P 9033916001 9613842501 SH51110614 SH51110614 SH55210816 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SL72300810 SN46001409 SZ11614025 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
SZ313-58002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
SZ341-08001

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11311H - PLATE SUB-ASSY, CYLINDER BLOCK
11301-E0101

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
S1140-51090

N04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11321C - COVER, TIMING GEAR
11310-E0151

N04C..XZB60,70..(17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11310-78110

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
11351 - HOUSING, FLYWHEEL
11351-E0G75

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN480-01008

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

N04C..XZB60,70

 1
SZ311-00004

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
87208L - PIPE SUB-ASSY, WATER
16206-E0100

XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
87208P - O-RING(FOR WATER PIPE SUB-ASSY)
SN741-00253

XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
Common parts
21814-E0120
90339-16001
96138-42501
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SL723-00810
SN460-01409
SZ116-14025
SZ119-14018
SZ430-14003
Linked diagrams
1201
1603
8716

(1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..4FC,5F..ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

EXCEPT EURO 5

diagram 11301C 11301K 11301K 11301M 11302E 11308B 11311H 11312 11321C 11322K 11351 11351A 11351B 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 SH51110614 SH51110614 SH51110614 SH51110614 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SH68100816 SL72300810 SN46001409 SZ11614025 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
SZ313-58002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
SZ341-08001

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11311H - PLATE SUB-ASSY, CYLINDER BLOCK
11301-E0101

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
S1140-51090

N04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11321C - COVER, TIMING GEAR
11310-E0151

N04C..XZB60,70..(17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11310-78110

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
11351 - HOUSING, FLYWHEEL
11351-E0G75

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN480-01008

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

N04C..XZB60,70

 1
SZ311-00004

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
21814-E0120
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SH681-00816
SL723-00810
SN460-01409
SZ116-14025
SZ119-14018
SZ430-14003
Linked diagrams
1201
1603

(1908-2102)N04C..XZB70..TAIW ; (1908- )N04C..XZB60,80 ; (1908- )N04C..XZB70..

Click highlighted areas on diagram

EURO 5

diagram 11301C 11301K 11301M 11302E 11308B 11311H 11312 11321C 11351 11351A 11351B 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 8716 8716 87208L 87208P 9033916001 9613842501 SH51110614 SH51110614 SH55210816 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SL72300810 SZ11614025 SZ11914018 SZ11914018
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
SZ313-58002

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB70..6FC..ARL;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
SZ341-08001

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11311H - PLATE SUB-ASSY, CYLINDER BLOCK
11301-E0101

N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
S1140-51090

N04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11321C - COVER, TIMING GEAR
11310-E0151

N04C..XZB60,70..(17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
11310-78110

N04C..XZB70,80..6FC;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)

 1
11351 - HOUSING, FLYWHEEL
11351-E0G75

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN480-01008

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

N04C..XZB60,70

 1
SZ311-00004

N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
87208L - PIPE SUB-ASSY, WATER
16206-E0100

XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
87208P - O-RING(FOR WATER PIPE SUB-ASSY)
SN741-00253

XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)

 1
Common parts
21814-E0120
90339-16001
96138-42501
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SL723-00810
SZ116-14025
SZ119-14018
Linked diagrams
1201
1603
8716
