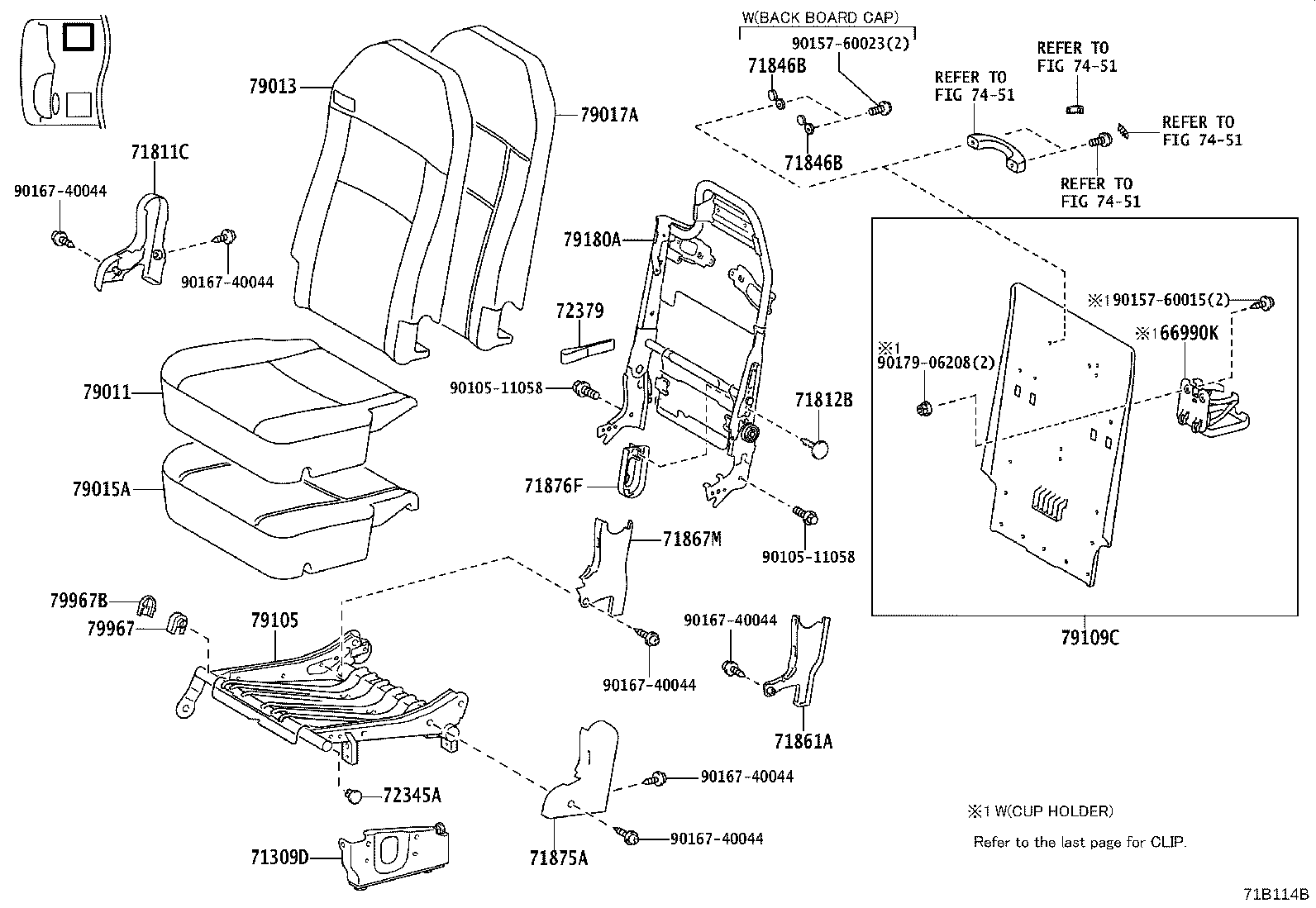

XZB70L-ZGMSYV (2018)
Toyota Coaster
(1801- )LHD..23S
PASSENGER SEAT,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71309D - LEG SUB-ASSY, REAR SEAT, LH | ||||
| 71309-36110 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36120C0 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) BLACK,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36380C0 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) BLACK,TRIM1# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
HZB70,TRB70;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR) |
11 | ||
| 72345-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S,23S,24S,25S,29S,30S |
12 | ||
| 72345-36010 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
11 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36640E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36640B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36640E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36630B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36630B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36641E4 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-36860E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79013-36860B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36860E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36861E1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79135-36200 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36240 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36B30 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79280-36240 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79967-36180C0 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(02S,19S,25S,29S,30S) BLACK,TRIM1# |
1 | ||
| 79967B - COVER, REAR SEAT LEG SIDE NO.2 | ||||
| 79967-36170C0 |
HZB60..RHD;HZB70,TRB60,70;HZB60..LHD..WOC;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR),BLACK,TRIM1# |
1 | ||
| 79967-36170C0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,BLACK,TRIM1# |
1 | ||
| 79967-36170C0 |
XZB70..6FC..ARL;HZB60,70,TRB60,70;XZB70..19S,23S,25S,29S,30S BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90157-60015 | ||||
| 90157-60023 | ||||
| 90167-40044 | ||||
| 90179-06208 | ||||
| Linked diagrams | ||||
| 7451 | ||||

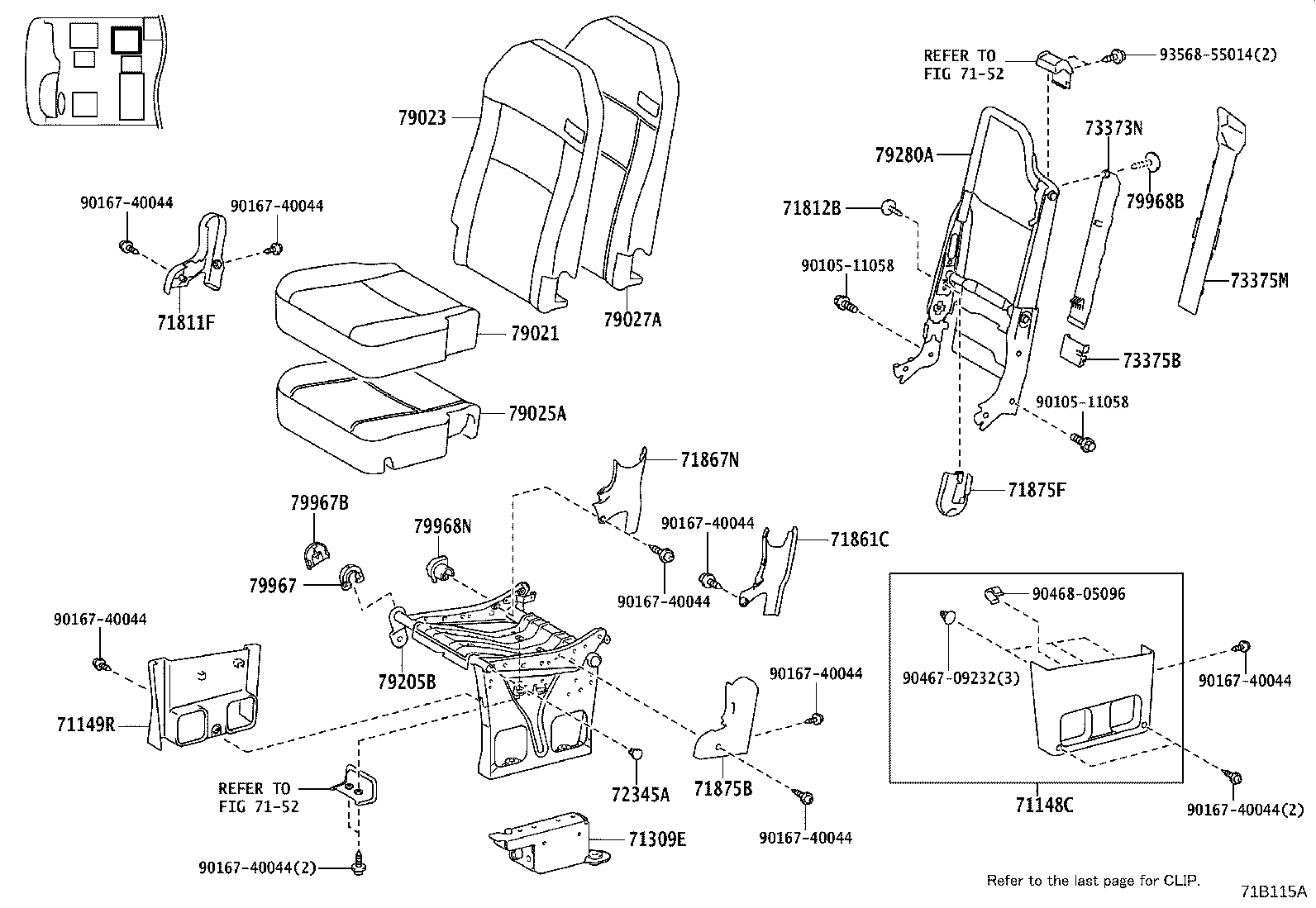

(1801- )LHD..23S
*RES(RH SIDE) NO.2,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71148C - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36060C1 |
BZB60,TRB60,70;HZB60,70,XZB70..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 71149R - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36180C1 |
BZB60,TRB60,70;HZB60,70,XZB70..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 71309E - LEG SUB-ASSY, REAR SEAT, LH | ||||
| 71309-36120 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36050C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36080C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
HZB70,TRB70;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR) |
11 | ||
| 72345-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S,23S,24S,25S,29S,30S |
12 | ||
| 72345-36010 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
11 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-36760E1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36760B0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36760E1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36750B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36761E2 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36860E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79013-36860B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36860E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36870B2 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36861E1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79135-36320 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79175-36250 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36240 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79105-36B40 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79280-36260 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36220 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79967-36180C0 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(02S,19S,25S,29S,30S) BLACK,TRIM1# |
1 | ||
| 79967B - COVER, REAR SEAT LEG SIDE NO.2 | ||||
| 79967-36170C0 |
HZB60..RHD;HZB70,TRB60,70;HZB60..LHD..WOC;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR),BLACK,TRIM1# |
1 | ||
| 79967-36170C0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,BLACK,TRIM1# |
1 | ||
| 79967-36170C0 |
XZB70..6FC..ARL;HZB60,70,TRB60,70;XZB70..19S,23S,25S,29S,30S BLACK,TRIM1# |
2 | ||
| 79968N - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79968-36050C0 |
XZB70..DX..GCC;XZB70..LHD..GEN;HZB60,70,TRB60,70..LHD BLACK,TRIM1# |
1 | ||
| 79968-36050C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 79968-36050C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90467-09232 | ||||
| 90468-05096 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7152 | ||||

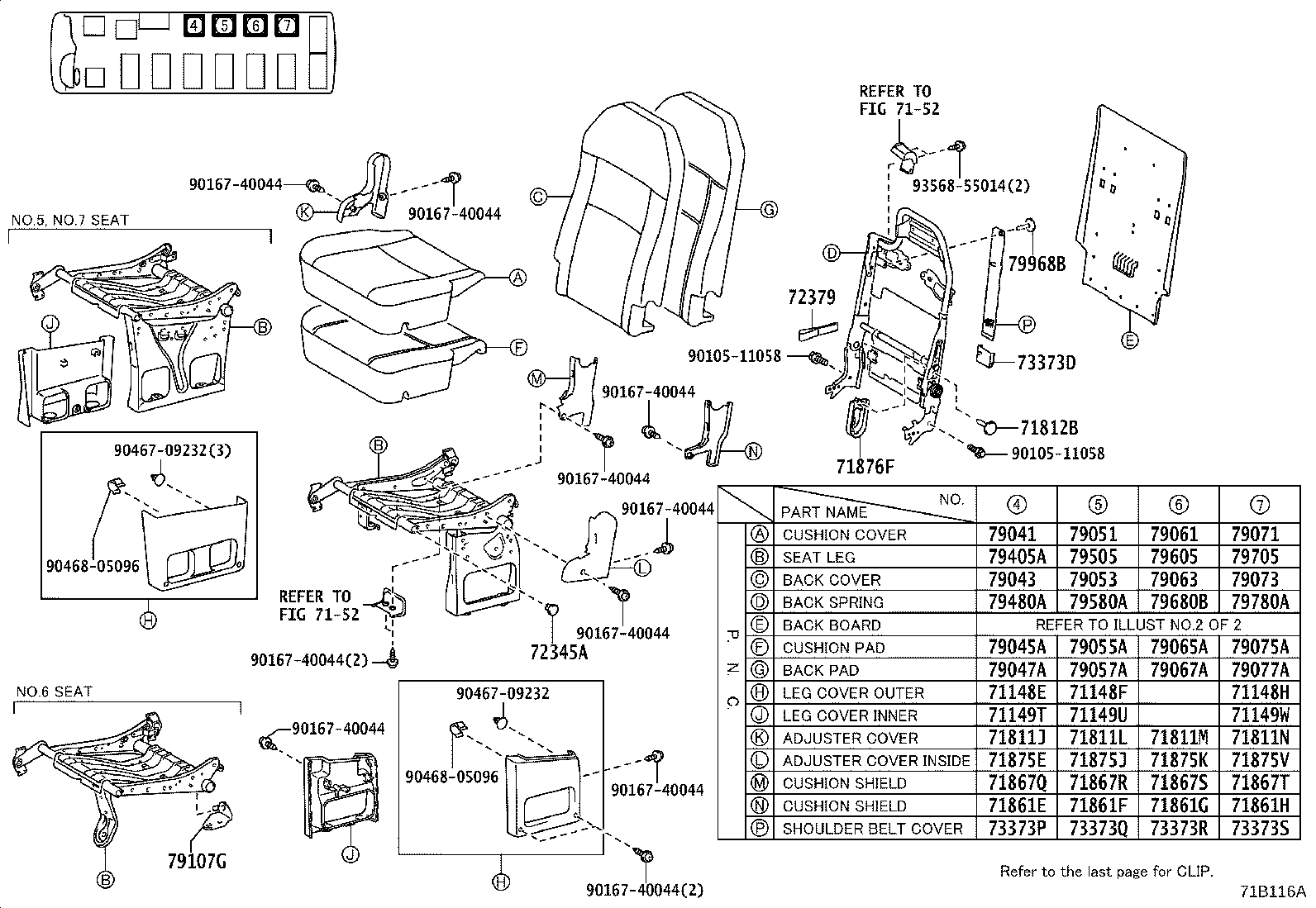

ILLUST NO. 1 OF 2(1801- )LHD..23S
*RES(RH SIDE) NO.4-NO.7,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71148E - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36290C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71148-36290C0 |
XZB70..DX..GCC;XZB70..LHD..GEN;HZB60,70,TRB60,70..LHD BLACK,TRIM1# |
1 | ||
| 71148-36290C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71148F - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36060C1 |
XZB70..LHD..29S;HZB70,TRB70..LHD;XZB70..(19S,20S,23S,25S,30S)..(5F,6FC) BLACK,TRIM1# |
1 | ||
| 71148H - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36420C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71148-36420C0 |
XZB70..LHD..DX;XZB70..23S..WOC;HZB70,TRB60,70..19S,20S,23S BLACK,TRIM1# |
1 | ||
| 71148-36420C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71149T - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36290C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71149-36290C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71149-36290C0 |
XZB70..DX..GCC;XZB70..LHD..GEN;HZB60,70,TRB60,70..LHD BLACK,TRIM1# |
1 | ||
| 71149U - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36310C0 |
HZB70,TRB70,XZB70..(19S,20S,23S,24S,25S,29S,30S)..(5F,6FC) BLACK,TRIM1# |
1 | ||
| 71149W - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36310C0 |
HZB60,70,TRB60,70;XZB70..(5F,6FC)..EX;XZB70..19S,23S,25S,29S,30S BLACK,TRIM1# |
1 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36050C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36050C0 |
HZB70,TRB70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71811M - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36050C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71811N - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-36050C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36390C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36080C0 |
HZB70,TRB70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71875K - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36080C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71875V - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71812-36080C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
HZB70,TRB70;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR) |
11 | ||
| 72345-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S,23S,24S,25S,29S,30S |
12 | ||
| 72345-36010 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
11 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-36680E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36680B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36680E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36670B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36670B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36681E4 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79013-36820B2 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36821E1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79135-36210 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79175-36180 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79011-36660E3 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36660B1 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36660E3 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36650B3 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36650B3 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36661E4 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79013-36820B2 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36670B5 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36670B5 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36821E1 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79055A - PAD SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79135-36200 |
TRB70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79057A - PAD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79175-36180 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC |
1 | ||
| 79175-36190 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36190 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79011-36700E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36700B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36700E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36690B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36690B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36701E4 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79013-36820B2 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36821E1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79135-36220 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79175-36180 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79011-36660E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79011-36660B1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79011-36660E3 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79011-36650B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36650B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79011-36661E4 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36820B2 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36670B5 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79013-36821E1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79013-36820E0 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79135-36200 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79175-36180 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36190 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79107G - LEG SUB-ASSY, NO.6 SEAT, REAR | ||||
| 79644-36150 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..LHD..(GCC,GEN) |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79105-36B50 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79480A - SPRING ASSY, NO.4 SEAT BACK, RH | ||||
| 79280-36240 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79505 - LEG SUB-ASSY, NO.5 SEAT, RH | ||||
| 79105-36B20 |
TRB70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79580A - SPRING ASSY, NO.5 SEAT BACK, RH | ||||
| 79280-36240 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC |
1 | ||
| 79290-36210 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36210 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79105-36B60 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S) |
1 | ||
| 79680B - SPRING ASSY, NO.6 SEAT BACK, RH | ||||
| 79280-36240 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79105-36B10 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79780A - SPRING ASSY, NO.7 SEAT BACK, RH | ||||
| 79280-36240 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90467-09232 | ||||
| 90468-05096 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7152 | ||||

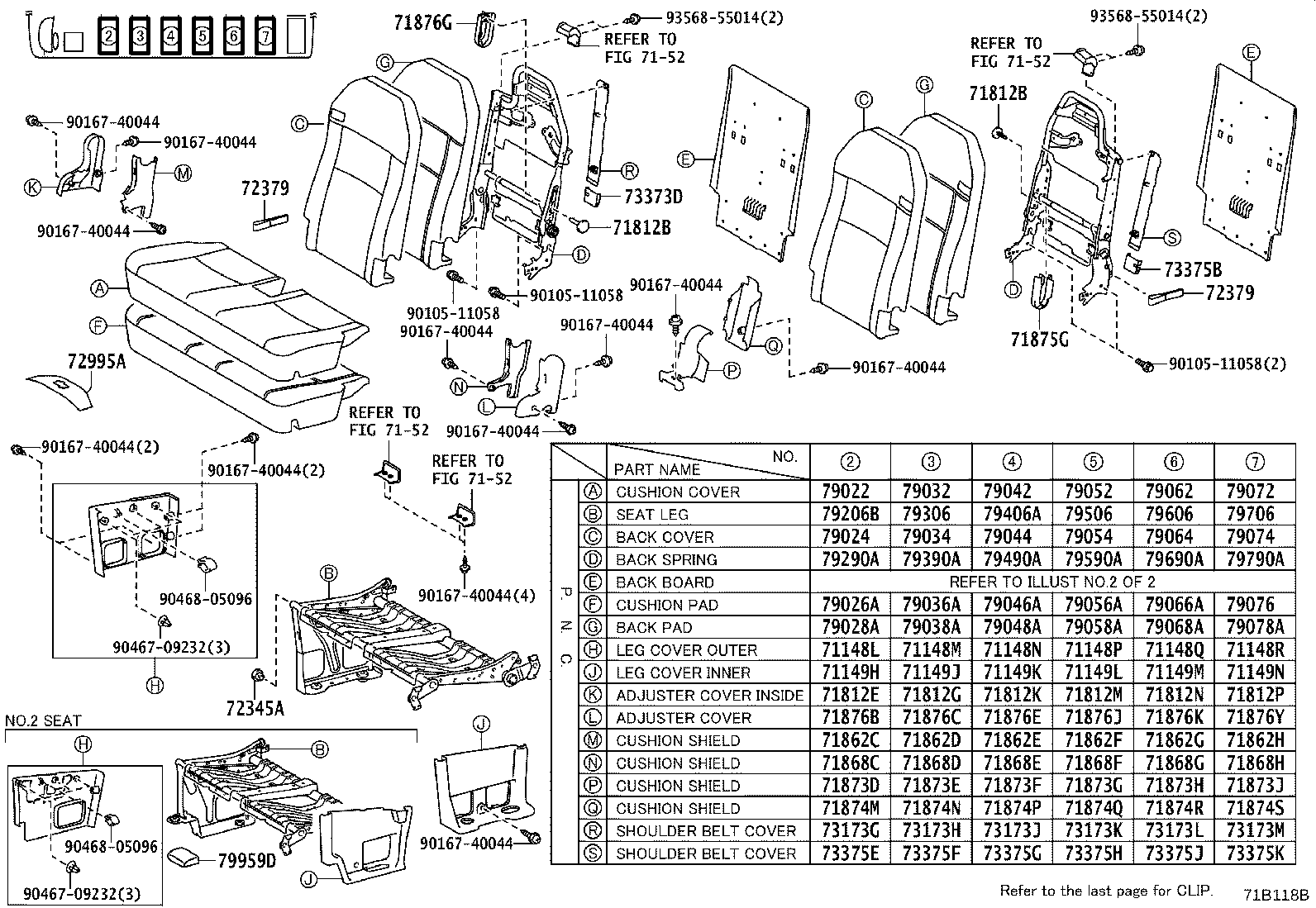

ILLUST NO. 1 OF 2(1801- )LHD..23S
*RES(LH SIDE) NO.2-NO.7,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71148L - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36430C0 |
HZB70,TRB60,70..19S,20S,23S BLACK,TRIM1# |
1 | ||
| 71148-36450C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71148M - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36180C1 |
HZB70,TRB60..GCC;TRB70,XZB70..LHD..(19S,23S,24S) BLACK,TRIM1# |
1 | ||
| 71148N - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36180C1 |
HZB70,TRB60..GCC;TRB70,XZB70..LHD..(19S,23S,24S) BLACK,TRIM1# |
1 | ||
| 71148P - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36180C1 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..LHD..(19S,23S,24S);HZB70,XZB70..RHD..(20S,23S,29S,30S)..(5F,6FC) BLACK,TRIM1# |
1 | ||
| 71148Q - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36180C1 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,24S) BLACK,TRIM1# |
1 | ||
| 71148R - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-36430C0 |
XZB70..LHD..23S;HZB70,TRB60,70..19S,20S,23S BLACK,TRIM1# |
1 | ||
| 71149H - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
HZB60,70,TRB60,70..LHD BLACK,TRIM1# |
1 | ||
| 71149-36400C0 |
XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71149J - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
HZB70..23S..GCC;HZB70..LHD..(19S,25S,30S);HZB60,TRB60,70,XZB70..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 71149K - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
HZB70..23S..GCC;HZB70..LHD..(19S,25S,30S);HZB60,TRB60,70,XZB70..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 71149L - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(19S,20S,23S,24S,25S,29S,30S)..(5F,6FC) BLACK,TRIM1# |
1 | ||
| 71149M - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
HZB60,70,TRB60,70,XZB70..LHD..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 71149N - COVER, REAR SEAT LEG, INNER | ||||
| 71149-36330C0 |
XZB70..6FC..ARL;HZB60,70,TRB60,70;XZB70..(5F,6FC)..EX;XZB70..19S,23S,25S,29S,30S BLACK,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71812G - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71812M - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71812P - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-36300C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 71876Y - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71811-36110C0 |
HZB70,TRB60,70,XZB70..STD..GCC BLACK,TRIM1# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
HZB70,TRB70;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN) COOL BOX-WITH(REFRIGERATOR) |
11 | ||
| 72345-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S,23S,24S,25S,29S,30S |
12 | ||
| 72345-36010 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
11 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79021-36D70E1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79021-36D70B0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79021-36D70E1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79021-36D00B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79021-36D00B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79021-36D71E2 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36340E0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36340B0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36330B0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36340E0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36330B0 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36341E1 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79026A - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79245-36160 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79175-36290 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79175-36280 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36280 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79022-36400B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36401E4 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36320B4 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36321E2 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79245-36140 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79175-36200 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79022-36400B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36401E4 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36320B4 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36321E2 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79245-36140 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79175-36200 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79022-36400E3 |
HZB70,TRB70,XZB70..23S..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79022-36400B1 |
HZB70,TRB70,XZB70..23S..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79022-36400E3 |
HZB70,TRB70,XZB70..23S..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79022-36390B3 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36390B3 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36401E4 |
HZB70,TRB70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36320B4 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB70..(23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36280B7 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36280B7 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36321E2 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79056A - PAD SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79245-36140 |
HZB70,TRB70,XZB70..STD..GCC |
1 | ||
| 79058A - PAD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79175-36200 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC |
1 | ||
| 79175-36210 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36210 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-36400B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36401E4 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36320B4 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36321E2 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79245-36140 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79175-36200 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79022-36400B1 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79022-36400E3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36390B3 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79022-36401E4 |
HZB70,TRB60,70,XZB70..STD..GCC BROWN,TRIM1# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM1# |
1 | ||
| 79023-36320B4 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM CHARCOAL,TRIM10 |
1 | ||
| 79023-36320E1 |
XZB70..23S..STD..GCC;HZB70,TRB60,70..(20S,23S,25S)..STD..WC MEDIUM BEIGE,TRIM10 |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36280B7 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S,GRAY,TRIM1# |
1 | ||
| 79023-36321E2 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC BROWN,TRIM1# |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79245-36140 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79175-36200 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79175-36210 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-36A20 |
HZB70,TRB60,70..STD..GCC |
1 | ||
| 79106-36170 |
XZB70..STD..GCC |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79106-36C20 |
TRB70..(19S,23S,24S)..STD;HZB70,TRB60,XZB70..STD..GCC |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79106-36C20 |
TRB70..(19S,23S,24S)..STD;HZB70,TRB60,XZB70..STD..GCC |
1 | ||
| 79490A - SPRING ASSY, NO.4 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79506 - LEG SUB-ASSY, NO.5 SEAT, LH | ||||
| 79106-36C20 |
HZB70,XZB70..STD..GCC;TRB70..(19S,23S,24S)..STD |
1 | ||
| 79590A - SPRING ASSY, NO.5 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB70,XZB70..(19S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB70,XZB70..23S..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB70,XZB70..23S..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79106-36C10 |
TRB70..(19S,23S,24S)..STD;HZB70,TRB60,XZB70..STD..GCC |
1 | ||
| 79690A - SPRING ASSY, NO.6 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79106-36A30 |
HZB70,TRB60,70,XZB70..STD..GCC |
1 | ||
| 79790A - SPRING ASSY, NO.7 SEAT BACK, LH | ||||
| 79280-36230 |
HZB70,TRB60,70,XZB70..LHD..(19S,20S,23S,25S)..STD..WC |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79290-36200 |
HZB70,TRB60,70,XZB70..(20S,23S)..STD..GCC REAR SEAT-LOW BACK TYPE, NO.8 SEAT = 4S |
1 | ||
| 79959D - COVER, SEAT LEG | ||||
| 79959-36020C1 |
XZB60..GEN;XZB70..6FC..ARL;XZB70..(5F,6FC)..(GCC,GEN,SA) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90467-09232 | ||||
| 90468-05096 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7152 | ||||

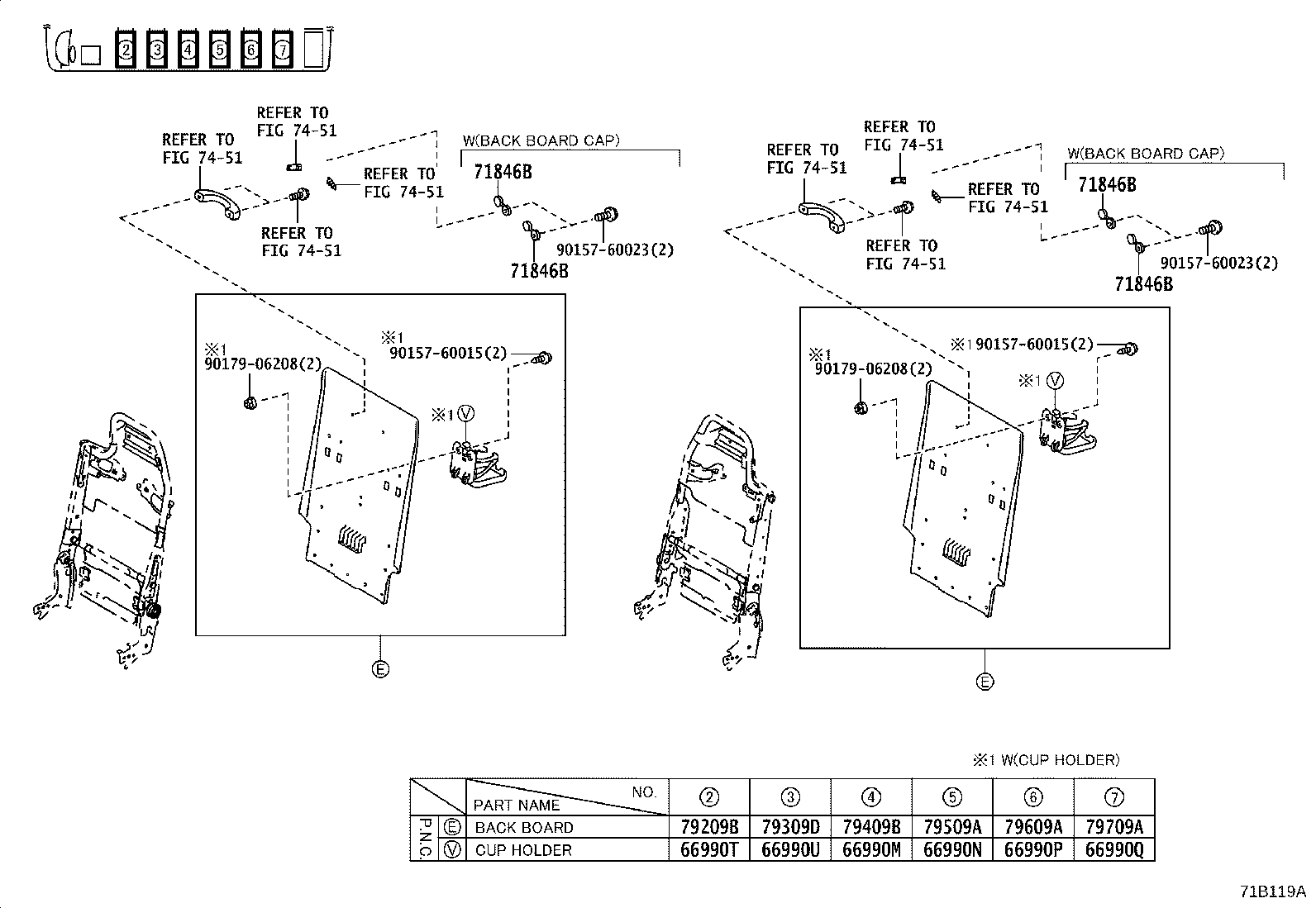

ILLUST NO. 2 OF 2(1801- )LHD..23S
*RES(LH SIDE) NO.2-NO.7,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90157-60015 | ||||
| 90157-60023 | ||||
| 90179-06208 | ||||
| Linked diagrams | ||||
| 7451 | ||||

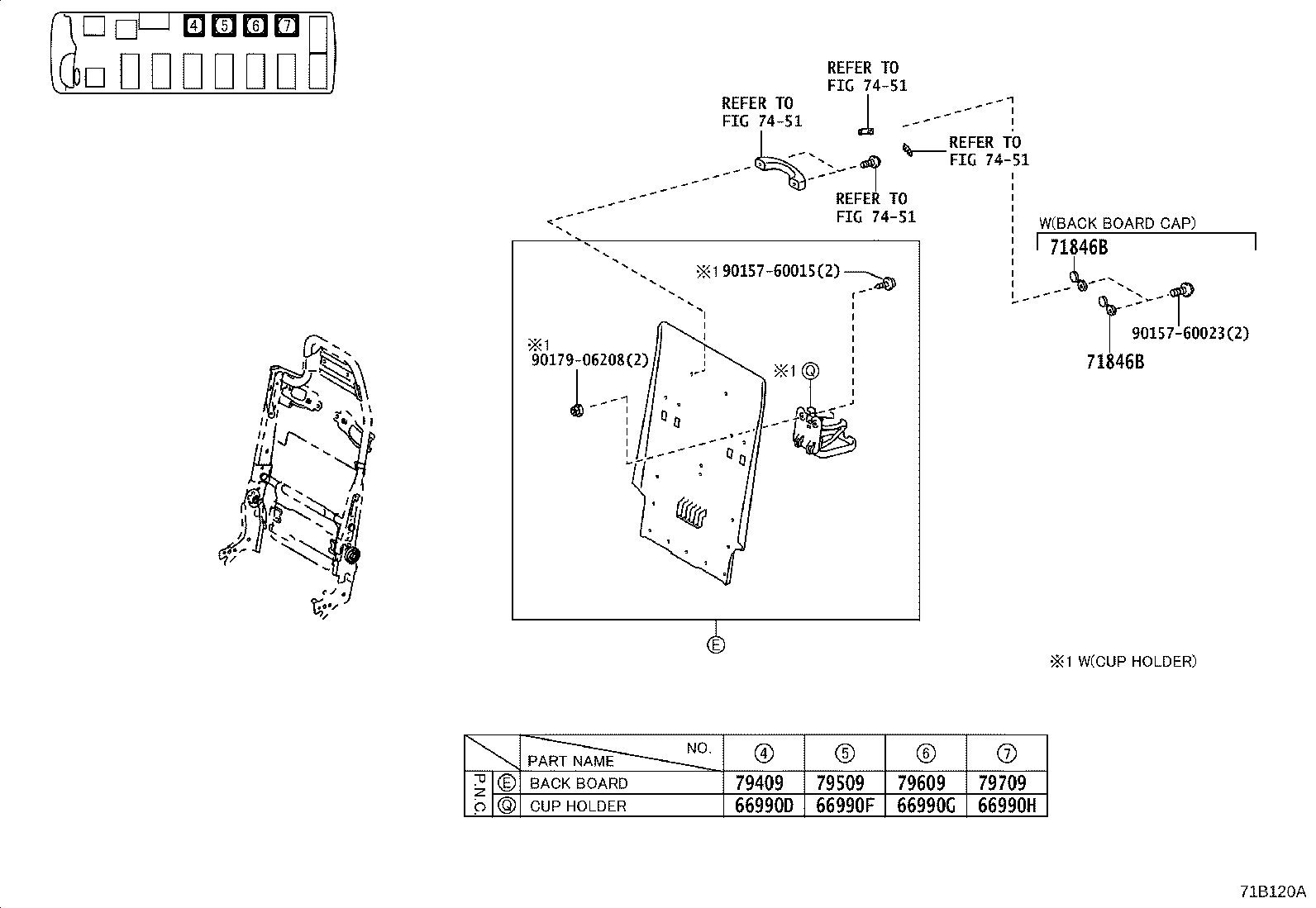

ILLUST NO. 2 OF 2(1801- )LHD..23S
*RES(RH SIDE) NO.4-NO.7,*SBE=3POINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90157-60015 | ||||
| 90157-60023 | ||||
| 90179-06208 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
