XZB70L-ZEMSYR (2017)
Toyota Coaster

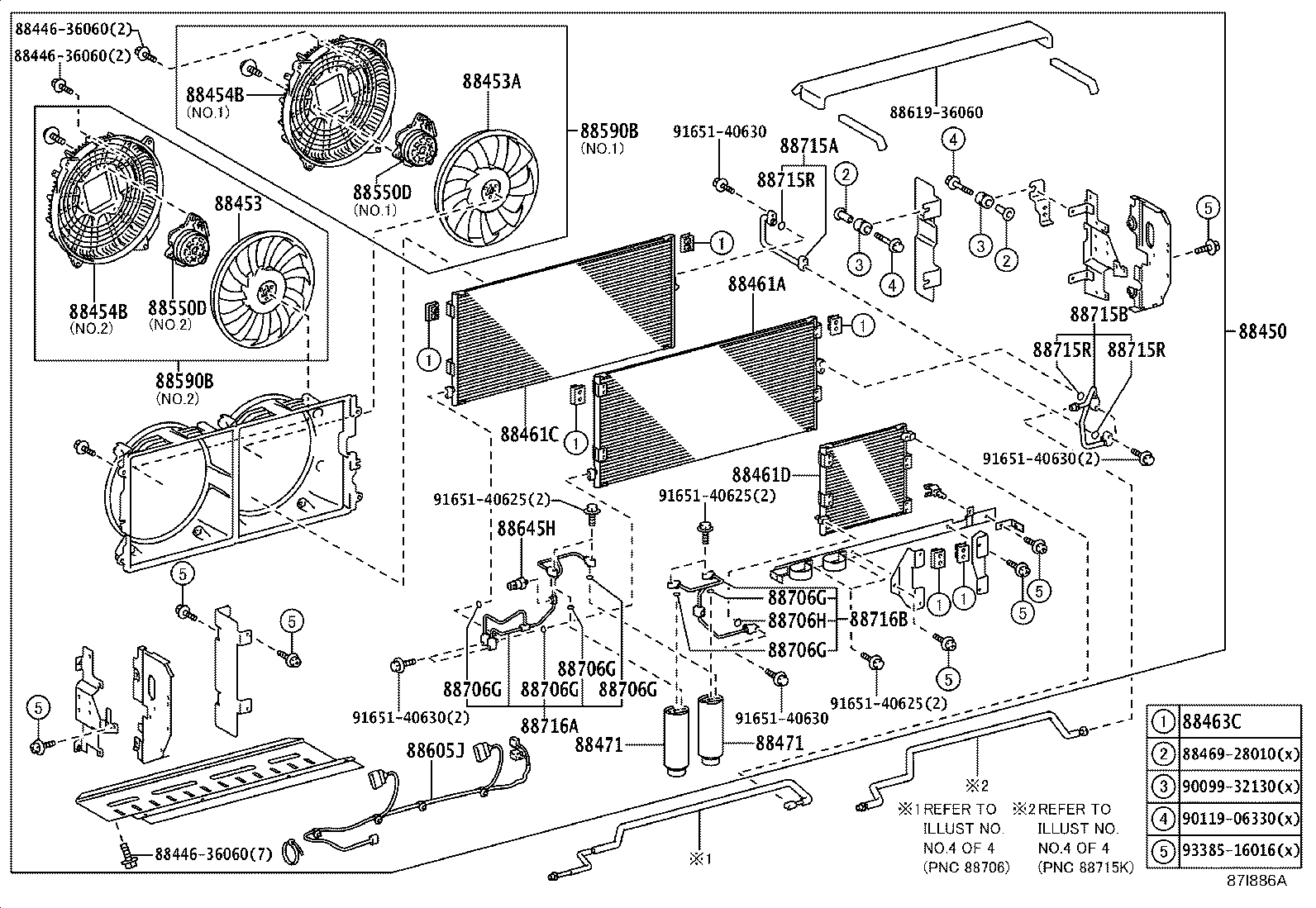

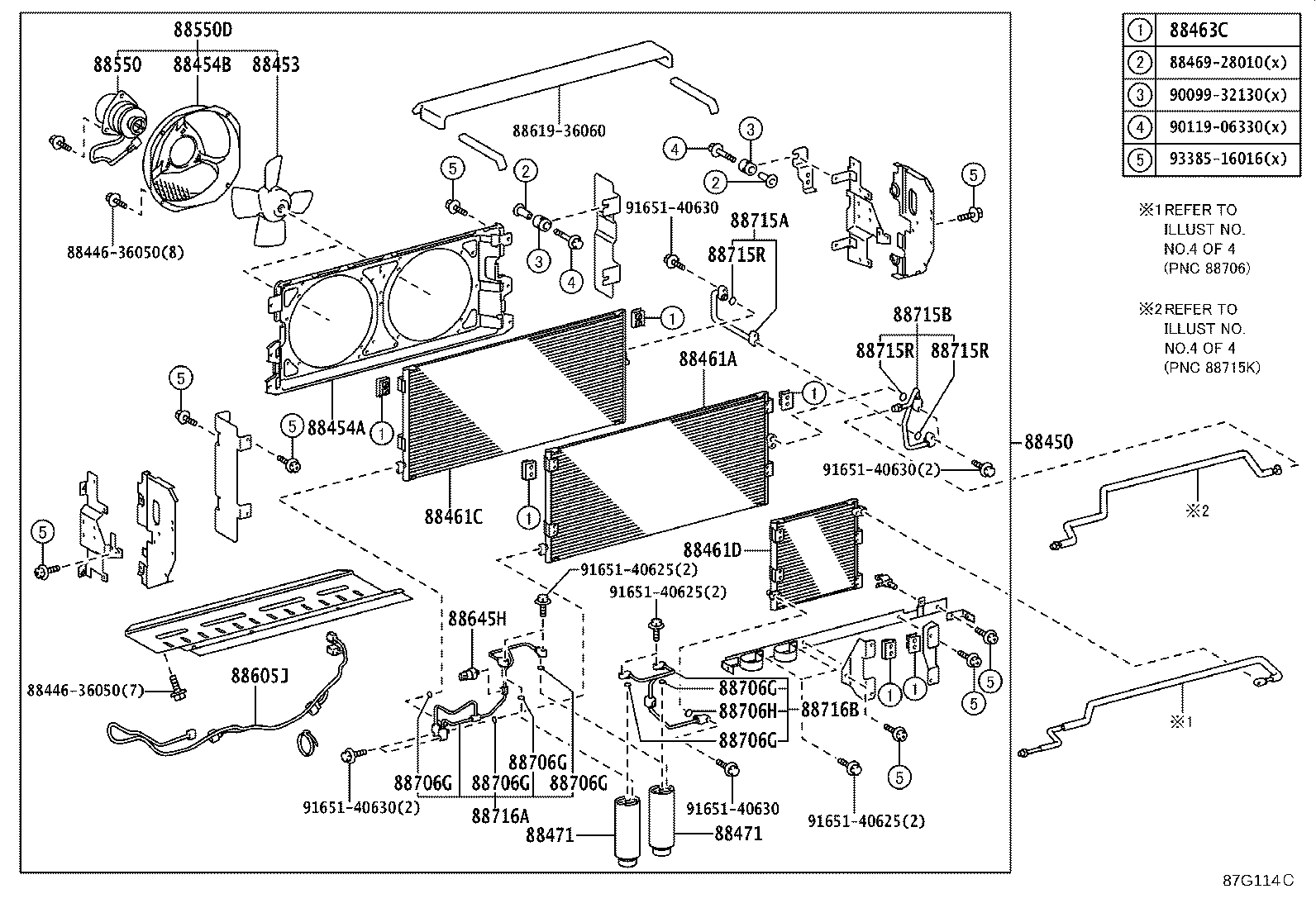

ILLUST NO. 1 OF 4(1701-1908)LHD
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-36380 |
HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88450-36360 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88450-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88460-36190 |
BZB60,70 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-37110 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 16361-13030 |
HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-36150 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88454-36130 |
BZB60,70 |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-36040 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88461C - CORE, COOLER CONDENSER, NO.2 | ||||
| 88461-36020 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88461D - CORE, COOLER CONDENSER, NO.3 | ||||
| 88461-36030 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-37370 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
8 | ||
| 88463-37370 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-36111 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88550-36220 |
BZB60,70 |
4 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-36510 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88605-36460 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88605-36450 |
BZB60,70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-36050 |
BZB60,70 |
1 | ||
| 88645-60030 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706H - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-36740 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715-36601 |
BZB60,70 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36610 |
BZB60,70 |
1 | ||
| 88715-36760 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-36511 |
BZB60,70 |
1 | ||
| 88716-36A80 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-36520 |
BZB60,70 |
1 | ||
| 88716-36260 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716-36A90 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| Common parts | ||||
| 88446-36050 | ||||
| 88469-28010 | ||||
| 88619-36060 | ||||
| 90099-32130 | ||||
| 90119-06330 | ||||
| 91651-40625 | ||||
| 91651-40630 | ||||
| 93385-16016 | ||||

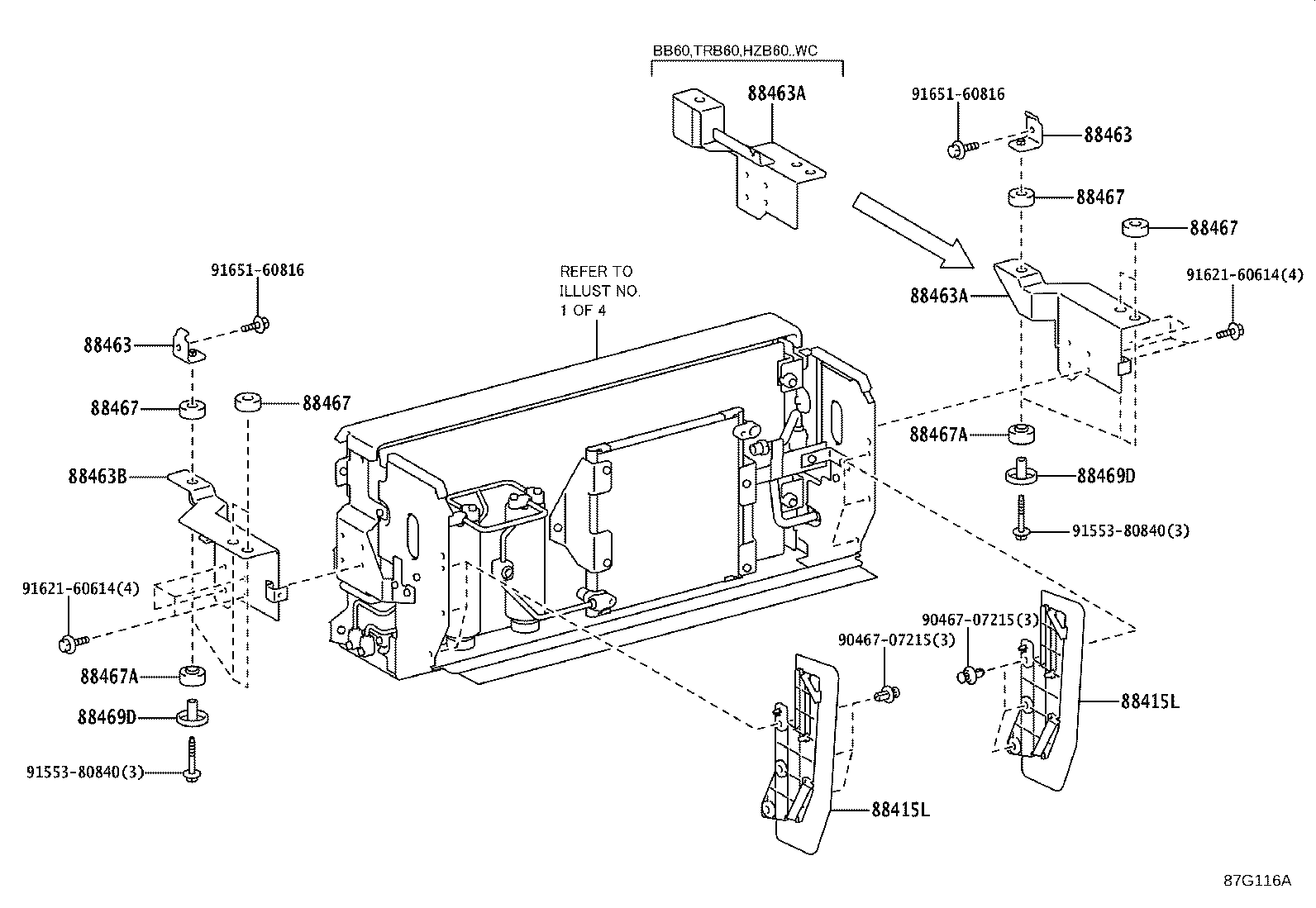

ILLUST NO. 2 OF 4(1701- )LHD
CONDENSER BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415L - COVER, DUST, NO.8 | ||||
| 88415-36300 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88415-36310 |
BZB60,70 |
1 | ||
| 88415L - COVER, DUST, NO.8 | ||||
| 88415-36300 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88415-36310 |
BZB60,70 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-36490 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88688-36740 |
BZB60,70 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-36490 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88688-36740 |
BZB60,70 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-36871 |
BZB60,70 |
1 | ||
| 88688-36A10 |
HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-36871 |
BZB60,70 |
1 | ||
| 88688-36A10 |
HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-36A30 |
HZB60..LHD..WC;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-90B01 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-90B01 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-90B00 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
6 | ||
| Common parts | ||||
| 90467-07215 | ||||
| 91553-80840 | ||||
| 91621-60614 | ||||
| 91651-60816 | ||||
ILLUST NO. 1 OF 4(1701- )BZB60,70

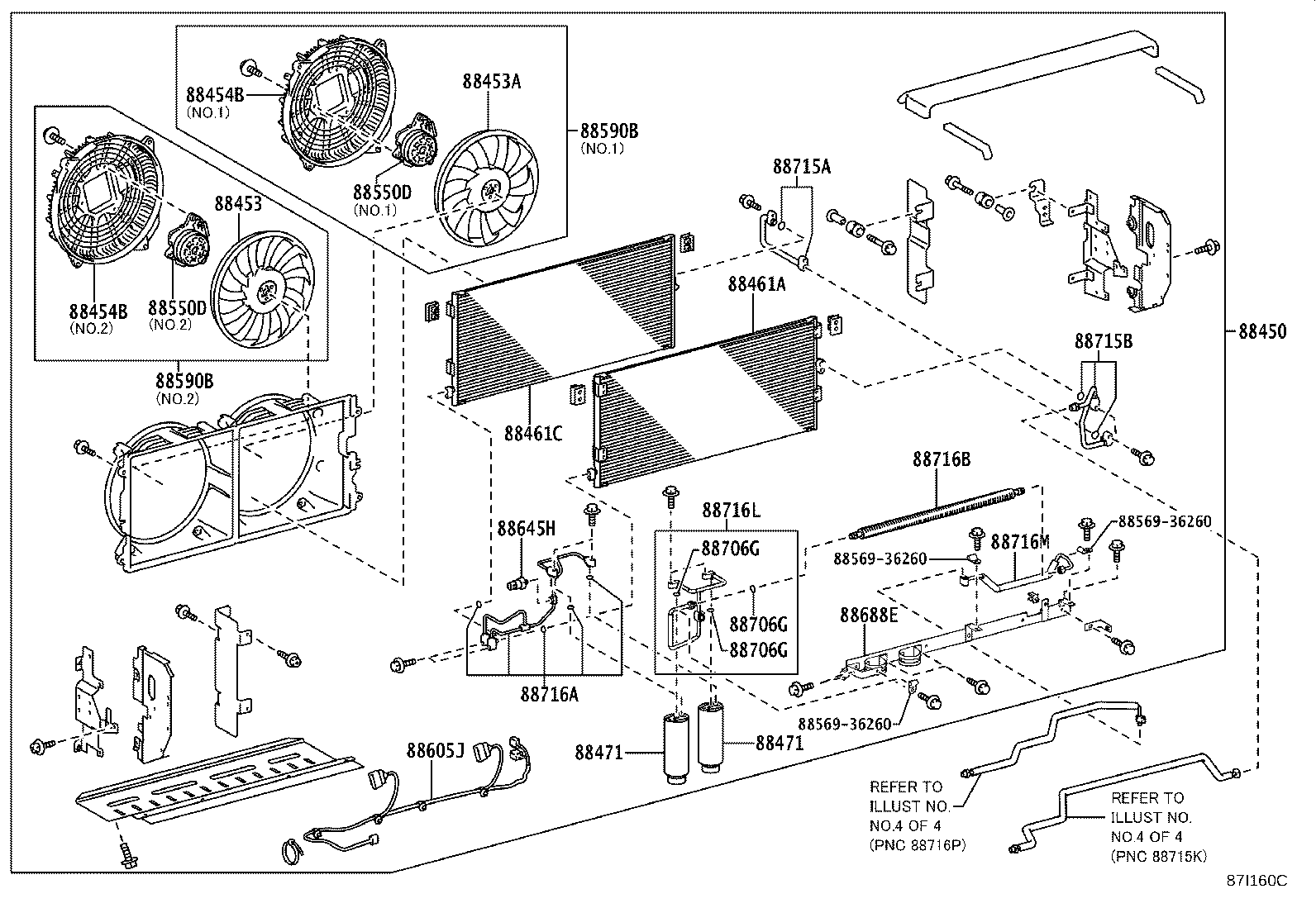

CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-36380 |
HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88450-36360 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88450-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88460-36190 |
BZB60,70 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-37110 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 16361-13030 |
HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-36150 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88454-36130 |
BZB60,70 |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-36111 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88550-36220 |
BZB60,70 |
4 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-36510 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88605-36460 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88605-36450 |
BZB60,70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-36050 |
BZB60,70 |
1 | ||
| 88645-60030 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-36740 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715-36601 |
BZB60,70 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36610 |
BZB60,70 |
1 | ||
| 88715-36760 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-36511 |
BZB60,70 |
1 | ||
| 88716-36A80 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-36520 |
BZB60,70 |
1 | ||
| 88716-36260 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716-36A90 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| Common parts | ||||
| 88446-36050 | ||||
| 90091-20609 | ||||
| 90179-06274 | ||||
ILLUST NO. 2 OF 4(1701- )BZB60,70
CONDENSER BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415L - COVER, DUST, NO.8 | ||||
| 88415-36300 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88415-36310 |
BZB60,70 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-36490 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88688-36740 |
BZB60,70 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-36871 |
BZB60,70 |
1 | ||
| 88688-36A10 |
HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC |
1 | ||
| Common parts | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||

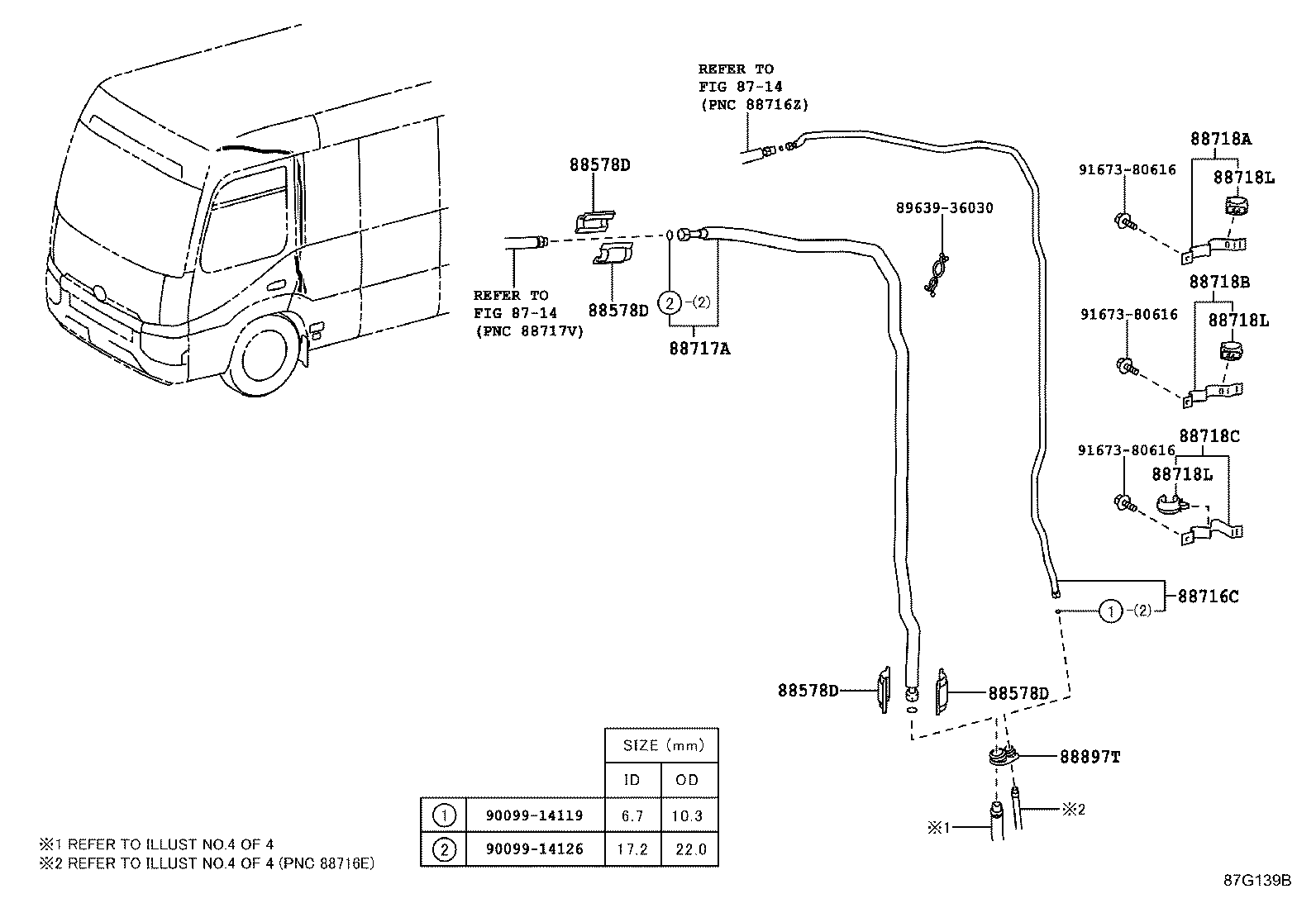

ILLUST NO. 3 OF 4(1701- )LHD
PIPING(ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB60,HZB70,TRB60,70,XZB60,70..LHD..WC |
4 | ||
| 88578-36080 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB60,HZB70,TRB60,70,XZB60,70..LHD..WC |
4 | ||
| 88578-36080 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB60,HZB70,TRB60,70,XZB60,70..LHD..WC |
4 | ||
| 88578-36080 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB60,HZB70,TRB60,70,XZB60,70..LHD..WC |
4 | ||
| 88578-36080 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
4 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36A40 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-36500 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-36300 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-36310 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-36320 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 90469-22001 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
3 | ||
| 88718L - CLAMP, PIPING | ||||
| 90469-22001 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
3 | ||
| 88718L - CLAMP, PIPING | ||||
| 90469-22001 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
3 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 89639-36030 | ||||
| 90099-14119 | ||||
| 90099-14126 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||

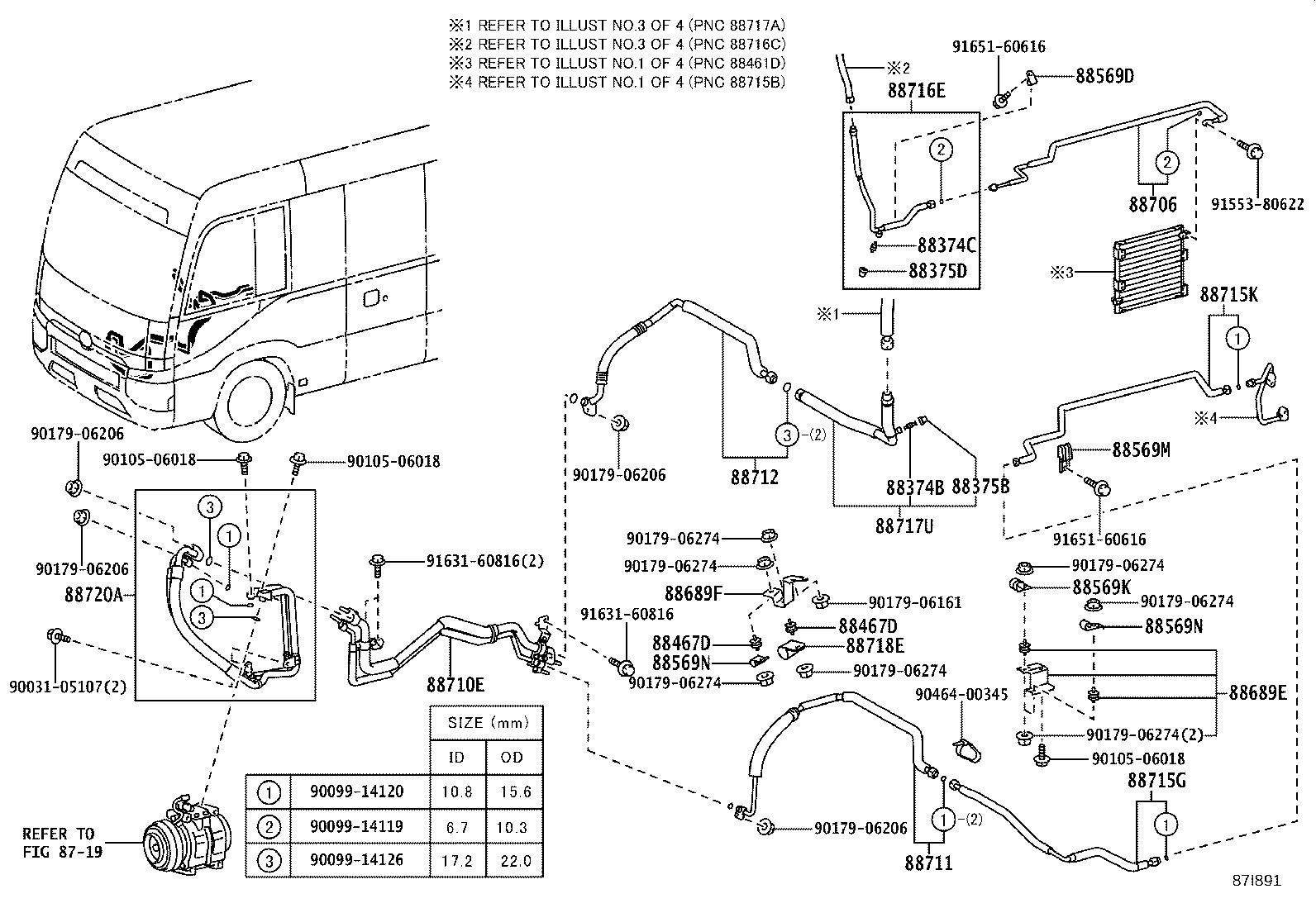

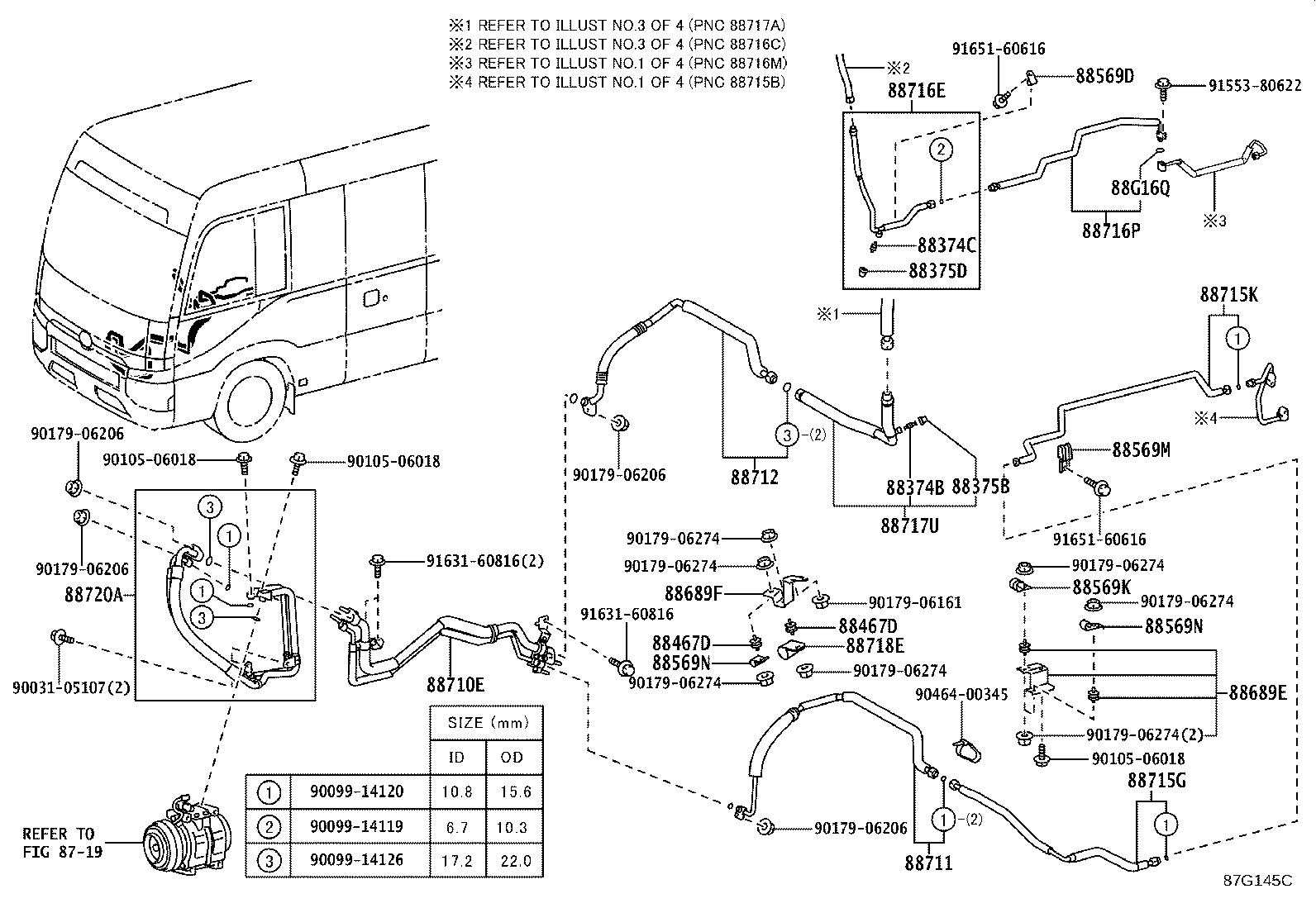

ILLUST NO. 4 OF 4(2001- )XZB60,70..LHD
PIPING(FLOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-36190 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88569-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-36120 |
BZB60,HZB60,70,TRB60,70..WC |
1 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88569-36270 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-30560 |
BZB60,70 |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-36271 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36280 |
XZB70..LHD..WC |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-36280 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36A00 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-36500 |
HZB60,70..LHD..WC |
1 | ||
| 88710-36470 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88710-36520 |
TRB60,70..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36530 |
HZB60,70..WC |
1 | ||
| 88711-36691 |
XZB70..LHD..WC |
1 | ||
| 88711-36721 |
TRB60,70..WC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36510 |
HZB60,70..WC |
1 | ||
| 88712-36651 |
XZB70..LHD..WC |
1 | ||
| 88712-36461 |
BZB60,70 |
1 | ||
| 88712-36680 |
TRB60,70..WC |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-36700 |
XZB70..LHD..WC |
1 | ||
| 88715K - TUBE, DISCHARGE, K | ||||
| 88715-36830 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36A60 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-V4010 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-36320 |
XZB70..LHD..WC |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-6A160 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88718-87640 |
BZB60,70 |
3 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88G16Q - RING, O, NO.1(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
1 | ||
| Common parts | ||||
| 90031-05107 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90105-06018 | ||||
| 90179-06161 | ||||
| 90179-06206 | ||||
| 90179-06274 | ||||
| 90464-00345 | ||||
| 91553-80622 | ||||
| 91631-60816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8719 | ||||

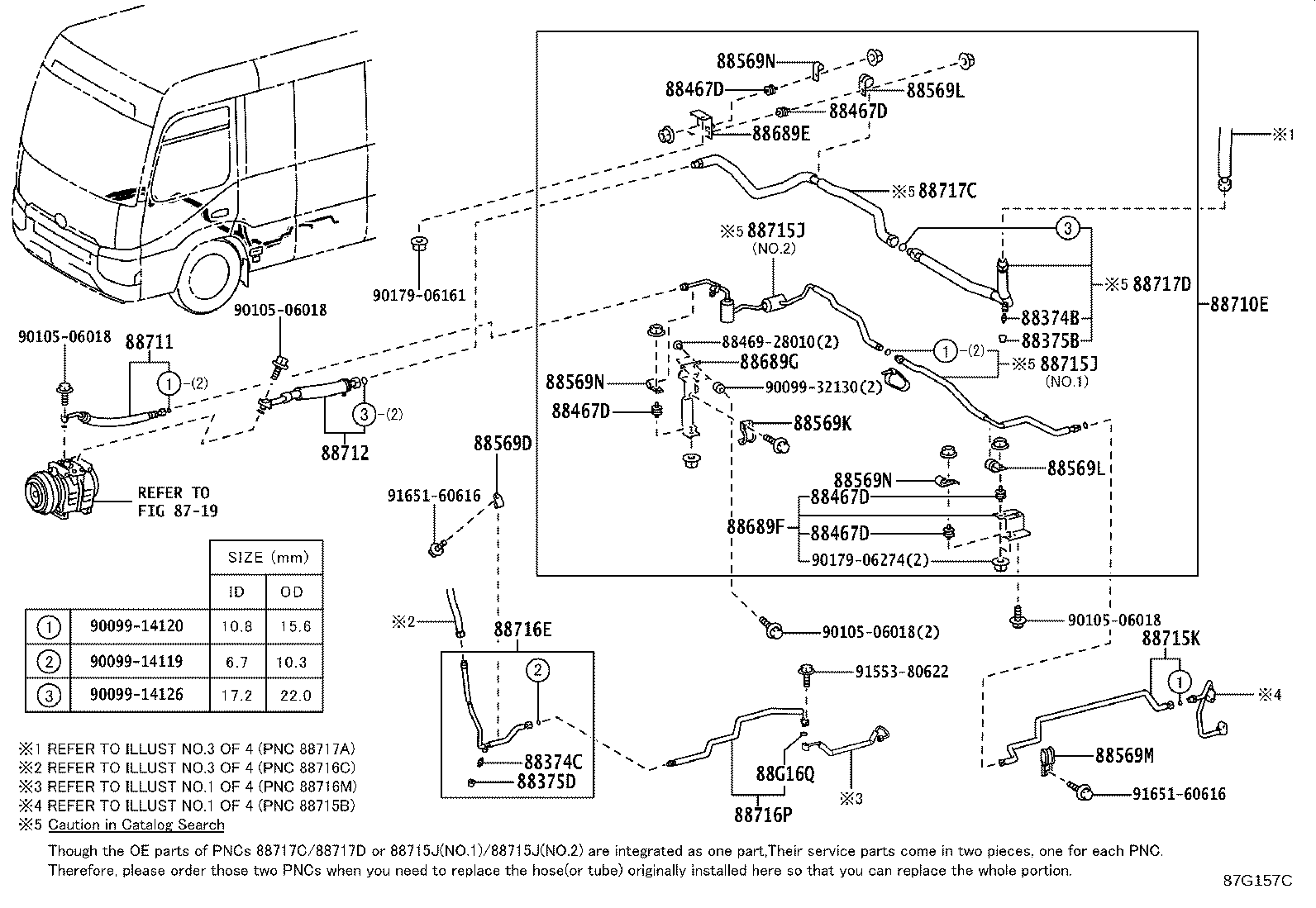

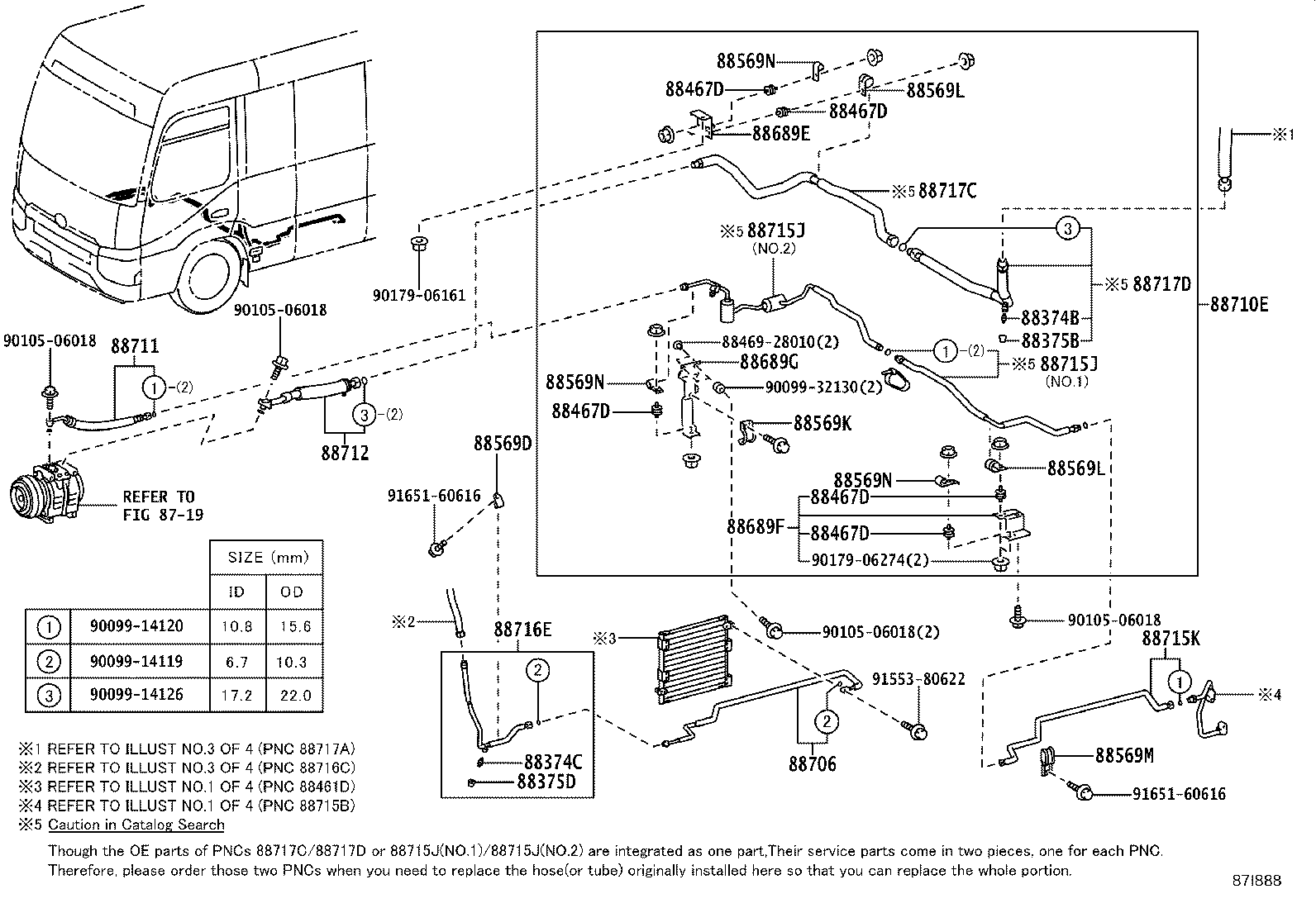

ILLUST NO. 4 OF 4(2001- )HZB60,70..LHD
PIPING(FLOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-36190 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88569-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-36120 |
BZB60,HZB60,70,TRB60,70..WC |
1 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-36220 |
HZB60,70,TRB60,70..LHD..WC |
2 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-36220 |
HZB60,70,TRB60,70..LHD..WC |
2 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88569-36270 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-30560 |
BZB60,70 |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-36271 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36280 |
XZB70..LHD..WC |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-36280 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36A00 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-36580 |
HZB60,70..LHD..WC |
1 | ||
| 88688-3B130 |
TRB60,70..WC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-36500 |
HZB60,70..LHD..WC |
1 | ||
| 88710-36470 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88710-36520 |
TRB60,70..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36530 |
HZB60,70..WC |
1 | ||
| 88711-36691 |
XZB70..LHD..WC |
1 | ||
| 88711-36721 |
TRB60,70..WC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36510 |
HZB60,70..WC |
1 | ||
| 88712-36651 |
XZB70..LHD..WC |
1 | ||
| 88712-36461 |
BZB60,70 |
1 | ||
| 88712-36680 |
TRB60,70..WC |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-36780 |
HZB60,70..LHD..WC NO.2 |
1 | ||
| 88715-36160 |
HZB60,70,TRB60,70..LHD..WC NO.1 |
1 | ||
| 88715-36790 |
TRB60,70..WC NO.2 |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-36780 |
HZB60,70..LHD..WC NO.2 |
1 | ||
| 88715-36160 |
HZB60,70,TRB60,70..LHD..WC NO.1 |
1 | ||
| 88715-36790 |
TRB60,70..WC NO.2 |
1 | ||
| 88715K - TUBE, DISCHARGE, K | ||||
| 88715-36830 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36A60 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-V4010 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-36201 |
HZB60,70..LHD..WC |
1 | ||
| 88717-36450 |
TRB60,70..WC |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-36180 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88G16Q - RING, O, NO.1(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90099-32130 | ||||
| 90105-06018 | ||||
| 90179-06161 | ||||
| 90179-06274 | ||||
| 91553-80622 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 1 OF 4(2001- )LHD
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-36380 |
HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88450-36360 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88450-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88460-36190 |
BZB60,70 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-37110 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 16361-13030 |
HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88453A - FAN, COOLING | ||||
| 16361-37100 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-36040 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88461C - CORE, COOLER CONDENSER, NO.2 | ||||
| 88461-36020 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88590B - BLOWER ASSY, W/SHROUD | ||||
| 88590-36030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88590-36020 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88590B - BLOWER ASSY, W/SHROUD | ||||
| 88590-36030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88590-36020 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-36510 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88605-36460 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88605-36450 |
BZB60,70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-36050 |
BZB60,70 |
1 | ||
| 88645-60030 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-V4020 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-36740 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715-36601 |
BZB60,70 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36610 |
BZB60,70 |
1 | ||
| 88715-36760 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-36511 |
BZB60,70 |
1 | ||
| 88716-36A80 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-36520 |
BZB60,70 |
1 | ||
| 88716-36260 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716-36A90 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88716L - PIPE, COOLER REFRIGERANT LIQUID, L | ||||
| 88716-36292 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716M - PIPE, COOLER REFRIGERANT LIQUID, M | ||||
| 88716-V4040 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 88569-36260 | ||||
ILLUST NO. 1 OF 4(1908-2001)LHD
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-36380 |
HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88450-36360 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88450-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88460-36190 |
BZB60,70 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-37110 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 16361-13030 |
HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88453A - FAN, COOLING | ||||
| 16361-37100 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-36081 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
4 | ||
| 88454-36170 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88454-36180 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88454-36140 |
BZB60,70 |
4 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-36040 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88461C - CORE, COOLER CONDENSER, NO.2 | ||||
| 88461-36020 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88461D - CORE, COOLER CONDENSER, NO.3 | ||||
| 88461-36030 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-37370 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
8 | ||
| 88463-37370 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88306-36070 |
BZB60,70 |
2 | ||
| 16363-47050 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 16363-47060 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88306-36060 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 88590B - BLOWER ASSY, W/SHROUD | ||||
| 88590-36030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88590-36020 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88590B - BLOWER ASSY, W/SHROUD | ||||
| 88590-36030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.2 |
1 | ||
| 88590-36020 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) NO.1 |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-36510 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88605-36460 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
1 | ||
| 88605-36450 |
BZB60,70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-36050 |
BZB60,70 |
1 | ||
| 88645-60030 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=6.7,OD=10.3 |
8 | ||
| 90099-14119 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=6.7,OD=10.3 |
1 | ||
| 88706H - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-36740 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715-36601 |
BZB60,70 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36610 |
BZB60,70 |
1 | ||
| 88715-36760 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) ID=10.8,OD=15.6 |
3 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-36511 |
BZB60,70 |
1 | ||
| 88716-36A80 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-36520 |
BZB60,70 |
1 | ||
| 88716-36260 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88716-36A90 |
XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC |
1 | ||
| Common parts | ||||
| 88446-36060 | ||||
| 88469-28010 | ||||
| 88619-36060 | ||||
| 90099-32130 | ||||
| 90119-06330 | ||||
| 91651-40625 | ||||
| 91651-40630 | ||||
| 93385-16016 | ||||
ILLUST NO. 4 OF 4(1701-2001)HZB60,70..LHD
PIPING(FLOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-36190 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88569-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-36120 |
BZB60,HZB60,70,TRB60,70..WC |
1 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-36220 |
HZB60,70,TRB60,70..LHD..WC |
2 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-36220 |
HZB60,70,TRB60,70..LHD..WC |
2 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88569-36270 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-30560 |
BZB60,70 |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-36271 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36280 |
XZB70..LHD..WC |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-36280 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36A00 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-36580 |
HZB60,70..LHD..WC |
1 | ||
| 88688-3B130 |
TRB60,70..WC |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-36160 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-36500 |
HZB60,70..LHD..WC |
1 | ||
| 88710-36470 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88710-36520 |
TRB60,70..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36530 |
HZB60,70..WC |
1 | ||
| 88711-36691 |
XZB70..LHD..WC |
1 | ||
| 88711-36721 |
TRB60,70..WC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36510 |
HZB60,70..WC |
1 | ||
| 88712-36651 |
XZB70..LHD..WC |
1 | ||
| 88712-36461 |
BZB60,70 |
1 | ||
| 88712-36680 |
TRB60,70..WC |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-36780 |
HZB60,70..LHD..WC NO.2 |
1 | ||
| 88715-36160 |
HZB60,70,TRB60,70..LHD..WC NO.1 |
1 | ||
| 88715-36790 |
TRB60,70..WC NO.2 |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-36780 |
HZB60,70..LHD..WC NO.2 |
1 | ||
| 88715-36160 |
HZB60,70,TRB60,70..LHD..WC NO.1 |
1 | ||
| 88715-36790 |
TRB60,70..WC NO.2 |
1 | ||
| 88715K - TUBE, DISCHARGE, K | ||||
| 88715-36830 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36A60 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-36201 |
HZB60,70..LHD..WC |
1 | ||
| 88717-36450 |
TRB60,70..WC |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-36180 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90099-32130 | ||||
| 90105-06018 | ||||
| 90179-06161 | ||||
| 90179-06274 | ||||
| 91553-80622 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 4 OF 4(1701-2001)XZB60,70..LHD
PIPING(FLOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB70..LHD..WC;HZB60,70,TRB60,70..WC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-12030 |
XZB70..LHD..WC |
2 | ||
| 88467-12030 |
HZB60,70,TRB60,70..LHD..WC |
5 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-36190 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88569-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-36120 |
BZB60,HZB60,70,TRB60,70..WC |
1 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88569-36270 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88569-30560 |
BZB60,70 |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88569N - CLAMP, PIPING, NO.2 | ||||
| 88569-30560 |
HZB60,70,TRB60,70..LHD..WC |
3 | ||
| 88569-30560 |
XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
2 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-36271 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36280 |
XZB70..LHD..WC |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-36280 |
HZB60,70,TRB60,70..LHD..WC |
1 | ||
| 88688-36A00 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-36160 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-36500 |
HZB60,70..LHD..WC |
1 | ||
| 88710-36470 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88710-36520 |
TRB60,70..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36530 |
HZB60,70..WC |
1 | ||
| 88711-36691 |
XZB70..LHD..WC |
1 | ||
| 88711-36721 |
TRB60,70..WC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36510 |
HZB60,70..WC |
1 | ||
| 88712-36651 |
XZB70..LHD..WC |
1 | ||
| 88712-36461 |
BZB60,70 |
1 | ||
| 88712-36680 |
TRB60,70..WC |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-36700 |
XZB70..LHD..WC |
1 | ||
| 88715K - TUBE, DISCHARGE, K | ||||
| 88715-36830 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36A60 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-36320 |
XZB70..LHD..WC |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-6A160 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88718-87640 |
BZB60,70 |
3 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-36220 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90031-05107 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90105-06018 | ||||
| 90179-06161 | ||||
| 90179-06206 | ||||
| 90179-06274 | ||||
| 90464-00345 | ||||
| 91553-80622 | ||||
| 91631-60816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
