XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(1701- )LHD

Click highlighted areas on diagram

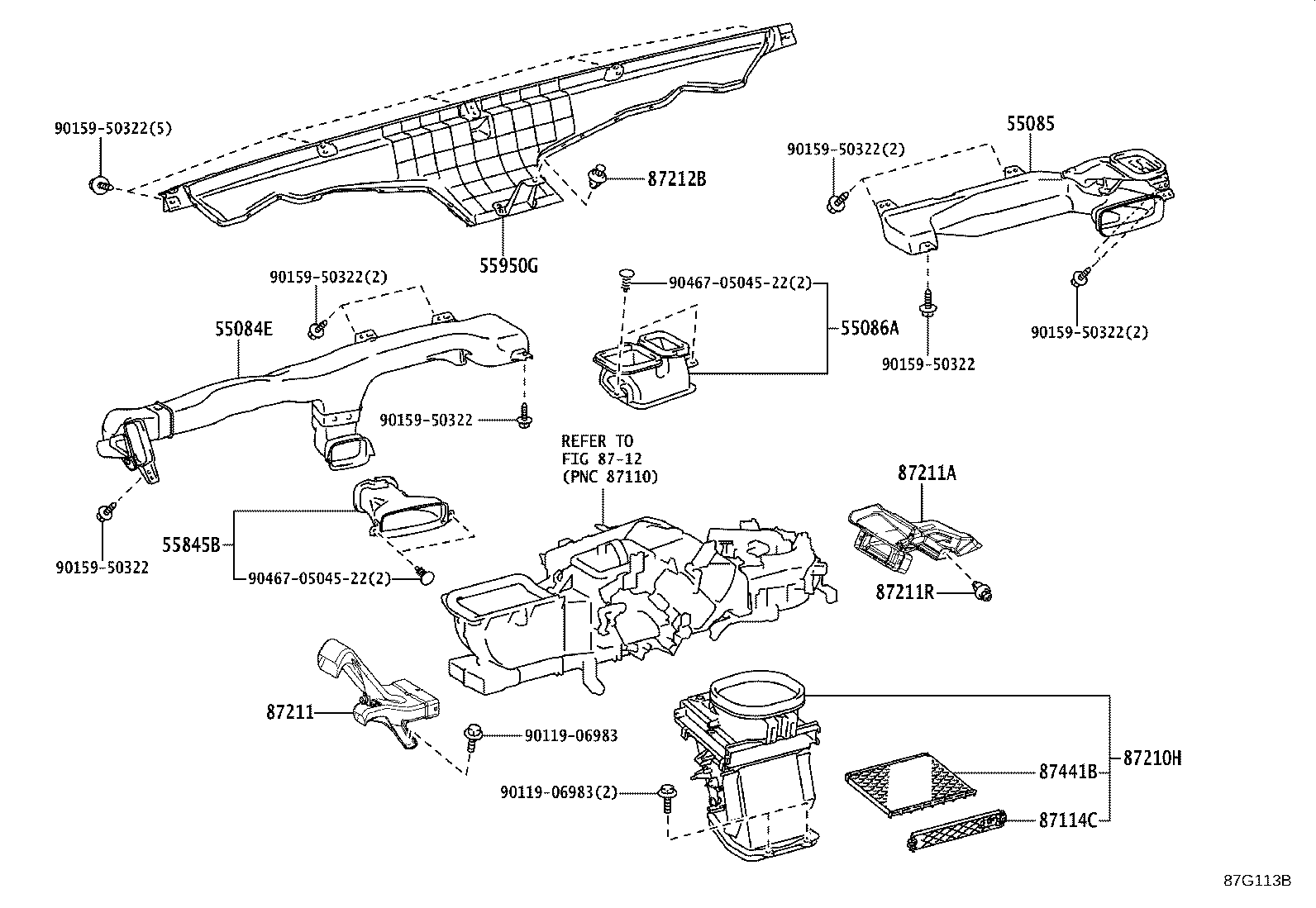

FRONT HEATER AIR DUCT

diagram 55084E 55085 55086A 55845B 55950G 87114C 8712 87210H 87211 87211A 87211R 87212B 87441B 9011906983 9011906983 9015950322 9015950322 9015950322 9015950322 9015950322 9015950322 9015950322 904670504522 904670504522
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-36050

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-36040

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-36020

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55845B - DUCT, REAR HEATER TO REGISTER, NO.3
55845-36030

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-36050

HZB70,TRB60,70,XZB70..LHD

 1
55950-36070

HZB60,70,TRB60,70,XZB70..LHD

 1
87114C - COVER, HEATER
87114-36030

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
87210H - CASE ASSY, AIR DAMPER
87210-36190

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
87211 - DUCT, AIR, NO.1
87211-36180

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
87211A - DUCT, AIR, NO.2
87211-36190

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
87211R - CLIP, AIR DUCT
90467-05170

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(01S,20S,23S)..(5F,6FC)..(DX,EX)

 1
87212B - CLIP, AIR DUCT
90467-07117

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
87441B - FILTER, HEATER AIR
87441-36030

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
Common parts
90119-06983
90159-50322
90467-0504522
Linked diagrams
8712

ILLUST NO. 1 OF 5(1701- )LHD

Click highlighted areas on diagram

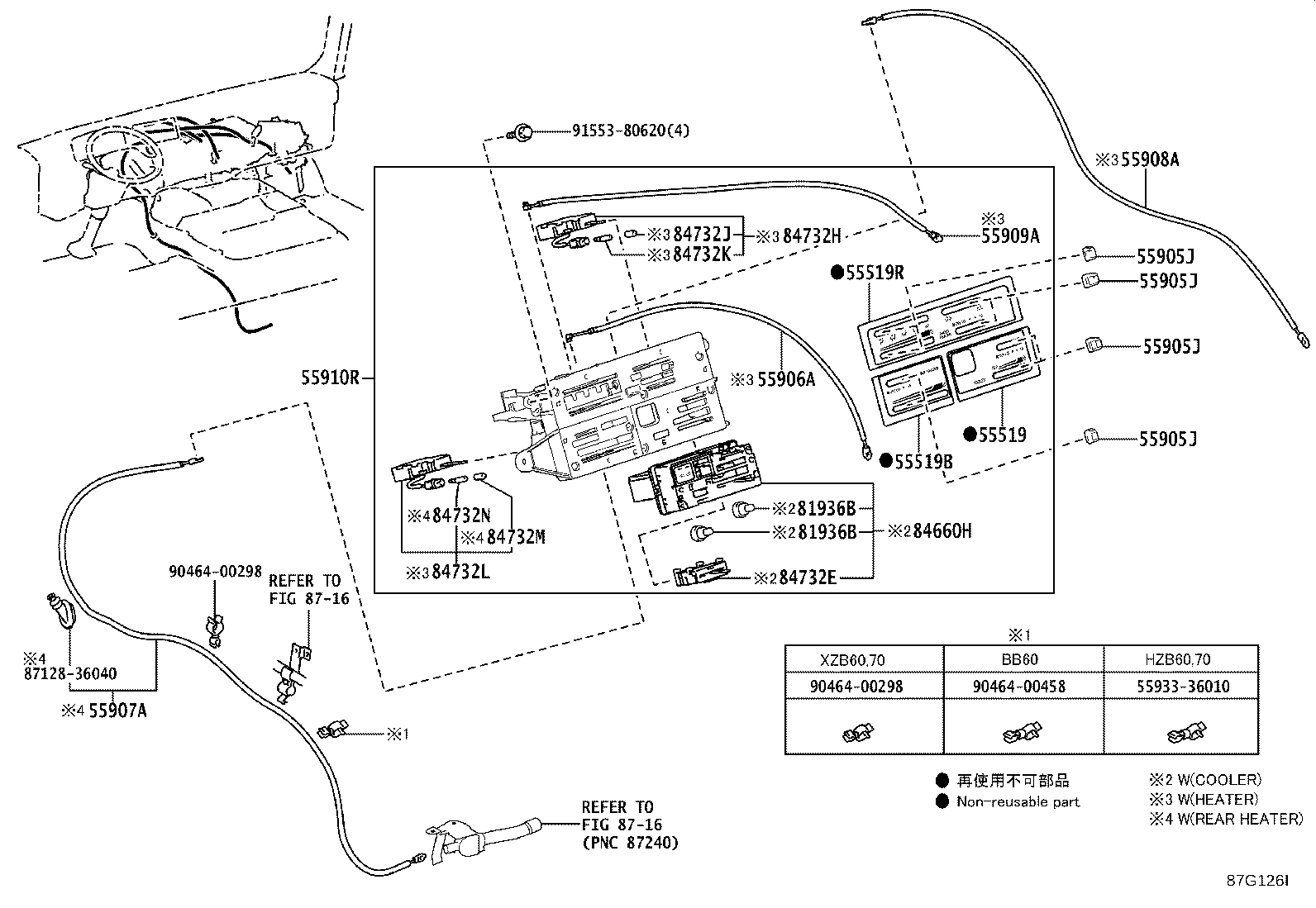

HEATER CONTROL PANEL

diagram 55519 55519B 55519R 55905J 55905J 55905J 55905J 55906A 55907A 55908A 55909A 55910R 5593336010 81936B 81936B 84660H 84732E 84732H 84732J 84732K 84732L 84732M 84732N 8712836040 8716 8716 9046400298 9046400298 9046400458 9155380620
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-36030

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
55519B - PLATE, HEATER CONTROL NAME
55519-36080

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55519R - PLATE, HEATER CONTROL NAME
55519-36070

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(01S,20S,23S)..(5F,6FC)..(DX,EX)

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-36040

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 8
55905J - KNOB SUB-ASSY, CONTROL
55905-36040

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 8
55905J - KNOB SUB-ASSY, CONTROL
55905-36040

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 8
55905J - KNOB SUB-ASSY, CONTROL
55905-36040

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 8
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-36110

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-36130

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-36080

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-36140

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
55910R - CONTROL ASSY, HEATER
55910-36320

HZB70,TRB60,70,XZB70..GCC,TAIW

 1
81936B - BULB ASSY, COOLER CONTROL
81936-32010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
81936B - BULB ASSY, COOLER CONTROL
81936-32010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
84660H - SWITCH ASSY, COOLER CONTROL
84660-36050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
84732E - SWITCH, COOLER BLOWER
84732-35010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
84732H - SWITCH, HEATER BLOWER
84732-36060

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
84732J - CAP, HEATER BLOWER SWITCH BULB
84998-10050

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
84732K - BULB, HEATER BLOWER SWITCH
90981-11014

HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

14V 1.4W

 1
84732L - SWITCH, REAR HEATER BLOWER
84732-36080

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 1
84732M - CAP, REAR HEATER BLOWER SWITCH BULB
84998-10050

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 1
84732N - BULB, REAR HEATER BLOWER SWITCH
90981-11014

XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW

 1
Common parts
55933-36010
87128-36040
90464-00298
90464-00458
91553-80620
Linked diagrams
8716

ILLUST NO. 3 OF 5(1701- )WC

Click highlighted areas on diagram

ROOF DUCT 1/2

diagram 6153 63610 63610 63830A 8714 88430A 88430B 88568A 88568A 9046710206 9046710206 9046710206
Part # Description Qty Price
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63830A - SERVO SUB-ASSY, DAMPER(FOR ROOF VENTILATOR)
87106-36100

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88430A - DUCT ASSY, AIR, NO.1
88430-36340

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88430B - DUCT ASSY, AIR, NO.2
88430-36330

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88568A - FILTER, AIR
88568-36060

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88568A - FILTER, AIR
88568-36060

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
Common parts
90467-10206
Linked diagrams
6153
8714

ILLUST NO. 4 OF 5(1701- )BZB70,HZB70,TRB70,XZB70..WC

Click highlighted areas on diagram

ROOF DUCT 2/2

diagram 63610 63610 63610 63610 63610 63610 63610 63610 63911 63912 63915 63915 63916 63917 63917A 63925 63925 63926 63927A 63928 63930 63940 6777128150 6777128150 6777128150 6777128150 6777128150 6777128150 6777128150 6777128150 6777128150 6777128150 9018305050 9018305050 9018305050 9018305050 9018305050 9018305050 9018305050 9018305050 9018305050 9018305050 9046709050 9046709050 9326955016 9326955016 9326955016 9326955016 9326955016 9326955016 9326955016 9326955016 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63640-36020B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

LT.GRAY,TRIM1#

 16
63911 - DUCT, COOLER, OUTER RH
63911-36160

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

 1
63912 - DUCT, COOLER, OUTER LH
63921-36020

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

 1
63915 - DUCT, COOLER, INNER NO.1 RH
63950-36030B0

HZB60,70,TRB60,70,XZB70..LHD..WC

LT.GRAY,TRIM1#

 1
63950-36020B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63915 - DUCT, COOLER, INNER NO.1 RH
63950-36030B0

HZB60,70,TRB60,70,XZB70..LHD..WC

LT.GRAY,TRIM1#

 1
63950-36020B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63916 - DUCT, COOLER, INNER NO.2 RH
63930-36020B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63930-36040B0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,25S,26S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
63917 - DUCT, COOLER, INNER NO.3 RH
63930-36130B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(01S,02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
63930-36120B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63917A - DUCT, COOLER, INNER NO.3 LH
63930-36170B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(01S,02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
63930-36160B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63925 - DUCT, COOLER, INNER NO.1 LH
63960-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63960-36050B0

HZB60,70,TRB60,70,XZB70..LHD..WC

LT.GRAY,TRIM1#

 1
63925 - DUCT, COOLER, INNER NO.1 LH
63960-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63960-36050B0

HZB60,70,TRB60,70,XZB70..LHD..WC

LT.GRAY,TRIM1#

 1
63926 - DUCT, COOLER, INNER NO.2 LH
63930-36100B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63930-36110B0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,25S,26S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
63927A - COVER, COOLER DUCT END, NO.1
63927-36060

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
63928 - COVER, COOLER DUCT END, NO.2
63928-36060

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
63930 - DUCT, COOLER, INNER NO.4 RH
63930-36070B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
63930-36060B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63940 - DUCT, COOLER, INNER NO.4 LH
63940-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
63940-36050B0

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC

LT.GRAY,TRIM1#

 1
Common parts
67771-28150
90183-05050
90467-09050
93269-55016
93568-55014

ILLUST NO. 5 OF 5(1701- )

Click highlighted areas on diagram

SENSOR

diagram 88625P 8868836A50 88790B 91673J0820
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171

XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN

 1
88790B - THERMISTOR ASSY
88790-36050

XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
Common parts
88688-36A50
91673-J0820
