XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )LHD

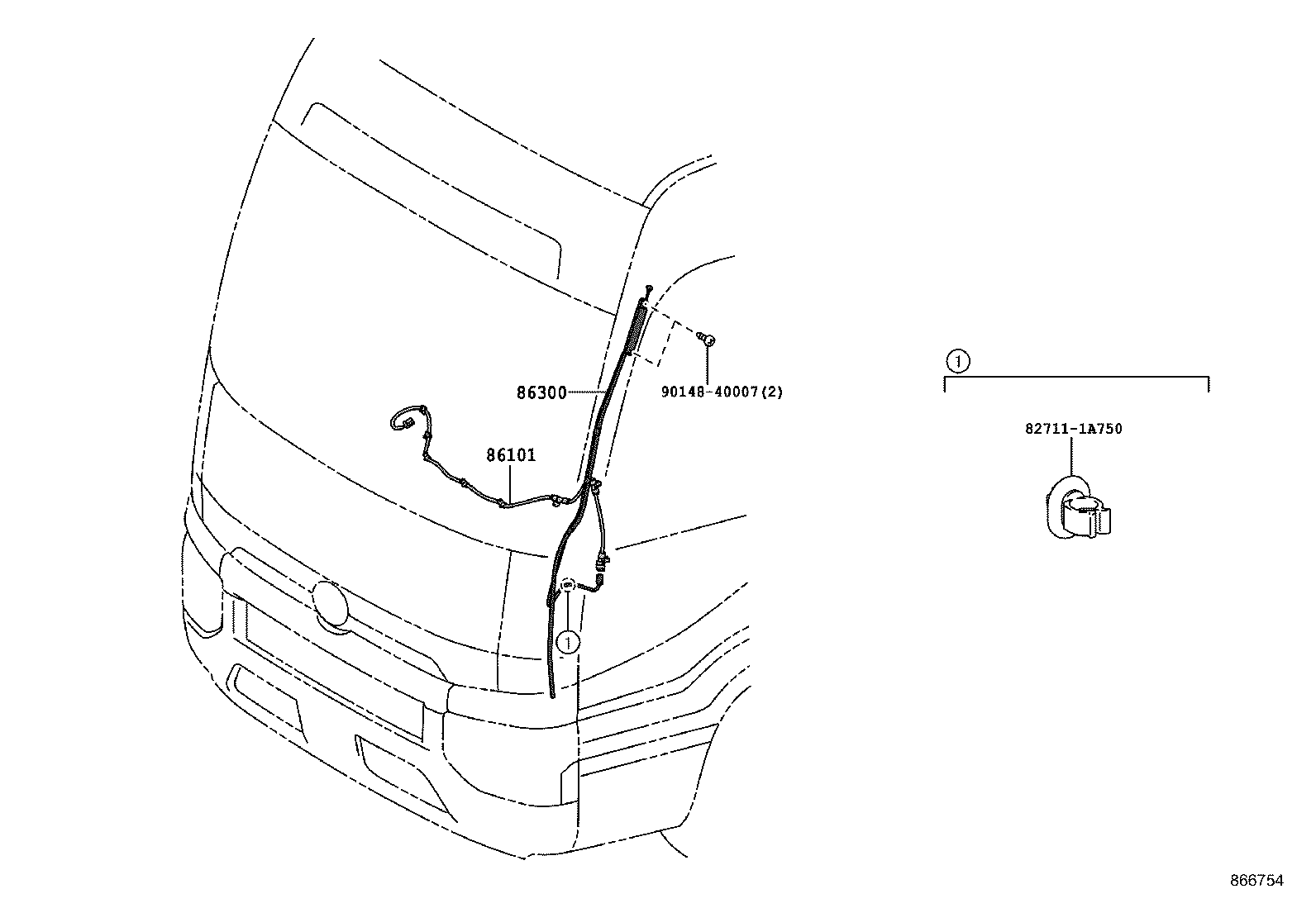

Click highlighted areas on diagram

diagram 827111A750 86101 86300 9014840007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-36120

XZB70..TAIW

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-36090

XZB70..TAIW

 1
Common parts
82711-1A750
90148-40007
