XZB70L-ZEMSYR (2017)
Toyota Coaster
(1701- )LHD

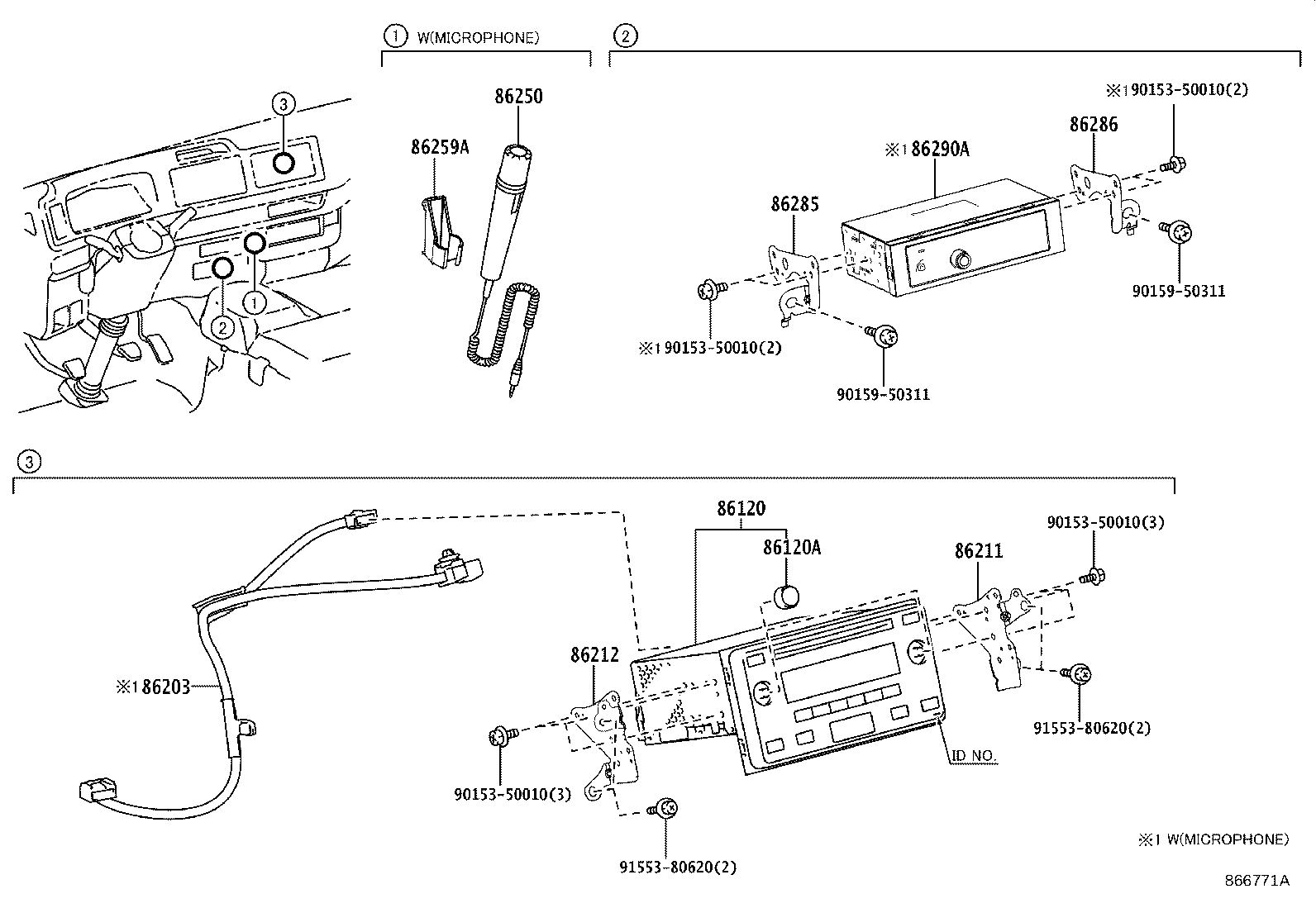

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-26231 |
XZB70..02S,20S FUJITSU TEN,ID100648 |
1 | ||
| 86120-26232 |
XZB70..EX;XZB70..TAIW;XZB70..RHD..29S FUJITSU TEN,ID100648 |
1 | ||
| 86120-26233 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
1 | ||
| 86120-26234 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
1 | ||
| 86120-26233 |
XZB70..TAIW;XZB70,80..EX;XZB70..RHD..29S DENSO TEN,ID=100648 |
1 | ||
| 86120-26235 |
XZB70..TAIW;XZB70..(5F,6FC)..EX;XZB70,80..RHD..(01S,29S)..(5F,6FC) DENSO TEN,ID=100648 |
1 | ||
| 86120-26235 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) DENSO TEN,ID=100648,AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
1 | ||
| 86120-26234 |
XZB70..TAIW;XZB70,80..EX;XZB70..RHD..29S DENSO TEN,ID=100648 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23051 |
XZB70..TAIW;XZB70,80..EX;XZB70..RHD..29S |
2 | ||
| 90010-23051 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-36450 |
XZB70..TAIW |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-36060 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-36060 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 86250 - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-36070 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX |
1 | ||
| 86250-36070 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH |
1 | ||
| 86259A - HANGER, MICROPHONE | ||||
| 86259-36040 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX |
1 | ||
| 86259-36040 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 86290A - AMPLIFIER ASSY, MICROPHONE | ||||
| 86290-36101 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX |
1 | ||
| 86290-36100 |
XZB70..02S,20S |
1 | ||
| 86290-36101 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER&MICROPHONE-WITH |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 91553-80620 | ||||
