XZB70L-ZEMSYR (2017)
Toyota Coaster

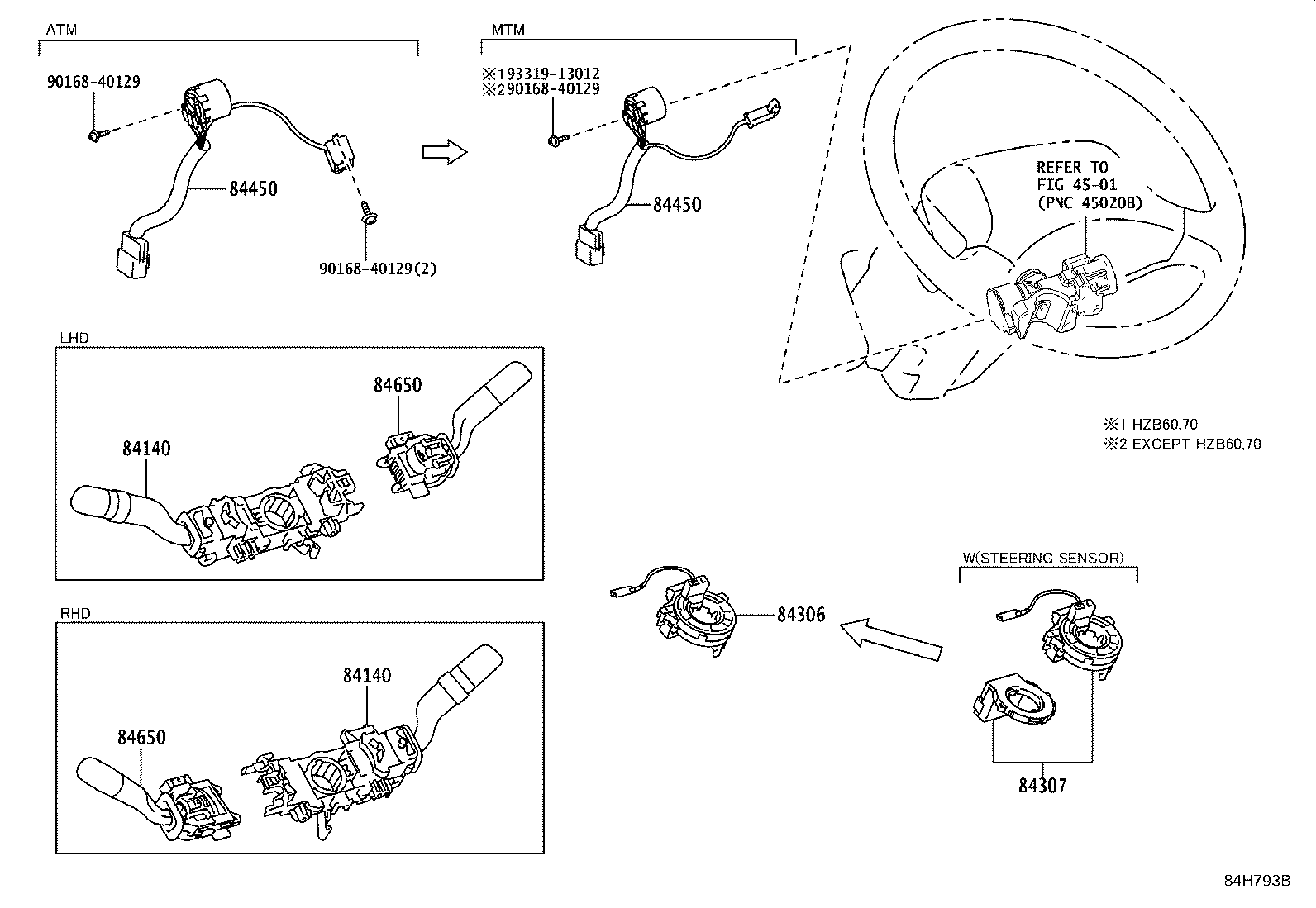

ILLUST NO. 8 OF11(1701- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37191 |
XZB70..TAIW |
1 | ||
| 84140-37191 |
XZB70..TAIW |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37191 |
XZB70..TAIW |
1 | ||
| 84140-37191 |
XZB70..TAIW |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-36040 |
XZB70..TAIW |
1 | ||
| 84307-36030 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 84307-36040 |
XZB70..TAIW |
1 | ||
| 84307-36030 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36190 |
XZB60..GEN;BZB60,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 84510-36140 |
HZB60,70 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36190 |
XZB60..GEN;BZB60,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 84510-36140 |
HZB60,70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36870 |
HZB60,70,TRB60,70..LHD |
1 | ||
| 84652-37330 |
XZB70..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36870 |
HZB60,70,TRB60,70..LHD |
1 | ||
| 84652-37330 |
XZB70..LHD |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 93319-13012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF11(1701- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60060 |
XZB70..TAIW;XZB70..6FC..ARL;BZB60,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) FRONT |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36110 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) REAR |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-60160 |
XZB70..6FC..ARL;XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36160 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01171 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36070 |
XZB70..LHD..29S;HZB70..LHD..STD..WC..GEN;BZB60,XZB60,70,80..(01S,02S,17S,20S,25S)..(5F,6FC)..(GEN,TAIW) REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-36030 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 84930-36030 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(DX,EX)..GEN |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BLACK |
1 | ||

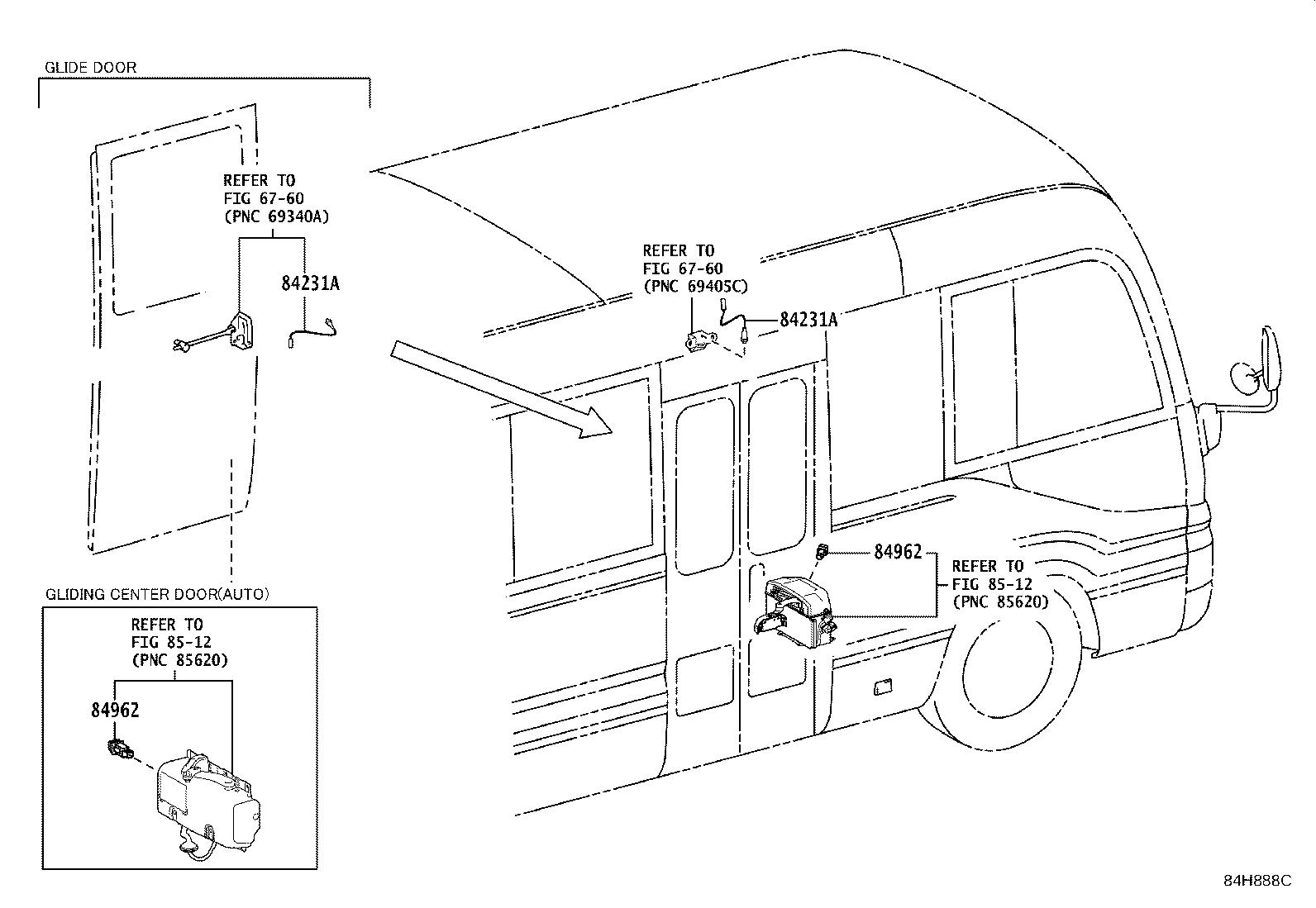

ILLUST NO. 9 OF11(1701- )LHD
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
XZB70..6FC..EX;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..(01S,22S)..(5F,6FC)..GEN |
1 | ||
| 84962-36010 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
XZB70..6FC..EX;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..(01S,22S)..(5F,6FC)..GEN |
1 | ||
| 84962-36010 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| Linked diagrams | ||||
| 6760 | ||||
| 8512 | ||||

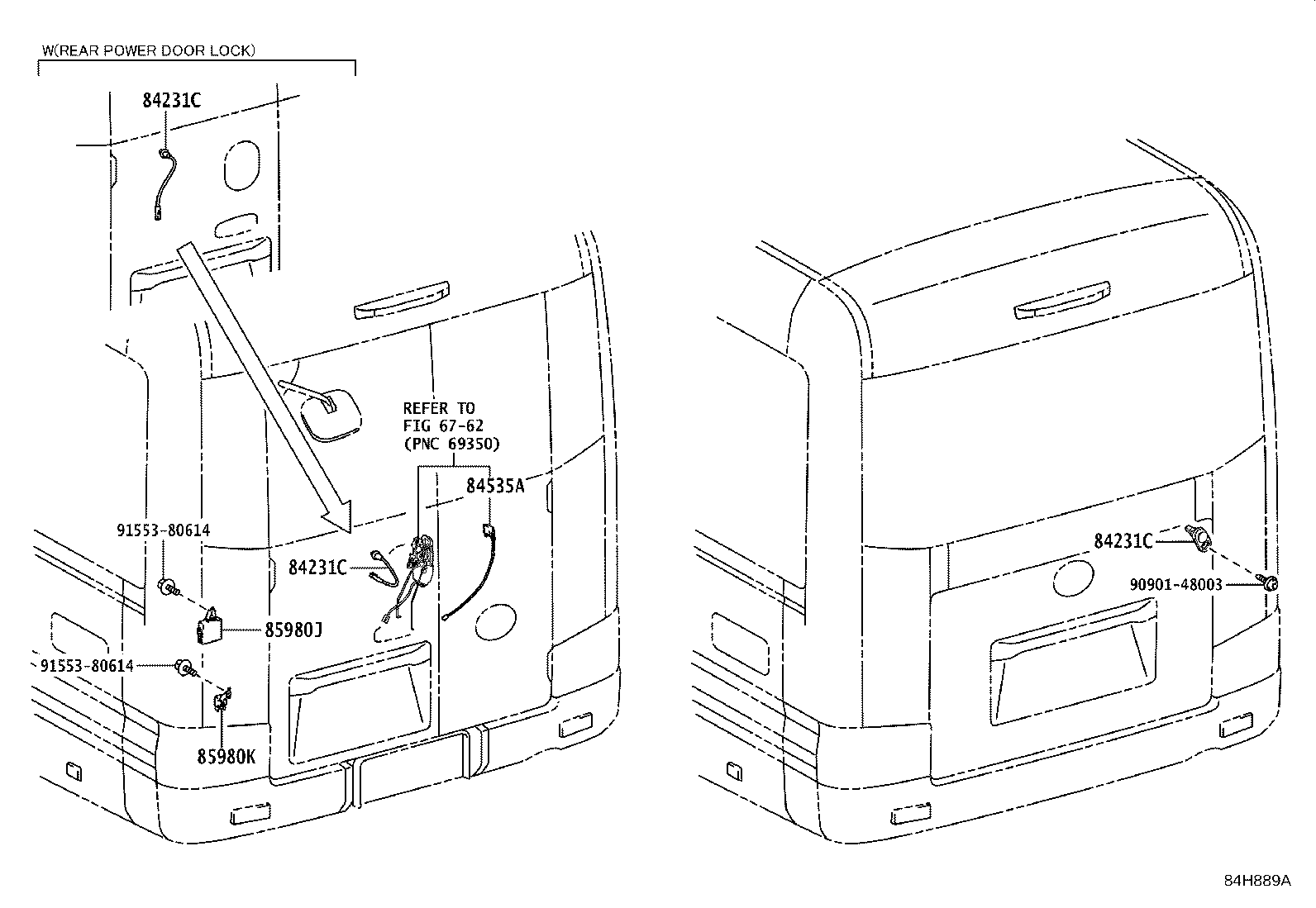

ILLUST NO.11 OF11(1701- )
BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-36080 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-36080 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-36080 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-22080 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
1 | ||
| 85980J - RELAY ASSY, DOOR LOCK, NO.1 | ||||
| 85980-V4010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 85980-36170 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 85980K - RELAY ASSY, DOOR LOCK, NO.2 | ||||
| 85980-36180 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| Common parts | ||||
| 90901-48003 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 6762 | ||||

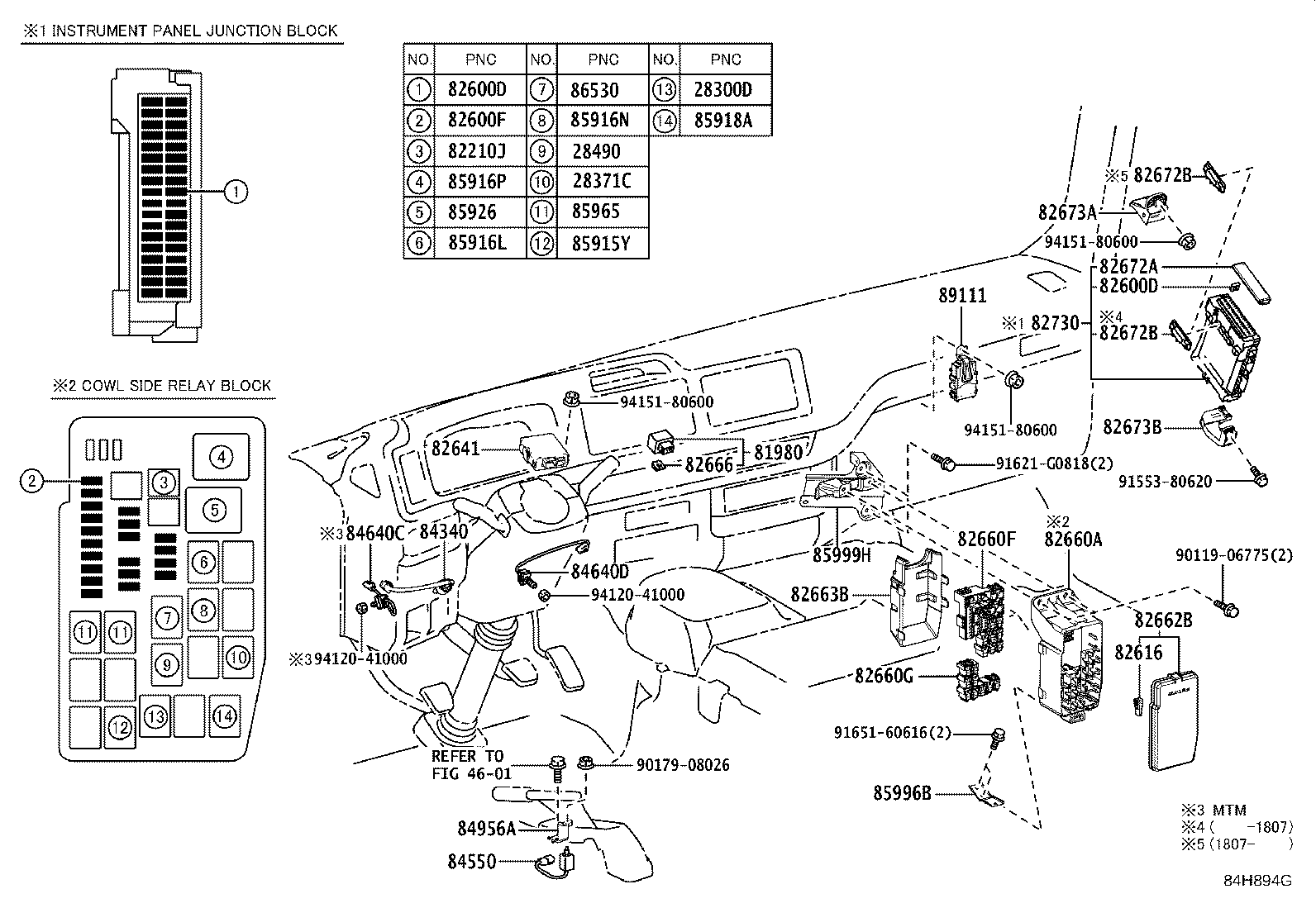

ILLUST NO. 6 OF11(1701- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
N04C..XZB60..GEN;N04C..XZB70..6FC..ARL;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-36150 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 30A,MINI FUSE,GRN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-36020 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82741-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-36060 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
1 | ||
| 82662-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82662-36062 |
BZB70,HZB60,70,TRB60,70,XZB70,80 |
1 | ||
| 82662-36061 |
BZB70,HZB70,TRB60,70,XZB70 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-36230 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-36010 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
1 | ||
| 82672-36012 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82672-36011 |
BZB70,HZB70,TRB60,70,XZB70 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-36050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-36010 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
1 | ||
| 82730-36011 |
BZB70,HZB70,TRB60,70,XZB70 |
1 | ||
| 82730-36012 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36070 |
XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 85915Y - RELAY, DOOR LOCK | ||||
| 90987-04004 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
XZB70..TAIW |
1 | ||
| 90987-02027 |
XZB70..TAIW |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 90987-02027 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 85996B - BRACKET, RELAY, NO.2 | ||||
| 85996-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 82715-36680 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-36011 |
XZB70..RHD..(22S,29S)..GEN;TRB60,70,XZB60,70..GCC,TAIW |
1 | ||
| 89100-36020 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 89100-36010 |
XZB70..RHD..(22S,29S)..GEN;TRB60,70,XZB60,70..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08026 | ||||
| 91553-80620 | ||||
| 91621-G0818 | ||||
| 91651-60616 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4601 | ||||

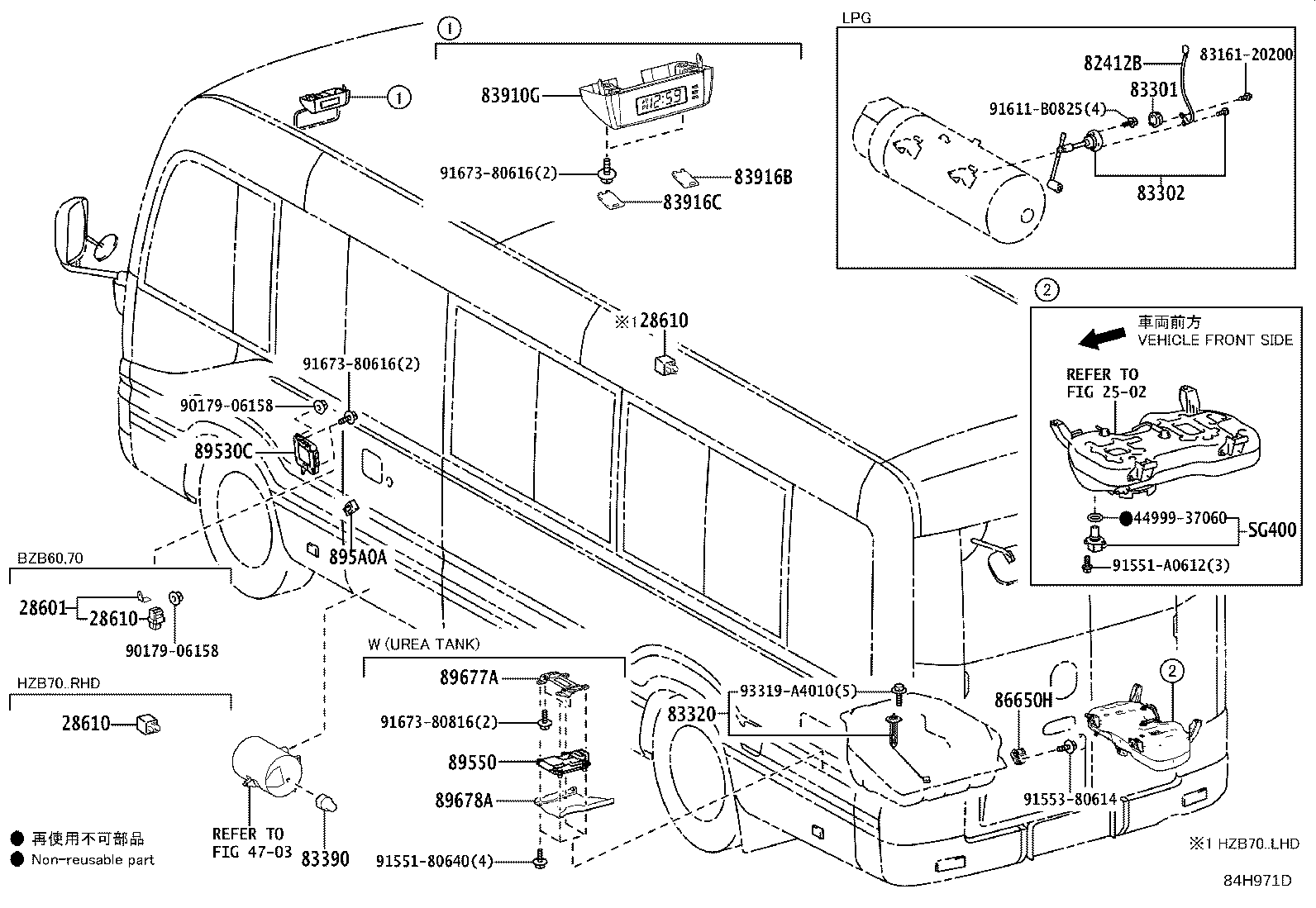

ILLUST NO.10 OF11(1701- )
ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80525 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-36020 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW);BZB60,HZB60,70,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..(5F,6FC) |
1 | ||
| 83910G - CLOCK ASSY | ||||
| 83910-36080B0 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX LT.GRAY,TRIM1# |
1 | ||
| 83916B - CLIP, CLOCK, NO.1 | ||||
| 83916-36030B0 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX LT.GRAY,TRIM1# |
1 | ||
| 83916C - CLIP, CLOCK, NO.2 | ||||
| 83916-36040B0 |
XZB70..TAIW;XZB70,80..(5F,6FC)..EX LT.GRAY,TRIM1# |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36210 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 44999-37060 | ||||
| 83161-20200 | ||||
| 90179-06158 | ||||
| 91551-80640 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91611-B0825 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 2502 | ||||
| 4703 | ||||

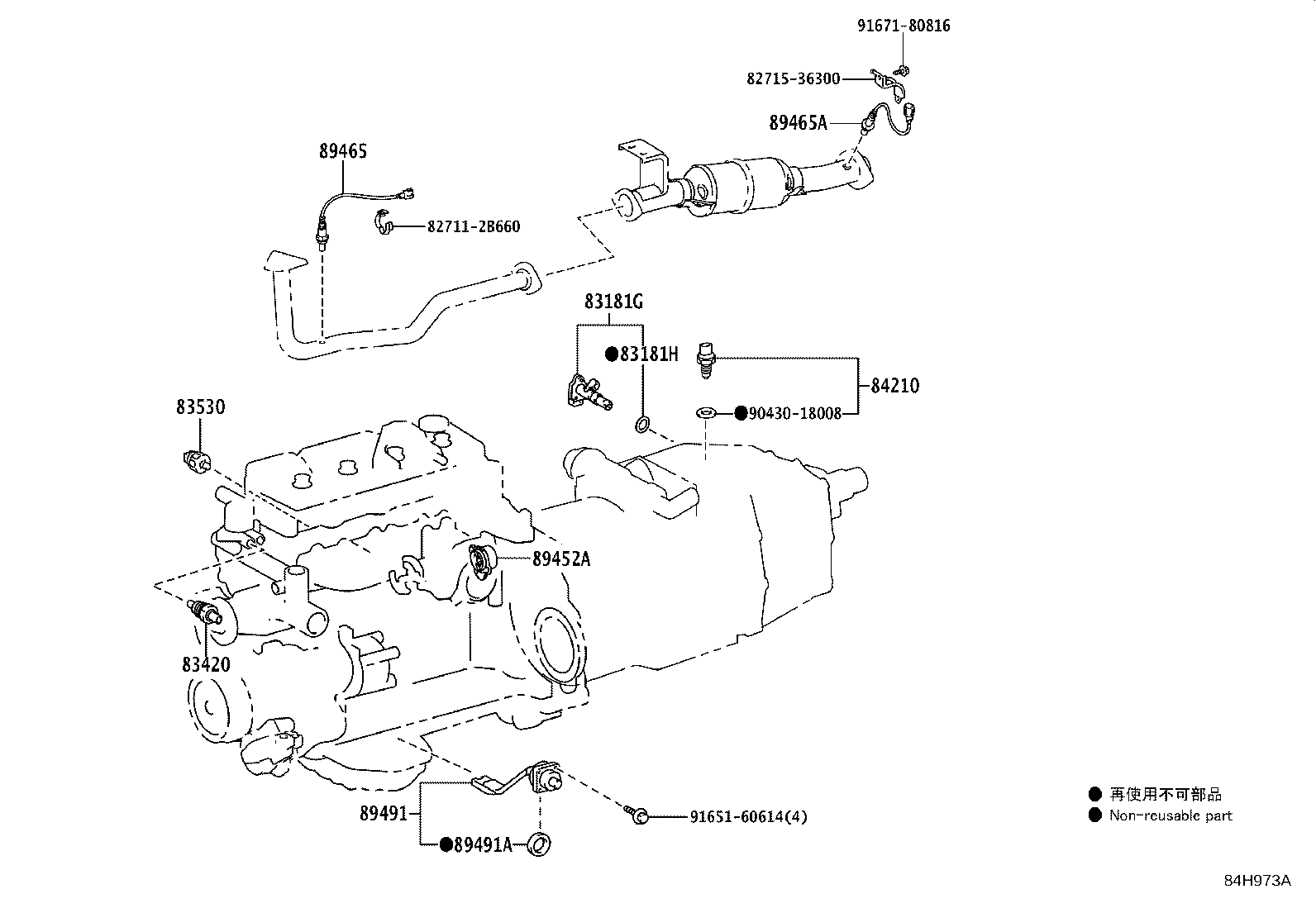

ILLUST NO. 1 OF11(1701- )BZB60,70
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83420-16040 |
BZB60,HZB60,70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XZB60,70,80..01S,02S,17S |
1 | ||
| 83530-60010 |
BZB60,70 YAZAKI |
1 | ||
| 83530-28010 |
BZB60,70 DENSO |
1 | ||
| 83530-28020 |
TRB60,70 DENSO |
1 | ||
| 83530-E0250 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83530-60020 |
TRB60,70 YAZAKI |
1 | ||
| 83530-28030 |
HZB60,70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36110 |
TRB60,70 |
1 | ||
| 89491-36071 |
BZB60,70 |
1 | ||
| 89491-60060 |
HZB60,70 |
1 | ||
| S8346-01580 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
HZB60,70,TRB60,70 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 82715-36300 | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
| 91671-80816 | ||||

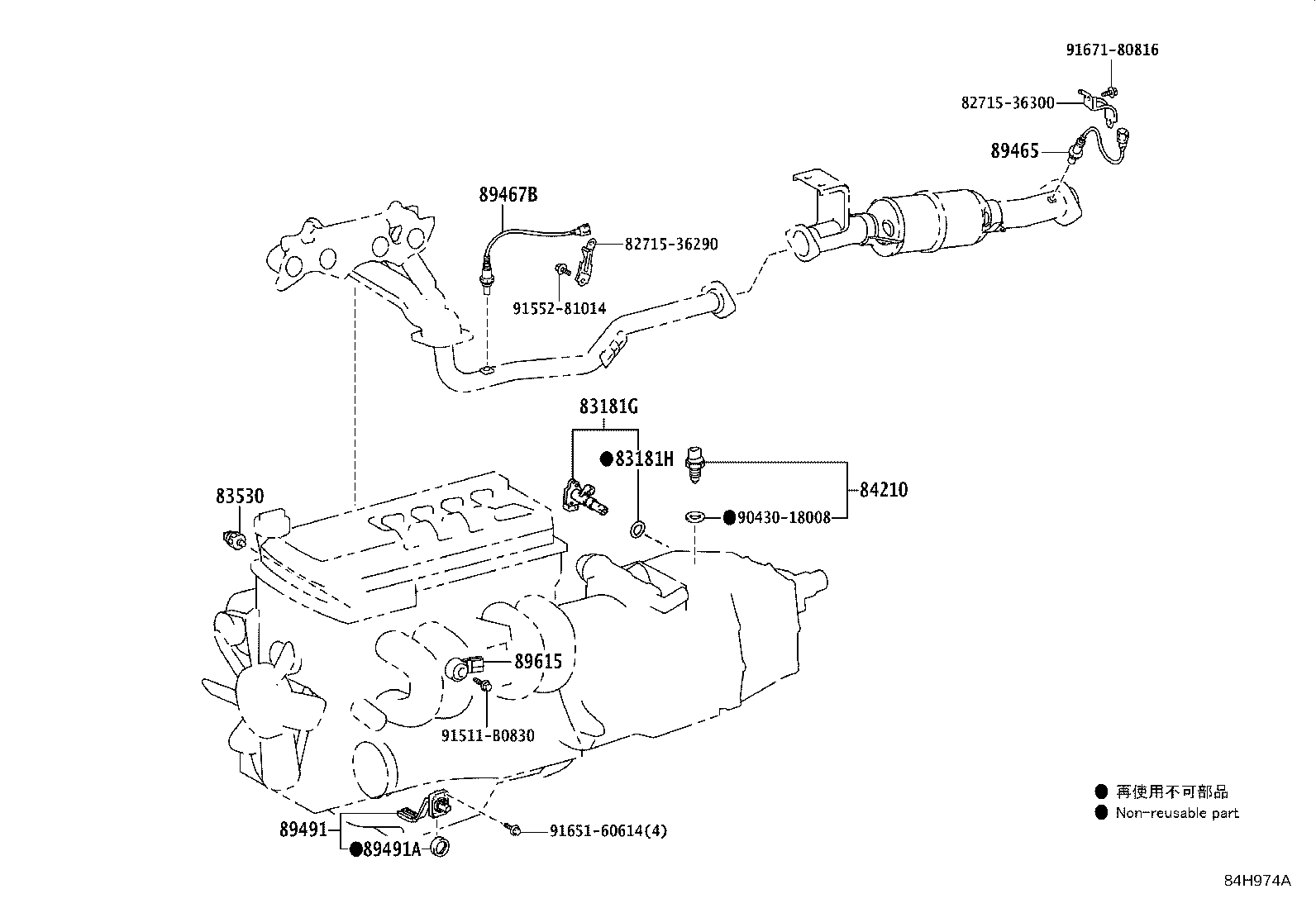

ILLUST NO. 1 OF11(1701- )TRB60,70
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XZB60,70,80..01S,02S,17S |
1 | ||
| 83530-60010 |
BZB60,70 YAZAKI |
1 | ||
| 83530-28010 |
BZB60,70 DENSO |
1 | ||
| 83530-28020 |
TRB60,70 DENSO |
1 | ||
| 83530-E0250 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83530-60020 |
TRB60,70 YAZAKI |
1 | ||
| 83530-28030 |
HZB60,70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36110 |
TRB60,70 |
1 | ||
| 89491-36071 |
BZB60,70 |
1 | ||
| 89491-60060 |
HZB60,70 |
1 | ||
| S8346-01580 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
HZB60,70,TRB60,70 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRB60,70 |
1 | ||
| Common parts | ||||
| 82715-36290 | ||||
| 82715-36300 | ||||
| 90430-18008 | ||||
| 91511-B0830 | ||||
| 91552-81014 | ||||
| 91651-60614 | ||||
| 91671-80816 | ||||

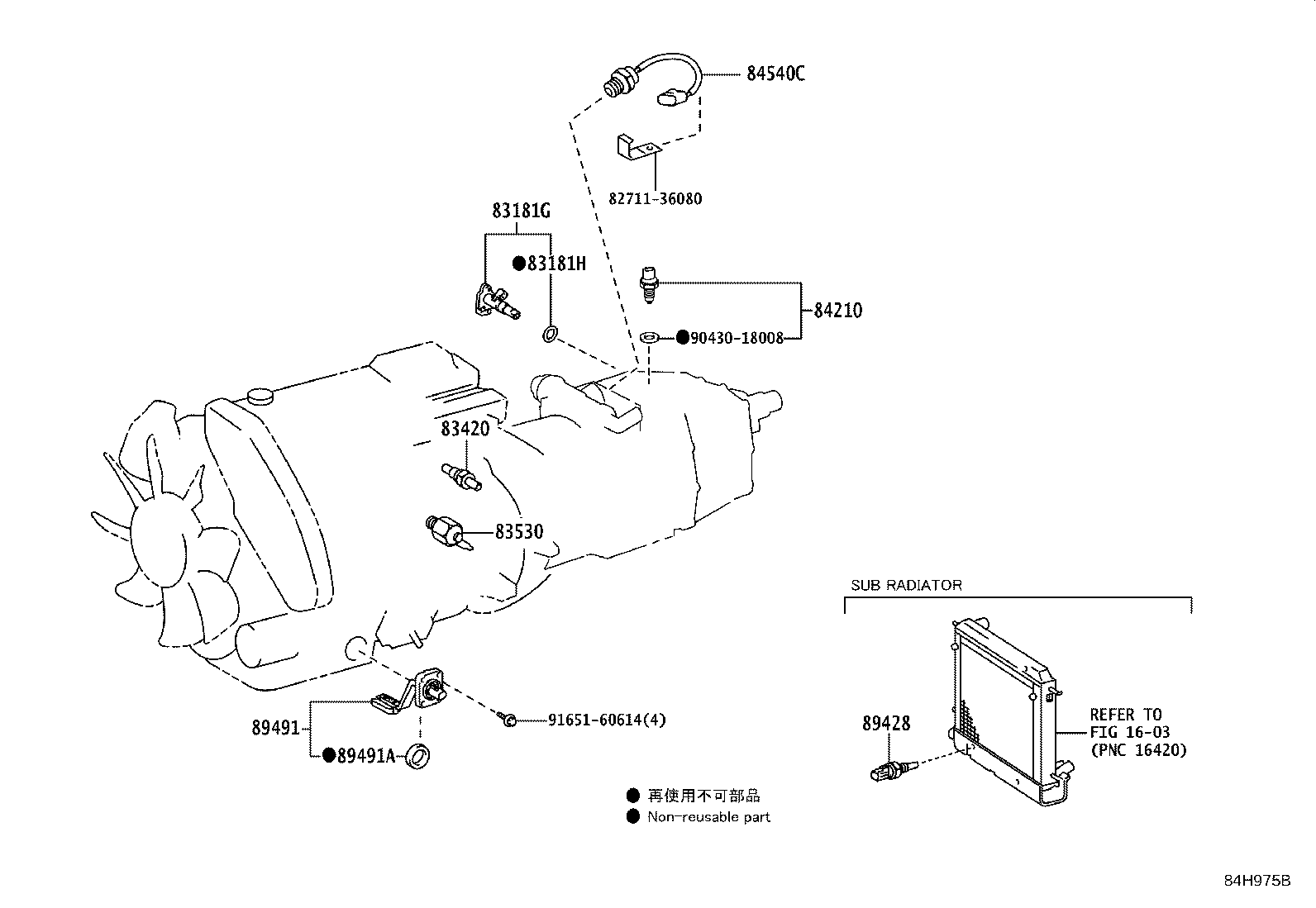

ILLUST NO. 1 OF11(1701- )HZB60,70
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83420-16040 |
BZB60,HZB60,70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XZB60,70,80..01S,02S,17S |
1 | ||
| 83530-60010 |
BZB60,70 YAZAKI |
1 | ||
| 83530-28010 |
BZB60,70 DENSO |
1 | ||
| 83530-28020 |
TRB60,70 DENSO |
1 | ||
| 83530-E0250 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 83530-60020 |
TRB60,70 YAZAKI |
1 | ||
| 83530-28030 |
HZB60,70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36100 |
XZB60,80..5F..GEN;XZB70..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
HZB60,70 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36110 |
TRB60,70 |
1 | ||
| 89491-36071 |
BZB60,70 |
1 | ||
| 89491-60060 |
HZB60,70 |
1 | ||
| S8346-01580 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
HZB60,70,TRB60,70 |
1 | ||
| Common parts | ||||
| 82711-36080 | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1603 | ||||

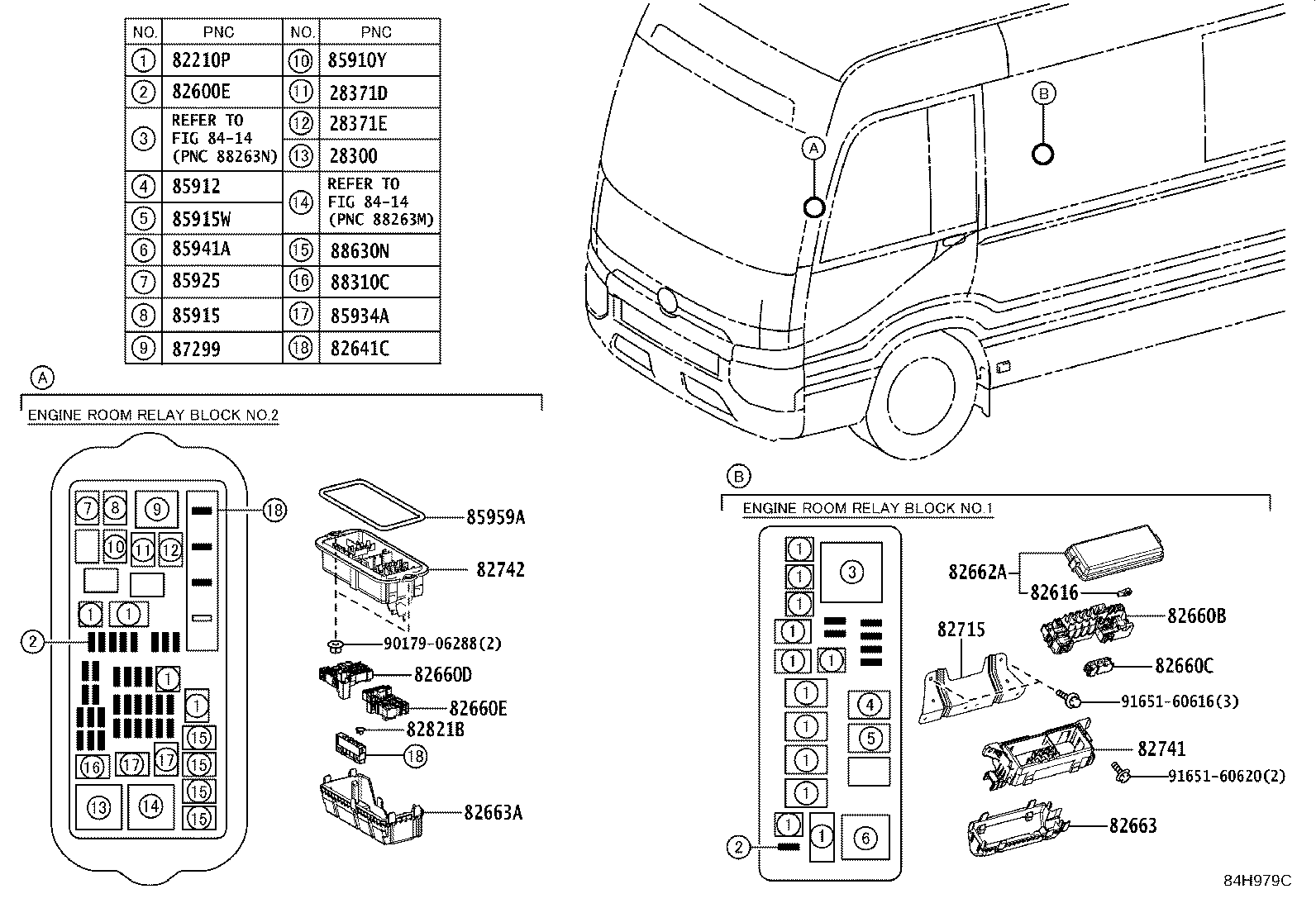

ILLUST NO. 4 OF11(1701- )LHD
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
N04C..XZB60..GEN;N04C..XZB70..6FC..ARL;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02027 |
N04C..XZB60..GEN;N04C..XZB70..6FC..ARL;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
N04C..XZB60..GEN;N04C..XZB70..6FC..ARL;N04C,1BZFPE,1HZ,2TRFE..BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08295 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08308 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 40A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70,80 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-26110 |
XZB70..TAIW |
1 | ||
| 82641-26110 |
XZB70..TAIW |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-36050 |
XZB70..TAIW |
1 | ||
| 82660-36050 |
XZB70..TAIW |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36060 |
XZB70..TAIW |
1 | ||
| 82660-36060 |
XZB70..TAIW |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-36070 |
XZB70..TAIW |
1 | ||
| 82660-36070 |
XZB70..TAIW |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-36080 |
XZB70..TAIW |
1 | ||
| 82660-36080 |
XZB70..TAIW |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-36031 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82662-36030 |
XZB60..GEN;BZB60,70,HZB70,TRB60,70,XZB70 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36040 |
XZB70..TAIW |
1 | ||
| 82663-36040 |
XZB70..TAIW |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-36050 |
XZB70..TAIW |
1 | ||
| 82663-36050 |
XZB70..TAIW |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-36690 |
BZB60,70 |
1 | ||
| 82715-36720 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-36020 |
XZB70..TAIW |
1 | ||
| 82741-36020 |
XZB70..TAIW |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-36030 |
XZB70..TAIW |
1 | ||
| 82741-36030 |
XZB70..TAIW |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47090 |
XZB70..TAIW |
1 | ||
| 82821-47090 |
XZB70..TAIW |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02027 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
XZB70..LHD..29S;HZB70..LHD..STD..WC..GEN;BZB60,XZB60,70,80..(01S,02S,17S,20S,25S)..(5F,6FC)..(GEN,TAIW) REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
HZB60,70 |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02027 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 90987-02027 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(DX,EX)..GEN |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-04004 |
HZB60,70 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
XZB60..GEN;HZB70,TRB60,70,XZB70..WC |
2 | ||
| 90987-02027 |
BZB60,70 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36060 |
XZB70..TAIW |
1 | ||
| 85959-36060 |
XZB70..TAIW |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 88310C - RELAY, AIR CONDITIONER COMPRESSOR | ||||
| 90987-02027 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-02027 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW) |
4 | ||
| Common parts | ||||
| 90179-06288 | ||||
| 91651-60616 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8414 | ||||

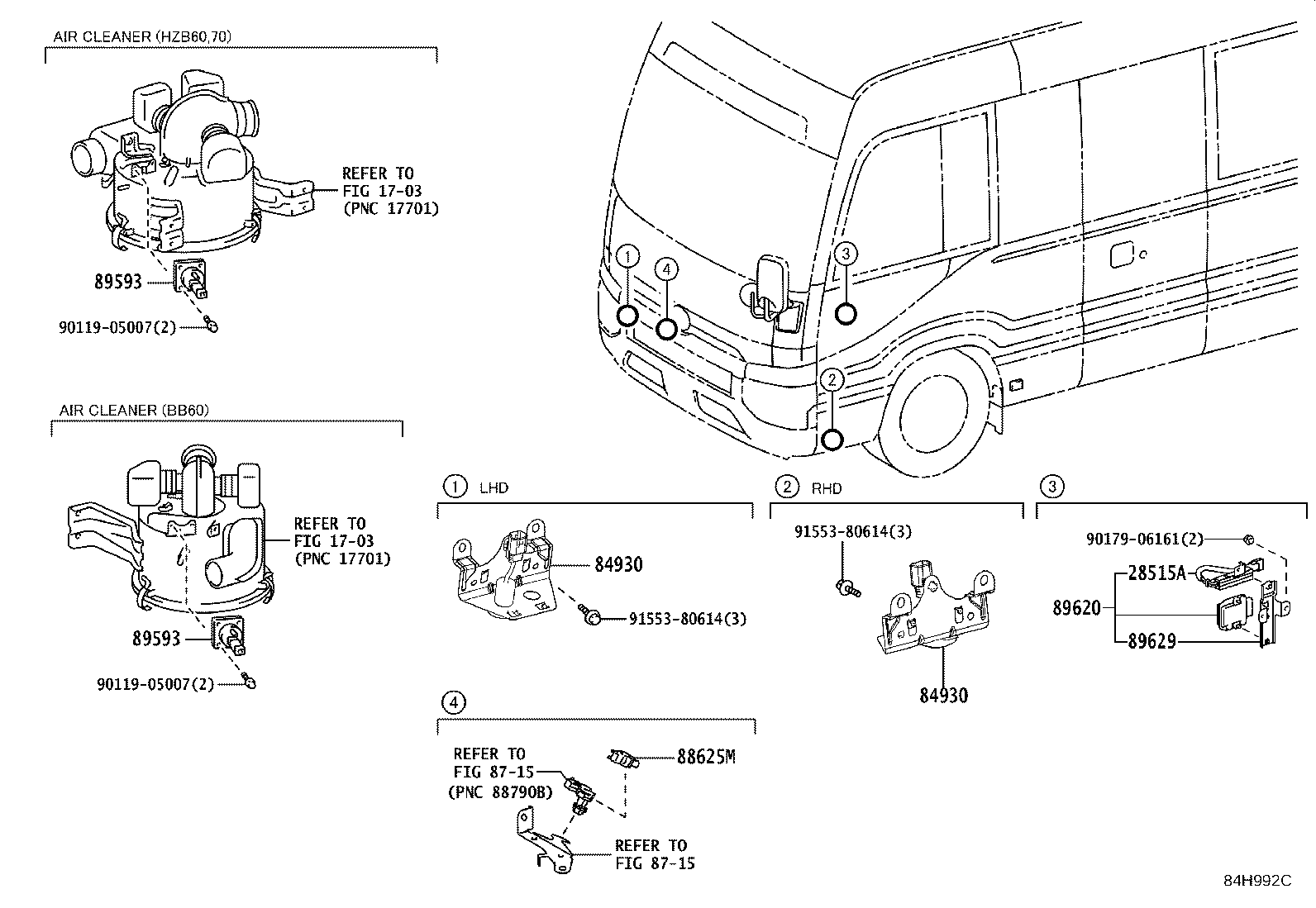

ILLUST NO. 5 OF11(1701- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-36050 |
XZB70..TAIW |
1 | ||
| 84931-36070 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-36050 |
XZB70..TAIW |
1 | ||
| 84931-36070 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60030 |
HZB60,70 |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60030 |
HZB60,70 |
1 | ||
| Common parts | ||||
| 90119-05007 | ||||
| 90179-06161 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
