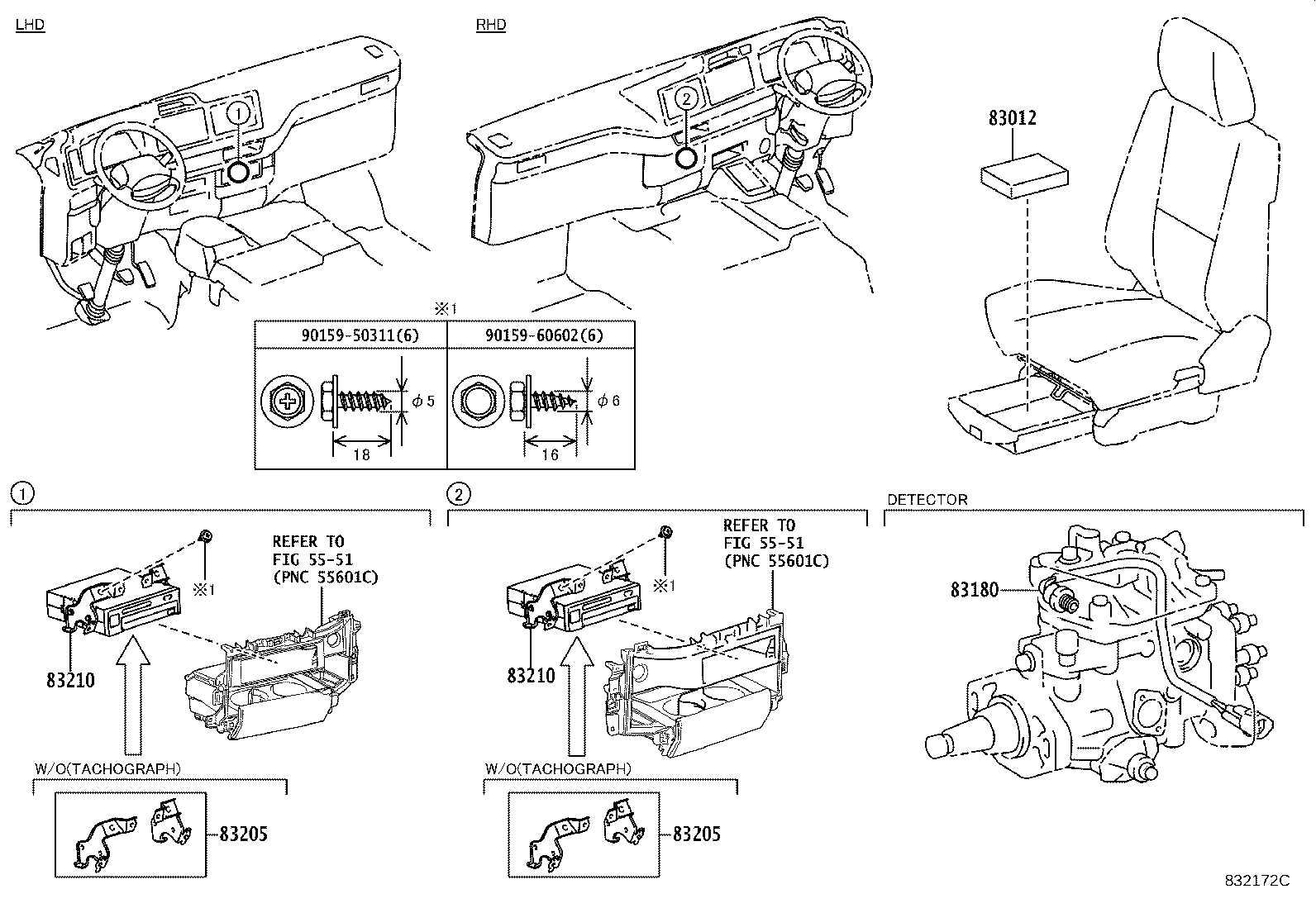

Toyota Coaster XZB70 METER - JDM Part Detective

Part #	Description	Period	Qty
83012 - SHEET SET, TACHOGRAPH CHART
83012-36040	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1DAY	01/2017 - 01/2018	1
83012-36050	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	01/2018 - 10/2019	1
83012-36030	XZB70..TAIW	01/2017 - 01/2018	1
83012-36050	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	10/2019 - 12/2999	1
83012-36050	XZB70..TAIW	01/2018 - 10/2019	1
83012-36050	HZB60,70..LHD;TRB60,70..GCC;XZB70..(19S,23S,25S,29S,30S)..(GCC,GEN) TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	01/2018 - 12/2999	1
83012-36030	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	01/2017 - 01/2018	1
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
83205-36010	XZB70..TAIW	10/2019 - 12/2999	1
83205-36010	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	10/2019 - 12/2999	1
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
83205-36010	XZB70..TAIW	10/2019 - 12/2999	1
83205-36010	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	10/2019 - 12/2999	1
83210 - TACHOGRAPH ASSY
83210-36090	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1DAY	01/2017 - 01/2018	1
83210-36080	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	01/2017 - 10/2019	1
83210-36080	XZB70..TAIW	01/2017 - 10/2019	1
83210-36080	HZB60,70..LHD;TRB60,70..GCC;XZB70..(19S,23S,25S,29S,30S)..(GCC,GEN) TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	01/2017 - 12/2999	1
83210-36080	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	10/2019 - 12/2999	1
83210 - TACHOGRAPH ASSY
83210-36090	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1DAY	01/2017 - 01/2018	1
83210-36080	XZB70..TAIW TACHOGRAPH-WITHOUT & WITH(HARNESS ONLY)	01/2017 - 10/2019	1
83210-36080	XZB70..TAIW	01/2017 - 10/2019	1
83210-36080	HZB60,70..LHD;TRB60,70..GCC;XZB70..(19S,23S,25S,29S,30S)..(GCC,GEN) TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	01/2017 - 12/2999	1
83210-36080	XZB70..TAIW TACHOGRAPH-FUEL CONSUMPTION DATA & 140KM/H & 1WEEK	10/2019 - 12/2999	1
Common parts
90159-50311
90159-60602
Linked diagrams
5551

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-36E40	XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY)	01/2017 - 08/2019	1
83800-36E40	XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY)	08/2019 - 10/2019	2
83800-36E30	BZB60,70	01/2017 - 12/2020	1
83800-36E40	XZB70..TAIW YAZAKI,SRS AIR BAG-WITH(DRIVER ONLY)	10/2019 - 01/2021	1
83800-36E50	XZB70..TAIW	01/2017 - 01/2021	1
83800-V4140	XZB70..TAIW YAZAKI	01/2021 - 12/2999	1
83800-V4130	XZB70..TAIW YAZAKI,SRS AIR BAG-WITH(DRIVER ONLY)	01/2021 - 12/2999	1
83138G - GLASS, COMBINATION METER
83852-26E40	XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY)	08/2019 - 10/2019	2
83852-26E40	XZB70..6FC..ARL;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)	01/2017 - 12/2999	1
Common parts
90159-50311

XZB70L-ZEMSYR (2017)

ILLUST NO. 2 OF 2(1701- )XZB70..4FC,5F..ARL,GCC,GEN,TAIW ; (1701- )BB60,BZB60,70,HZB60,70,TRB6

ILLUST NO. 1 OF 2(1701- )
