XZB70L-ZEMSYR (2017)
Toyota Coaster
ILLUST NO. 3 OF10(1701- )LHD
COWL & INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-36R50 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-36R70 |
XZB70..TAIW |
1 | ||
| 82131-36U60 |
BZB60,70 |
1 | ||
| 82131-36V60 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 82131-36R51 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-36R52 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-36R71 |
XZB70..TAIW |
1 | ||
| 82131-36R53 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-36N30 |
XZB70..TAIW |
1 | ||
| 82131-V4470 |
XZB70..TAIW |
1 | ||
| 82131-V4550 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-36240 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 82132-V4030 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-36080 |
HZB70,TRB60,70,XZB70..LHD |
1 | ||
| 82133-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-36C10 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141-36670 |
XZB70..TAIW |
1 | ||
| 82141-36C11 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141-36C12 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141-36671 |
XZB70..TAIW |
1 | ||
| 82141-36C13 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141-36E00 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141-36D90 |
XZB70..TAIW |
1 | ||
| 82141-V4C60 |
XZB70..TAIW |
1 | ||
| 82141-V4D30 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-36100 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-36140 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-36190 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-36150 |
HZB70,TRB60,70,XZB70..LHD |
1 | ||
| 82666-36150 |
HZB70,TRB60,70,XZB70..LHD |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-36050 |
HZB70..LHD..GEN;HZB60,TRB60,70,XZB70..LHD |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8401 | ||||

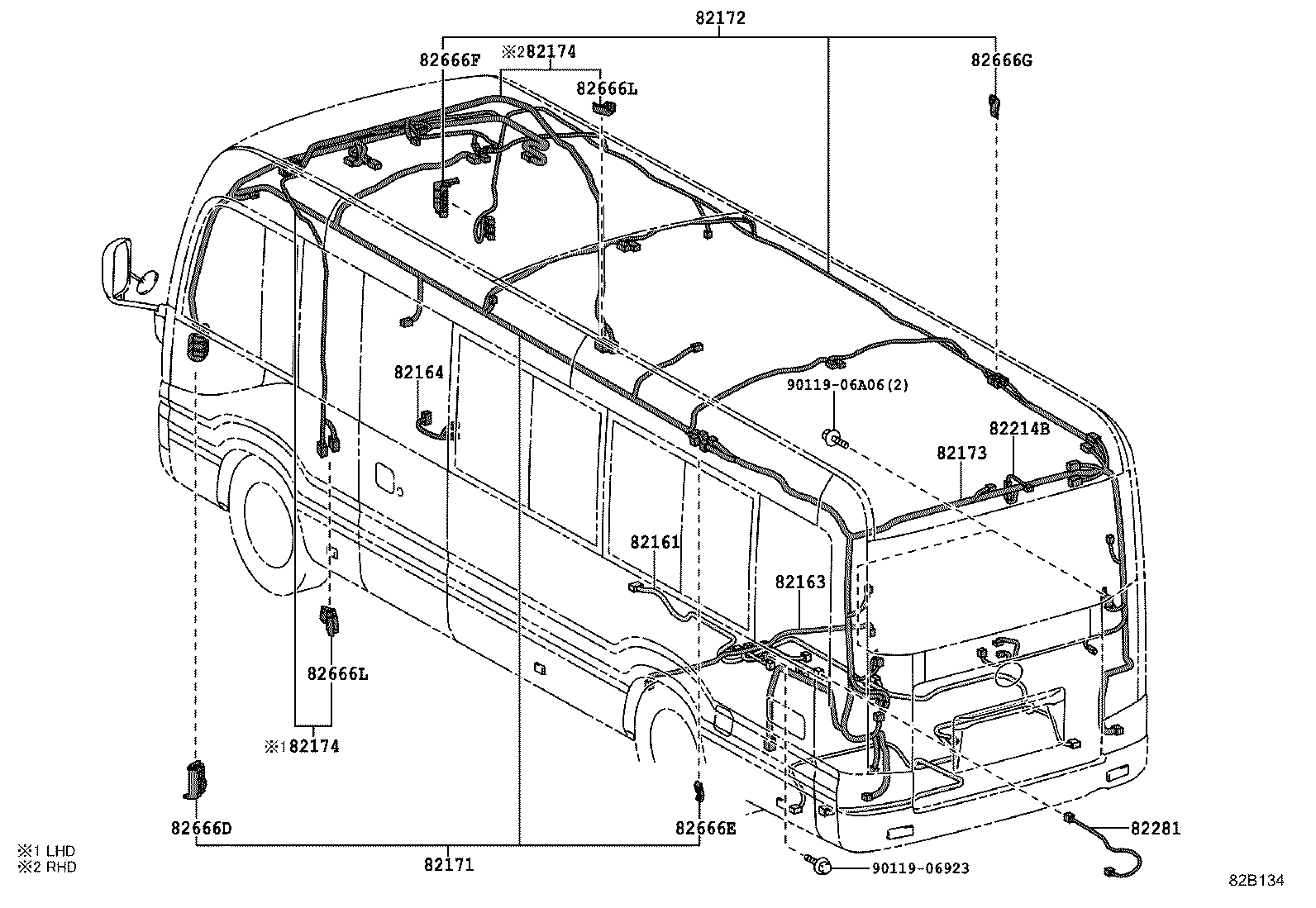

ILLUST NO. 5 OF10(1701- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-36B00 |
XZB70..TAIW |
1 | ||
| 82161-36B01 |
XZB70..TAIW |
1 | ||
| 82161-V4500 |
XZB70..TAIW |
1 | ||
| 82161-V4070 |
XZB70..TAIW |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-36031 |
XZB70..TAIW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-36450 |
XZB70..TAIW |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-36400 |
XZB70..TAIW |
1 | ||
| 82172-36330 |
XZB70..TAIW HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-36210 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 82173-36212 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 82173-36211 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 82173-V4020 |
HZB70,TRB70,XZB70..02S,19S |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-36101 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 82174-36110 |
BZB60,70 |
1 | ||
| 82174-36100 |
HZB70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-36101 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 82174-36110 |
BZB60,70 |
1 | ||
| 82174-36100 |
HZB70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 82214B - WIRE, LAMP, REAR | ||||
| 82214-36580 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,TAIW) HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82281 - WIRE, GAGE | ||||
| 82281-36080 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-36170 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-36200 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-36210 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-36210 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-06A06 | ||||
ILLUST NO. 2 OF10(1701- )BZB60,70
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-36810 |
XZB70..TAIW |
1 | ||
| 82121-36870 |
BZB60,70 |
1 | ||
| 82121-36014 |
HZB60,70 |
1 | ||
| 82121-36811 |
XZB70..TAIW |
1 | ||
| 82121-36730 |
XZB70..TAIW |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-36150 |
BZB60,70 |
1 | ||
| 82122-36034 |
HZB60,70..LHD |
1 | ||
| 82122-36340 |
TRB60,70 |
1 | ||
| 82122-36330 |
XZB70..LHD |
1 | ||
| 82122-V4100 |
HZB60,70..LHD |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-V4010 |
HZB60,70..WC |
1 | ||
| 82261-36230 |
HZB60,70..WC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-36380 |
XZB70..TAIW |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-36010 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82823-30100 |
BZB60,HZB60,70 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08C69 | ||||
| 91552-81014 | ||||
| Linked diagrams | ||||
| 8201 | ||||

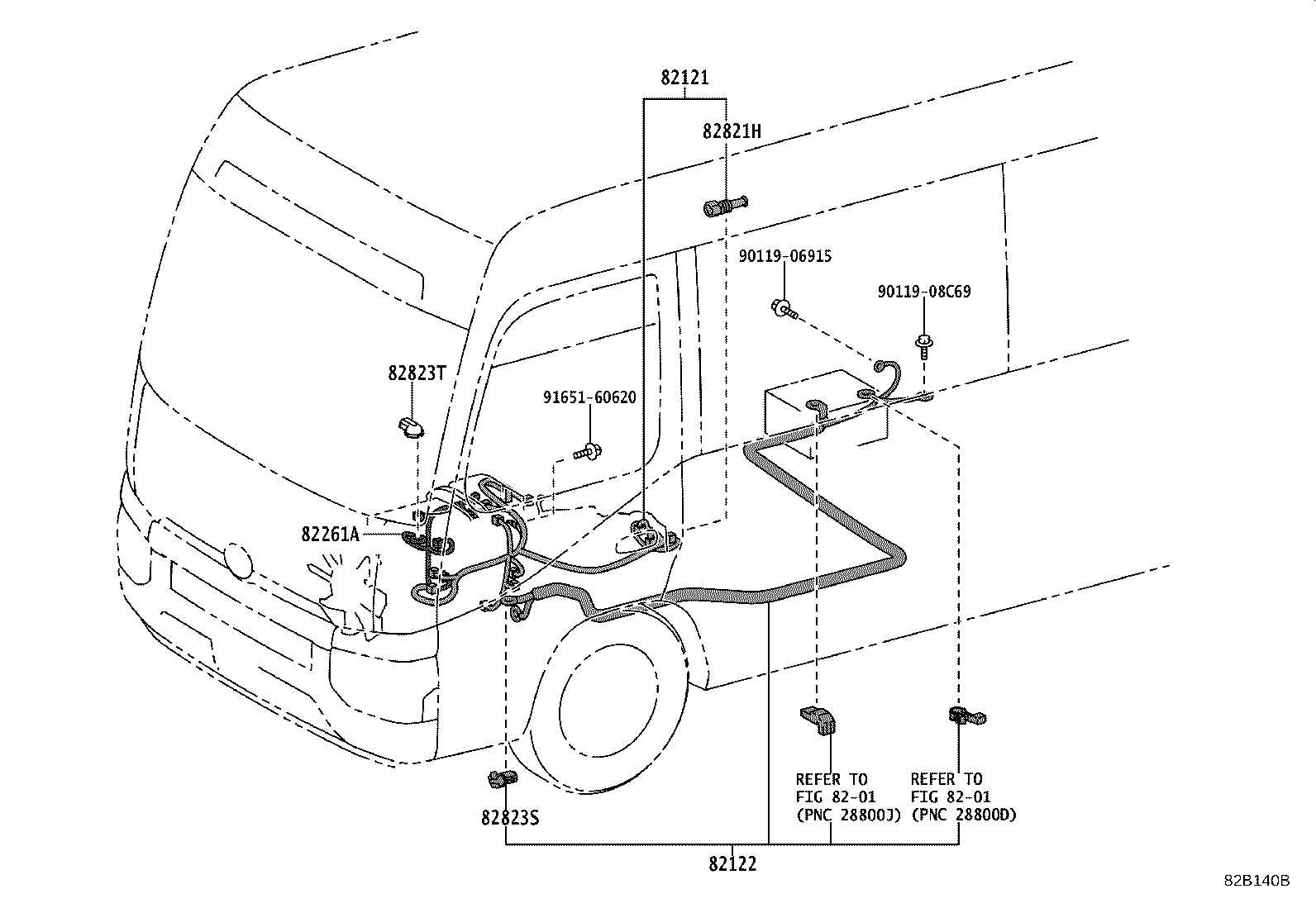

ILLUST NO. 2 OF10(1701- )HZB60,70..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-36810 |
XZB70..TAIW |
1 | ||
| 82121-36870 |
BZB60,70 |
1 | ||
| 82121-36014 |
HZB60,70 |
1 | ||
| 82121-36811 |
XZB70..TAIW |
1 | ||
| 82121-36730 |
XZB70..TAIW |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-36150 |
BZB60,70 |
1 | ||
| 82122-36034 |
HZB60,70..LHD |
1 | ||
| 82122-36340 |
TRB60,70 |
1 | ||
| 82122-36330 |
XZB70..LHD |
1 | ||
| 82122-V4100 |
HZB60,70..LHD |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-V4010 |
HZB60,70..WC |
1 | ||
| 82261-36230 |
HZB60,70..WC |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-28030 |
HZB60,70 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-36010 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82823-30100 |
BZB60,HZB60,70 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08C69 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 2 OF10(1701- )TRB60,70
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-36810 |
XZB70..TAIW |
1 | ||
| 82121-36870 |
BZB60,70 |
1 | ||
| 82121-36014 |
HZB60,70 |
1 | ||
| 82121-36811 |
XZB70..TAIW |
1 | ||
| 82121-36730 |
XZB70..TAIW |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-36150 |
BZB60,70 |
1 | ||
| 82122-36034 |
HZB60,70..LHD |
1 | ||
| 82122-36340 |
TRB60,70 |
1 | ||
| 82122-36330 |
XZB70..LHD |
1 | ||
| 82122-V4100 |
HZB60,70..LHD |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-26190 |
TRB60,70 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-36380 |
XZB70..TAIW |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08C69 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 2 OF10(1701- )XZB60,70..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-36810 |
XZB70..TAIW |
1 | ||
| 82121-36870 |
BZB60,70 |
1 | ||
| 82121-36014 |
HZB60,70 |
1 | ||
| 82121-36811 |
XZB70..TAIW |
1 | ||
| 82121-36730 |
XZB70..TAIW |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-36150 |
BZB60,70 |
1 | ||
| 82122-36034 |
HZB60,70..LHD |
1 | ||
| 82122-36340 |
TRB60,70 |
1 | ||
| 82122-36330 |
XZB70..LHD |
1 | ||
| 82122-V4100 |
HZB60,70..LHD |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82121-E1Y50 |
XZB70;XZB60,80..(4FC,5F)..GEN |
1 | ||
| 82121-37L60 |
XZB70..6FC..ARL;XZB70..(02S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-36010 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82123A - WIRE, ENGINE, NO.3 | ||||
| 82121-E1390 |
XZB60,70..02S,17S |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-36060 |
XZB60,70 |
1 | ||
| 82124-36061 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82121-E2P90 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-25010 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-36380 |
XZB70..TAIW |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-36010 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82823-30100 |
BZB60,HZB60,70 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08C69 | ||||
| 90119-08C92 | ||||
| 90179-06158 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 1 OF10(1701- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-36X60 |
XZB70..TAIW |
1 | ||
| 82111-36X70 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82111-36S20 |
BZB60,70 |
1 | ||
| 82111-36X71 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82111-36X61 |
XZB70..TAIW |
1 | ||
| 82111-36X72 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82111-36X62 |
XZB70..TAIW |
1 | ||
| 82111-3B650 |
XZB70..TAIW |
1 | ||
| 82111-3B660 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82111-V4L10 |
XZB70..TAIW |
1 | ||
| 82111-V4L20 |
XZB70..TAIW SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82149 - WIRE, PILLAR, NO.3 | ||||
| 82149-36040 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 82149-36040 |
XZB70..DX..GCC;XZB70..22S..GEN;HZB70,TRB60,70..GCC;XZB70..STD..(ARL,GCC,TAIW) |
1 | ||
| 82149-36041 |
XZB70..22S..GEN;XZB70..6FC..STD..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-36700 |
TRB60,70,XZB60,70..GCC,TAIW |
1 | ||
| 82214-36701 |
TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 82214-36702 |
TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-36050 |
HZB60,70 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-25010 |
XZB70..TAIW |
1 | ||
| 82670-25010 |
XZB70..TAIW |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28010 |
HZB60,70,TRB60,70 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-36110 |
HZB70..GCC;TRB60,70,XZB70..LHD |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-V4040 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-V4050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-36090 |
HZB70..GCC;XZB60..GEN;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-V4040 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-V4050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-21020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 53797-36010 | ||||
| 53997-36010 | ||||
| 82715-36380 | ||||
| 90119-06915 | ||||
| 90179-06158 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF10(1701- )BZB60,70,TRB60,70
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07462 |
TRB60,70 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07462 |
TRB60,70 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07239 |
TRB60,70 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07239 |
TRB60,70 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91552-81014 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||

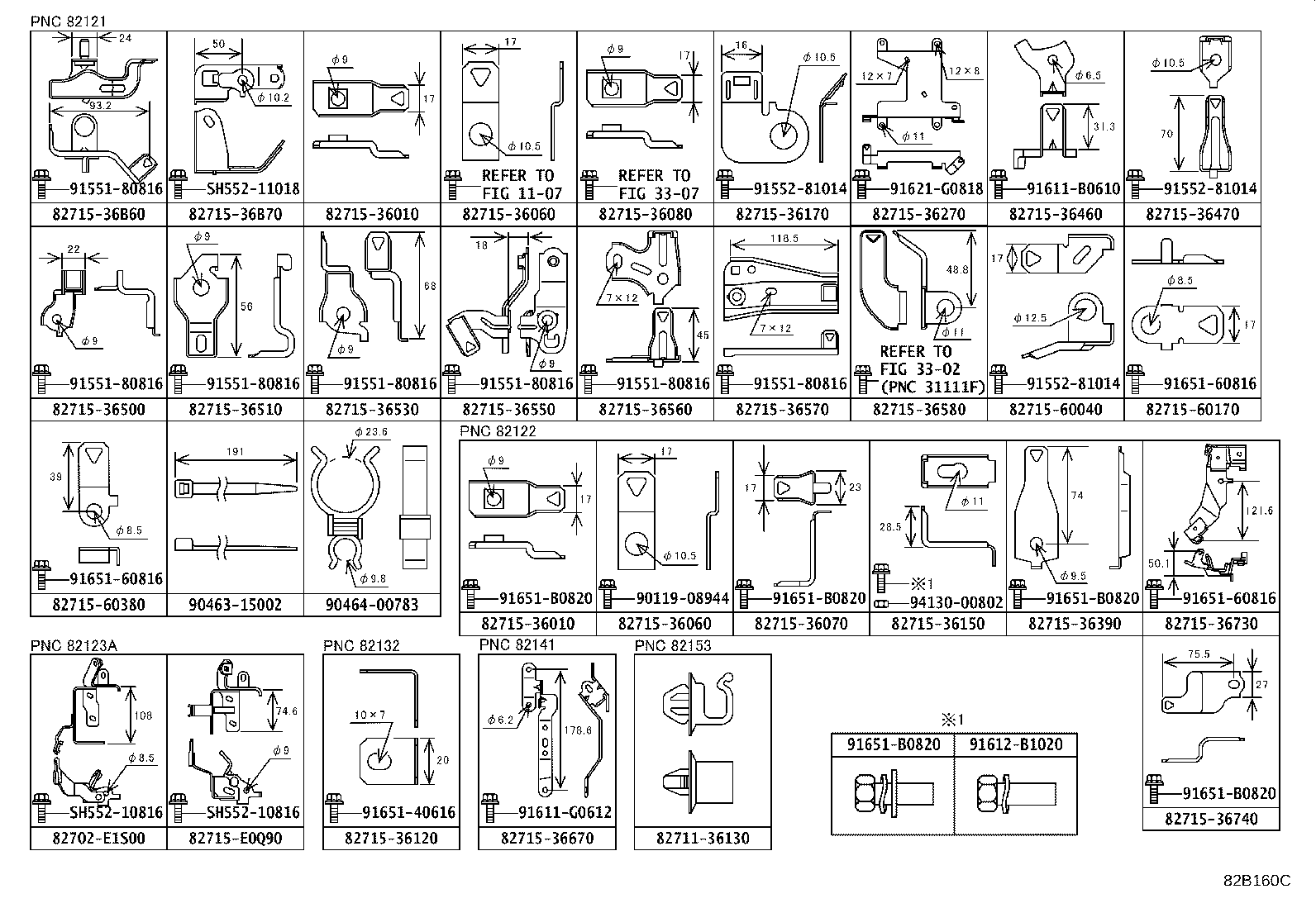

ILLUST NO. 6 OF10(1701- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-E1S00 | ||||
| 82711-36130 | ||||
| 82715-36010 | ||||
| 82715-36060 | ||||
| 82715-36070 | ||||
| 82715-36080 | ||||
| 82715-36120 | ||||
| 82715-36150 | ||||
| 82715-36170 | ||||
| 82715-36270 | ||||
| 82715-36390 | ||||
| 82715-36460 | ||||
| 82715-36470 | ||||
| 82715-36500 | ||||
| 82715-36510 | ||||
| 82715-36530 | ||||
| 82715-36550 | ||||
| 82715-36560 | ||||
| 82715-36570 | ||||
| 82715-36580 | ||||
| 82715-36670 | ||||
| 82715-36730 | ||||
| 82715-36740 | ||||
| 82715-36B60 | ||||
| 82715-36B70 | ||||
| 82715-60040 | ||||
| 82715-60170 | ||||
| 82715-60380 | ||||
| 82715-E0Q90 | ||||
| 90119-08944 | ||||
| 90463-15002 | ||||
| 90464-00783 | ||||
| 91551-80816 | ||||
| 91552-81014 | ||||
| 91611-B0610 | ||||
| 91611-G0612 | ||||
| 91612-B1020 | ||||
| 91621-G0818 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| SH552-10816 | ||||
| SH552-11018 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 3302 | ||||
| 3307 | ||||

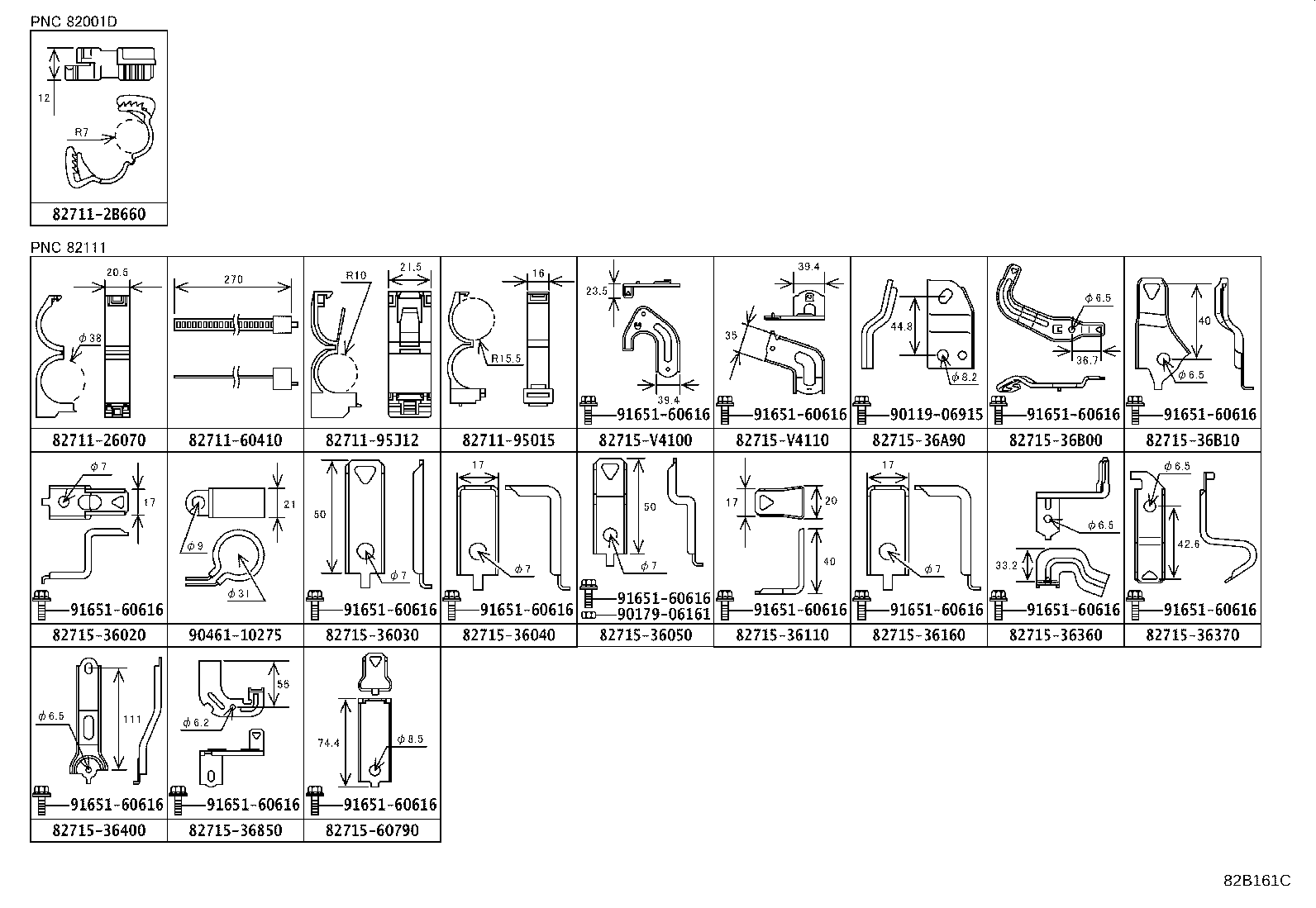

ILLUST NO. 7 OF10(1701- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26070 | ||||
| 82711-2B660 | ||||
| 82711-60410 | ||||
| 82711-95015 | ||||
| 82711-95J12 | ||||
| 82715-36020 | ||||
| 82715-36030 | ||||
| 82715-36040 | ||||
| 82715-36050 | ||||
| 82715-36110 | ||||
| 82715-36160 | ||||
| 82715-36360 | ||||
| 82715-36370 | ||||
| 82715-36400 | ||||
| 82715-36850 | ||||
| 82715-36A90 | ||||
| 82715-36B00 | ||||
| 82715-36B10 | ||||
| 82715-60790 | ||||
| 82715-V4100 | ||||
| 82715-V4110 | ||||
| 90119-06915 | ||||
| 90179-06161 | ||||
| 90461-10275 | ||||
| 91651-60616 | ||||
ILLUST NO. 8 OF10(1701- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37B10 | ||||
| 82702-37C20 | ||||
| 82702-E0S60 | ||||
| 82702-E1R90 | ||||
| 82702-E1S12 | ||||
| 82711-22270 | ||||
| 82711-60150 | ||||
| 82711-60410 | ||||
| 82712-36060 | ||||
| 82715-25150 | ||||
| 82715-25830 | ||||
| 82715-25850 | ||||
| 82715-26240 | ||||
| 82715-26G10 | ||||
| 82715-28360 | ||||
| 82715-35780 | ||||
| 82715-35A90 | ||||
| 82715-35B10 | ||||
| 82715-36050 | ||||
| 82715-36060 | ||||
| 82715-36100 | ||||
| 82715-36130 | ||||
| 82715-36480 | ||||
| 82715-36700 | ||||
| 82715-36710 | ||||
| 82715-36B40 | ||||
| 82715-E0710 | ||||
| 82715-E0Q90 | ||||
| 82715-E1P00 | ||||
| 82715-E1X50 | ||||
| 82729-37C60 | ||||
| 91511-60612 | ||||
| 91552-81014 | ||||
| 91611-G0820 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91671-80814 | ||||
| 91671-A0612 | ||||
| 91673-80612 | ||||
| 94130-00802 | ||||
| S8449-71460 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10885 | ||||
| SH552-11018 | ||||
| Linked diagrams | ||||
| 3307 | ||||
ILLUST NO. 4 OF10(1701- )LHD
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-36310 |
XZB70..TAIW REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 82184-36320 |
XZB70..TAIW |
1 | ||
| 82184-36321 |
XZB70..TAIW |
1 | ||
| 82184-36311 |
XZB70..TAIW REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-36310 |
XZB70..TAIW REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 82184-36320 |
XZB70..TAIW |
1 | ||
| 82184-36321 |
XZB70..TAIW |
1 | ||
| 82184-36311 |
XZB70..TAIW REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-36070 |
BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,25S)..(5F,6FC)..(GEN,TAIW) REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-36070 |
BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,25S)..(5F,6FC)..(GEN,TAIW) REAR WINDOW DEFOGGER-WITH(LH DOOR ONLY) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90980-12978 | ||||

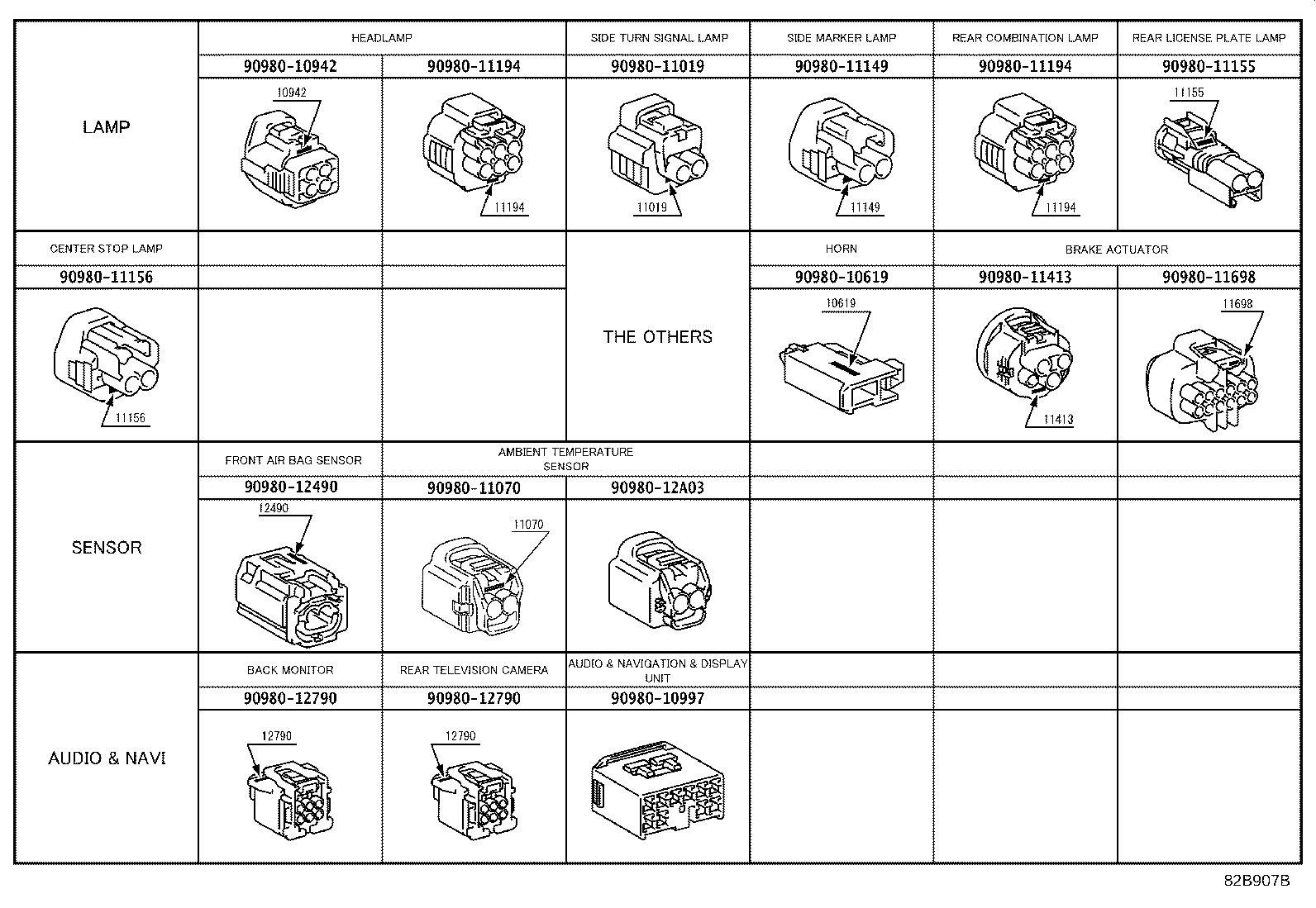

ILLUST NO.10 OF10(1701- )
CONNECTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10942 | ||||
| 90980-10997 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11149 | ||||
| 90980-11155 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11413 | ||||
| 90980-11698 | ||||
| 90980-12490 | ||||
| 90980-12790 | ||||
| 90980-12A03 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
