XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )LHD

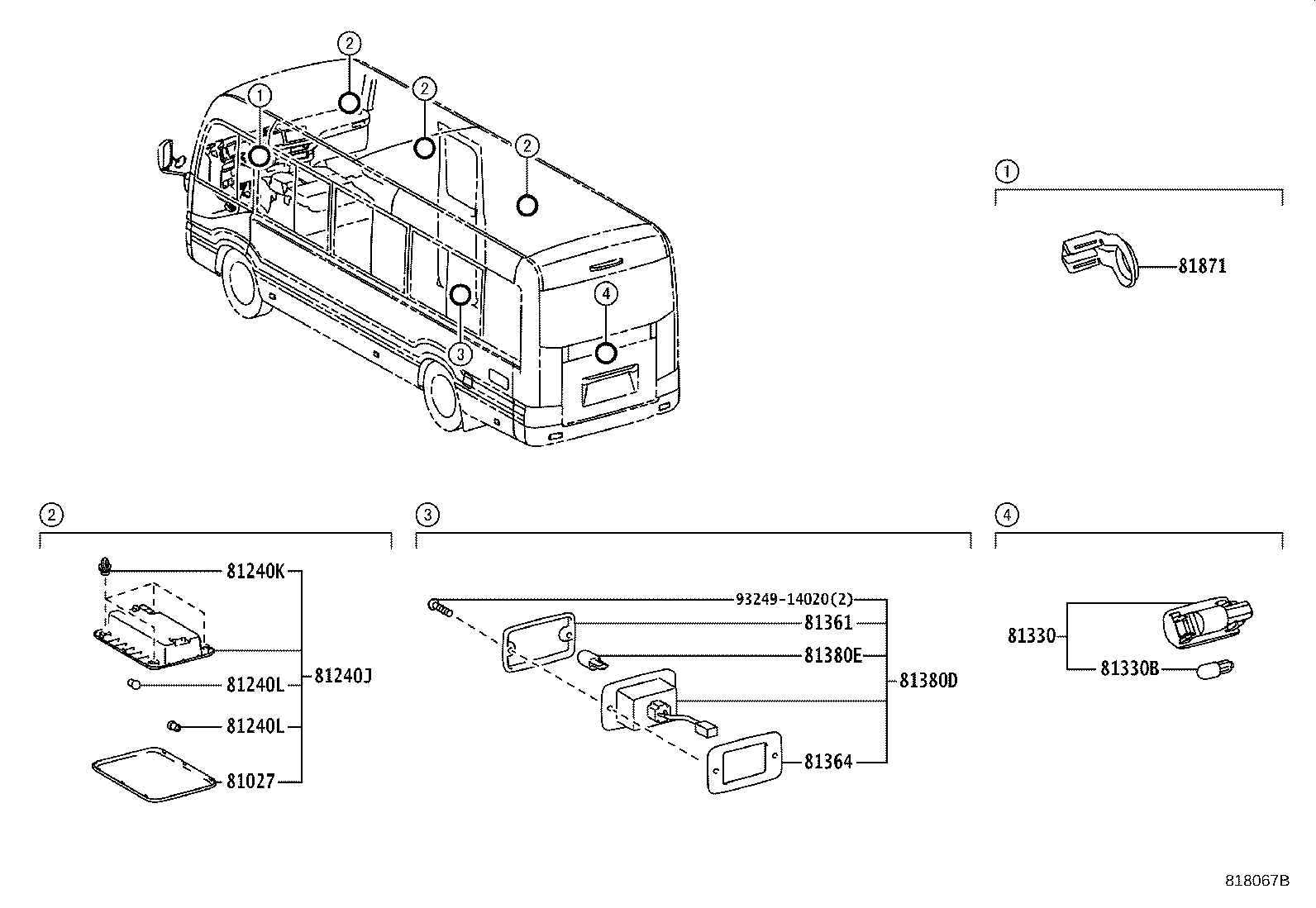

Click highlighted areas on diagram

diagram 81027 81240J 81240K 81240L 81240L 81330 81330B 81361 81364 81380D 81380E 81871 9324914020
Part # Description Qty Price
81027 - LENS, ROOM LAMP
81027-36030

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 3
81240J - LAMP ASSY, ROOM
81240-36180

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 3
81240K - CLIP, ROOM LAMP
90467-10161

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 12
81240L - BULB, ROOM LAMP
99132-11100

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 10W

 6
81240L - BULB, ROOM LAMP
99132-11100

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

12V 10W

 6
81361 - LENS, STEP LAMP
81361-90511

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
81364 - GASKET, STEP LAMP
81364-90501

XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW)

 1
81380D - LAMP ASSY, STEP
81380-36021

XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW)

 1
81380E - BULB (FOR STEP LAMP)
99132-12050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
81871 - LENS, KEY ILLUMINATION
81871-36010

XZB70..TAIW;XZB70..RHD..29S;TRB60,70,XZB80..(01S,20S,23S)..5F

STEERING COLUMN-WITH(TILT & TELESCOPIC)

 1
Common parts
93249-14020
