XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

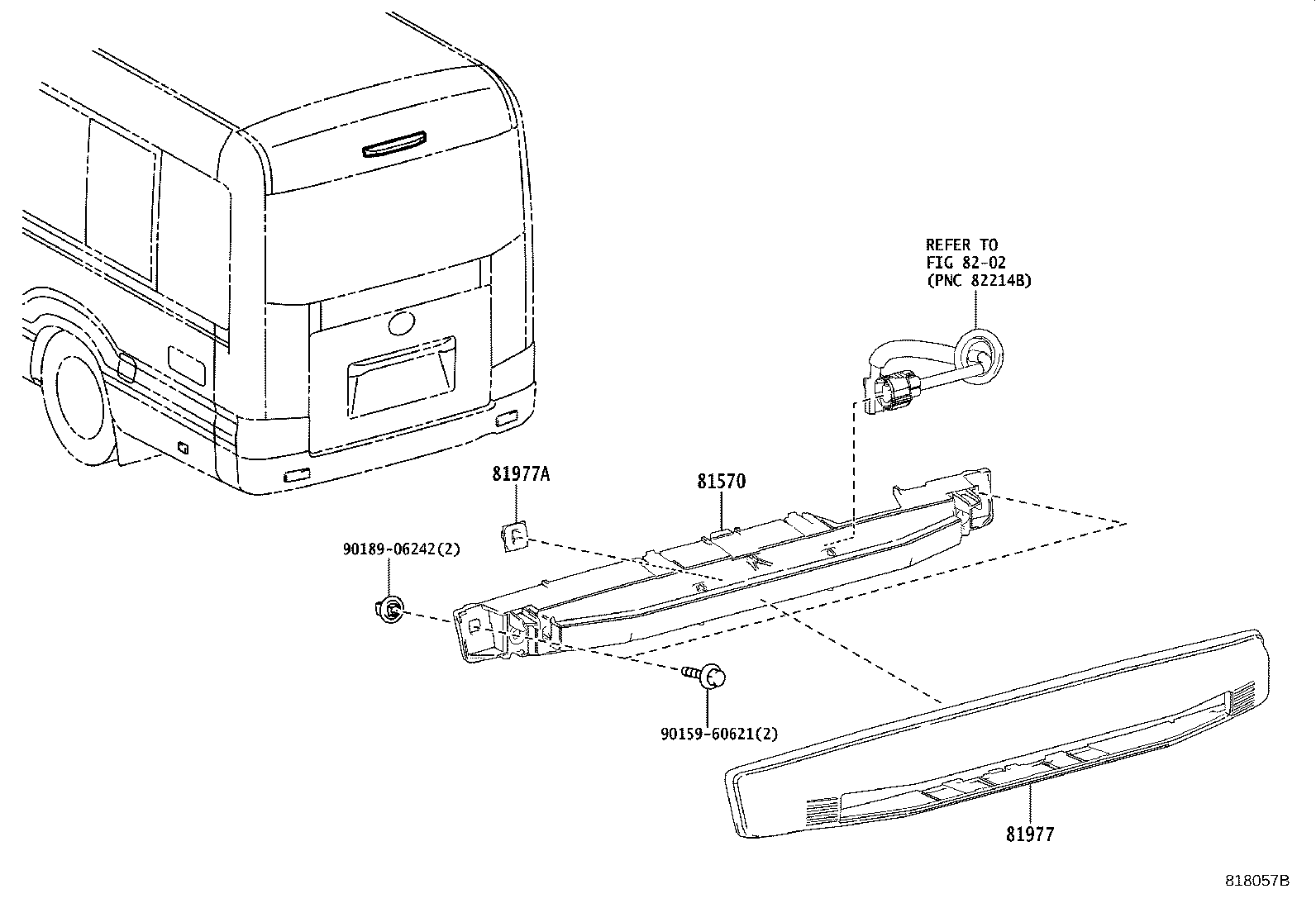

Click highlighted areas on diagram

diagram 81570 81977 81977A 8202 9015960621 9018906242
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-36090

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

HIGH MOUNT STOP LAMP-WITH

 1
81977 - COVER, CENTER STOP LAMP
81977-36020

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

HIGH MOUNT STOP LAMP-WITH

 1
81977A - CLIP (FOR CENTER STOP LAMP)
76817-26040

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,TAIW)

HIGH MOUNT STOP LAMP-WITH

 1
Common parts
90159-60621
90189-06242
Linked diagrams
8202
