XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

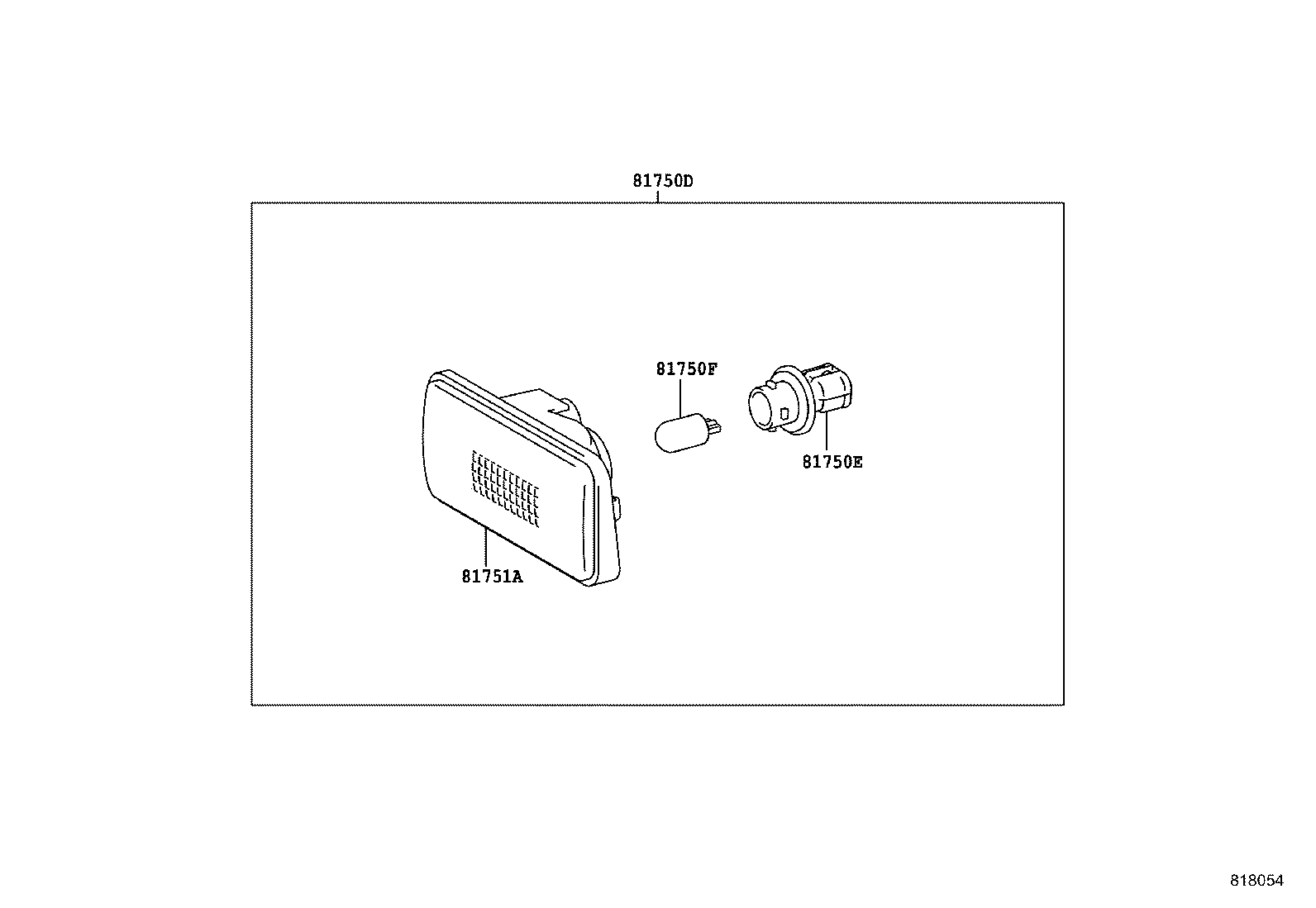

Click highlighted areas on diagram

diagram 81750D 81750E 81750F 81751A
Part # Description Qty Price
81750D - LAMP ASSY, SIDE MARKER & REFLECTOR
81750-36030

XZB70..TAIW;XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 6
81750E - SOCKET, SIDE MARKER & REFLECTOR LAMP
90075-99109

XZB70..TAIW;XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 6
81750F - BULB, SIDE MARKER & REFLECTOR LAMP
99132-12050

XZB70..TAIW;XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 6
81751A - LENS & BODY, SIDE MARKER & REFLECTOR LAMP
81751-36030

XZB70..TAIW;XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 6
