XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )BB60,HZB60,70,TRB60,70,XZB60,70..4FC,5F..ARL,GCC,GEN,TAIW

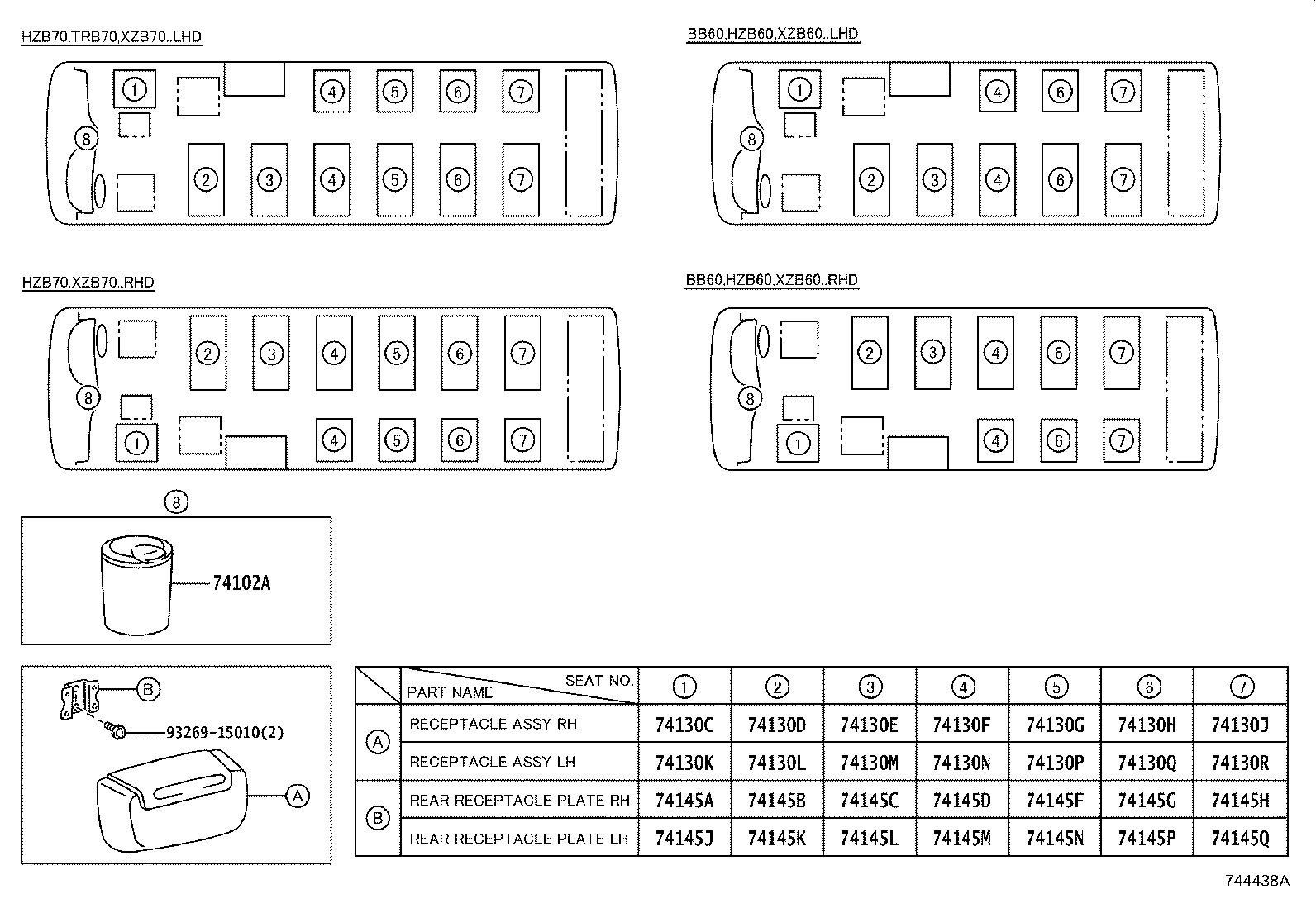

Click highlighted areas on diagram

diagram 74102A 74130C 74130D 74130E 74130F 74130G 74130H 74130J 74130K 74130L 74130M 74130N 74130P 74130Q 74130R 74145A 74145B 74145C 74145D 74145F 74145G 74145H 74145J 74145K 74145L 74145M 74145N 74145P 74145Q 9326915010
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74110-42010

HZB60,TRB60,70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..(02S,19S,25S,29S,30S)..STD

 1
74130F - RECEPTACLE ASSY, REAR ASH, NO.4 RH
74130-36010C1

HZB60,TRB60,70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..(19S,25S,29S,30S)..STD

BLACK,TRIM1#

 1
74130L - RECEPTACLE ASSY, REAR ASH, NO.2 LH
74130-36010C1

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

BLACK,TRIM1#

 1
74130M - RECEPTACLE ASSY, REAR ASH, NO.3 LH
74130-36010C1

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

BLACK,TRIM1#

 1
74130N - RECEPTACLE ASSY, REAR ASH, NO.4 LH
74130-36010C1

HZB60,TRB60,70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..(19S,25S,29S,30S)..STD

BLACK,TRIM1#

 1
74145D - PLATE, REAR ASH RECEPTACLE, NO.4 RH
74145-36010

HZB60,TRB60,70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..(19S,25S,29S,30S)..STD

 1
74145K - PLATE, REAR ASH RECEPTACLE, NO.2 LH
74145-36010

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

 1
74145L - PLATE, REAR ASH RECEPTACLE, NO.3 LH
74145-36010

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

 1
74145M - PLATE, REAR ASH RECEPTACLE, NO.4 LH
74145-36010

HZB60,TRB60,70..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..(19S,25S,29S,30S)..STD

 1
Common parts
93269-15010
