XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )LHD

Click highlighted areas on diagram

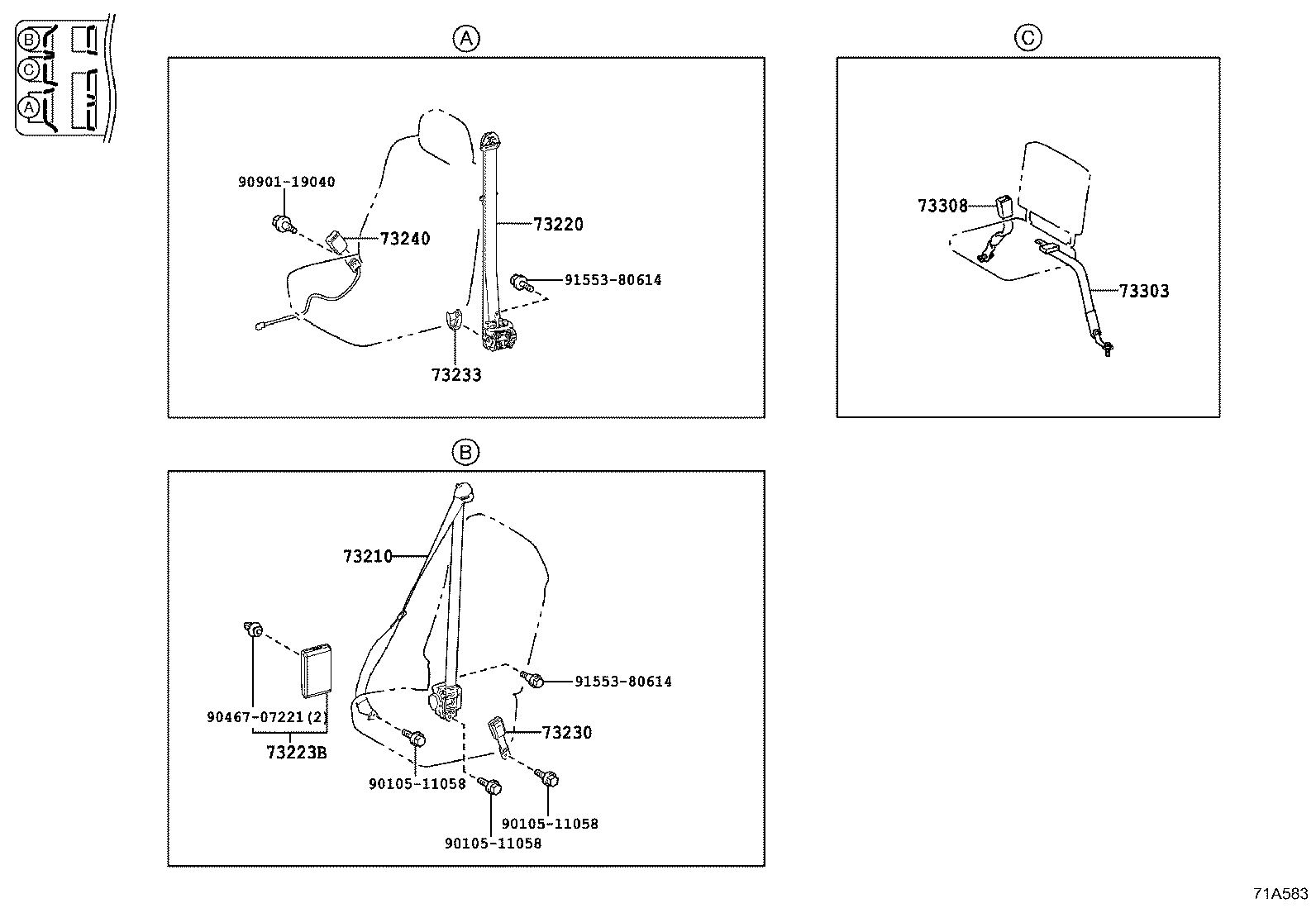

*DRS & *RES(NO.1) & SUB SEAT(NO.1)

diagram 73210 73220 73223B 73230 73233 73240 73303 73308 9010511058 9010511058 9010511058 9046707221 9090119040 9155380614 9155380614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73360-36170C0

HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW)

BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-36010C0

HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW)

BLACK,TRIM1#

 1
73220-36020C0

XZB70..LHD..(02S,23S,25S,29S)..(GEN,TAIW)

SRS AIR BAG-WITH(DRIVER ONLY),BLACK,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73173-36010B0

HZB60,70,TRB60,70,XZB70..LHD

LT.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73380-36210C1

HZB60,70,TRB60,70,XZB70..LHD

BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-36110C0

HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW)

BLACK,TRIM1#

 1
Common parts
90105-11058
90467-07221
90901-19040
91553-80614

(1701- )

Click highlighted areas on diagram

TONGUE STOPPER

diagram 73219
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK

 1
73219-33030

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BEIGE

 1
73219-33020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

GRAY

 1
