XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )LHD..02S,19S,20S,23S,24S

Click highlighted areas on diagram

REAR SEAT FITTING PARTS

diagram 9011910578 9011910875 91621G0818 91672G1035 91673G1025 91673L1045
Part # Description Qty Price
Common parts
90119-10578
90119-10875
91621-G0818
91672-G1035
91673-G1025
91673-L1045

(1701- )LHD..02S,19S,20S,23S,24S

Click highlighted areas on diagram

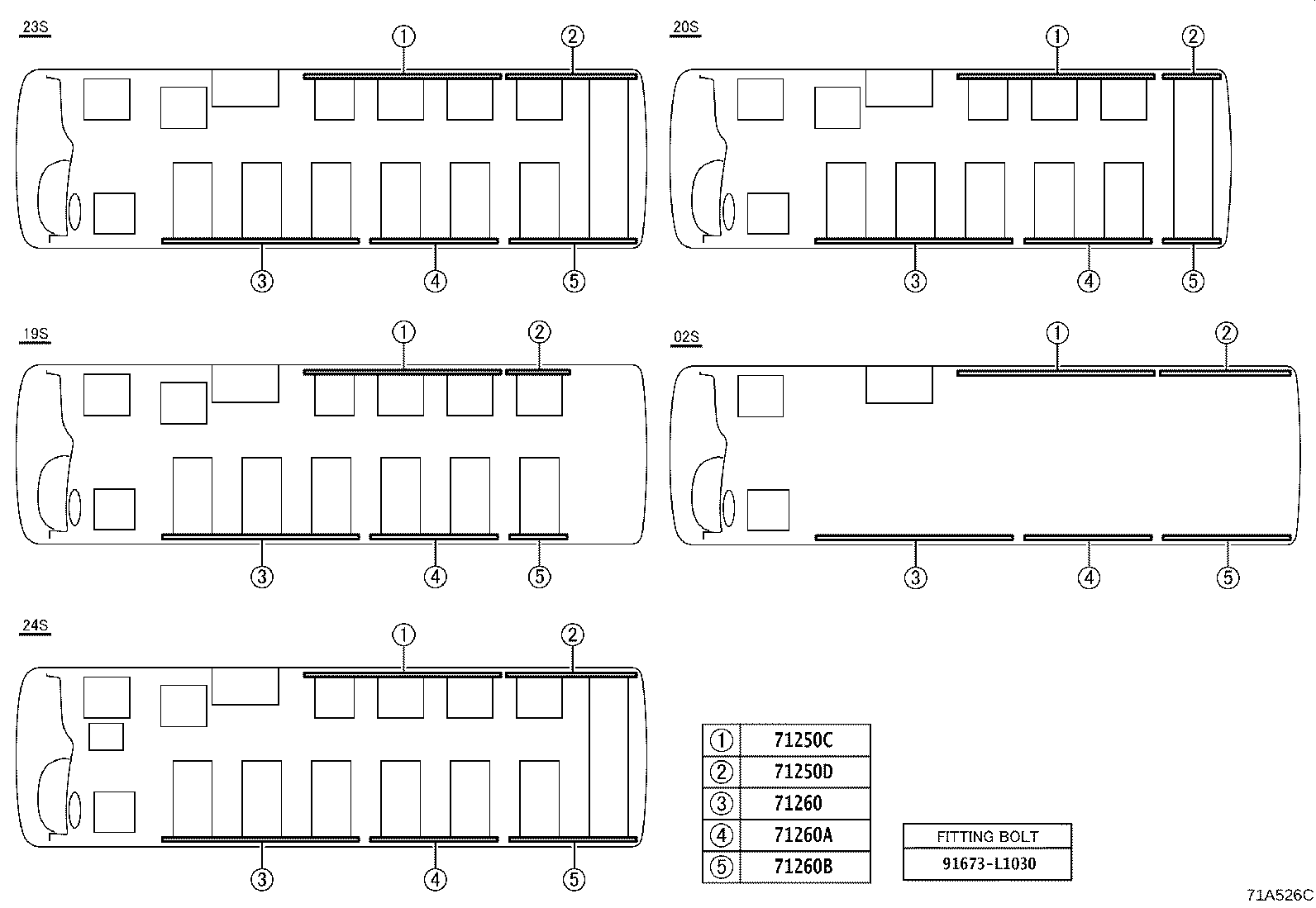

SEAT RAIL

diagram 71250C 71250D 71260 71260A 71260B 91673L1030
Part # Description Qty Price
71250C - BRACKET ASSY, SEAT, OUTER RH
71250-36080

HZB60,70,TRB60,70,XZB70..LHD

 1
71250D - BRACKET ASSY, SEAT, OUTER RH
71250-36030

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;HZB70,XZB70..(02S,20S,22S,23S)..(5F,6FC)..(GEN,SA,TAIW)

 1
71260 - BRACKET ASSY, SEAT, OUTER LH
71260-36070

HZB60,70,TRB60,70,XZB70..LHD

 1
71260A - BRACKET ASSY, SEAT, OUTER LH
71260-36080

HZB60,70,TRB60,70,XZB70..LHD

 1
71260B - BRACKET ASSY, SEAT, OUTER LH
71260-36020

HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;HZB70,XZB70..(02S,20S,22S,23S)..(5F,6FC)..(GEN,SA,TAIW)

 1
Common parts
91673-L1030

(1701- )TAIW

Click highlighted areas on diagram

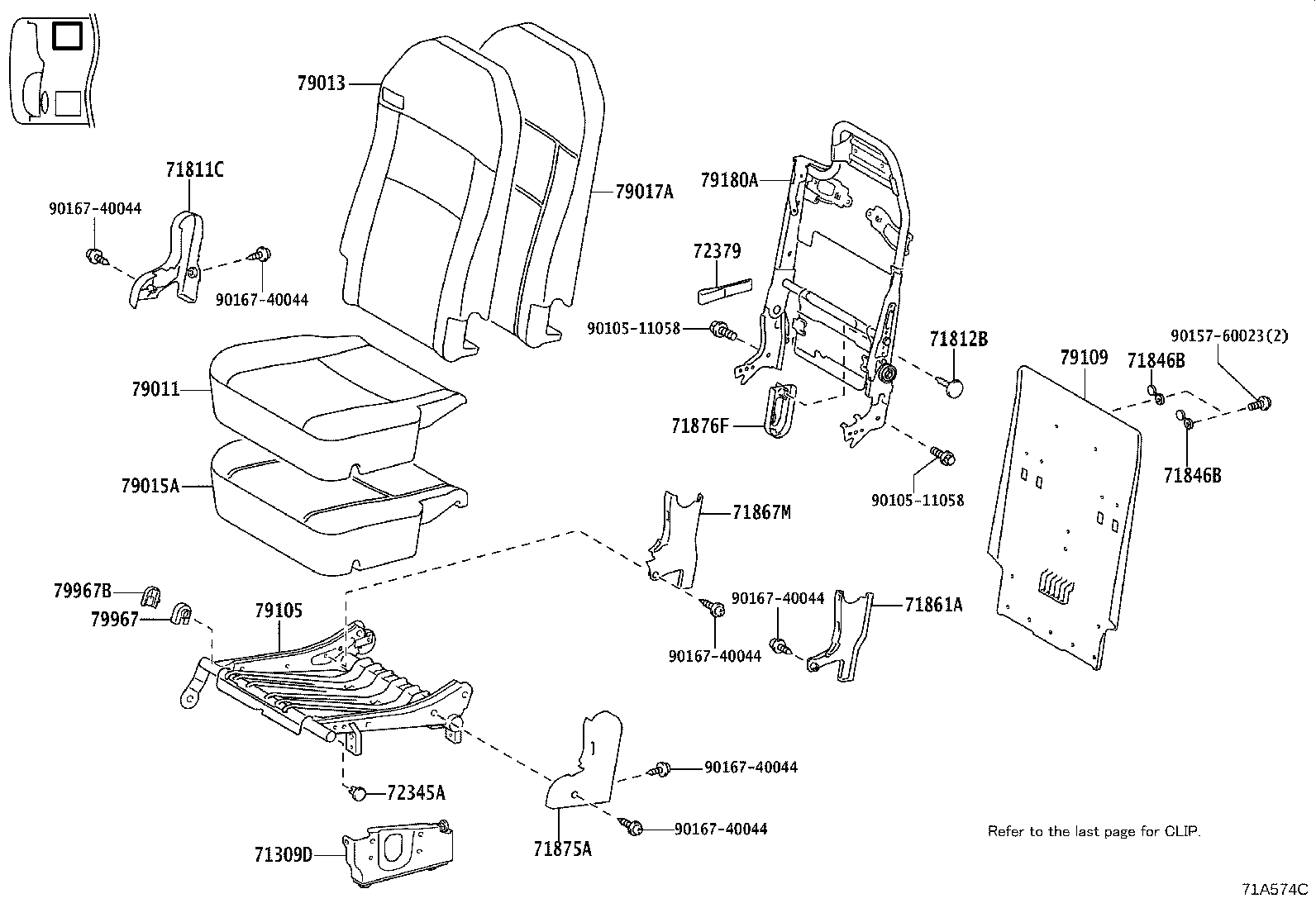

PASSENGER SEAT

diagram 71309D 71811C 71812B 71846B 71846B 71861A 71867M 71875A 71876F 72345A 72379 79011 79013 79015A 79017A 79105 79109 79180A 79967 79967B 9010511058 9010511058 9015760023 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044
Part # Description Qty Price
71309D - LEG SUB-ASSY, REAR SEAT, LH
71309-36110

HZB60,70,TRB60,70,XZB70..LHD

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-36320C0

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

BLACK,TRIM1#

 1
71811-36120C0

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

BLACK,TRIM1#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90467-0704923

XZB70..TAIW

BLACK

 1
71846B - CAP, REAR SEAT BACK BOARD, NO.1
71846-36010C0

XZB70..TAIW

BLACK,TRIM1#

 2
71846B - CAP, REAR SEAT BACK BOARD, NO.1
71846-36010C0

XZB70..TAIW

BLACK,TRIM1#

 2
71861A - SHIELD, REAR SEAT CUSHION, INNER RH
71868-36170C0

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

BLACK,TRIM1#

 1
71867M - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH
71867-36030C0

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

BLACK,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71812-36200C0

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

BLACK,TRIM1#

 1
71812-36380C0

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

BLACK,TRIM1#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-36010C0

XZB70..TAIW

BLACK,TRIM1#

 1
72345A - PIPE, RECLINING CONNECTING
72345-36010

XZB70..TAIW

 1
72379 - BELT, SEAT RECLINING HANDLE
72379-36010C0

XZB70..TAIW

BLACK,TRIM1#

 1
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-36740E1

XZB70..TAIW

BROWN,TRIM1#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-36A60E0

XZB70..TAIW

BROWN,TRIM1#

 1
79013-36A60E1

XZB70..TAIW

BROWN,TRIM1#

 1
79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH
79135-36200

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

 1
79135-36300

XZB70..TAIW

 1
79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH
79175-36240

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

 1
79175-36270

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

 1
79105 - LEG SUB-ASSY, NO.1 SEAT, RH
79105-36B30

HZB60,70,TRB60,70,XZB70..LHD

 1
79109 - BOARD SUB-ASSY, NO.1 SEAT BACK
79207-36180C0

XZB70..TAIW

BLACK,TRIM1#

 1
79180A - SPRING ASSY, NO.1 SEAT BACK, RH
79280-36280

XZB70..LHD..DX;HZB70..23S..GEN;HZB70,TRB70..DX..GCC;XZB70..(02S,23S)..STD..(GEN,TAIW)

 1
79280-36240

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(19S,25S,29S,30S)

 1
79967 - COVER, REAR SEAT LEG SIDE, NO.4
79967-36180C0

HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(02S,19S,25S,29S,30S)

BLACK,TRIM1#

 1
79967B - COVER, REAR SEAT LEG SIDE NO.2
79967-36170C0

XZB70..TAIW

BLACK,TRIM1#

 1
79967-36170C0

HZB60..RHD;HZB70,TRB60,70;HZB60..LHD..WOC;XZB70..6FC..ARL;XZB70..LHD..(GCC,GEN)

COOL BOX-WITH(REFRIGERATOR),BLACK,TRIM1#

 1
79967-36170C0

XZB70..6FC..ARL;HZB60,70,TRB60,70;XZB70..19S,23S,25S,29S,30S

BLACK,TRIM1#

 2
Common parts
90105-11058
90157-60023
90167-40044

(1701- )LHD

Click highlighted areas on diagram

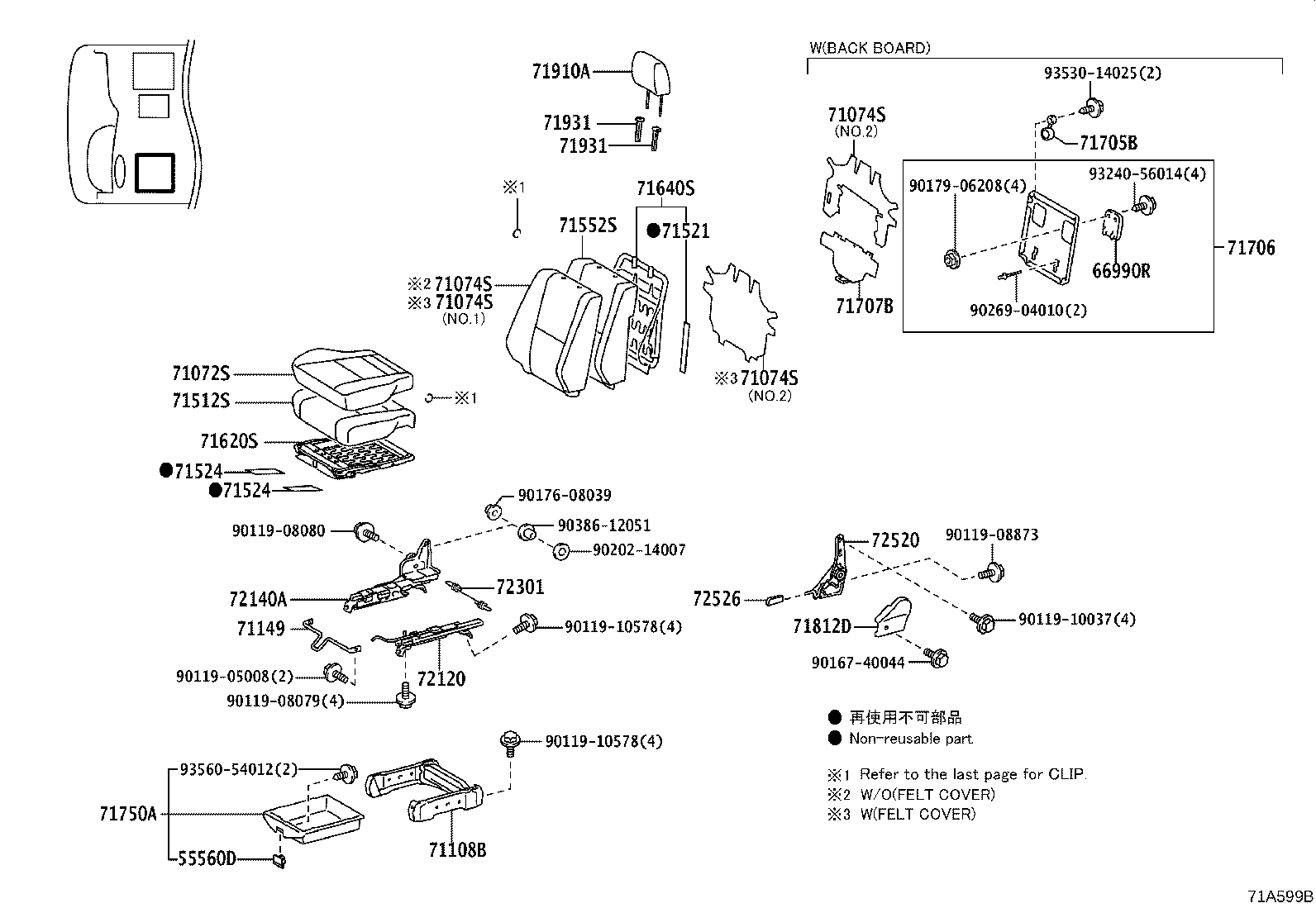

DRIVER SEAT

diagram 55560D 66990R 71072S 71074S 71074S 71074S 71074S 71108B 71149 71512S 71521 71524 71524 71552S 71620S 71640S 71705B 71706 71707B 71750A 71812D 71910A 71931 71931 72120 72140A 72301 72520 72526 9011905008 9011908079 9011908080 9011908873 9011910037 9011910578 9011910578 9016740044 9017608039 9017906208 9020214007 9026904010 9038612051 9324056014 9353014025 9356054012
Part # Description Qty Price
55560D - LOCK ASSY, SEAT UNDER TRAY
72250-36010C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-36130E0

XZB70..TAIW

BROWN,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-36220E1

XZB70..TAIW

BROWN,TRIM1#,NO.2

 1
71074-36200E0

XZB70..TAIW

BROWN,TRIM1#,NO.1

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-36220E1

XZB70..TAIW

BROWN,TRIM1#,NO.2

 1
71074-36200E0

XZB70..TAIW

BROWN,TRIM1#,NO.1

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-36220E1

XZB70..TAIW

BROWN,TRIM1#,NO.2

 1
71074-36200E0

XZB70..TAIW

BROWN,TRIM1#,NO.1

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-36220E1

XZB70..TAIW

BROWN,TRIM1#,NO.2

 1
71074-36200E0

XZB70..TAIW

BROWN,TRIM1#,NO.1

 1
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-36012C0

BZB60,70,XZB60

CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP),BLACK,TRIM1#

 1
71108-36012C0

XZB70..6FC..ARL;XZB70..(5F,6FC)..EX;HZB60,70,TRB60,70,XZB80..5F,6FC;XZB70..(02S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

BLACK,TRIM1#

 1
71149 - WIRE, FRONT SEAT CUSHION CONNECTING
71149-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-36011

HZB60,70,TRB60,70,XZB70..LHD

 1
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-60030

XZB70..TAIW;XZB70..6FC..ARL;XZB70..RHD..(5F,6FC)..(DX,EX)..(GEN,SA)

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-36010

HZB60,70,TRB60,70,XZB70..LHD

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-36020

HZB60,70,TRB60,70,XZB70..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-36080

XZB70..TAIW

 1
71750A - TRAY ASSY, FRONT SEAT UNDER
71750-36010C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

BLACK,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-20110C0

HZB60,70,TRB60,70,XZB70..LHD

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-36081E1

XZB70..TAIW;XZB70..6FC..ARL;XZB70..(5F,6FC)..EX

BROWN,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-52030C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

W(LOCK)&W(BUTTON),BLACK,TRIM1#

 1
71931-42020C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

W(LOCK)&W/O(BUTTON),BLACK,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-52030C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

W(LOCK)&W(BUTTON),BLACK,TRIM1#

 1
71931-42020C0

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

W(LOCK)&W/O(BUTTON),BLACK,TRIM1#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-36010

HZB60,70,TRB60,70,XZB70..LHD

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-36011

HZB60,70,TRB60,70,XZB70..LHD

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-60020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-36020

HZB60,70,TRB60,70,XZB70..LHD

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-60030C0

HZB60,70,TRB60,70,XZB70..LHD

BLACK,TRIM1#

 1
Common parts
90119-05008
90119-08079
90119-08080
90119-08873
90119-10037
90119-10578
90167-40044
90176-08039
90179-06208
90202-14007
90269-04010
90386-12051
93240-56014
93530-14025
93560-54012

(1701- )BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..01S,17S,19S,20S,22S,23S,25S,26S,2

Click highlighted areas on diagram

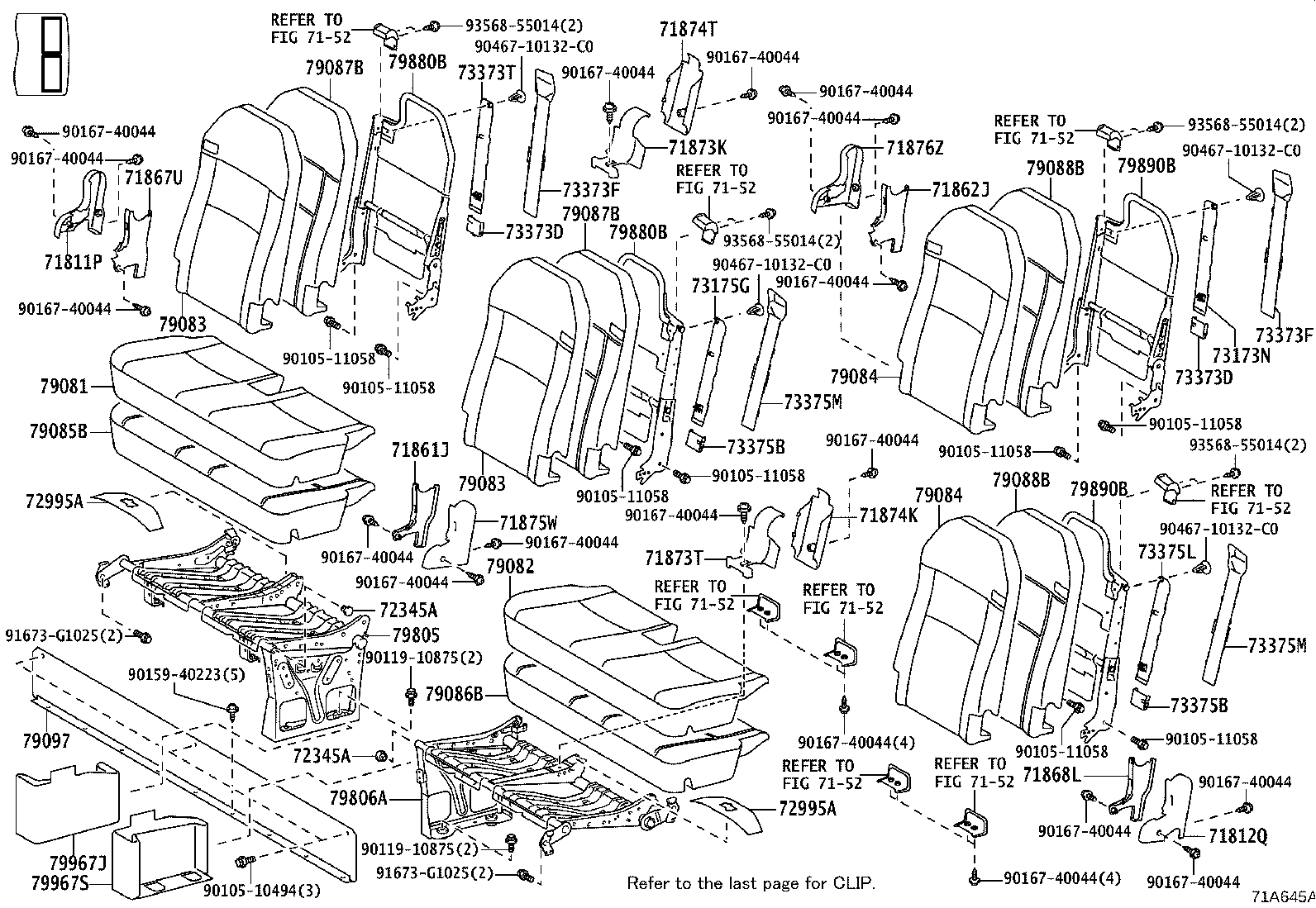

LAST ROW SEAT(NO.8),*SEB=3P,2+2

diagram 7152 7152 7152 7152 7152 7152 7152 7152 71811P 71812Q 71861J 71862J 71867U 71868L 71873K 71873T 71874K 71874T 71875W 71876Z 72345A 72345A 72995A 72995A 73173N 73175G 73373D 73373D 73373F 73373F 73373T 73375B 73375B 73375L 73375M 73375M 79081 79082 79083 79083 79084 79084 79085B 79086B 79087B 79087B 79088B 79088B 79097 79805 79806A 79880B 79880B 79890B 79890B 79967J 79967S 9010510494 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9011910875 9011910875 9015940223 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046710132C0 9046710132C0 9046710132C0 9046710132C0 91673G1025 91673G1025 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
72345A - PIPE, RECLINING CONNECTING
72345-36010

XZB70..TAIW

 1
72345A - PIPE, RECLINING CONNECTING
72345-36010

XZB70..TAIW

 1
Common parts
90105-10494
90105-11058
90119-10875
90159-40223
90167-40044
90467-10132C0
91673-G1025
93568-55014
Linked diagrams
7152

(1701- )

Click highlighted areas on diagram

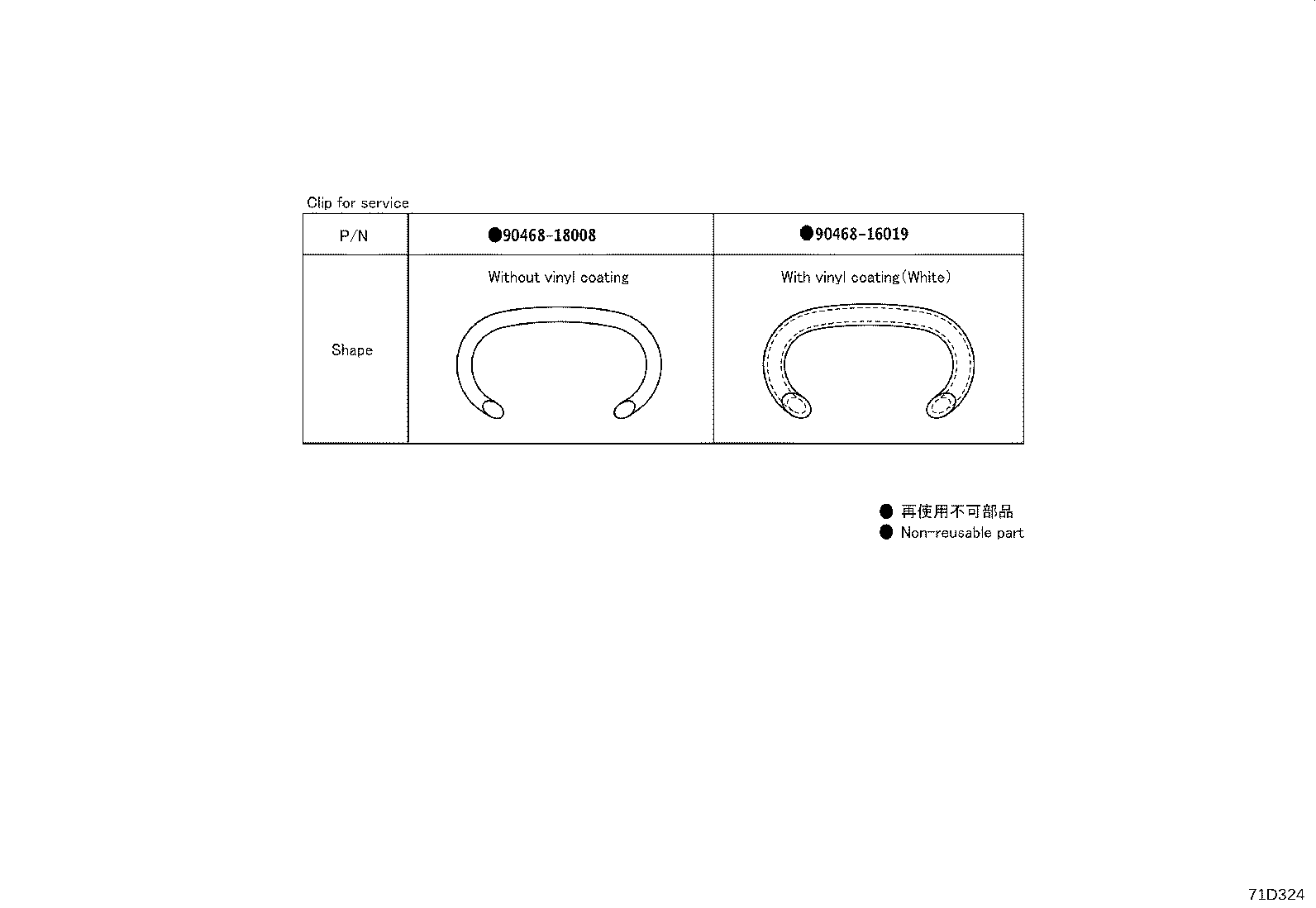

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
