XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )LHD

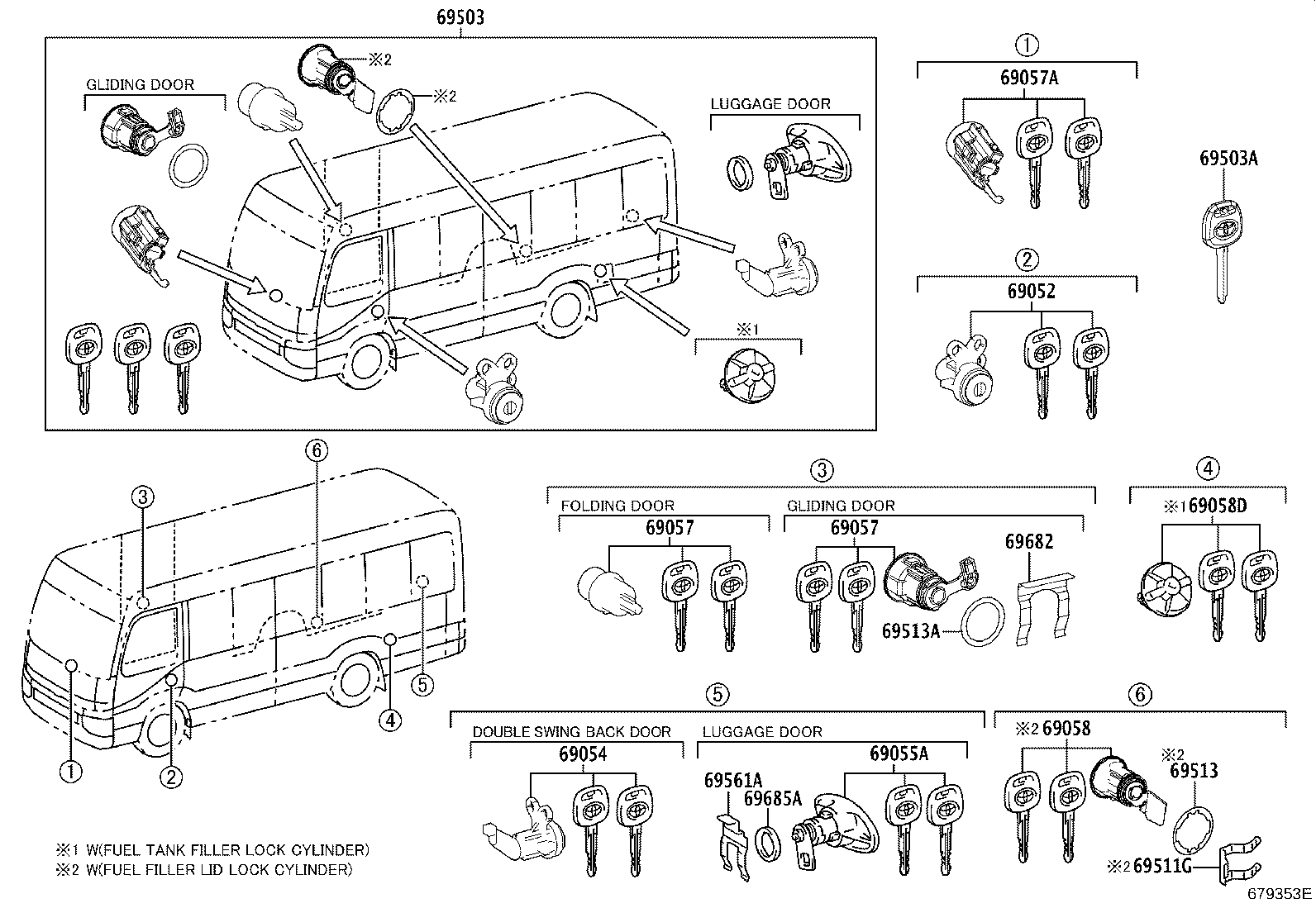

Click highlighted areas on diagram

diagram 69052 69054 69055A 69057 69057 69057A 69058 69058D 69503 69503A 69511G 69513 69513A 69561A 69682 69685A
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-36031

HZB60,70,TRB60,70,XZB70..LHD

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69052-36031

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36010

XZB70..TAIW

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36010

XZB70..TAIW

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-36090

HZB60,70

 1
69057-36070

XZB60..GEN;BZB60,TRB60,70,XZB70,80..5F..(GCC,GEN,TAIW)

 1
69057-36100

XZB70..TAIW;XZB70..RHD..29S;TRB60,70,XZB80..(01S,20S,23S)..5F

STEERING COLUMN-WITH(TILT & TELESCOPIC)

 1
69058D - CYLINDER & KEY SET, FUEL TANK FILLER
69058-36010

XZB70..TAIW

 1
69503 - CYLINDER SET, LOCK
69005-36B70

XZB70..TAIW

 1
69005-36F50

XZB70..TAIW

 1
69005-V4130

XZB70..TAIW

STEERING COLUMN-WITH(TILT & TELESCOPIC)

 1
69503A - KEY, BLANK
69515-36070

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

MASTER KEY,W(*68)

 1
