XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

Click highlighted areas on diagram

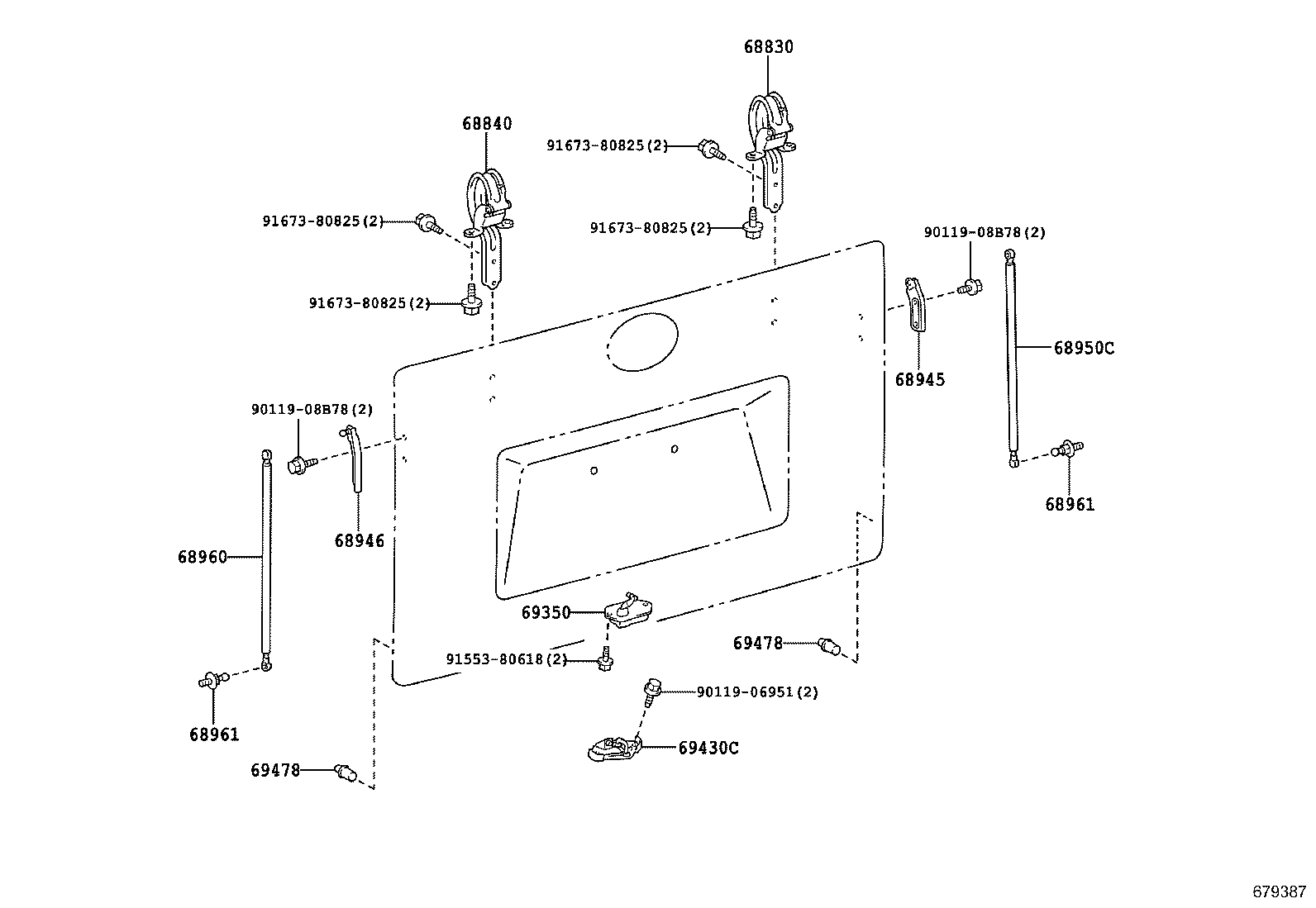

LUGGAGE DOOR

diagram 68830 68840 68945 68946 68950C 68960 68961 68961 69350 69430C 69478 69478 9011906951 9011908B78 9011908B78 9155380618 9167380825 9167380825 9167380825 9167380825
Part # Description Qty Price
69350 - LOCK ASSY, BACK DOOR
69110-36060

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95702

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
Common parts
90119-06951
90119-08B78
91553-80618
91673-80825

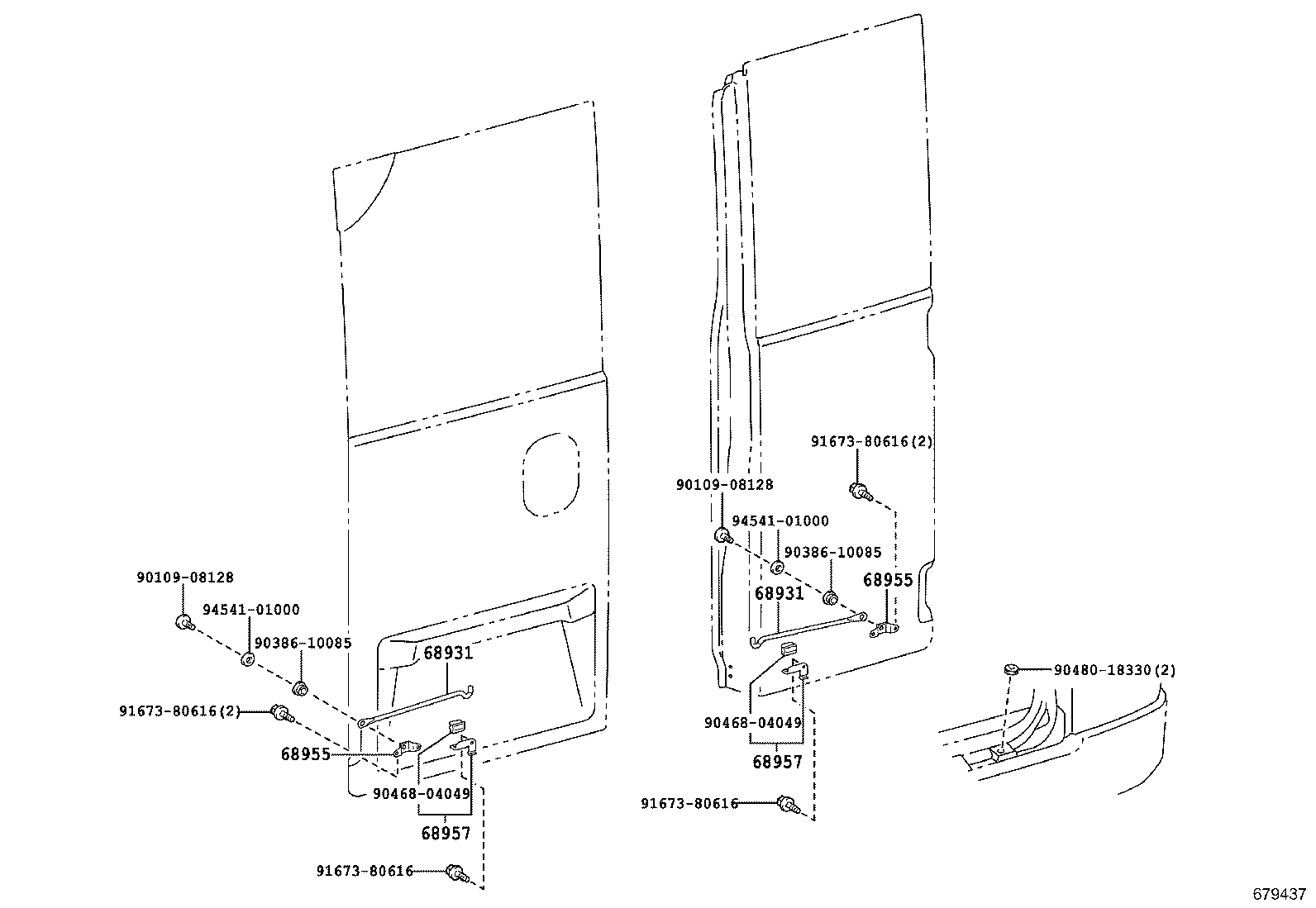

ILLUST NO. 2 OF 2(1701- )

Click highlighted areas on diagram

DOUBLE SWING BACK DOOR

diagram 68931 68931 68955 68955 68957 68957 9010908128 9010908128 9038610085 9038610085 9046804049 9046804049 9048018330 9167380616 9167380616 9167380616 9167380616 9454101000 9454101000
Part # Description Qty Price
Common parts
90109-08128
90386-10085
90468-04049
90480-18330
91673-80616
94541-01000

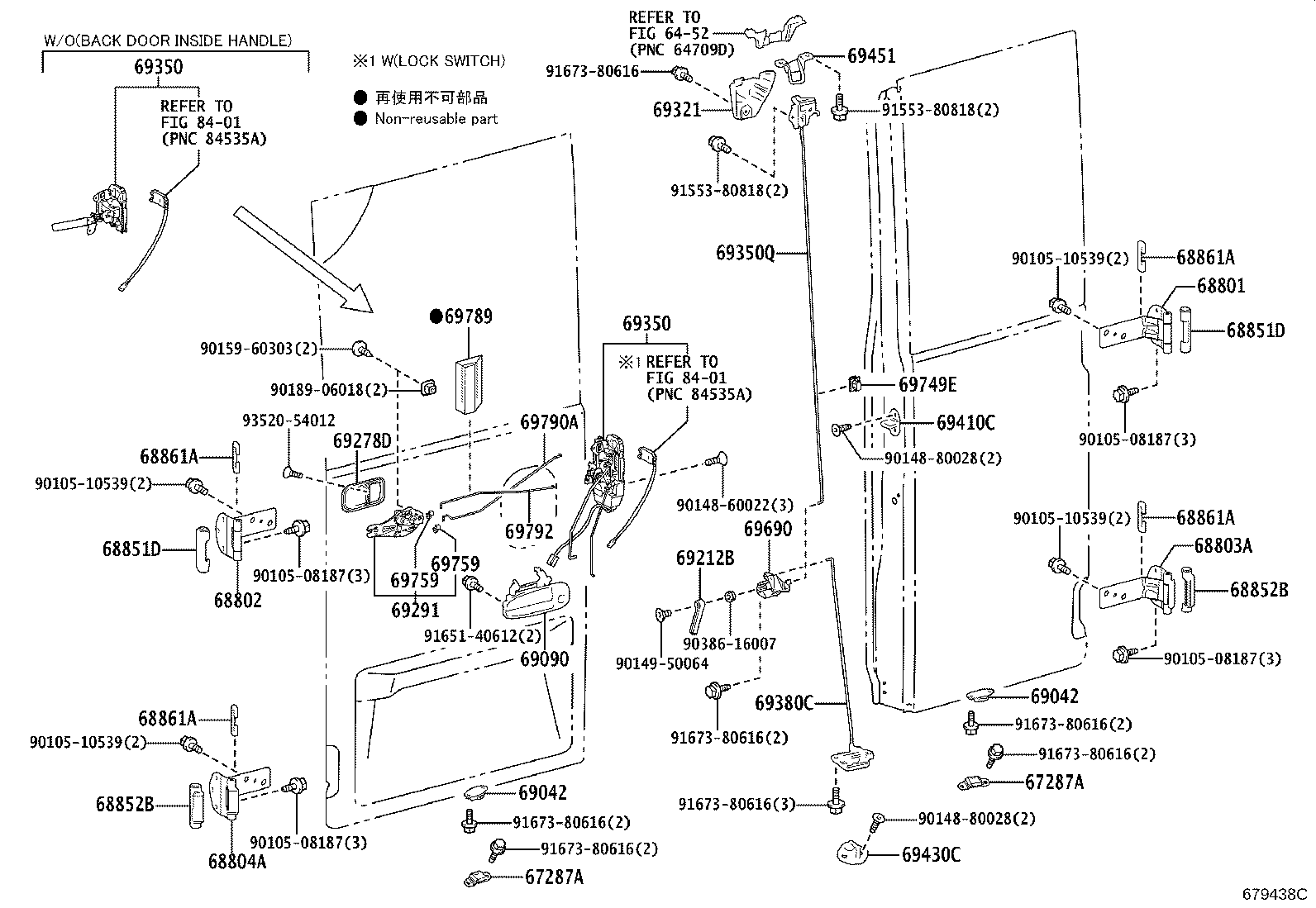

ILLUST NO. 1 OF 2(1701- )

Click highlighted areas on diagram

DOUBLE SWING BACK DOOR

diagram 6452 67287A 67287A 68801 68802 68803A 68804A 68851D 68851D 68852B 68852B 68861A 68861A 68861A 68861A 69042 69042 69090 69212B 69278D 69291 69321 69350 69350 69350Q 69380C 69410C 69430C 69451 69690 69749E 69759 69759 69789 69790A 69792 8401 8401 9010508187 9010508187 9010508187 9010508187 9010510539 9010510539 9010510539 9010510539 9014860022 9014880028 9014880028 9014950064 9015960303 9018906018 9038616007 9155380818 9155380818 9165140612 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9352054012
Part # Description Qty Price
67287A - ANTI-RATTLE, BACK DOOR, LOWER
67286-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
67287A - ANTI-RATTLE, BACK DOOR, LOWER
67286-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-36050

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-36050

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH
68803-36050

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
68804A - HINGE SUB-ASSY, BACK DOOR, LOWER LH
68803-36050

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
68851D - COVER, BACK DOOR HINGE, UPPER
68851-90K00

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
68851D - COVER, BACK DOOR HINGE, UPPER
68851-90K00

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
68852B - COVER, BACK DOOR HINGE, LOWER
68852-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
68852B - COVER, BACK DOOR HINGE, LOWER
68852-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
68861A - PAD, BACK DOOR HINGE
68861-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 4
68861A - PAD, BACK DOOR HINGE
68861-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 4
68861A - PAD, BACK DOOR HINGE
68861-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 4
68861A - PAD, BACK DOOR HINGE
68861-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 4
69042 - STOPPER SUB-ASSY, BACK DOOR, LOWER
69041-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
69042 - STOPPER SUB-ASSY, BACK DOOR, LOWER
69041-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 2
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69220-36010

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 1
69212B - HANDLE, BACK DOOR INSIDE
69212-60030C0

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

BLACK

 1
69278D - BEZEL, DOOR INSIDE HANDLE, LH
69278-60010B1

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

MD.GRAY,TRIM1#

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69206-60040B2

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

MD.GRAY,TRIM1#

 1
69321 - COVER, BACK DOOR LOCK
69321-36011B0

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

LT.GRAY,TRIM1#

 1
69350 - LOCK ASSY, BACK DOOR
69110-36060

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S

 1
69350 - LOCK ASSY, BACK DOOR
69110-36060

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S

 1
69350Q - LOCK ASSY, BACK DOOR, UPPER
69880-36030

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69380C - LOCK ASSY, BACK DOOR, LOWER
69380-36020

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-90B01

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95702

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69451 - STRIKER, BACK DOOR UPPER LOCK
69451-36010

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-36020

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69749E - CLAMP, BACK DOOR LOCK LINK
90469-06005

XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC)

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-14050

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-14050

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 2
69789 - SILENCER, BACK DOOR LOCK CONTROL LINK
69789-36020

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 1
69790A - LINK ASSY, BACK DOOR LOCK CONTROL
69777-36010

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 1
69792 - LINK, BACK DOOR LOCK LOCKING
69792-36020

XZB70..6FC..ARL;HZB70,TRB70,XZB70..02S,19S,25S

 1
Common parts
90105-08187
90105-10539
90148-60022
90148-80028
90149-50064
90159-60303
90189-06018
90386-16007
91553-80818
91651-40612
91673-80616
93520-54012
Linked diagrams
6452
8401
