XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1701- )BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70

Click highlighted areas on diagram

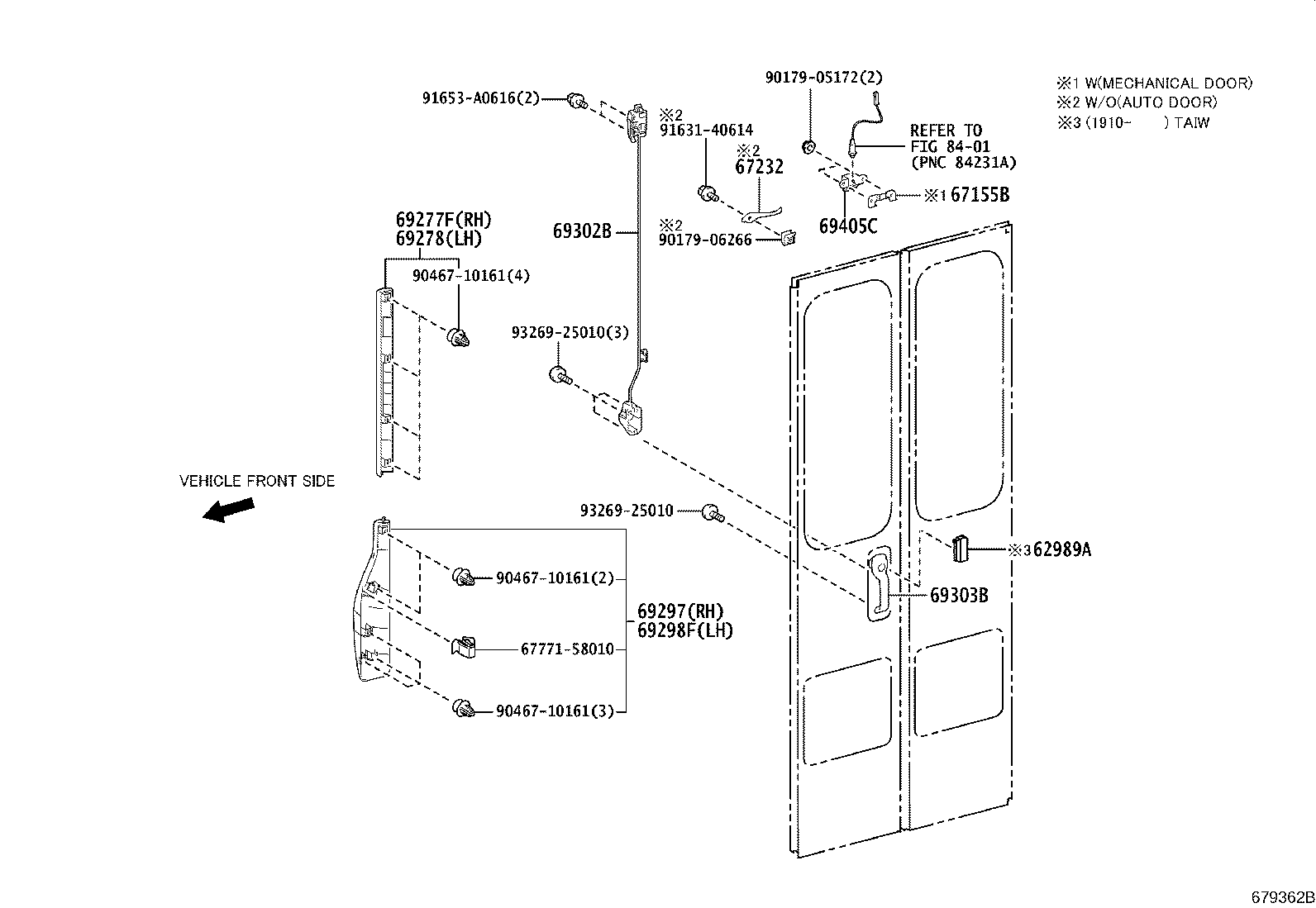

FOLDING DOOR

diagram 62989A 67155B 67232 6777158010 69277F 69278 69297 69298F 69302B 69303B 69405C 8401 9017905172 9017906266 9046710161 9046710161 9046710161 9163140614 91653A0616 9326925010 9326925010
Part # Description Qty Price
62989A - COVER, CENTER DOOR LOCK
62989-36090

XZB70..TAIW

 1
69277F - BEZEL, DOOR INSIDE HANDLE, NO.1 RH
69277-36030B0

HZB60,70,TRB60,70,XZB70..LHD

LT.GRAY,TRIM1#

 1
69297 - BEZEL, DOOR INSIDE HANDLE, NO.2 RH
69297-36030B0

HZB70,TRB60,70,XZB70..GCC,TAIW

LT.GRAY,TRIM1#

 1
69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE
69302-36050B1

HZB70,TRB60,70,XZB70..GCC,TAIW

LT.GRAY,TRIM1#

 1
69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE
69303-36021

XZB70..TAIW

 1
69303-36010

XZB70..TAIW

 1
69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK
69405-90B00

XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW)

 1
Common parts
67771-58010
90179-05172
90179-06266
90467-10161
91631-40614
91653-A0616
93269-25010
Linked diagrams
8401

(1801-1908)LHD

Click highlighted areas on diagram

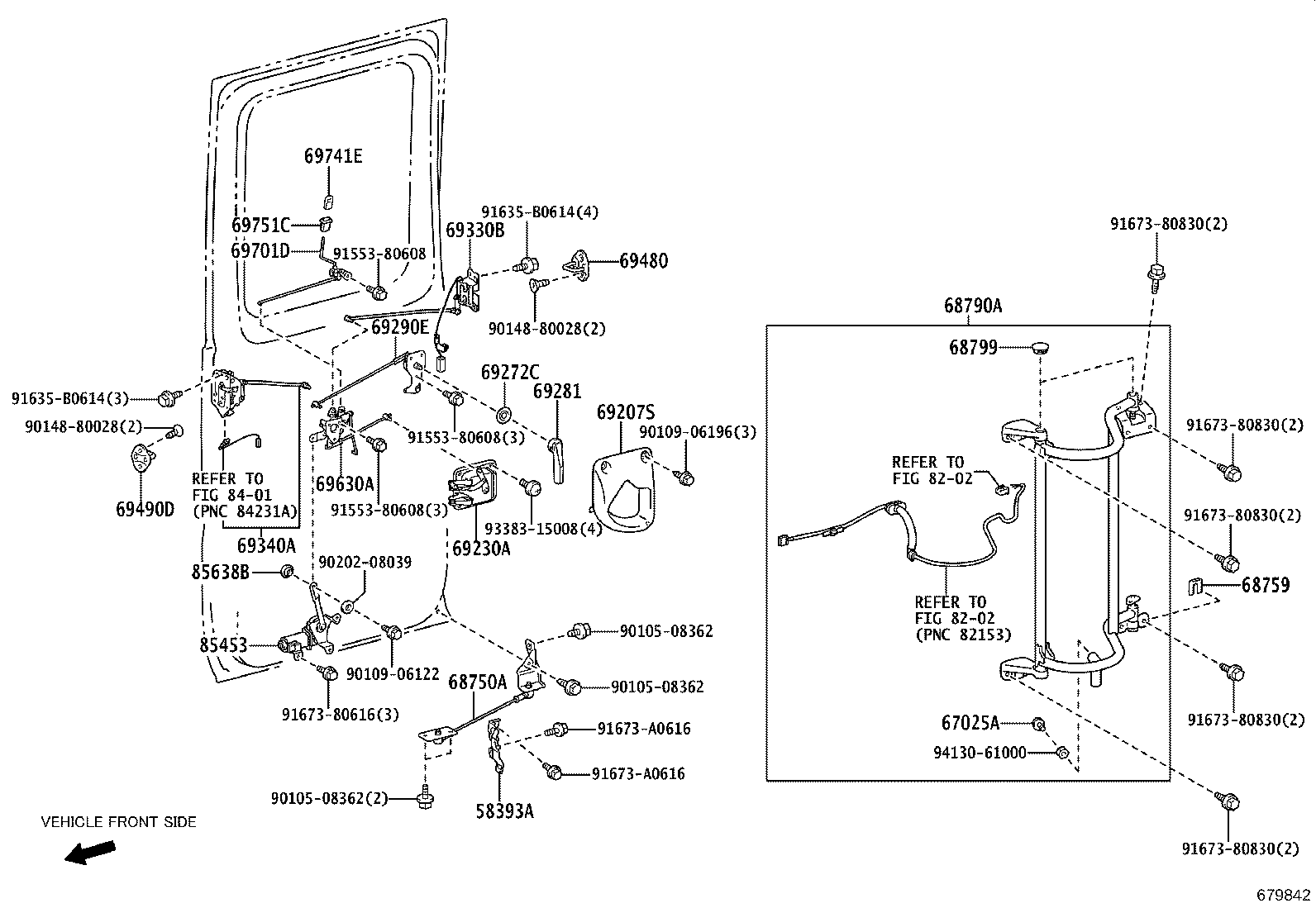

GLIDE DOOR

diagram 58393A 67025A 68750A 68759 68790A 68799 69207S 69230A 69272C 69281 69290E 69330B 69340A 69480 69490D 69630A 69701D 69741E 69751C 8202 8202 8401 85453 85638B 9010508362 9010508362 9010508362 9010906122 9010906196 9014880028 9014880028 9020208039 9155380608 9155380608 9155380608 91635B0614 91635B0614 9167380616 9167380830 9167380830 9167380830 9167380830 9167380830 91673A0616 91673A0616 9338315008 9413061000
Part # Description Qty Price
Common parts
90105-08362
90109-06122
90109-06196
90148-80028
90202-08039
91553-80608
91635-B0614
91673-80616
91673-80830
91673-A0616
93383-15008
94130-61000
Linked diagrams
8202
8401

(1908- )LHD

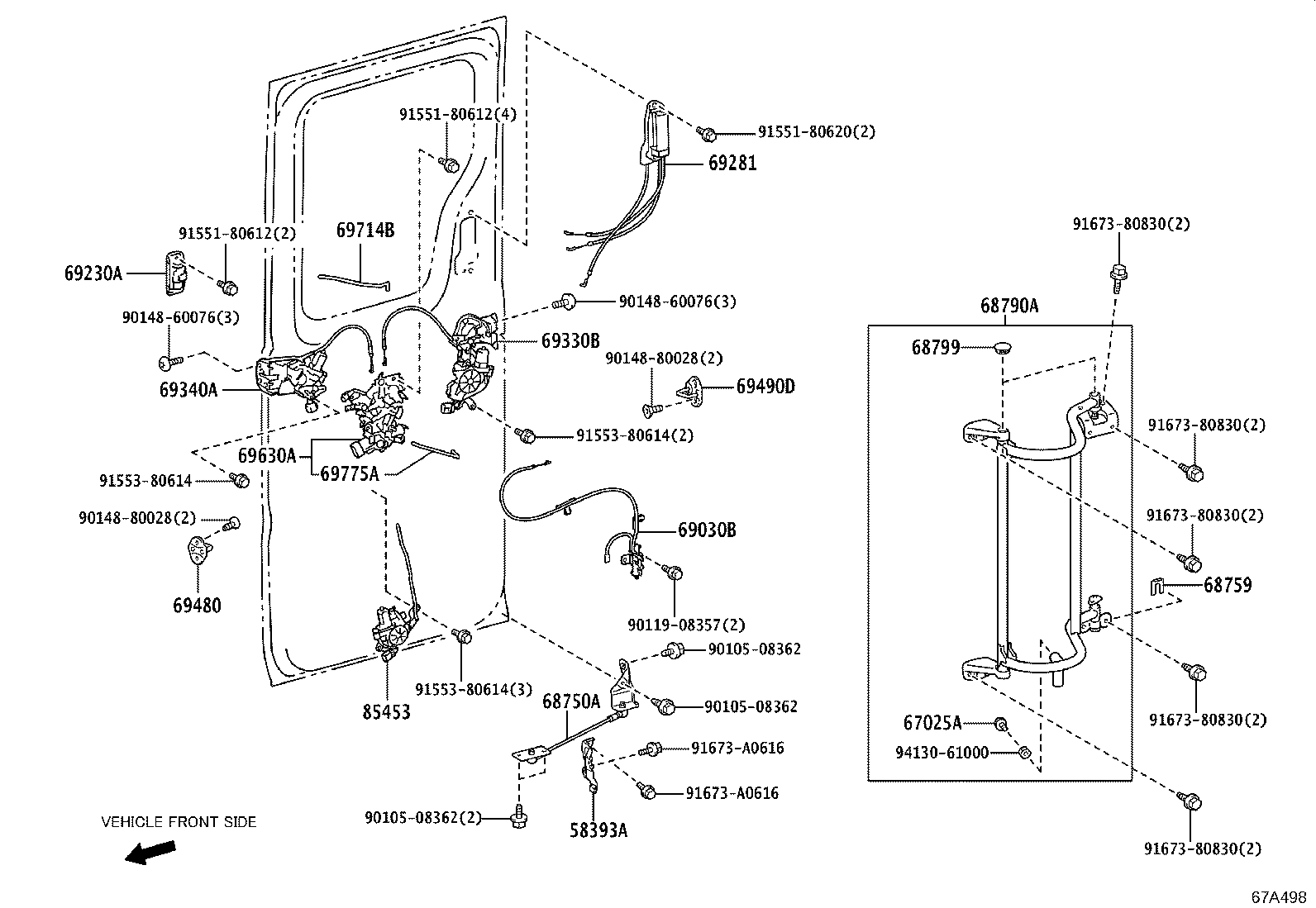

Click highlighted areas on diagram

GLIDE DOOR, W(AUTO DOOR)

diagram 58393A 67025A 68750A 68759 68790A 68799 69030B 69230A 69281 69330B 69340A 69480 69490D 69630A 69714B 69775A 85453 9010508362 9010508362 9010508362 9011908357 9014860076 9014860076 9014880028 9014880028 9155180612 9155180612 9155180620 9155380614 9155380614 9155380614 9167380830 9167380830 9167380830 9167380830 9167380830 91673A0616 91673A0616 9413061000
Part # Description Qty Price
Common parts
90105-08362
90119-08357
90148-60076
90148-80028
91551-80612
91551-80620
91553-80614
91673-80830
91673-A0616
94130-61000
