XZB70L-ZEMSYR (2017)
Toyota Coaster
ILLUST NO. 1 OF 2(1701- )BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70

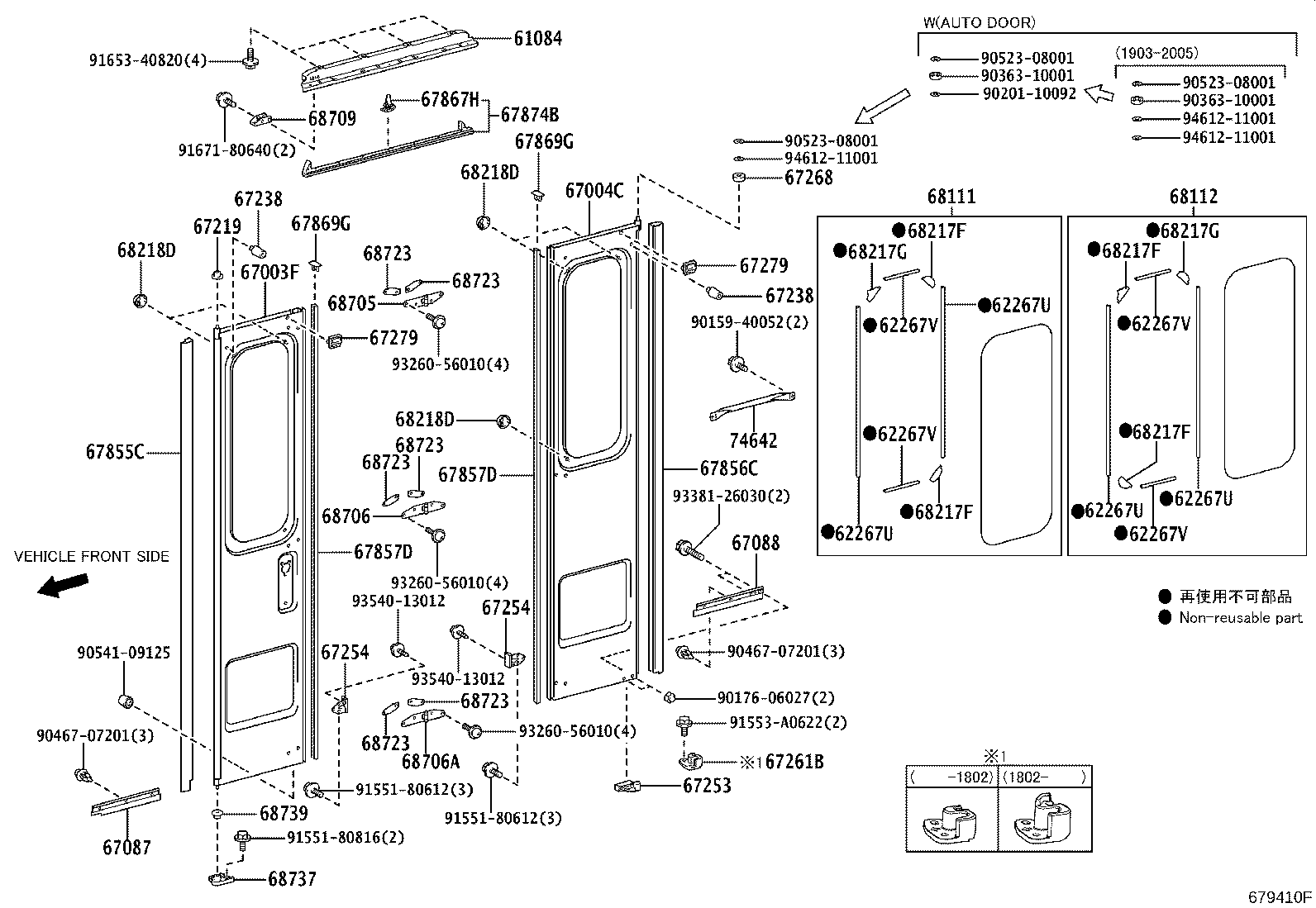

FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61084 - RAIL SUB-ASSY, CENTER DOOR | ||||
| 61074-36020 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 61074-36030 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267V - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36090 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267V - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36090 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267V - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36090 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 62267V - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36090 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 67003F - PANEL SUB-ASSY, CENTER DOOR, FRONT | ||||
| 67003-36460 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 67003-36430 |
XZB70..TAIW |
1 | ||
| 67003-36530 |
XZB70..TAIW |
1 | ||
| 67004C - PANEL SUB-ASSY, CENTER DOOR, REAR | ||||
| 67004-36140 |
XZB70..TAIW |
1 | ||
| 67004-36180 |
XZB70..TAIW |
1 | ||
| 67087 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, FRONT | ||||
| 67897-36050 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 67088 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, REAR | ||||
| 67898-36060 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 67219 - BUSH, CENTER DOOR UPPER BEARING CASE | ||||
| 67219-90501 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 67238 - CUSHION, CENTER DOOR | ||||
| 67897-36030 |
XZB70..TAIW |
2 | ||
| 67897-36060 |
XZB70..TAIW |
2 | ||
| 67238 - CUSHION, CENTER DOOR | ||||
| 67897-36030 |
XZB70..TAIW |
2 | ||
| 67897-36060 |
XZB70..TAIW |
2 | ||
| 67253 - PIECE, CENTER DOOR GUIDE | ||||
| 67253-36060 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67261B - CASE, CENTER DOOR GUIDE | ||||
| 67261-36040 |
BB60,HZB70,TRB60,70,XZB60,70..LHD |
1 | ||
| 67261-36041 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 67279 - CUSHION, CENTER DOOR GUIDE | ||||
| 67279-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67279 - CUSHION, CENTER DOOR GUIDE | ||||
| 67279-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67855C - WEATHERSTRIP, CENTER DOOR FRONT | ||||
| 67855-36070 |
BB60,HZB70,TRB60,70,XZB60,70..LHD |
1 | ||
| 67855-36071 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 67856C - WEATHERSTRIP, CENTER DOOR, REAR | ||||
| 67856-36070 |
BB60,HZB70,TRB60,70,XZB60,70..LHD |
1 | ||
| 67856-36071 |
BB60,HZB70,TRB60,70,XZB60,70..LHD |
1 | ||
| 67856-36072 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36040 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36040 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50130 |
HZB60,70,TRB60,70,XZB70..LHD |
8 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 67874B - WEATHERSTRIP, CENTER DOOR, UPPER NO.2 | ||||
| 67874-36040 |
BB60,HZB70,TRB60,70,XZB70..LHD |
1 | ||
| 67874-36041 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68111 - GLASS, CENTER DOOR | ||||
| 62202-36020 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 68112 - GLASS, CENTER DOOR, NO.2 | ||||
| 62202-36030 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 62202-36040 |
XZB70..TAIW |
1 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217G - PIN, CENTER DOOR FIX WINDOW, NO.2 | ||||
| 68217-36170 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 68217G - PIN, CENTER DOOR FIX WINDOW, NO.2 | ||||
| 68217-36170 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 68218D - BUSH, CENTER DOOR FIX WINDOW | ||||
| 68218-36031B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
5 | ||
| 68218D - BUSH, CENTER DOOR FIX WINDOW | ||||
| 68218-36031B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
5 | ||
| 68218D - BUSH, CENTER DOOR FIX WINDOW | ||||
| 68218-36031B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
5 | ||
| 68705 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68706-36010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68706 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68705-36010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68706A - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68705-90B01 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68709 - CASE SUB-ASSY, CENTER DOOR UPPER BEARING | ||||
| 68709-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68723 - PAD, DOOR UPPER HINGE | ||||
| 68723-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 68737 - CASE, CENTER DOOR LOWER BEARING | ||||
| 68737-36040 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68739 - BALL, CENTER DOOR LOWER BEARING | ||||
| 68739-90B01 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 74642 - GRIP, GLIDE DOOR ASSIST | ||||
| 74642-90B00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 90159-40052 | ||||
| 90176-06027 | ||||
| 90201-10092 | ||||
| 90363-10001 | ||||
| 90467-07201 | ||||
| 90523-08001 | ||||
| 90541-09125 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91553-A0622 | ||||
| 91653-40820 | ||||
| 91671-80640 | ||||
| 93260-56010 | ||||
| 93381-26030 | ||||
| 93540-13012 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 2(1701- )BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70

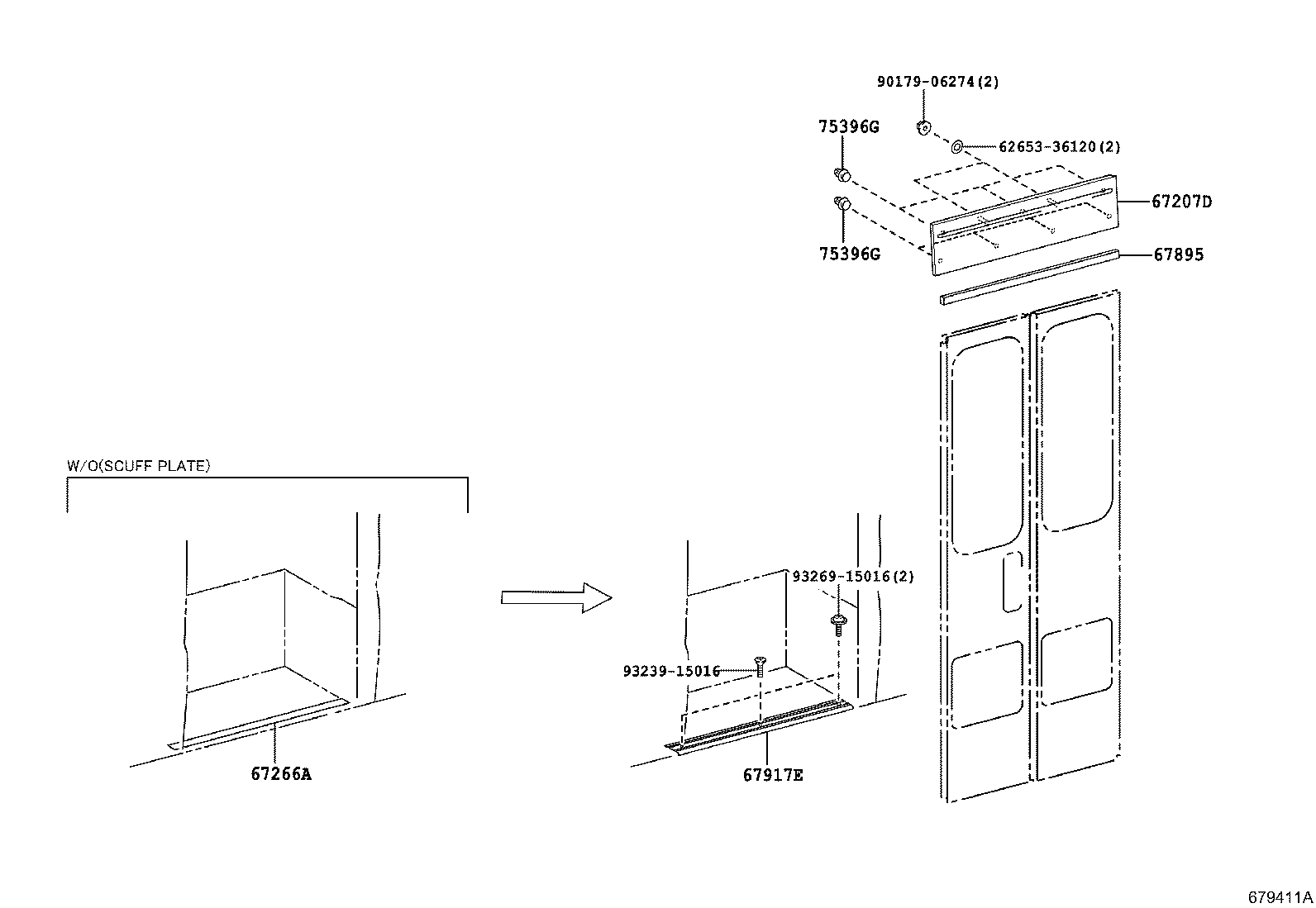

CENTER DOOR COVER & SCUFF PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67207D - COVER SUB-ASSY, CENTER DOOR, OUTER | ||||
| 67207-36900 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 67895 - SEAL, CENTER DOOR DUST | ||||
| 67895-36020 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 75396G - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
7 | ||
| 75396G - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
7 | ||
| Common parts | ||||
| 62653-36120 | ||||
| 90179-06274 | ||||
| 93239-15016 | ||||
| 93269-15016 | ||||
(1801- )BB60,HZB70,TRB60,70,XZB60,70..LHD

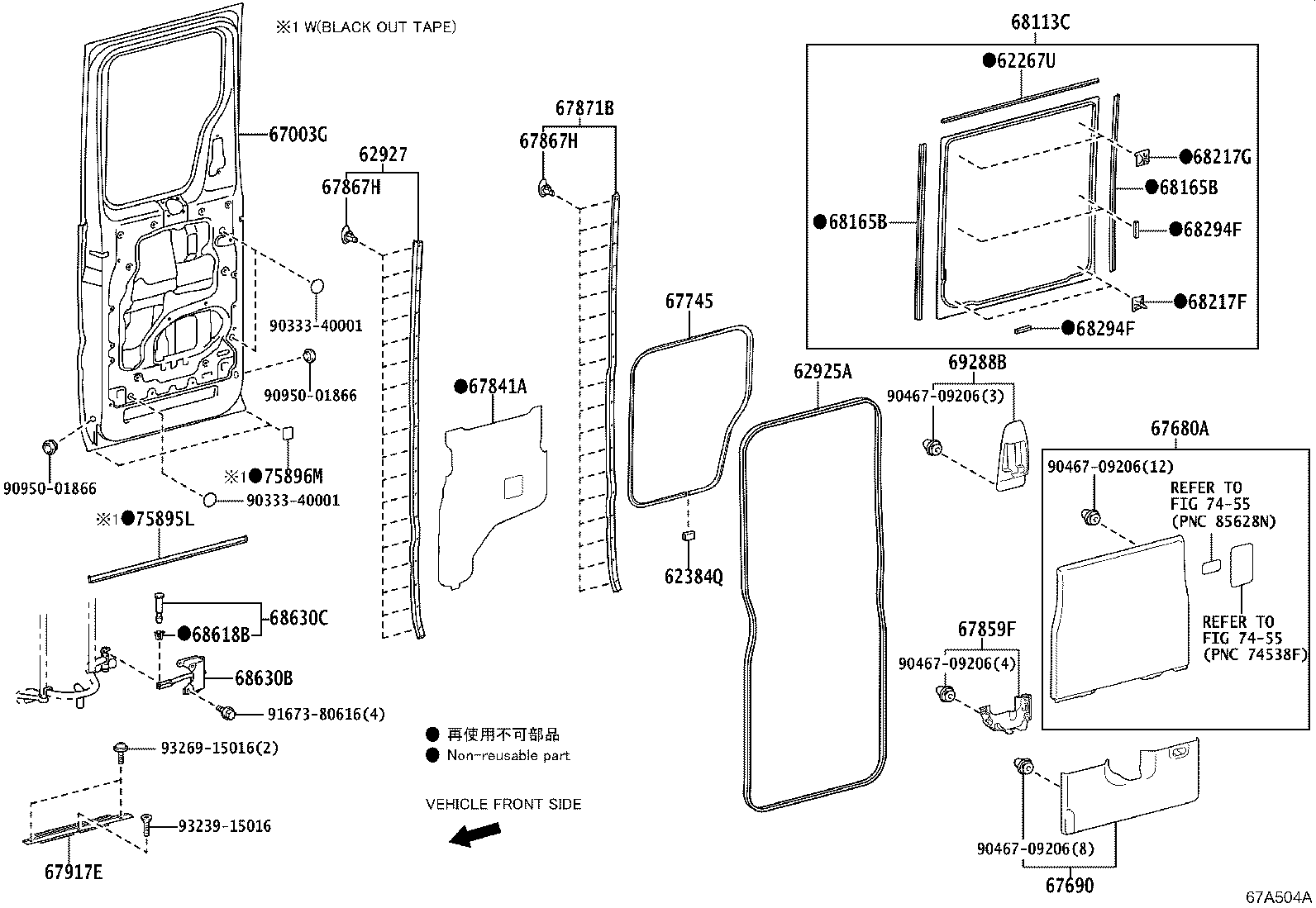

GLIDE DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50130 |
HZB60,70,TRB60,70,XZB70..LHD |
8 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50130 |
HZB60,70,TRB60,70,XZB70..LHD |
8 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217G - PIN, CENTER DOOR FIX WINDOW, NO.2 | ||||
| 68217-36170 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| Common parts | ||||
| 90333-40001 | ||||
| 90467-09206 | ||||
| 90950-01866 | ||||
| 91673-80616 | ||||
| 93239-15016 | ||||
| 93269-15016 | ||||
(1908- )LHD

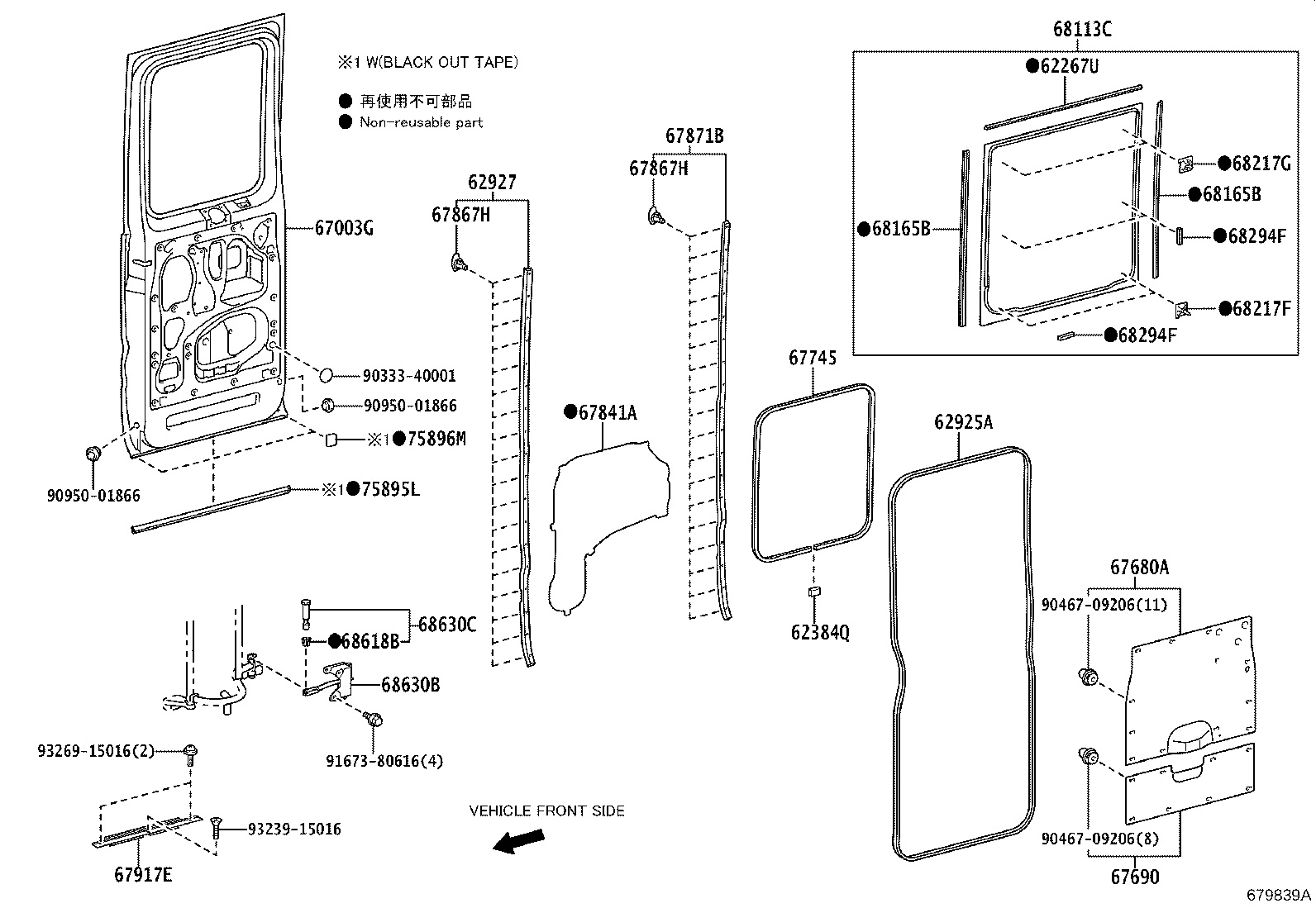

GLIDE DOOR, W(AUTO DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62267U - DAM, SIDE WINDOW ADHESIVE | ||||
| 62267-36080 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50130 |
HZB60,70,TRB60,70,XZB70..LHD |
8 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50130 |
HZB60,70,TRB60,70,XZB70..LHD |
8 | ||
| 68217F - PIN, CENTER DOOR FIX WINDOW, NO.1 | ||||
| 68217-36160 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
4 | ||
| 68217G - PIN, CENTER DOOR FIX WINDOW, NO.2 | ||||
| 68217-36170 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| Common parts | ||||
| 90333-40001 | ||||
| 90467-09206 | ||||
| 90950-01866 | ||||
| 91673-80616 | ||||
| 93239-15016 | ||||
| 93269-15016 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
