XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

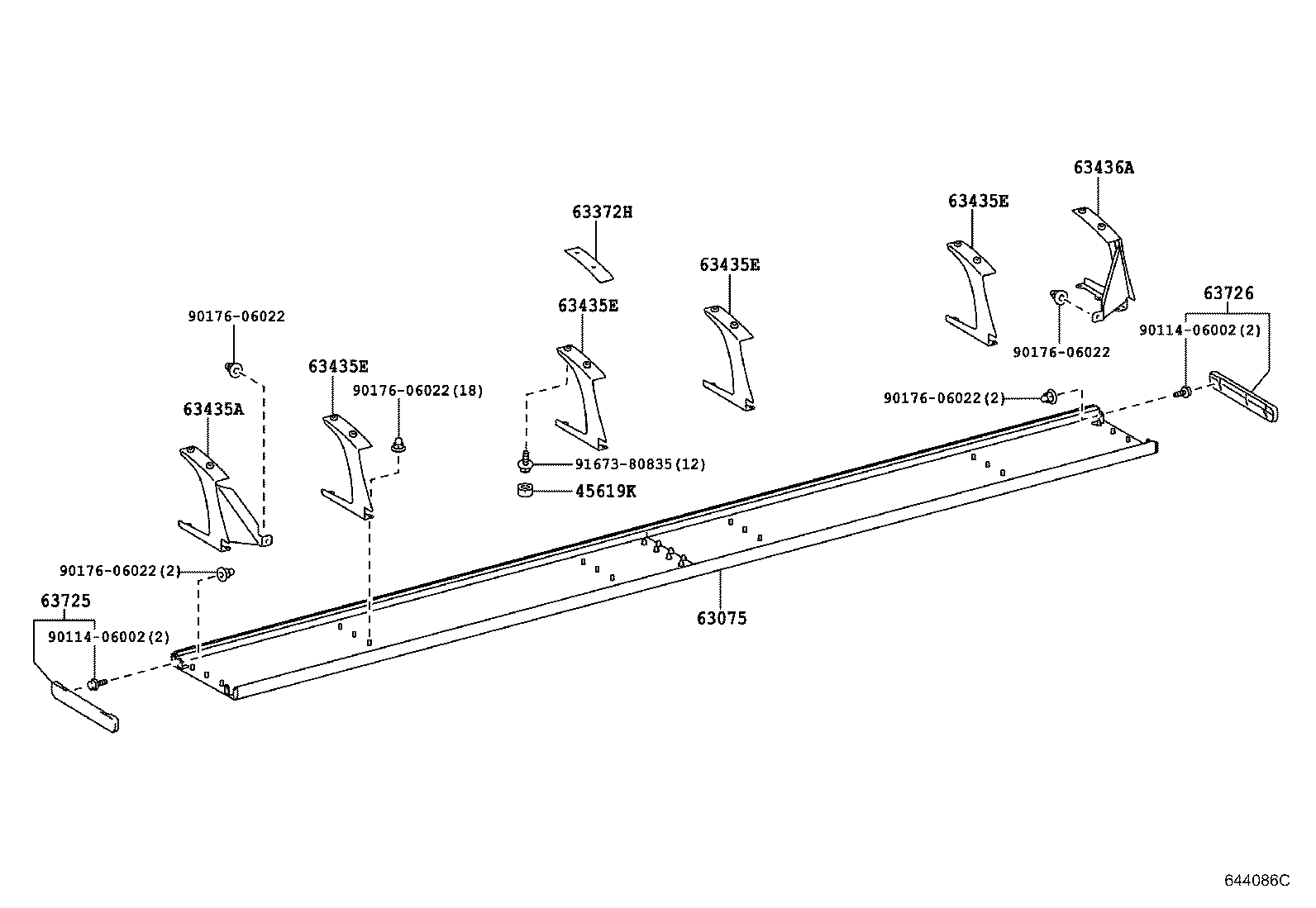

ILLUST NO. 1 OF 2(1701-1908)LHD..02S,19S,23S,25S,29S,30S

Click highlighted areas on diagram

ROOM RACK

diagram 45619K 63075 63372H 63435A 63435E 63435E 63435E 63435E 63436A 63725 63726 9011406002 9011406002 9017606022 9017606022 9017606022 9017606022 9017606022 9167380835
Part # Description Qty Price
45619K - COVER, KNUCKLE STOPPER
45619-14010

BZB70,HZB70,TRB70,XZB70..WC

PARCEL RACK-WITH

 12
45619-36040

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC..(GCC,GEN,TAIW)

PARCEL RACK-WITH

 12
63075 - COVER SUB-ASSY, ROOM RACK
63075-36120B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63075-36150B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..4FC;XZB70..23S..DX;BZB70,HZB70,TRB60,70..WC;XZB70..5F..(EX,STD)..WC..(ARL,GCC,GEN)

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 2
63372-36070B0

BZB60,XZB60,70..02S,17S

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435A - FRAME, ROOM RACK, NO.1
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 1
63402-36090B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63436A - FRAME, ROOM RACK, NO.2
63402-36080B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435-36170

XZB70..TAIW

PARCEL RACK-WITH

 1
63725 - PLATE, ROOM RACK COVER, FRONT
63726-36010B1

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63726 - PLATE, ROOM RACK COVER, REAR
63725-36010B1

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
Common parts
90114-06002
90176-06022
91673-80835

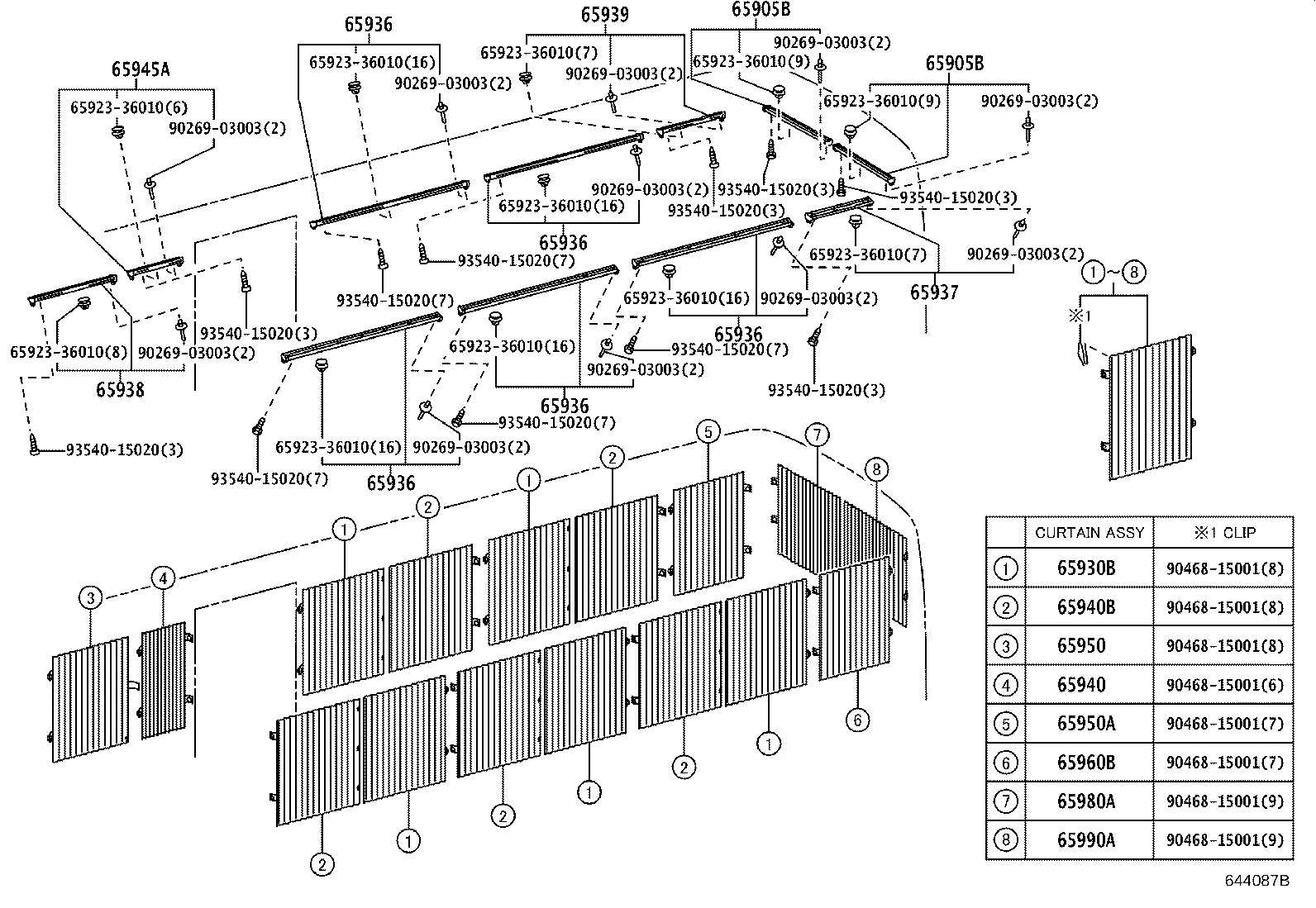

ILLUST NO. 2 OF 2(1701- )LHD..02S,19S,23S,25S,29S,30S

Click highlighted areas on diagram

CURTAIN

diagram 65905B 65905B 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 6592336010 65930B 65936 65936 65936 65936 65936 65937 65938 65939 65940 65940B 65945A 65950 65950A 65960B 65980A 65990A 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9046815001 9046815001 9046815001 9046815001 9046815001 9046815001 9046815001 9046815001 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020 9354015020
Part # Description Qty Price
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-36060B1

HZB60,70,TRB70..WC;XZB70..DX..(ARL,GCC);TRB60,XZB70..STD..GCC;XZB70..(23S,25S,29S)..WC..GEN

SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LIGHT GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 5
65936 - RAIL, CURTAIN, NO.1
65096-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 5
65937 - RAIL, CURTAIN, NO.2
65099-36020B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
65099-36040B0

HZB70,TRB70..WC;XZB70..LHD..STD..WC;XZB70..(20S,23S)..(5F,6FC)..(DX,EX)..(GCC,GEN)

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
65938 - RAIL, CURTAIN, NO.3
65098-36050B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
65939 - RAIL, CURTAIN, NO.4
65099-36010B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
65099-36030B0

HZB70,TRB70..WC;XZB70..LHD..STD..WC;XZB70..(20S,23S)..(5F,6FC)..(DX,EX)..(GCC,GEN)

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-36070B1

HZB60,70,TRB70..WC;XZB70..DX..(ARL,GCC);TRB60,XZB70..STD..GCC;XZB70..(23S,25S,29S)..WC..GEN

SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LIGHT GRAY,TRIM1#

 5
65945A - RAIL, CURTAIN, NO.5
65098-36040B0

XZB70..TAIW

SIDE WINDOW CURTAIN-ONLY CURTAIN RAIL(FRONT & REAR),LT.GRAY,TRIM1#

 1
Common parts
65923-36010
90269-03003
90468-15001
93540-15020

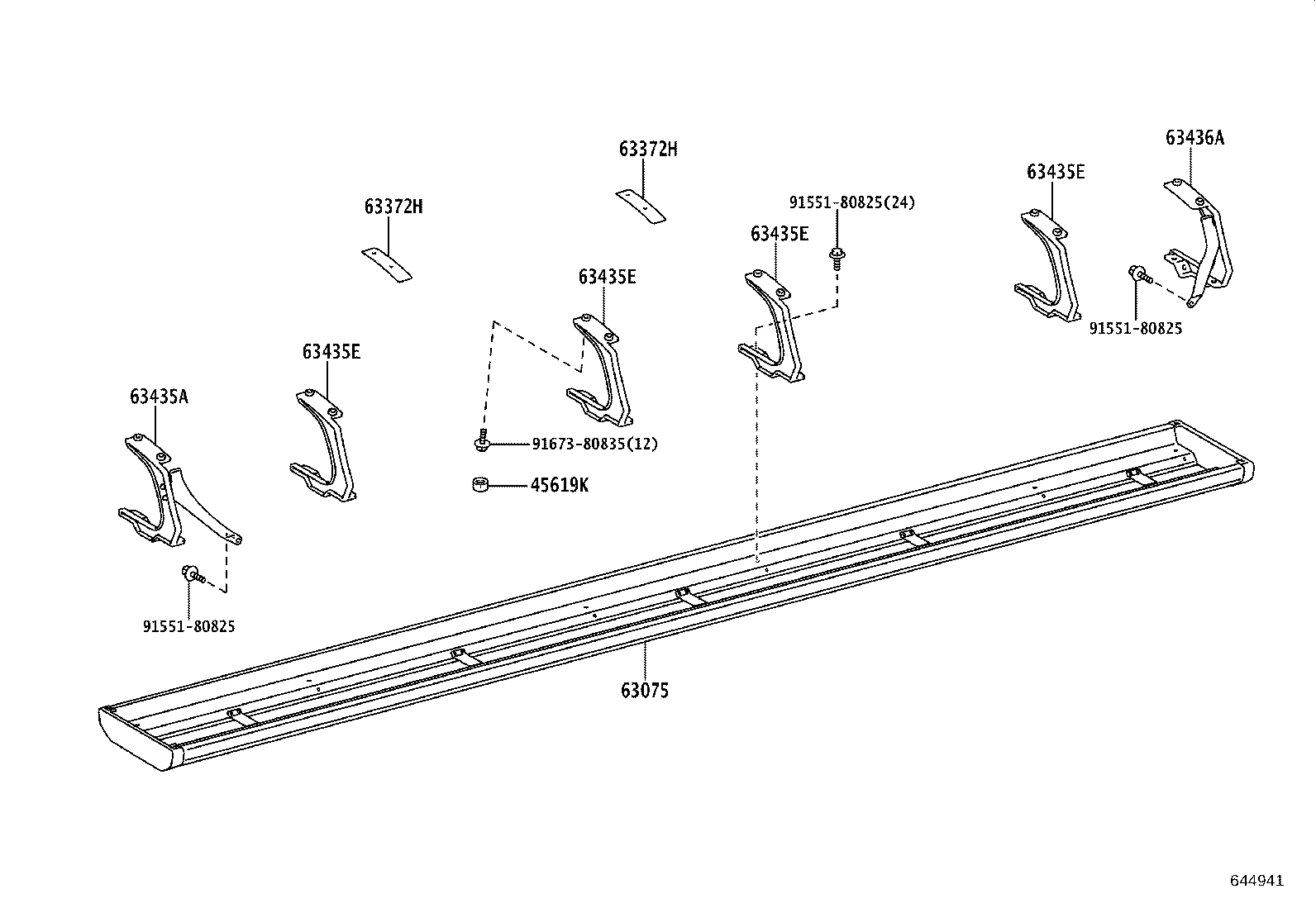

ILLUST NO. 1 OF 2(1908- )HZB70,TRB70,XZB70..LHD..WC

Click highlighted areas on diagram

ROOM RACK

diagram 45619K 63075 63372H 63372H 63435A 63435E 63435E 63435E 63435E 63436A 9155180825 9155180825 9155180825 9167380835
Part # Description Qty Price
45619K - COVER, KNUCKLE STOPPER
45619-14010

BZB70,HZB70,TRB70,XZB70..WC

PARCEL RACK-WITH

 12
45619-36040

XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC)..WC..(GCC,GEN,TAIW)

PARCEL RACK-WITH

 12
63075 - COVER SUB-ASSY, ROOM RACK
63075-36120B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63075-36150B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..4FC;XZB70..23S..DX;BZB70,HZB70,TRB60,70..WC;XZB70..5F..(EX,STD)..WC..(ARL,GCC,GEN)

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 2
63372-36070B0

BZB60,XZB60,70..02S,17S

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372H - MOULDING, ROOF BOARD SET
63372-36070B0

XZB70..4FC;XZB70..23S..DX;BZB70,HZB70,TRB60,70..WC;XZB70..5F..(EX,STD)..WC..(ARL,GCC,GEN)

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63372-36070B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 2
63372-36070B0

BZB60,XZB60,70..02S,17S

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435A - FRAME, ROOM RACK, NO.1
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 1
63402-36090B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63435E - FRAME, ROOM RACK, NO.1
63435-36110B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 4
63435-36130

XZB70..TAIW

PARCEL RACK-WITH

 4
63436A - FRAME, ROOM RACK, NO.2
63402-36080B0

XZB70..TAIW

PARCEL RACK-WITH,LT.GRAY,TRIM1#

 1
63435-36170

XZB70..TAIW

PARCEL RACK-WITH

 1
Common parts
91551-80825
91673-80835
